Introduction:
General:

• The RAPIER W700E is an electric walking dragline built to a modular design
  which facilitates dismantling, highway transport and rC3-erection when changing
  sites.
• The machine consists basically of a base and a rotate frame with hoist, drag and
  swing gear, walk mechanism, boom and bucket.

BASE:
The base is a circular structure which provides the machine with a large loadbear
ing surface. The base centre post is the axis of the rotate frame and transmits
the drag force to the base when digging.
ROTATE FRAME:
The rotate frame, which carries the boom, machinery and operator1s cab, is supported on a roller ring assembly on the base.
DRIVES:

• The machine is powered by a motor-generator set.
• The motor drives the hoist and drag drums (when operating in the DIG mode) via
  a torque converter, transmission gearbox, and the drum gears and clutches.
  A dog-clutch on thehoist drum shaft transmits the drive to the walk shaft (when
  operating in the WALK mode) via a train of gears; eccentrics at each end of the
  walk shaft impart the walk motion to the two walk legs and shoes.
• The torque converter incorporates a modul ated cl utch, providing the operatQr
  with a precise and continuously variable control of speed.
• The d. c. generator powers the two reversible swing motors which drive the
  swing pinions via reduction gearboxes. The swing pinions engage a circular
  rack on the machine base and so impart swing motion to the rotate frame.
  Con.trol circuitry provides the operator with precise and continuously variable
  control of swing speed in either direction, while dynamic braking brings the
  rotate frame rap idl y to rest when the operator’s control is returned to neutral.
• A transformer provides a 3-phase supply for the cooling fan motors, pumps,
  etc; a single phase supply, derived from this 3-phase supply, energizes the
  a. c. control circuits.

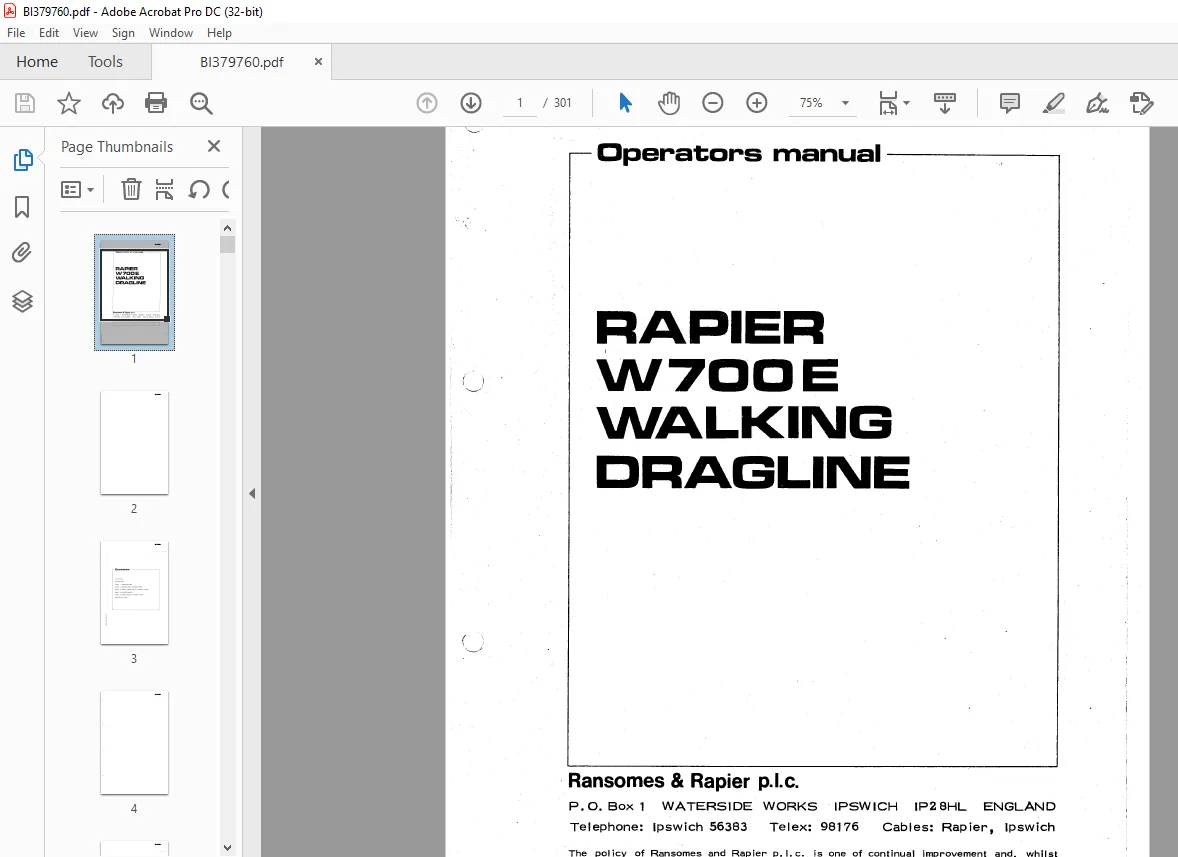

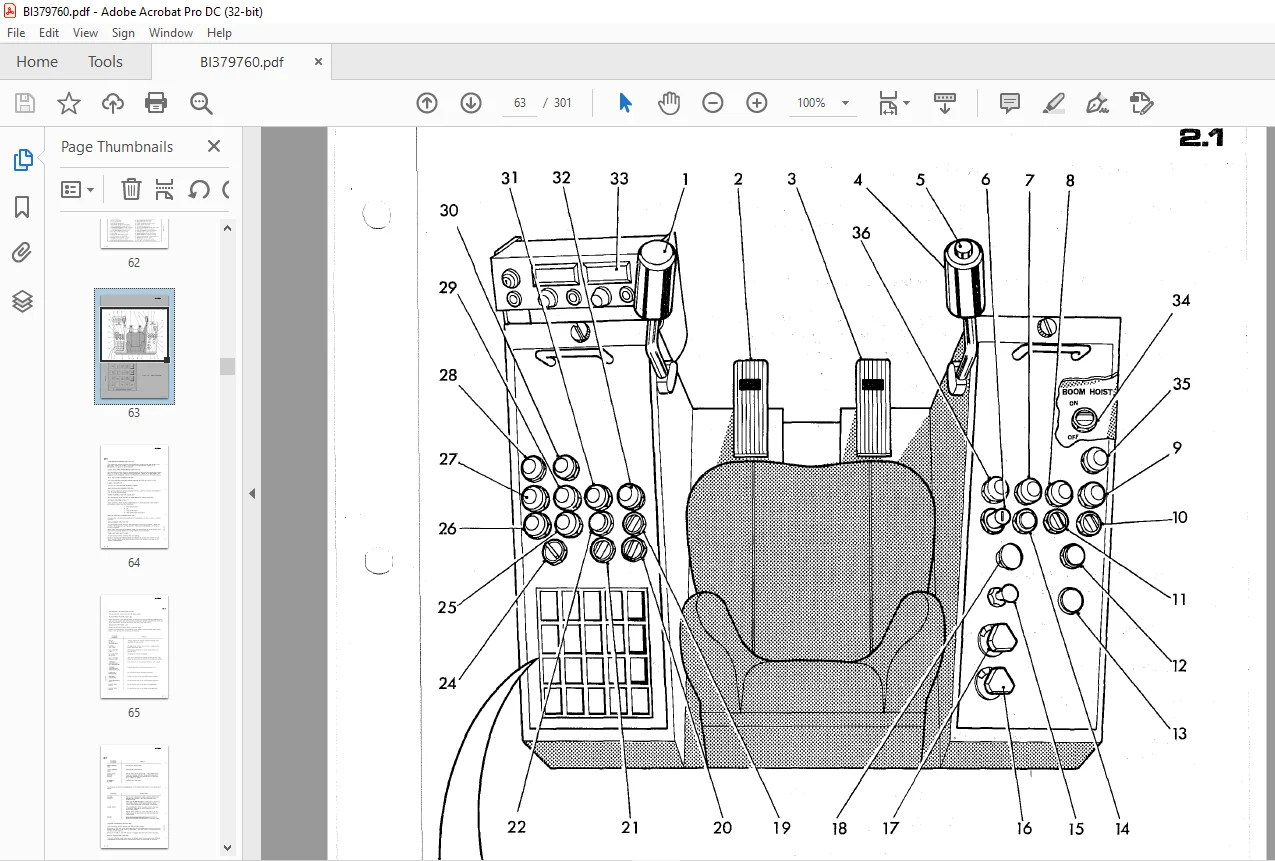

IMAGES PREVIEW OF THE MANUAL:

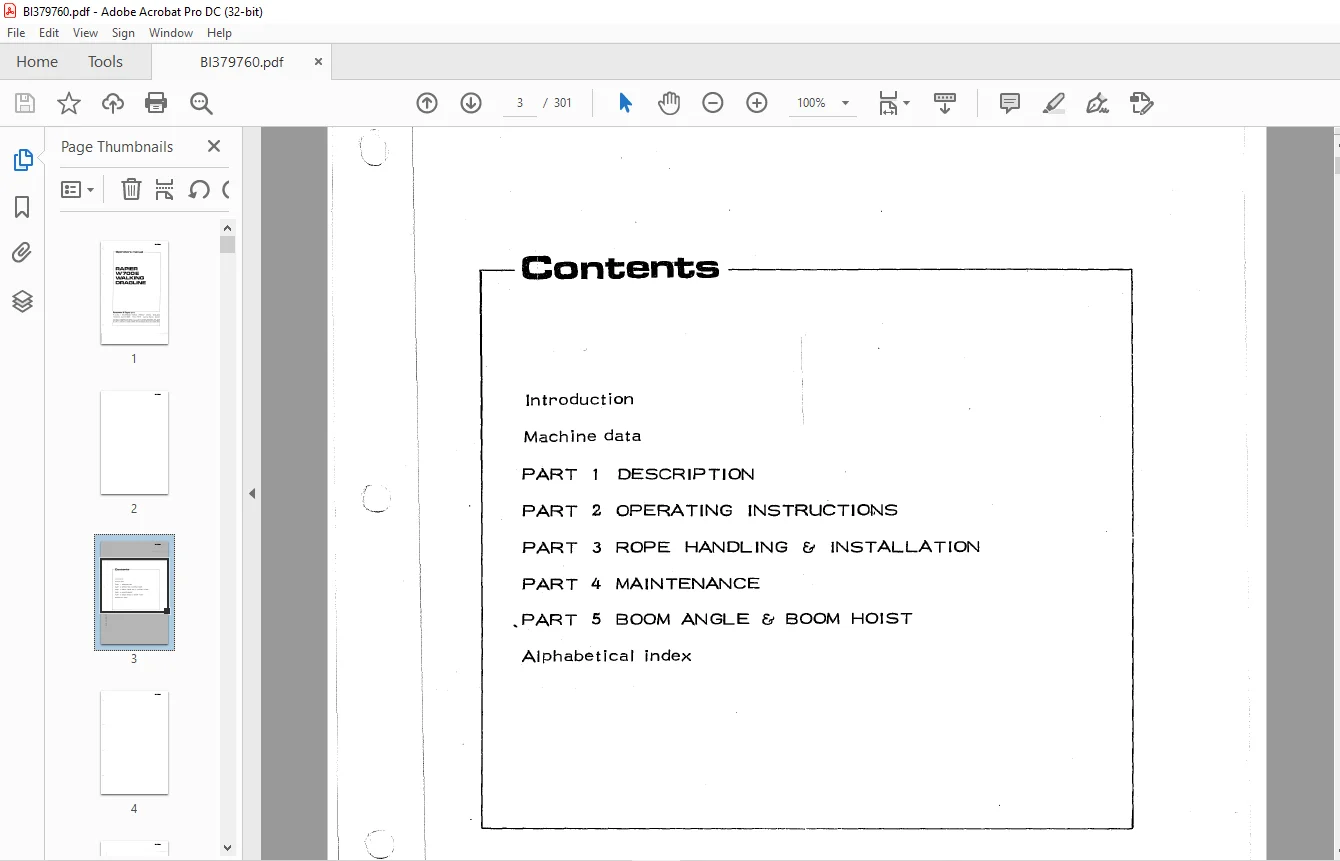

TABLE OF CONTENTS:

Cat Bucyrus Rapier W700E Walking Dragline Operators Manual BI379760 – PDF DOWNLOAD

Introduction
Machine data
PART DESCRIPTION
PART 2 OPERATING INSTRUCTIONS
PART 3 ROPE HANDLING &I INSTALLATION
PART 4 MAINTENANCE
.PART 5 BOOM ANGLE &I BOOM HOIST
Alphabetical index
