DESCRIPTION:

Cat Bucyrus RH 340 Hydraulic Excavator OPERATING INSTRUCTIONS MANUAL BI651459 – PDF DOWNLOAD

OPERATING INSTRUCTIONS RH 340
Introduction
PREFACE

• These operating instructions are designed to familiarize the operator with the machine and its designated use. The operating instructions contain important information on how to operate the machine safely, properly and with maximum efficiency. Observing these instructions helps to prevent hazardous situations, to reduce repair costs and downtimes and to increase the reliability and service life of the machine.
• The operating instructions must be supplemented by the respective national rules and regulations for accident prevention and environmental protection. The operating instructions must always be available in the driver’s cab of the machine. The operating instructions must be read and put into practice by any person in charge of carrying out work with or on the machine, such as

• In addition to the operating instructions and the mandatory rules and regulations for accident prevention and environmental protection in the user’s country and at the place where the machine is to be used, the generally recognized technical rules for safe and proper working must be observed 1 The operating instructions are directed to the construction-
• machine specialist.
• They cannot provide basic know-how. This can be acquired, for example, in several days’ instruction by a qualified GERMANY Germany mechanic or by attending an Terex|O&K training course for operators or maintenance personnel. The Terex|O&K after-sales service will be pleased to deal with any queries you may have after reading through the operating instructions.
• 1 Complies with VDMA recommendation “Operating instructions” All Terex|O&K operating manuals are issued in German and then translated. Even a good translation may give rise to questions which Terex|O&K will be pleased to answer. The operating instructions are not work instructions for carrying out major repairs. Such work is willingly done for you by the Terex|O&K aftersales service.
• The documentation relating to the machine is listed according to scope, quantity and language in the shipping note of the machine or in the covering letter if supplied separately. The operating instructions and spare-parts list are marked with the serial number of the machine. On taking receipt of the consignment, please check that the documentation is complete and in the language requested by you

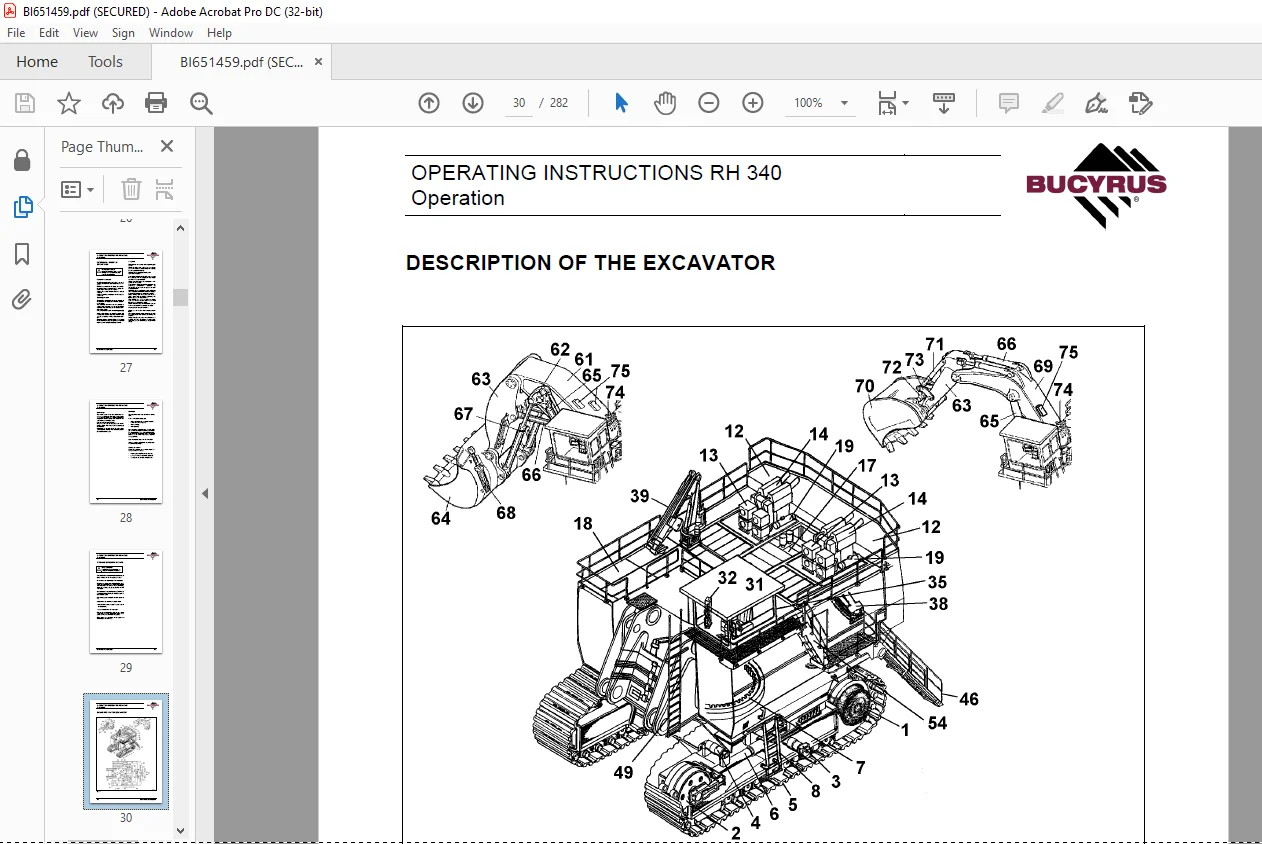

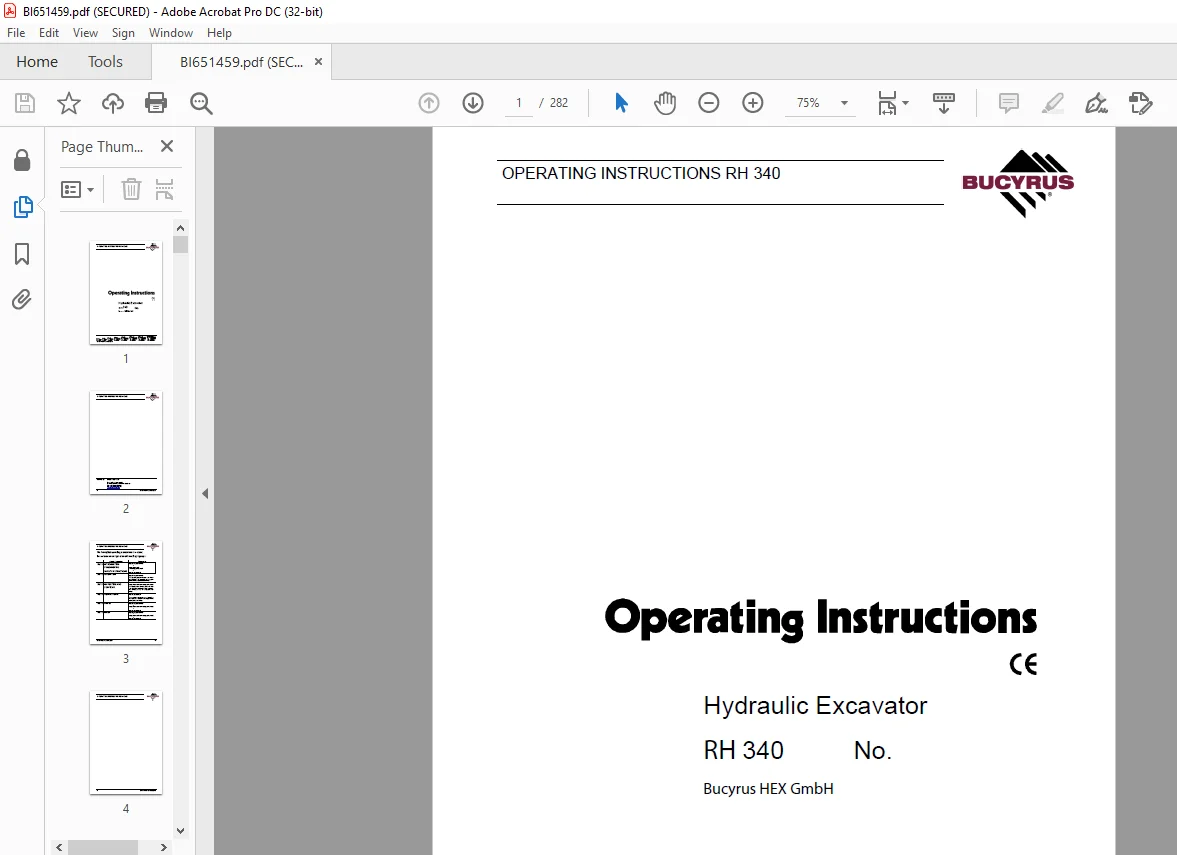

IMAGES PREVIEW OF THE MANUAL:

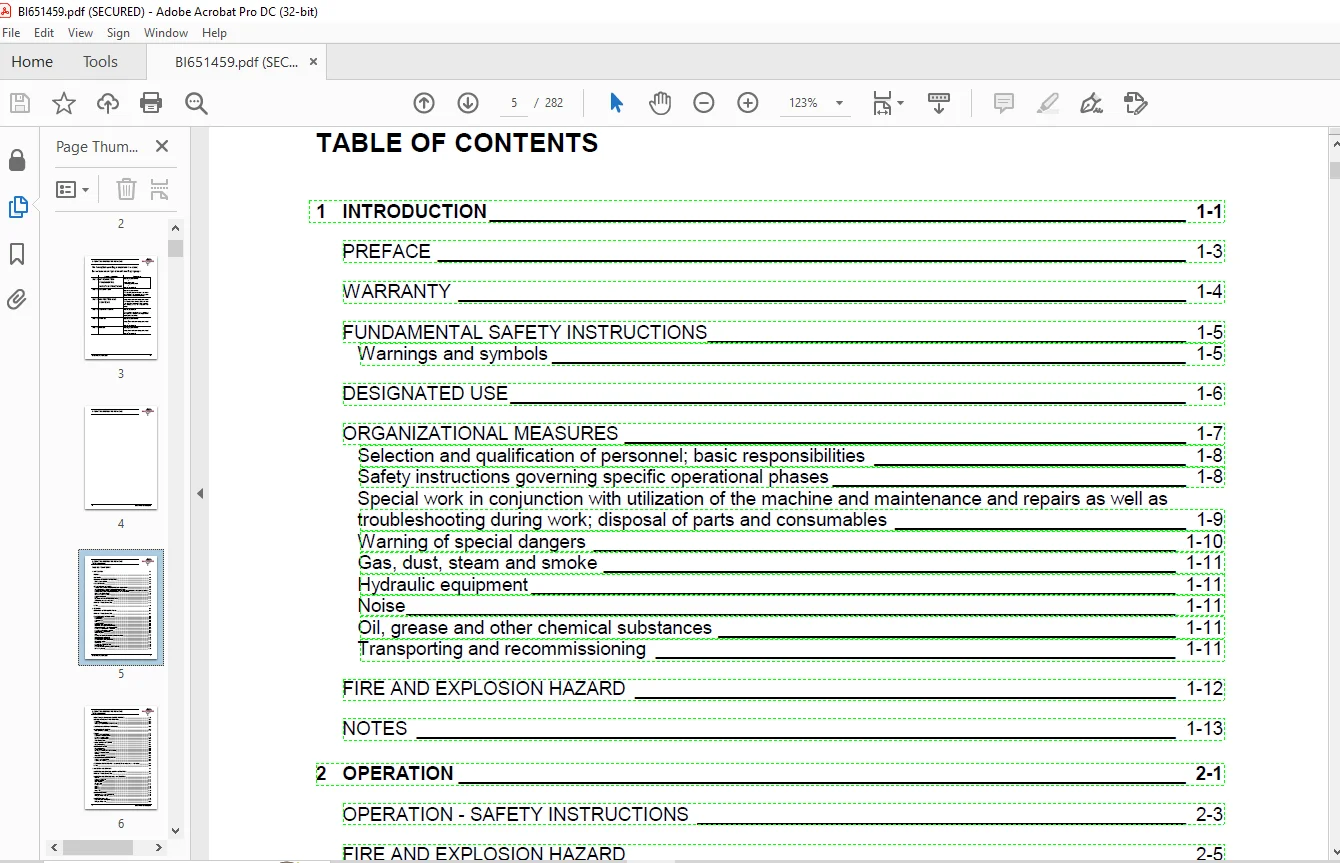

TABLE OF CONTENTS:

Cat Bucyrus RH 340 Hydraulic Excavator OPERATING INSTRUCTIONS MANUAL BI651459 – PDF DOWNLOAD

TABLE OF CONTENTS.....................................................  5
INTRODUCTION.......................................................... 11
	PREFACE........................................................... 13
	WARRANTY.......................................................... 14
	FUNDAMENTAL SAFETY INSTRUCTIONS................................... 15
	DESIGNATED USE.................................................... 16
	ORGANIZATIONAL MEASURES........................................... 17
	FIRE AND EXPLOSION HAZARD......................................... 22
	NOTES............................................................. 23
OPERATION............................................................. 25
	OPERATION - SAFETY INSTRUCTIONS................................... 27
	FIRE AND EXPLOSION HAZARD......................................... 29
	DESCRIPTION OF THE EXCAVATOR...................................... 30
	MONITORING, WARNING AND CONTROL ELEMENTS.......................... 50
	PUTTING THE MACHINE INTO OPERATION................................ 83
	STARTING AND STOPPING THE ENGINES................................. 90
	AIR CONDITIONER (OPTION).......................................... 93
	DRIVING........................................................... 97
	TRANSPORTING THE MACHINE..........................................105
	WORKING OPERATION.................................................106
	ASSEMBLING WORKING EQUIPMENT......................................111
	CORROSION PROTECTION FOR PINS AND BEARINGS (BUSHINGS AND HUBS)....114
	NOTES.............................................................115
INSPECTION AND SERVICING..............................................117
	INSPECTION AND SERVICING - SAFETY INSTRUCTIONS....................119
	FIRE AND EXPLOSION HAZARD.........................................125
	INSPECTION AND SERVICING PLANS - INSTRUCTIONS.....................127
	LUBRICATING CHART.................................................142
	INSPECTION PLAN - OIL.............................................144
	LUBRICANTS........................................................147
	SERVICING WORK....................................................153
	ENGINE............................................................154
	COOLING SYSTEM....................................................164
	AIR-INTAKE SYSTEM.................................................170
	FUEL SYSTEM.......................................................174
	ELECTRICAL SYSTEM.................................................179
	HYDRAULIC SYSTEM..................................................184
	PUMP TRANSFER GEARBOX.............................................204
	SLEWING GEARBOX...................................................209
	TRAVEL GAERBOX....................................................211
	SLEWING RING......................................................217
	CENTRAL LUBRICATING...............................................219
	OTHER MAINTENANCE.................................................228
	LADDER (OPTIONAL).................................................230
	ON-BOARD CRANE (OPTIONAL).........................................232
	PUTTING THE EXCAVATOR OUT OF OPERATION AND RECOMMISSIONING........234
	NOTES.............................................................237
REPAIR WORK...........................................................239
	REPAIR WORK - SAFETY INSTRUCTIONS.................................241
	FIRE AND EXPLOSION HAZARD.........................................243
	ENGINE............................................................244
	ELECTRICAL SYSTEM.................................................245
	HYDRAULIC SYSTEM..................................................248
	PRESSURE ACCUMULATORS - SAFETY INSTRUCTIONS.......................249
	WELDING OPERATIONS - SAFETY INSTRUCTIONS..........................250
	NOTES.............................................................251
ANNEX.................................................................253
	TROUBLESHOOTING...................................................255
	FAULT TABLES......................................................256
	HYDRAULIC CIRCUIT DIAGRAM.........................................261
	ABBREVIATIONS.....................................................263
	ABBREVIATIONS.....................................................264
	TECHNICAL DATA....................................................265
	NOTES.............................................................275
INDEX.................................................................277
