CAT Bucyrus SCH3500 HYDRA·TRAC™ OPERATING MANUAL BI008749 – PDF DOWNLOAD

Description

CAT Bucyrus SCH3500 HYDRA·TRAC™ OPERATING MANUAL BI008749 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus SCH3500 HYDRA·TRAC™ OPERATING MANUAL BI008749 – PDF DOWNLOAD

Language : English
Pages :108
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus SCH3500 HYDRA·TRAC™ OPERATING MANUAL BI008749 – PDF DOWNLOAD

GENERAL DESCRIPTION

• The Gardner-Denver SCH3500 Hydra-Trac and HPR1 Hydra-DrillTM make an ideal drilling package for a wide range of mining and construction applications. The SCH3500 Hydra-Trac is a self contained drill carrier which is easy to operate, maneuverable and efficient.
• The Hydra-Trac houses a Gardner-Denver Rota-ScrewR air compressor to supply air for hole cleaning; and a high capacity hydraulic pump to power the tramming motors, the positioning functions and the drill. Both pump and compressor are driven by a single turbo-charged diesel engine.
• The Hydra-Trac’s heavy duty construction and a low center of gravity make this self contained carrier a highly stable drilling platform. The heavy duty drill feed is powerful and easy to control. The bem, which pivots on the center line between the tracks allows a 40° swing in each direction.
• Overlapping steel track pads are made to withstand punishment, and track oscillation (allowing the tracks to flex 8) provides positive ground contact when tramming over rough terrain.
• The HPR1 Hydra-Drill is a high performance hydraulic rock drill that punches 2-1/2 to 3-1/2 inch (64 to 89 mm) holes in medium to hard rock. The clored hydraulic system of the HPR1 eliminates the exhaust noises and foggy oil mist typical of pneumatic drills. And the HPR1 requires only half the input power of equivalent pneumatic drills.

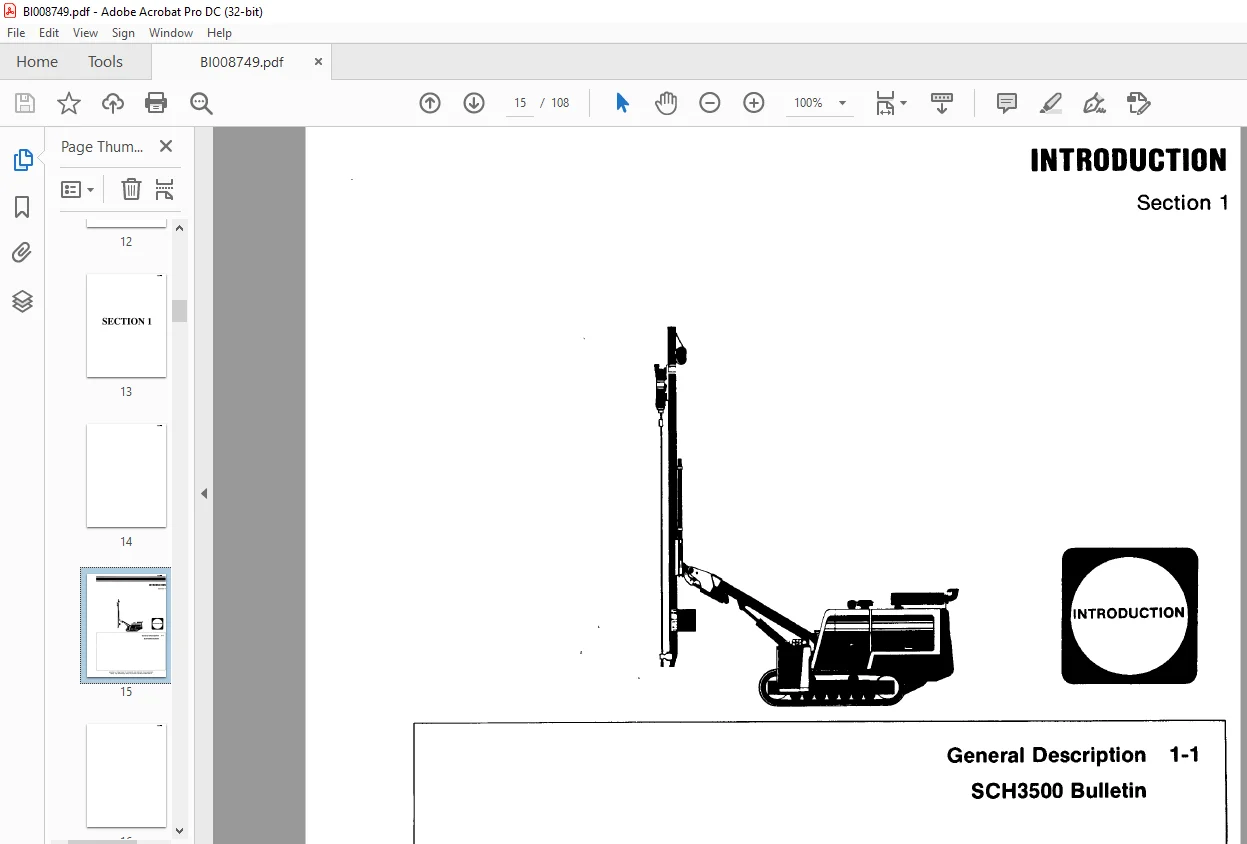

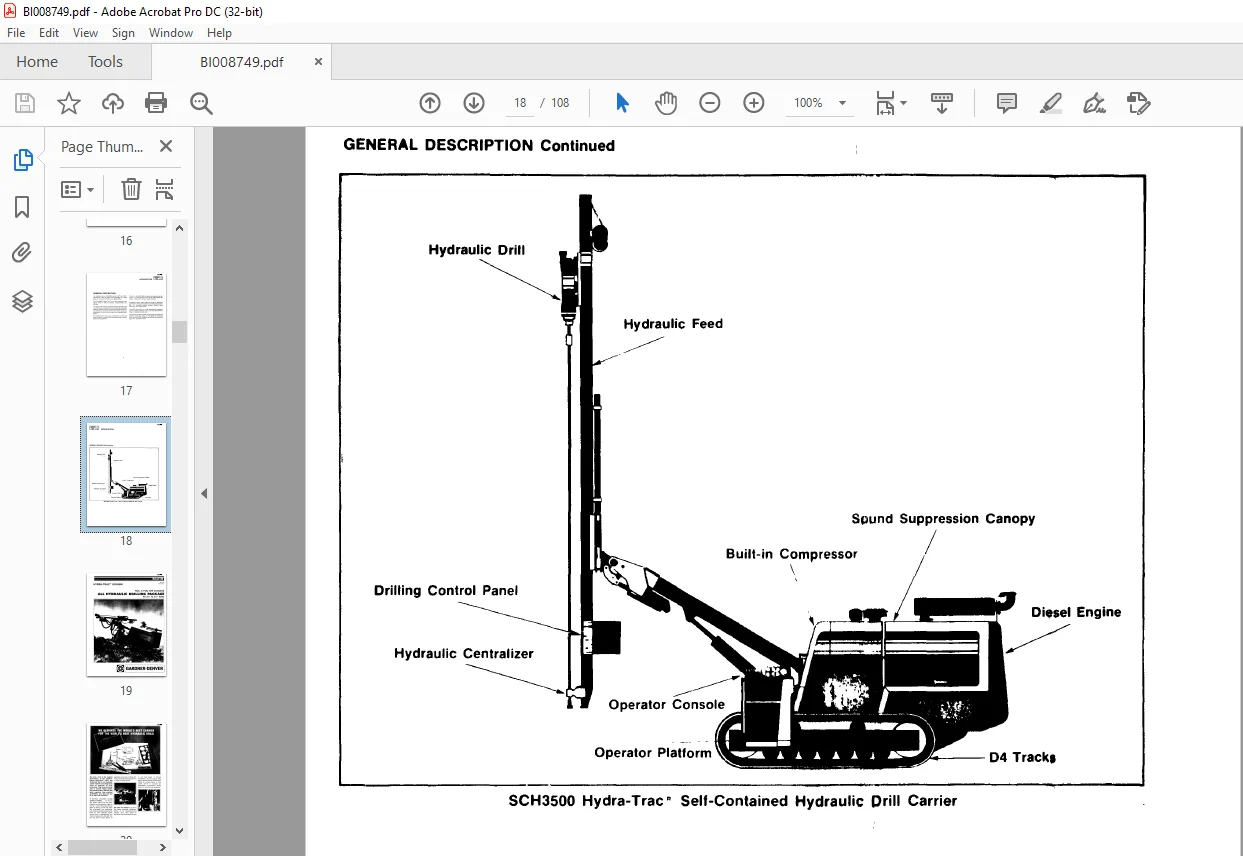

IMAGES PREVIEW OF THE MANUAL:

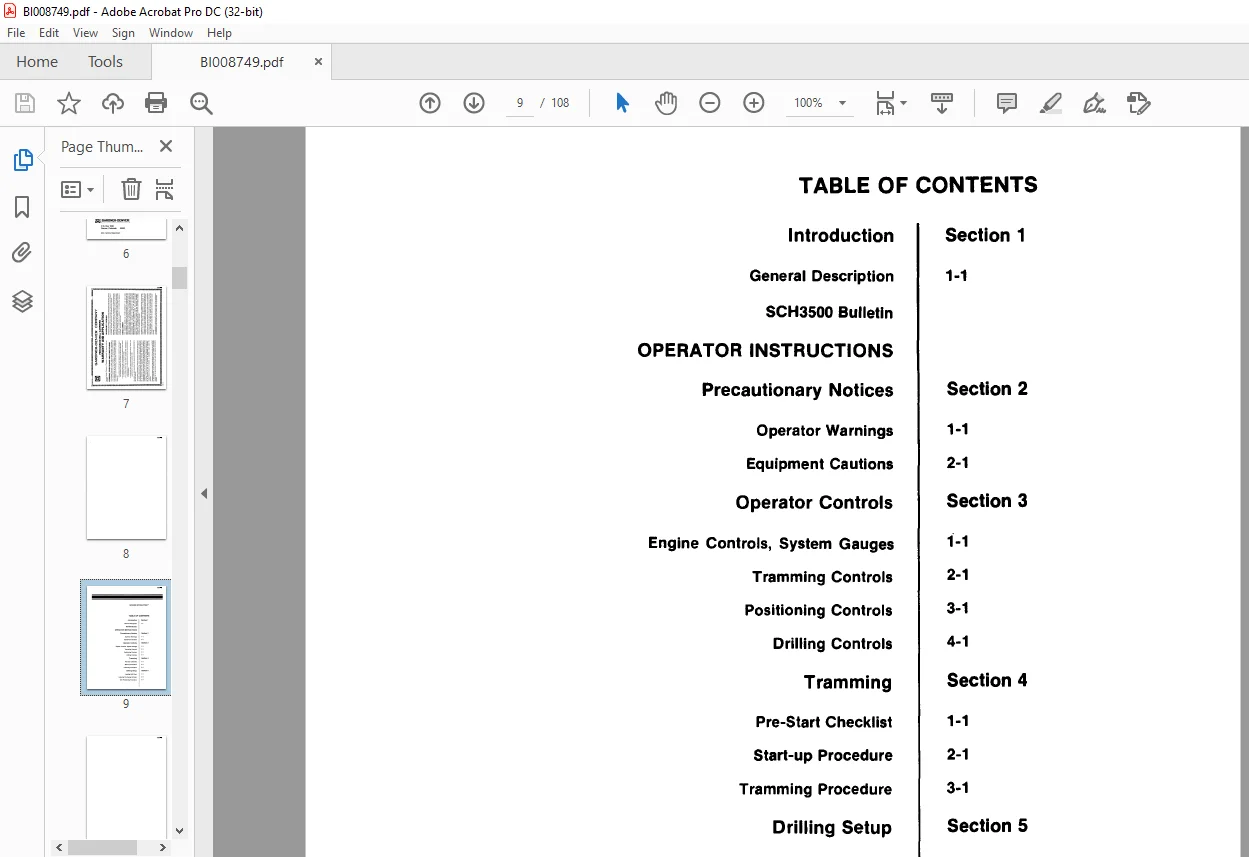

TABLE OF CONTENTS:

CAT Bucyrus SCH3500 HYDRA·TRAC™ OPERATING MANUAL BI008749 – PDF DOWNLOAD

TABLE OF CONTENTS
Introduction
General Description
SCH3500 BUlletin
OPERATOR INSTRUCTIONS
Precautionary Notices
Operator Warnings
Equipment Cautions
Operator Controls
Engine Controls, System Gauges
Tramming Controls
Positioning Controls
Drilling Controls
Tramming
Pre-Start Checklist
Start-up Procedure
Tramming Procedure
Drilling Setup
Loading Drill Steel
Indexing The Swing Cylinder
Drill Positioning Procedure
Drilling Procedure Section 6
Collaring and Drilling 1-1
Adding Drill Steel 2-1
Removing Drill String 3-1
Shutdown Procedure Section 7
Shutdown Checklist 1-1
Routine Care and Lubrication Section 8
General 1-1
Service Checklist 2-1
TROUBLESHOOTING Section 9
Carrier 1-1
Drill 2-1
