CAT Bucyrus SKF Rotary Blasthole Drill Operation & Maintenance Manual PN 412450 – PDF DOWNLOAD

Description

CAT Bucyrus SKF Rotary Blasthole Drill Operation & Maintenance Manual PN 412450 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus SKF Rotary Blasthole Drill Operation & Maintenance Manual PN 412450 – PDF DOWNLOAD

Language : English
Pages : 320
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus SKF Rotary Blasthole Drill Operation & Maintenance Manual PN 412450 – PDF DOWNLOAD

Before Operation:

• Do study this manual and fully understand the controls.
• Do be sure all safety guards are securely in place and all access doors are closed and
locked.
• Do wear safety helmet, glasses and hearing protection when operating or working on
machine.
• Do be sure all personnel are clear of the machine and work area before starting the engine
or oper- ating machine.
• Do be sure drill area is clear of all obstructions before operating and know the size
limitations of the machine.
• Do attach safety chain when using towbar.
• Do Not operate machine with:
• A hydraulic leak
• Broken or damaged electrical wiring
• Damaged hydraulic hoses or fittings
Operation:

• Do provide sufficient ventilation when running the engine in an enclosed area. Exhaust
gasses contain carbon monoxide, a deadly poison, which is colorless and odorless.
• Do make sure the drill pipe is secured in the loader before raising or lowering the mast,
if your machine is equipped with a drill pipe loader.
• Do make sure the mast lock pins are engaged in the mast base before starting drilling
operations.
• Do examine the surface before drilling to determine the possible presence of unfired
explosives.
• Do use PPE (personal protection equipment) appropriate for the conditions you are working
in; e.g. safety helmet, safety glasses, hearing protection, gloves, respirator.
• Do Not wear jewelry or loose fitting clothing when working on machinery. Keep clothing,
hands and hair clear of moving parts.
• Do Not drill into or near a “bootleg” hole or any hole that may contain explosives.
• Do Not use the machine for any other purpose than what it was designed for. This machine
is de- signed for rotary blasthole drilling operations only.
• Do Not travel on steep inclines soft or unstable ground or close to unsupported
excavations.
• Do Not move machine if drill is in a potentially unstable position.
After Operation:
Normal Shut Down:
1. Be sure machine is on solid level ground. Lower jacks, so the jack pads just touch the
ground, but do not lift machine up.
2. Be sure all controls are in the OFF or NEUTRAL position.
3. Allow engine to idle for a minimum of five (5) minutes before stopping.
4. Turn the ignition key to OFF position.
5. Check machine for any unusual conditions.
6. iate supervisor.

TABLE OF CONTENTS:

CAT Bucyrus SKF Rotary Blasthole Drill Operation & Maintenance Manual PN 412450 – PDF DOWNLOAD

INTRODUCTION
SAFETY SECTION 1
OPERATOR CONTROLS SECTION 2
LUBRICATION AND PREVENTIVE MAINTENANCE SECTION 3
OPERATING INSTRUCTIONS SECTION 4
DRILLING PRACTICES SECTION 5
MACHINE TRANSPORT AND SPECIFICATIONS SECTION 6
OPTIONS AND ACCESSORIES SECTION 7

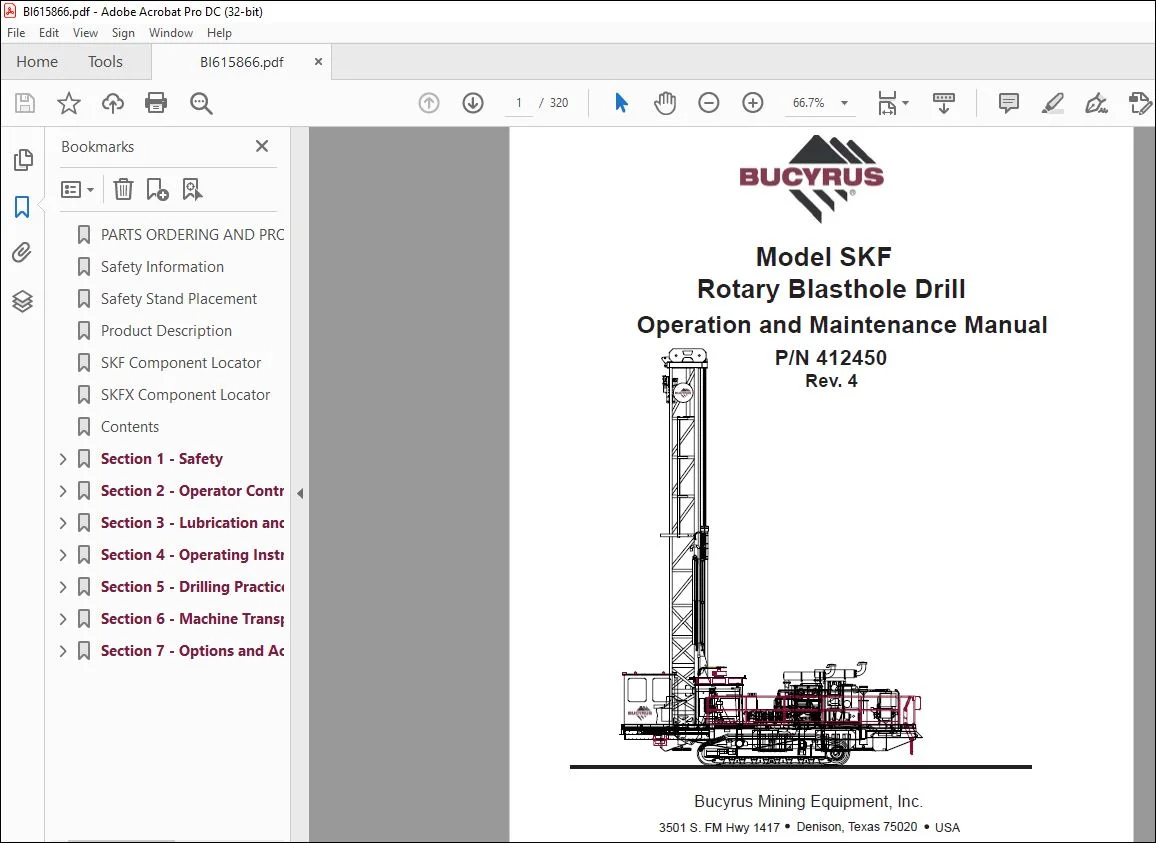

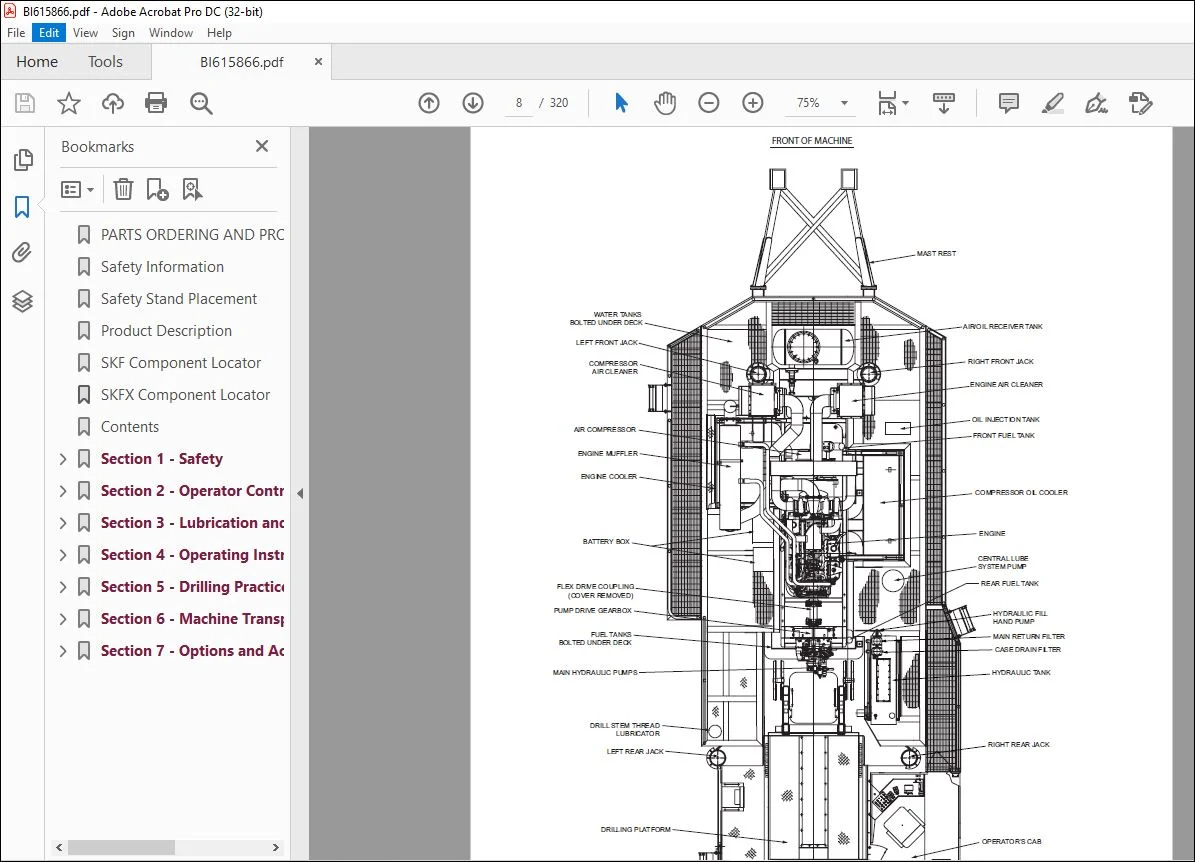

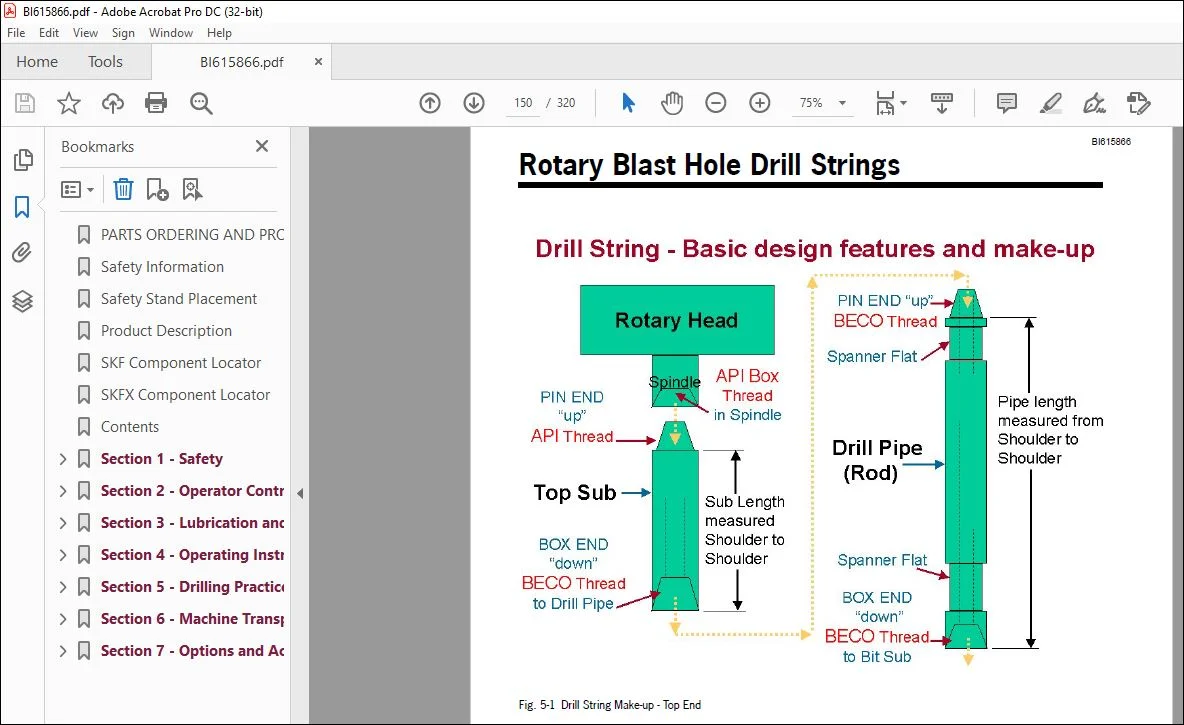

IMAGES PREVIEW OF THE MANUAL:
