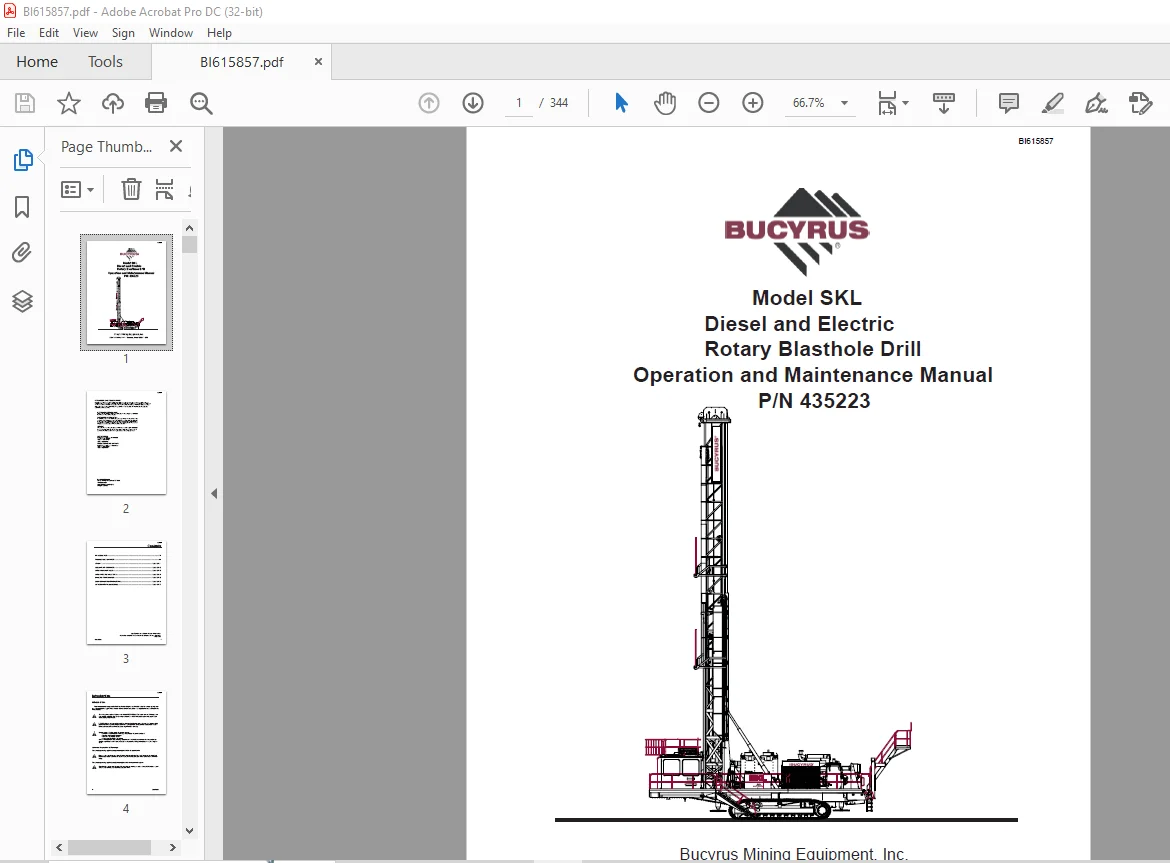

CAT Bucyrus SKL Diesel and Electric Rotary Blasthole Drill Operation and Maintenance Manual 435223 – PDF DOWNLOAD

Description

CAT Bucyrus SKL Diesel and Electric Rotary Blasthole Drill Operation and Maintenance Manual 435223 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus SKL Diesel and Electric Rotary Blasthole Drill Operation and Maintenance Manual 435223 – PDF DOWNLOAD

Language : English
Pages :344
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT Bucyrus SKL Diesel and Electric Rotary Blasthole Drill Operation and Maintenance Manual 435223 – PDF DOWNLOAD

Hazard Classification

The Rotary Blasthole Drill is a heavy moving machine with a mast which raises vertically for drilling. Like all moving objects and reach extending devices, there are potential hazards associated with its use. These hazards will be minimized if the machine is properly operated, inspected and maintained. Operator’s must read this manual and have been trained to use the machine in an appropriate and safe manner. Non-English speaking persons must have an interpreter explain all safety and operating procedures in this manual. Should any questions arise concerning the maintenance or operation of the machine contact the manufacturer at 1-800-258-0009.

Before Operation
• Do study this manual and fully understand the controls and safety hazards.
• Do be sure all safety guards are securely in place.
• Do wear safety helmet, safety glasses, hearing protection and gloves, as appropriate, when working
on machine.
• Do be sure all personnel are clear of the machine and work area before starting the engine or
operating machine.
• Do be sure drill area is clear of all obstructions before operating machine.
• Do attach safety chain when using towbar.
• Do Not operate machine with:
• A hydraulic leak
• Broken or damaged electrical wiring
• Damaged hydraulic hoses or fi ttings

Operation
• Do provide suffi cient ventilation when running the engine in an enclosed area. Exhaust gasses
contain carbon monoxide, a deadly poison, which is colorless and odorless.
• Do make sure the drill pipe is secured in the loader before raising or lowering the mast, if your machine
is equipped with a drill pipe loader.
• Do make sure the mast lock pins are engaged in the mast base before starting drilling operations.
• Do examine the surface before drilling to determine the possible presence of unfi red explosives.
• Do use PPE (personal protection equipment) appropriate for the conditions you are working in; e.g.
safety helmet, safety glasses, hearing protection, gloves, respirator.
• Do Not wear jewelry or loose fi tting clothing when working on machinery. Keep clothing, hands and
hair clear of moving parts.
• Do Not drill into or near a “bootleg” hole or any hole that may contain explosives.
• Do Not use the machine for any other purpose than what it was designed for. This machine is designed
for rotary blasthole drilling operations only.
• Do Not travel on steep inclines, soft or unstable ground or close to unsupported excavations.
• Do Not move machine if drill is in a potentially unstable position.

IMAGES PREVIEW OF THE MANUAL:

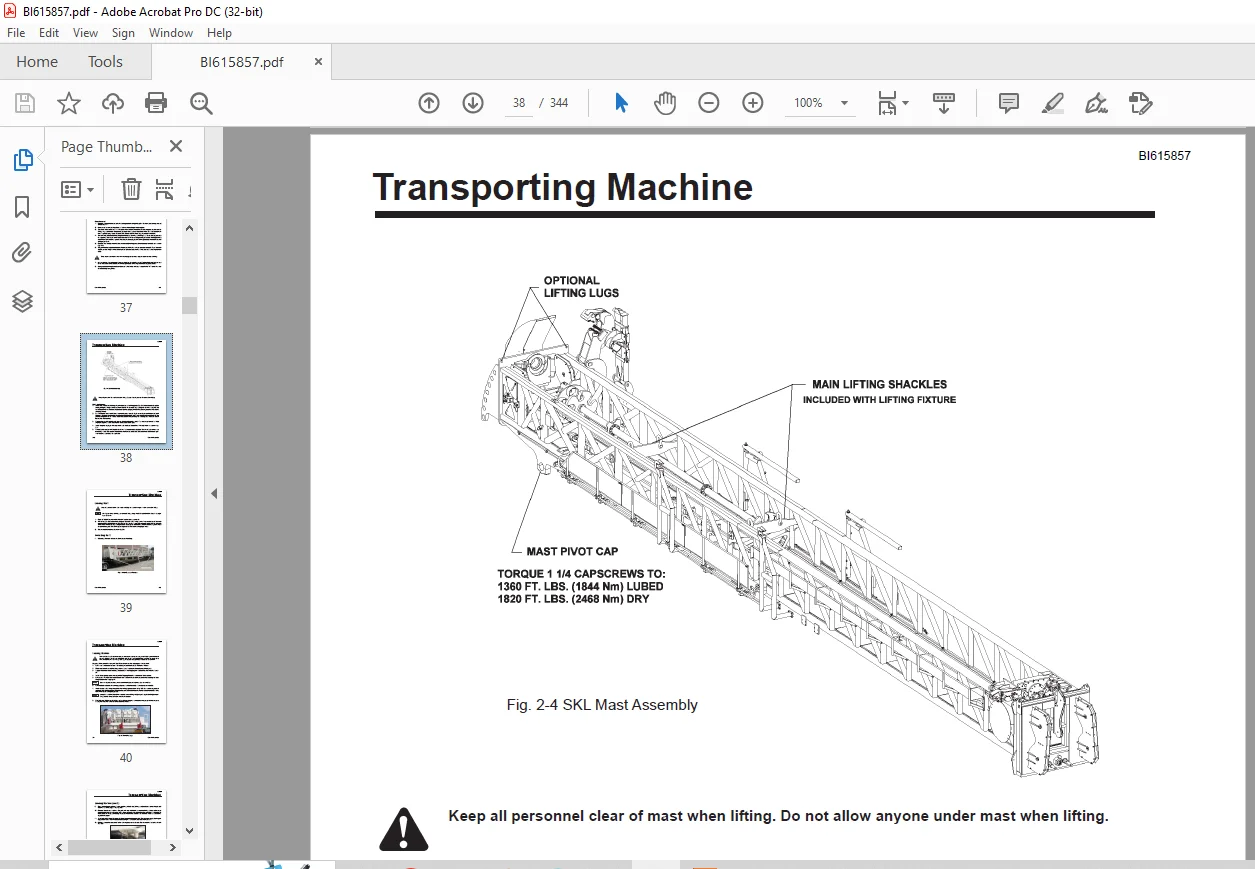

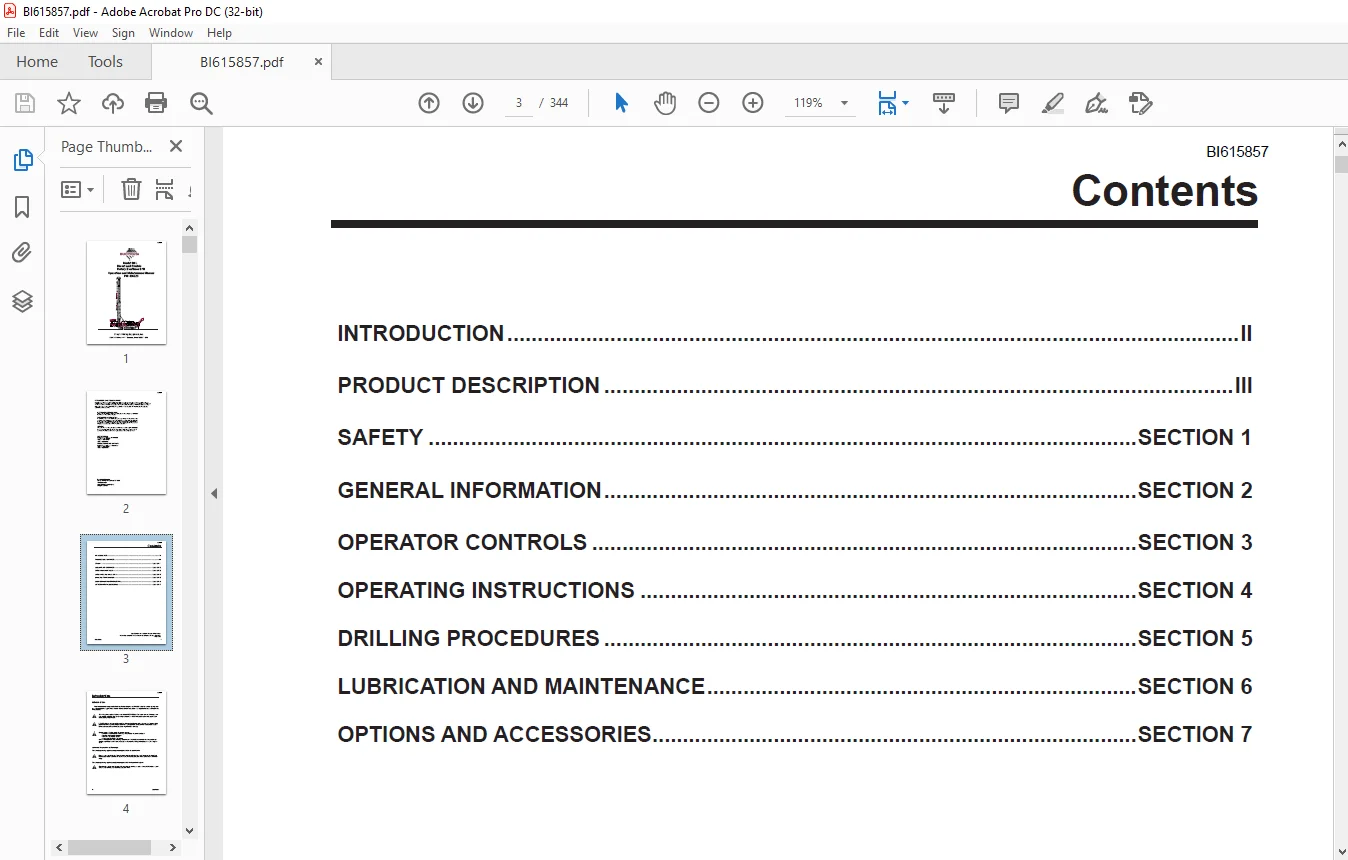

TABLE OF CONTENTS:
