CAT BUCYRUS SKS-W Infinity Blasthole Drill Operator’s Manual BI620154 – PDF DOWNLOAD

Description

CAT BUCYRUS SKS-W Infinity Blasthole Drill Operator’s Manual BI620154 – PDF DOWNLOAD

FILE DETAILS:

CAT BUCYRUS SKS-W Infinity Blasthole Drill Operator’s Manual BI620154 – PDF DOWNLOAD

Language : English
Pages :156
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT BUCYRUS SKS-W Infinity Blasthole Drill Operator’s Manual BI620154 – PDF DOWNLOAD

Safety

• The Rotary Drill is a heavy moving machine with a boom capable of extending its reach vertically and horizontally. Like all moving objects and reach extending devices, there are potential hazards associated with its use. These hazards will be minimised if the machine is properly operated, inspected, and maintained.
• The operator’s must read this manual and have been trained to use the machine in an appropriate and safe manner. Non-English speaking persons must have an interpreter explain all safety and operating procedures in this manual. Should any questions arise concerning the maintenance or operation of the machine contact Bucyrus at 1-800-258-0009.

Before Operation
• Do study this manual and fully understand the controls.
• Do be sure all safety guards are securely in place.
• Do wear safety helmet, glasses and hearing protection when operating or working on machine.
• Do be sure all personnel are clear of the machine and work area before starting the engine or
operating machine.
• Do be sure drill area is clear of all obstructions before operating machine.
• Do attach safety chain when using towbar.
• Do Not operate machine with:
– A hydraulic leak
– Broken or damaged electrical wiring
– Damaged hydraulic hoses or fi ttings

Operation
• Do provide suffi cient ventilation when running the engine in an enclosed area. Exhaust gasses
contain carbon monoxide, a deadly poison, which is colorless and odorless.
• Do make sure the drill pipe is secured in the loader before raising or lowering the mast, if your
machine is equipped with a drill pipe loader
• Do examine the surface before drilling to determine the possible presence of unfi red explosives.
• Do Not drill into or near a “bootleg” hole or any hole that may contain explosives.
• Do Not use the machine for any other purpose than what it was designed for. This machine is
designed for rotary blasthole drilling operations only.
• Do Not wear jewelry or loose fi tting clothing when working on machinery. Keep clothing and hands
clear of moving parts.
• Do Not travel on steep inclines soft or unstable ground or close to unsupported excavations.
• Do Not move machine if Rotary Drill is in a potentially unstable position.
• Do Not propel machine with mast up.
After Operation
Normal Shut Down:
1. Be sure machine is on solid level ground. Lower jacks, so the jack pads just touch the ground, but do
not lift machine up.
2. Be sure all controls are in the OFF or NEUTRAL position.
3. Allow engine to idle for a minimum of fi ve (5) minutes before stopping.
4. Turn the ignition key to OFF position.
5. Check machine for any unusual conditions.
6. Report any defects to your immediate supervisor.
Bucyrus International, Inc.®
Safety
Revised

IMAGES PREVIEW OF THE MANUAL:

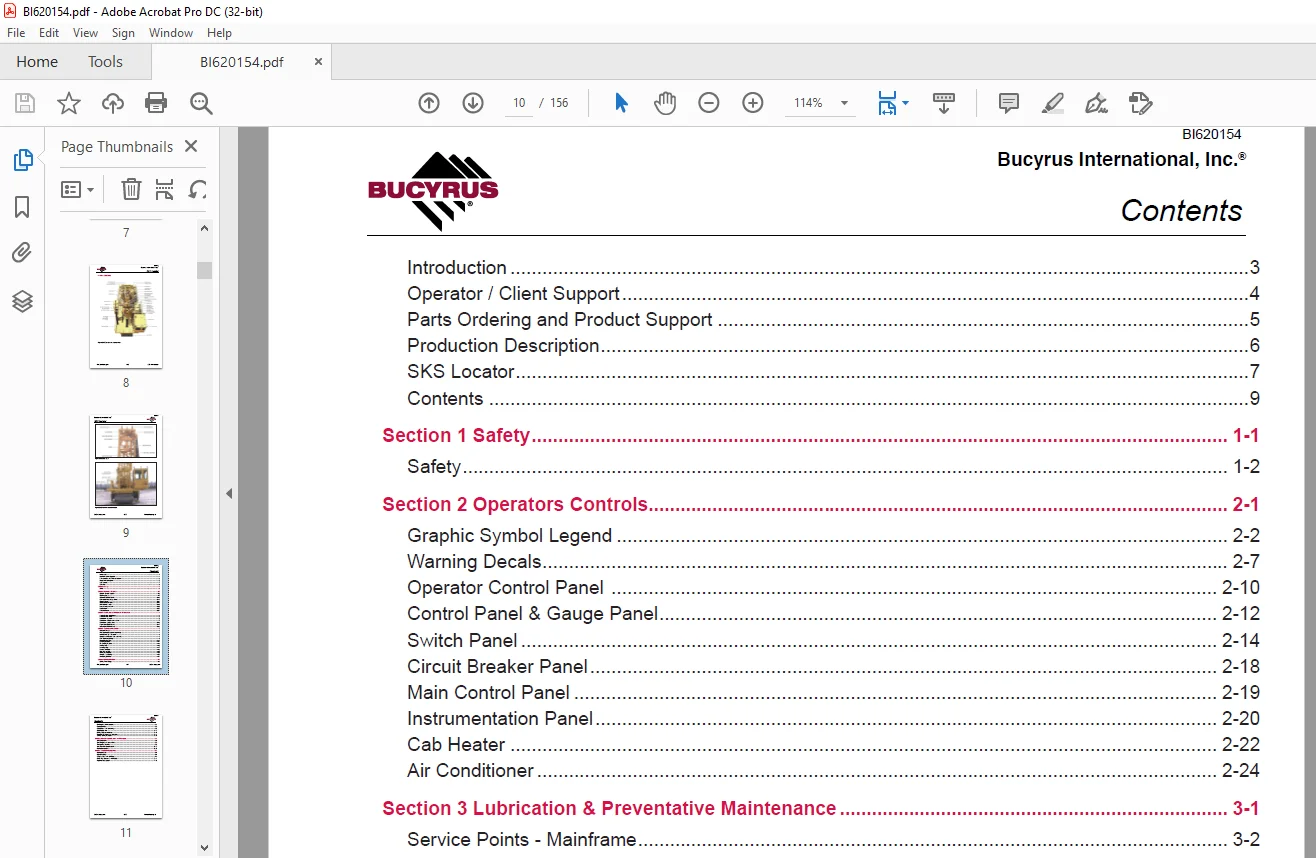

TABLE OF CONTENTS:
