CAT Bucyrus Truck Jumbo Operator & Maintenance Manual SN:1Z92M99 – PDF DOWNLOAD

Description

CAT Bucyrus Truck Jumbo Operator & Maintenance Manual SN:1Z92M99 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus Truck Jumbo Operator & Maintenance Manual SN:1Z92M99 – PDF DOWNLOAD

Language : English
Pages : 133
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CAT Bucyrus Truck Jumbo Operator & Maintenance Manual SN:1Z92M99 – PDF DOWNLOAD

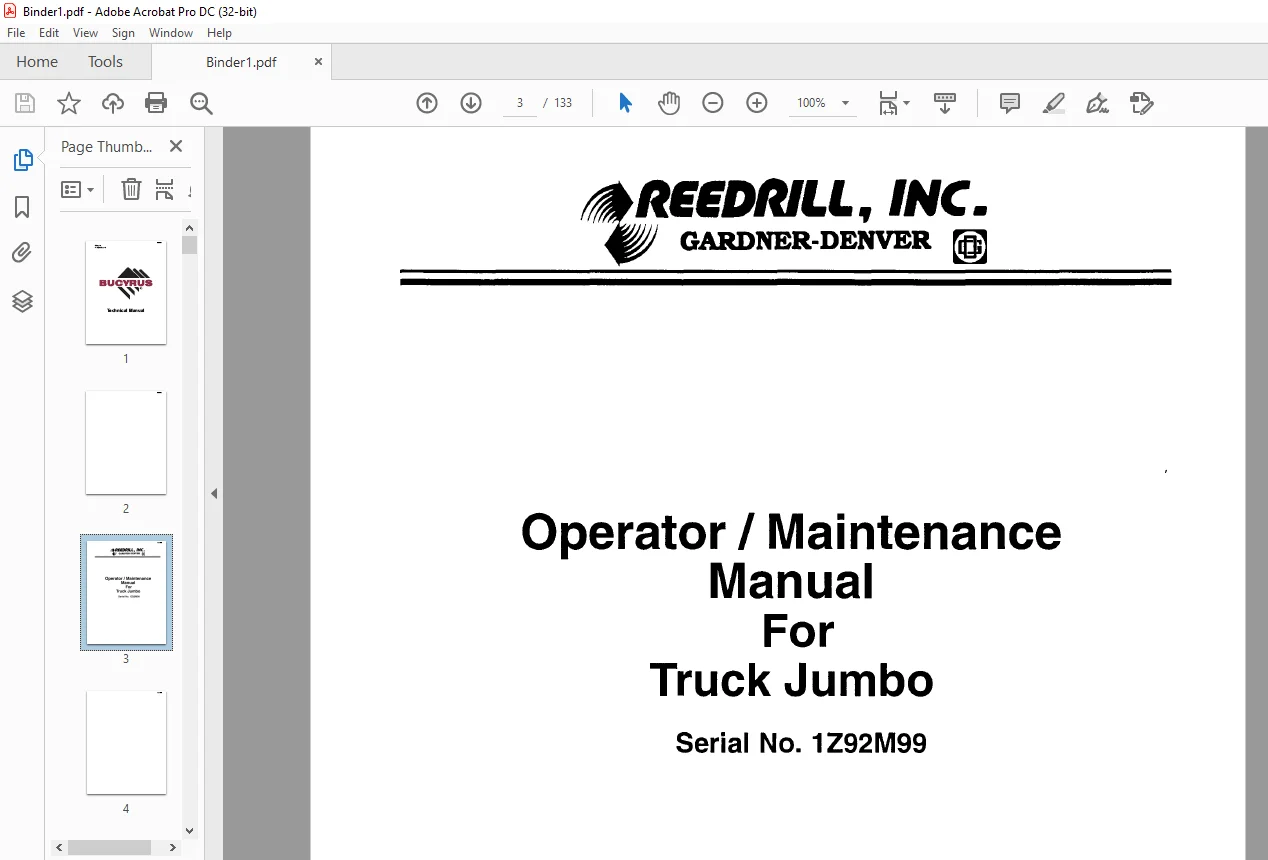

PREFACE
This manual provides in-depth coverage of the setup, starting procedures, operating instructions, servicing and maintenance procedures for the Gardner-Denver Two-Boom, Diesel-Powered AII Hydraulic Truck Jumbo. It also includes troubleshooting guides and complete details of the operator procedures for setting up to drill and drilling and pull-back from the tunnel I mine face. The purpose of this manual is to help you understand the functions of this unit and also to help you operate and maintain it more efficiently. Operating and maintenance personnel should become thoroughly familiar with the contents of this manual for optimum operating efficiency. Read and understand this manual before operating or servicing the Truck Jumbo. Keep it handy fo~ reference.

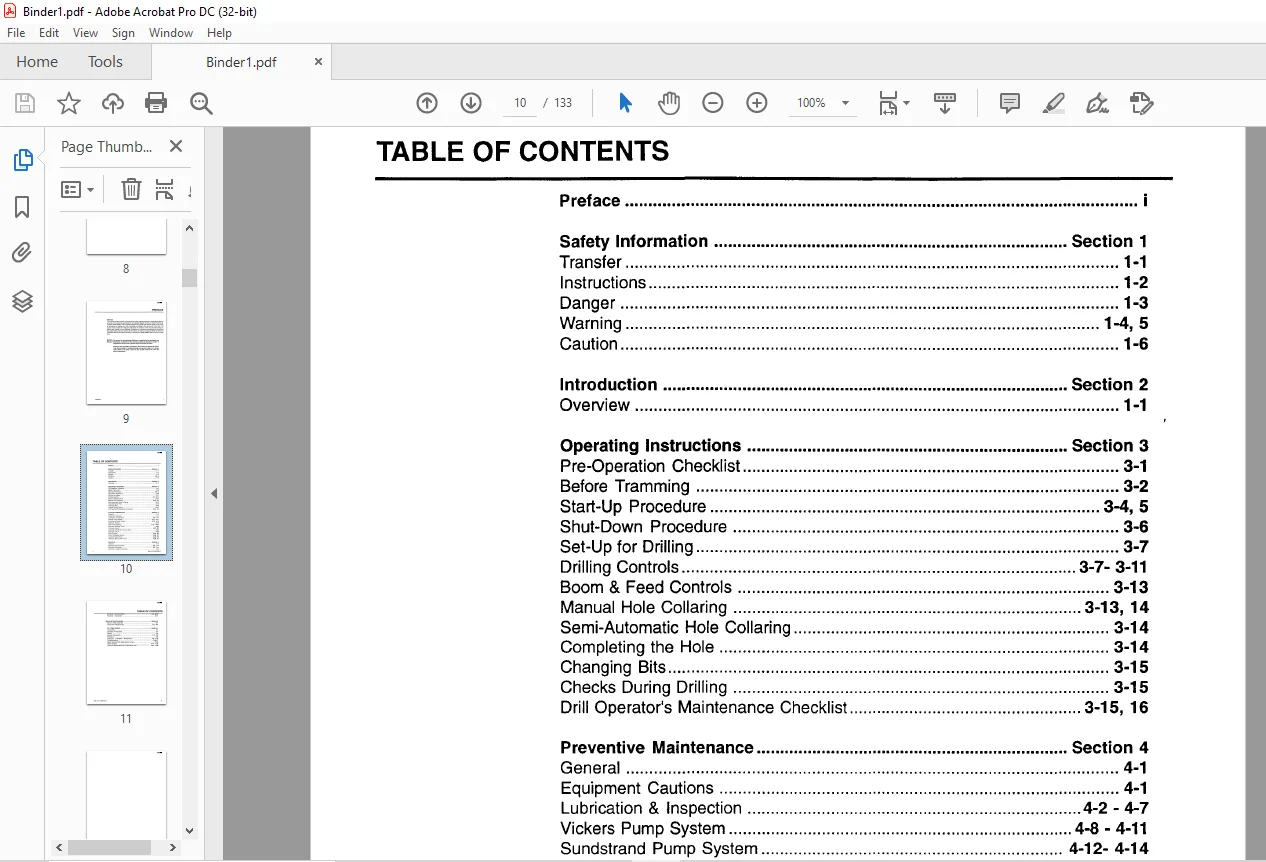

TABLE OF CONTENTS:

CAT Bucyrus Truck Jumbo Operator & Maintenance Manual SN:1Z92M99 – PDF DOWNLOAD

Preface i
Safety Information Section 1
Transfer 1-1
Instructions 1-2
Danger 1-3
Warning 1-4, 5
Caution 1-6
Introduction Section 2
Overview 1-1
Operating Instructions Section 3
Pre-Operation Checklist 3-1
Before Tramming 3-2

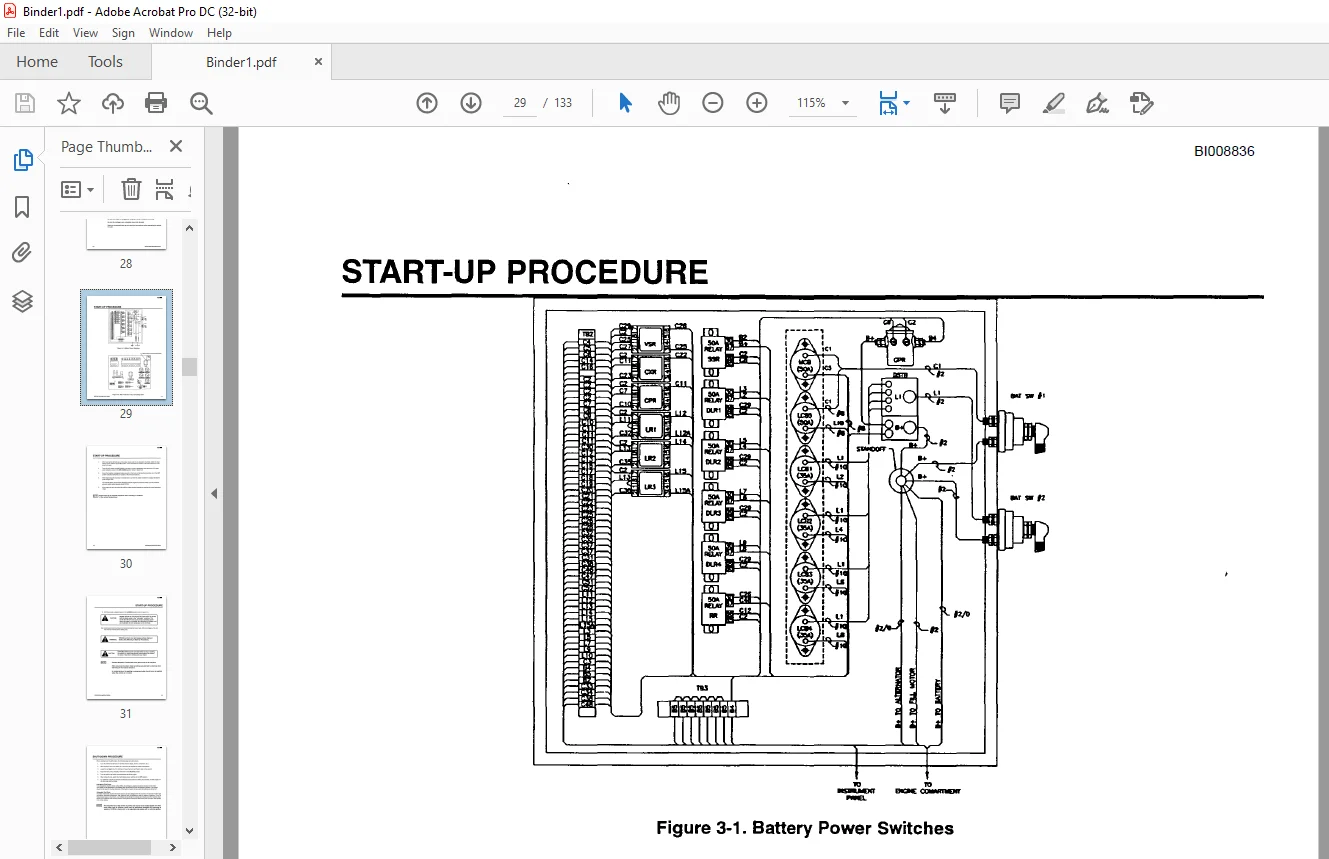

Start-Up Procedure 3-4, 5
Shut-Down Procedure 3-6
Set-Up for Drilling 3-7
Drilling Controls 3-7- 3-11
Boom & Feed Controls 3-13
Manual Hole Collaring 3-13, 14
Semi-Automatic Hole Collaring 3-14
Completing the Hole 3-14
Changing Bits 3-15
Checks During Drilling 3-15
Drill Operator’s Maintenance Checklist.. 3-15, 16
Preventive Maintenance Section 4
General 4-1
Equipment Cautions 4-1
Lubrication & Inspection 4-2 – 4-7
Vickers Pump System 4-8 • 4-11
Sundstrand Pump System 4-12- 4-14
Hydraulic System 4-16
Drill Control System 4-17-4-19
Hammer Collaring Circuit 4-20
Anti-Jam Circuit 4-21, 22
Automatic Drill Return Circuit (ADC) 4-23
Outrigger Circuit 4-24
Boom System 4-24, 25
Feed Paralleling System 4-26, 27
Constant Sting Circuit 4-28, 29
Hydraulic Swing Limit Circuit 4-30, 31
Electrical Section 5
General 5-1
Electrical Instrumentation 5-2 – 5-4
Electrical Schematic 5-5 5-8
Electrical – Heater Pressurizer 5-8
Electrical – Disconnect Box 5-9 – 5-10
Electrical – Component 5-11
Booms & Feed Assembly Section 6
Boom & Feed Assembly 6-1
Component Replacement 6-2 – 6-4
Air I Water System Section 7
Introduction 7-1
Operating Precautions 7-1
Decals 7-2
General Information 7-3 – 7-5
Operation 7-6
Inspection – Lubrication – Maintenance 7-6 – 7-15
Troubleshooting 7-16,17
Water Injection Dust Suppression System 7-18
Water Injection 7-19 – 7-20
Technical Specifications & Performance Date 7-21 – 7-29
