Cat Bucyrus W2000 Walking Dragline 6.6KV STARTERS & SWITCHGEAR Operating & Instruction Manual BI379913 – PDF DOWNLOAD

Description

Cat Bucyrus W2000 Walking Dragline 6.6KV STARTERS & SWITCHGEAR Operating & Instruction Manual BI379913 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus W2000 Walking Dragline 6.6KV STARTERS & SWITCHGEAR Operating & Instruction Manual BI379913 – PDF DOWNLOAD

Language : English
Pages : 408
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus W2000 Walking Dragline 6.6KV STARTERS & SWITCHGEAR Operating & Instruction Manual BI379913 – PDF DOWNLOAD

GENERAL:
415v anti-condensation heaters are provided in each compartment which are powered from a remote
L.T. switchboard of separate marrufacture.
OPERATION:

• Provided all isolators are in the 1ON’ position for Synchronous Motors
  1 and 2 and Reactor compartments then these motors may be started remotely from the appropriate
  pushbuttons shown on diagram 3ET24183/4.
  Interlocks are included in the control circuit to prevent both motors from being started
  simultaneously.
• In the event of a fault developing in the motor/s signals are passed to the Lodtrak relays which in
  turn will cause an alann to be sounded. The motor/s are-then stopped at the discretion of the
  operator.
• Should the Reactor become overheated or a fault develop in the vacuum contactor giving rise to
  V-Master operation then the control circuit will inhibit any further starts of the affected motor.
  Indication of these conditions is given by operation of the appropriate miniature circuit breaker
  located on the INCOMER compartment together with a warning lamp in the case
  of a Reactor High Temperature condition.

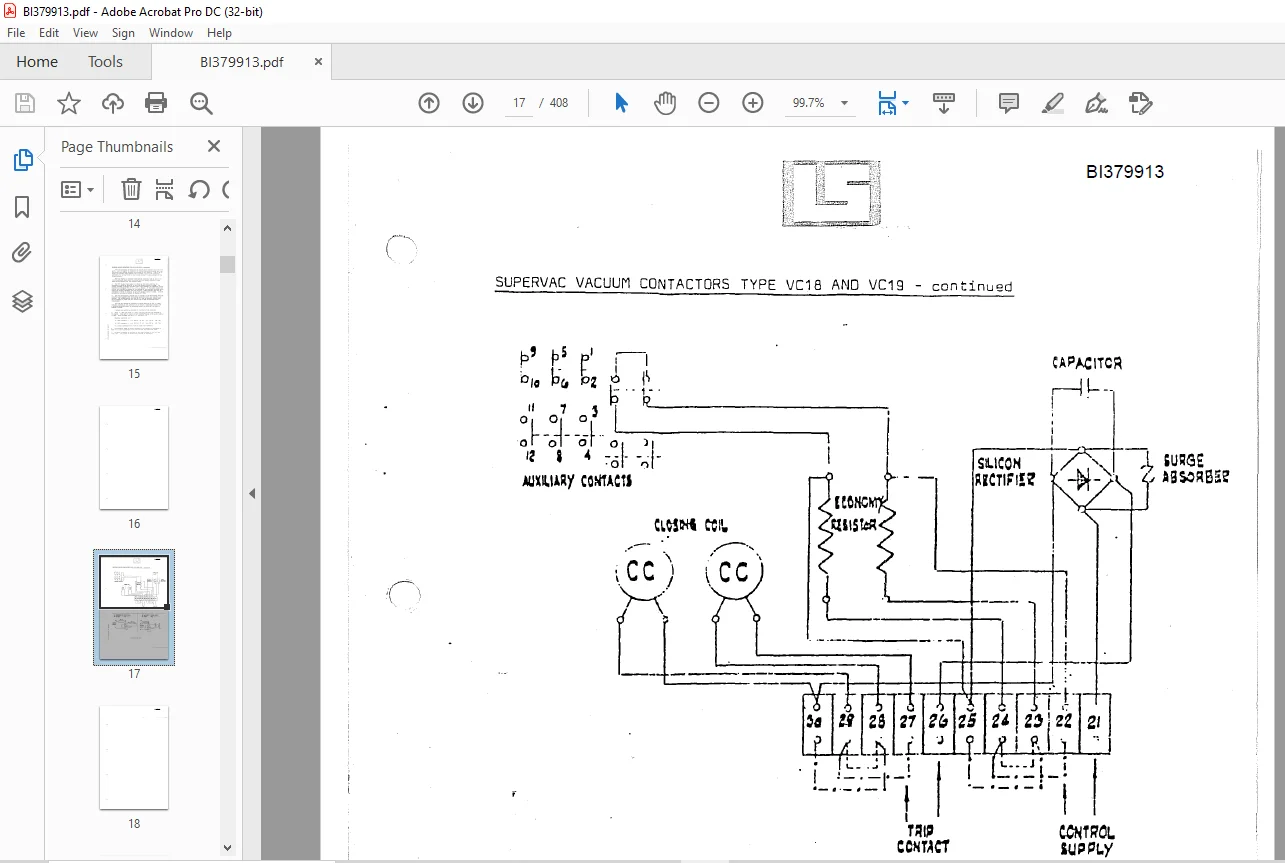

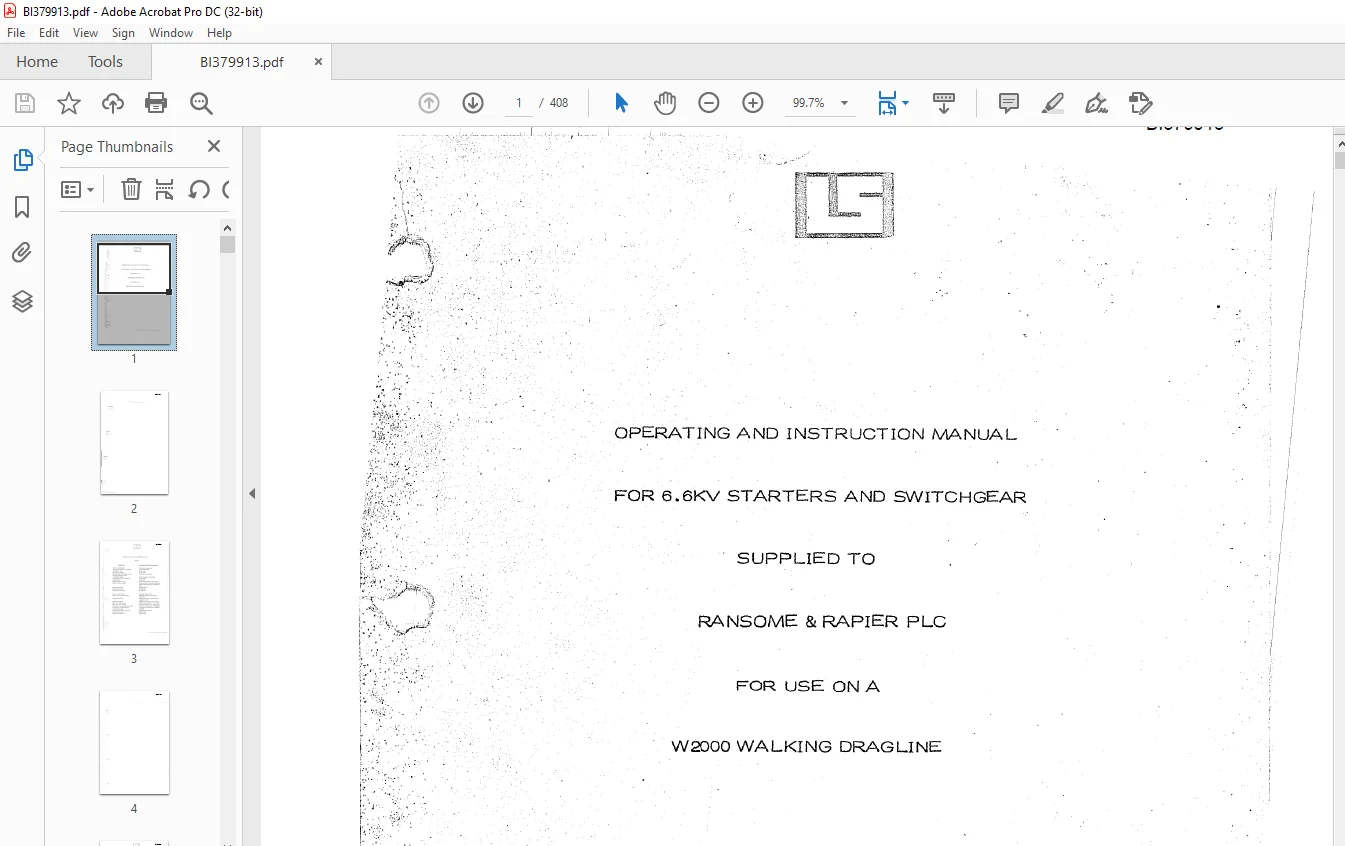

IMAGES PREVIEW OF THE MANUAL:

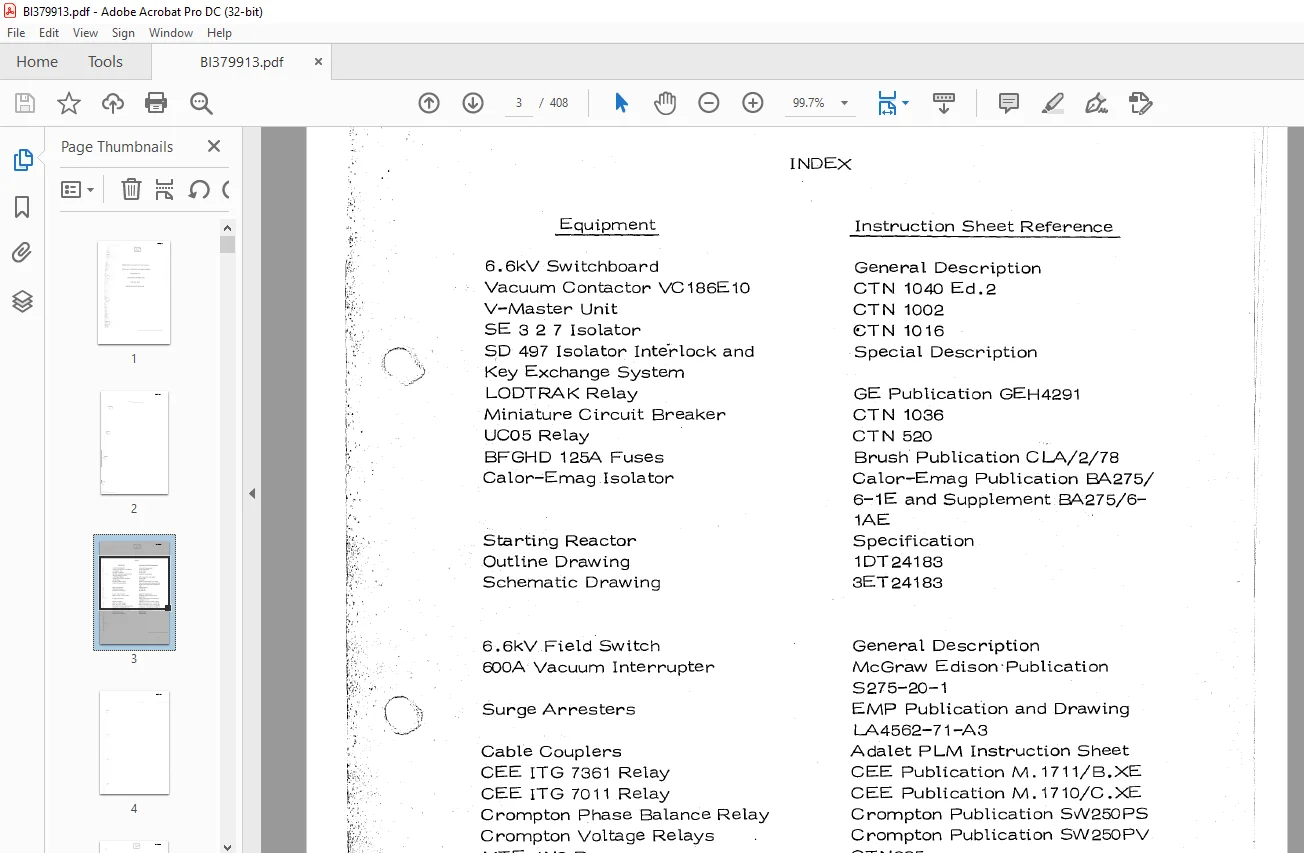

TABLE OF CONTENTS:

Genera1 Description
CTI\I 1040 Ed.2
CTN 1002
CSTN 1016
Special Description
GE Publication GEH4291
CTN 1036
CTN 520
Brush Publication CL6./2/78
Calor-Emag Publication B£:>..275/
6-1E and Supplement B£:>..275/61AE
Specification
1DT24183
3ET24183
General Description
McGraw Edison .Publication
S275-20-1
EMP Publication and Drawing
L6.4562-71-A3
Adalet PLM Instruction Sheet
CEE Publication M. 1711/B.XE
CEE Publication M. 1710/C .XE
Crompton Publication SvV250PS
Crompton Publication SW250PV
CTN395
Special Description
26DT24183
23DT24183
