Cat Bucyrus W2000 Walking Dragline Lubrication System Manual BI180881 – PDF DOWNLOAD

Description

Cat Bucyrus W2000 Walking Dragline Lubrication System Manual BI180881 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus W2000 Walking Dragline Lubrication System Manual BI180881 – PDF DOWNLOAD

Language : English
Pages : 523
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus W2000 Walking Dragline Lubrication System Manual BI180881 – PDF DOWNLOAD

Description:

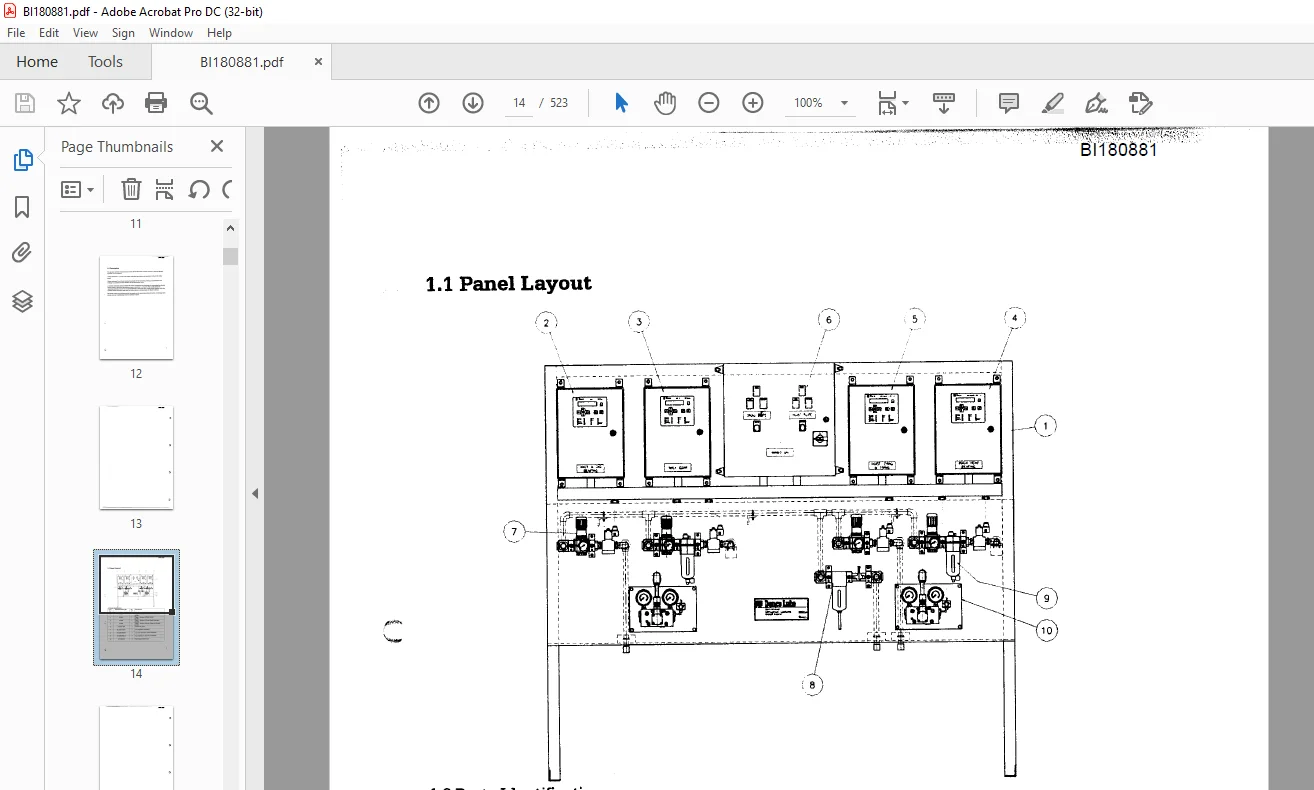

The grease systems Control Panel contain all the electrical control devices to operate grease
systems 1 to 6 inclusive.

• Grease systems 1, 2, 3 and 4 are timer controlled and these are mounted on the front of the
  panel.
• Grease systems 5 and 6 are operated manually by the operator pressing a pushbutton and holding it
  in position for the duration of the lubrication cycle.
• A central contactor panel contains the motor contactors and overloads for operating the electric
  motors used to drive the lubrication pump on systems 1, 2, 5 and 6. The pushbuttons for operating
  systems 5 and 6 are mounted directly to the front door of this panel together with the cycling
  switch indicator lamp and the high pressure warning lamp for these systems.
• Mounted on the lower framework of the panel are the operating solenoid valves, reversing valve
  panels and air conditioning sets for systems 3 and 4.

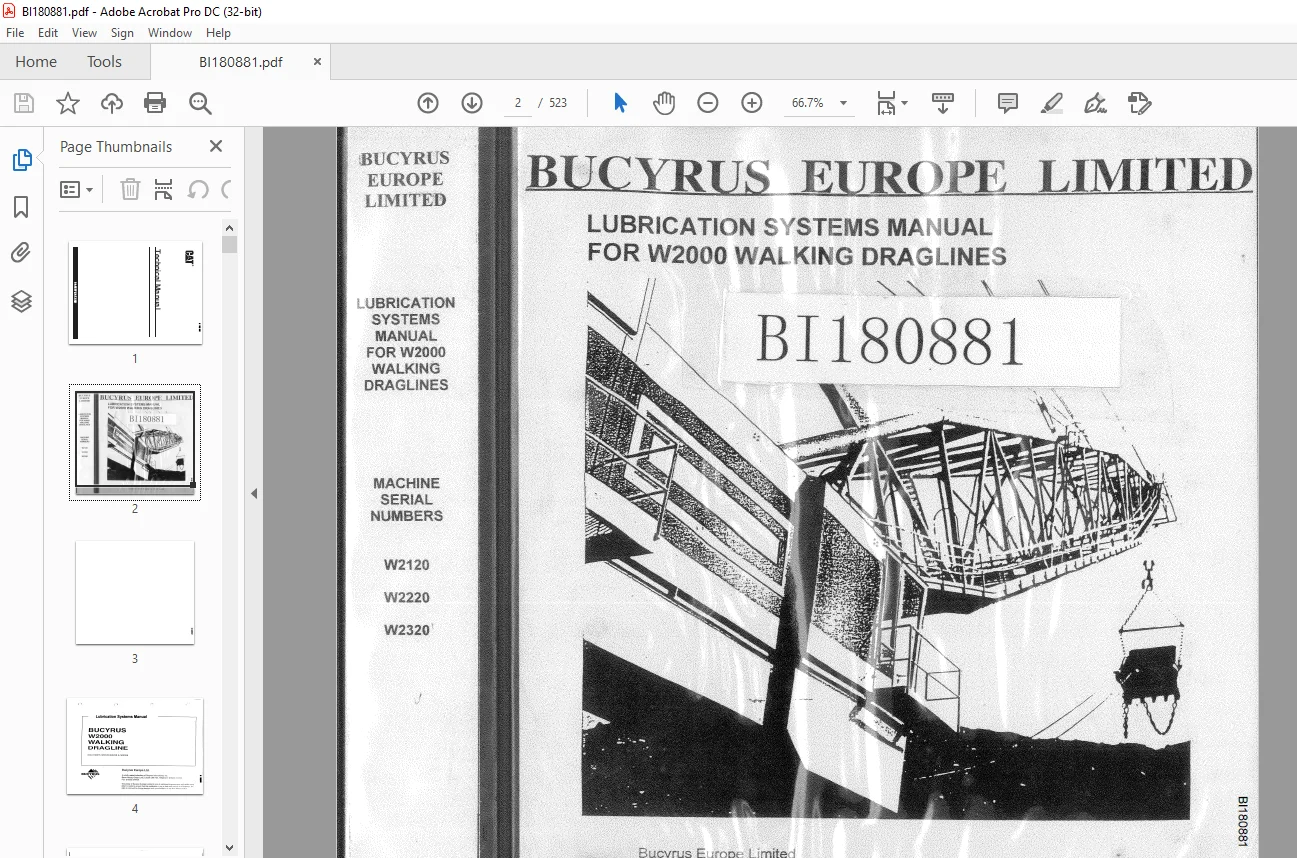

IMAGES PREVIEW OF THE MANUAL:

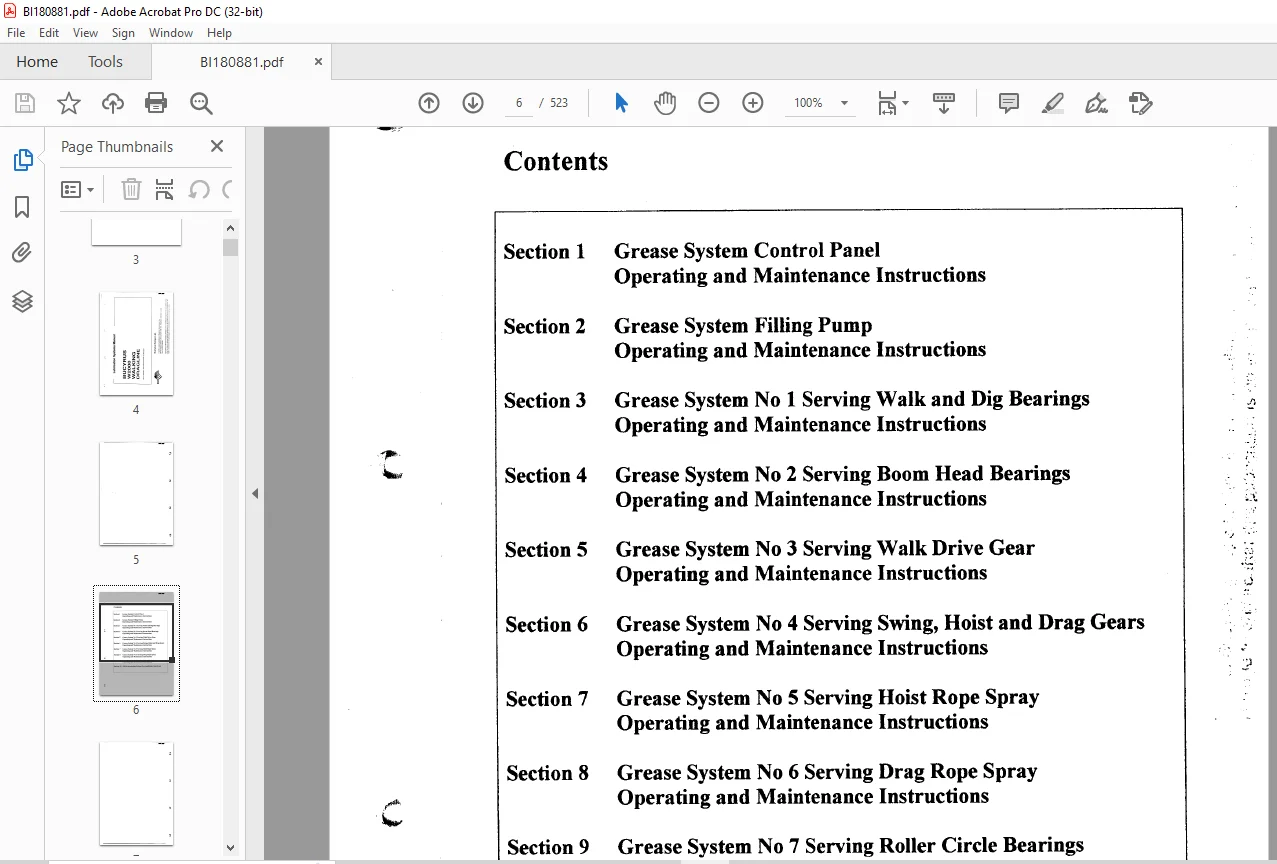

TABLE OF CONTENTS:

Cat Bucyrus W2000 Walking Dragline Lubrication System Manual BI180881 – PDF DOWNLOAD

Section 1 Grease System Control Panel
Operating and Maintenance Instructions
Section 2 Grease System Filling Pump
Operating and Maintenance Instructions
Section 3 Grease System No 1 Serving Walk and Dig Bearings
Operating and Maintenance Instructions
Section 4 Grease System No 2 Serving Boom Head Bearings
Operating and Maintenance Instructions
Section 5 Grease System No 3 Serving Walk Drive Gear
Operating and Maintenance Instructions
Section 6 Grease System No 4 Serving Swing, Hoist and Drag Gears
Operating and Maintenance Instructions
Section 7 Grease System No 5 Serving Hoist Rope Spray
Operating and Maintenance Instructions
Section 8 Grease System No 6 Serving Drag Rope Spray
Operating and Maintenance Instructions
Section 9 Grease System No 7 Serving Roller Circle Bearings
Operating and Maintenance Instructions
Section 10 Oil Re-circulating Systems Serving Rotate Gearboxes
