Cat Bucyrus W2000 Walking Draglines Lubrication System Manual BI180888 – PDF DOWNLOAD

Description

Cat Bucyrus W2000 Walking Draglines Lubrication System Manual BI180888 – PDF DOWNLOAD

FILE DETAILS:

Cat Bucyrus W2000 Walking Draglines Lubrication System Manual BI180888 – PDF DOWNLOAD

Language : English
Pages : 519
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat Bucyrus W2000 Walking Draglines Lubrication System Manual BI180888 – PDF DOWNLOAD

Description:

• The grease systems Control Panel contain all the electrical control devices to operate grease
  systems 1 to 6 inclusive.
• Grease systems 1, 2, 3 and 4 are timer controlled and these are mounted on the front of the
  panel. ,
• Grease systems 5 and 6 are operated manually by the operator pressing a pushbutton and
  holding it in position for the duration of the lubrication cycle.
• A central contactor panel contains the motor contactors and overloads for operating the electric
  motors used to drive the lubrication pump on systems 1, 2, 5 and 6. The pushbuttons for
  operating systems 5 and 6 are mounted directly to the front door of this panel together with the
  cycling switch indicator lamp and the high pressure warning lamp for these systems.
• Mounted on the lower framework of the panel are the operating solenoid valves, reversing valve
  » panels and air conditioning sets for systems 3 and 4.

General:

The Timers used on this panel are model SC301 for systems 1, 3 and 4 and model SC300 on system 2.

• The controller is housed in a steel enclosure with an aperture for a control panel.
• This panel contains keys for setting the controller and a LCD display and LEDs indicating
  the position of input control devices and output relays. The LCD display will indicate
  the exact state of the Lubrication System at that time. Periodically it will also indicate
  the programmed settings and number of lubrication cycles to date.
• The controller SC300 contains all the basic requirements for a standard Lubrication
  System. SC301 has an additional printed circuit board extending the number of features.
• It is possible to field upgrade the Lubrication controller from SC 300 to SC 301 by
  fitting this additional board.
• With the door closed and all cables inserted through suitable glands in the base of the box,
  the controller has an electrical and moisture rating of IP55.

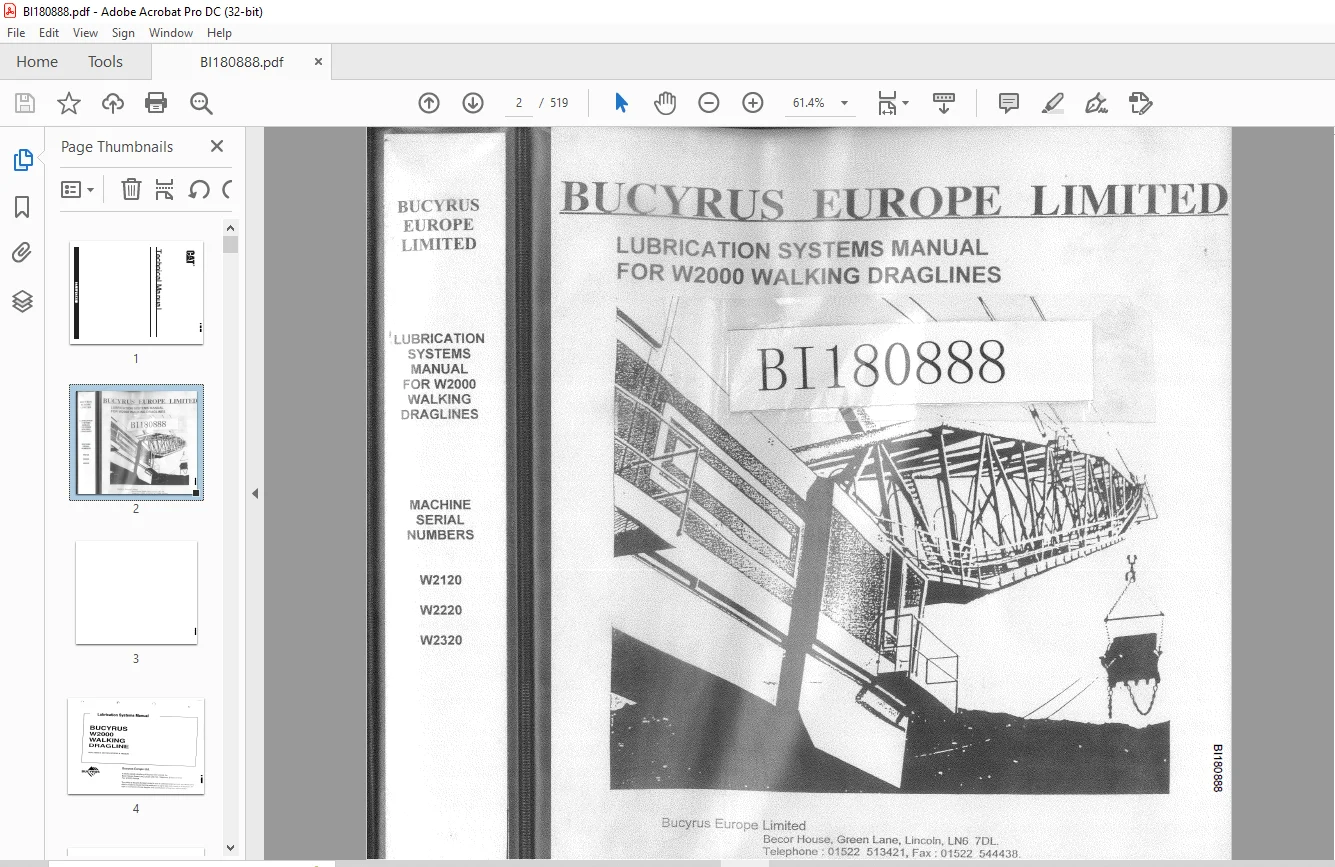

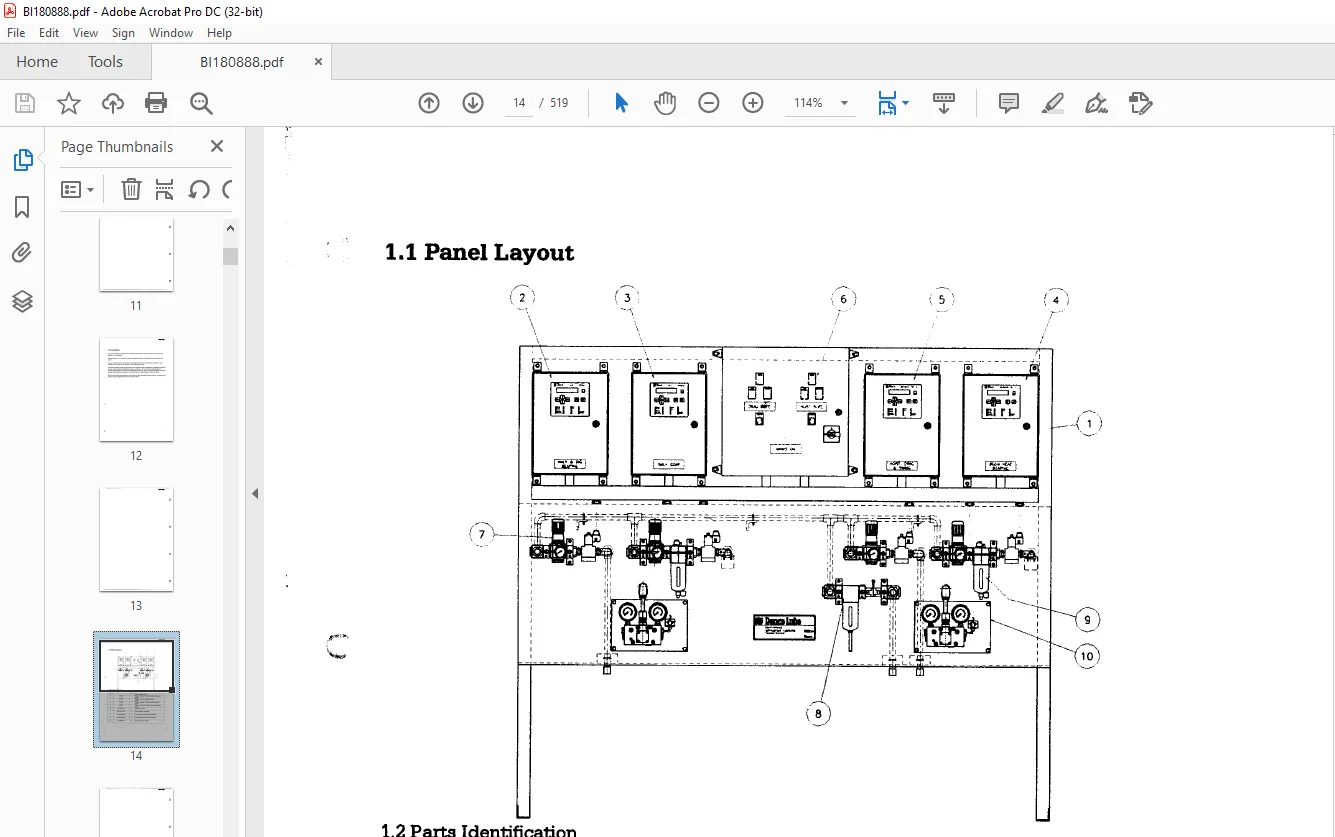

IMAGES PREVIEW OF THE MANUAL:

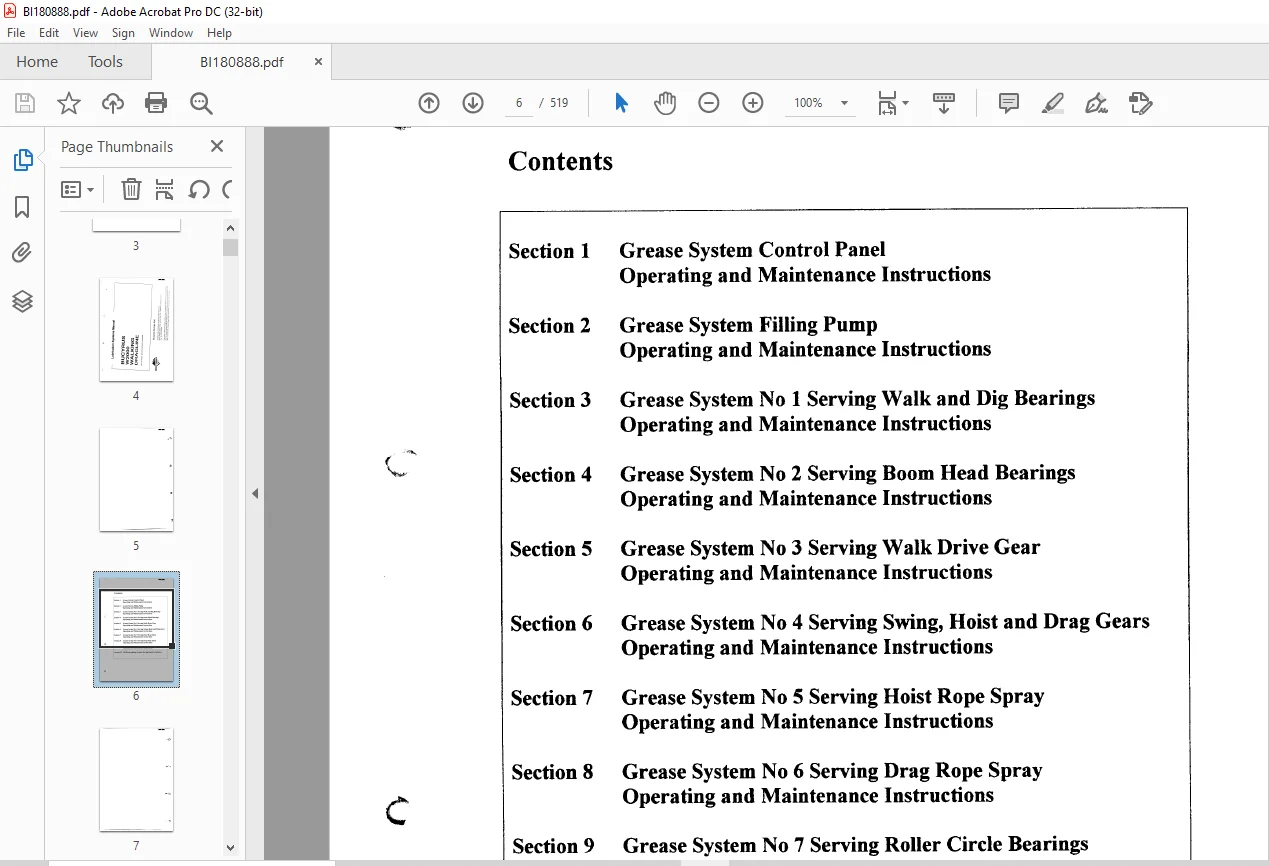

TABLE OF CONTENTS:
