CAT CL110 Load Haul Dump Operation Manual SN 5004023 – PDF DOWNLOAD

Description

CAT CL110 Load Haul Dump Operation Manual SN 5004023 – PDF DOWNLOAD

FILE DETAILS:

CAT CL110 Load Haul Dump Operation Manual SN 5004023 – PDF DOWNLOAD

Language : English
Pages : 98
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT CL110 Load Haul Dump Operation Manual SN 5004023 – PDF DOWNLOAD

General Information
ABOUT THIS PACKAGE

• The operation of heavy mining equipment can be hazardous. To ensure safe operation, operators and personnel must be alert, competent, correctly trained, tested and licensed in the principles, capabilities and correct operating and isolation procedures of the equipment.
• This documentation package is designed to provide the operator of the CL110 with the correct information for the equipment’s:
•  Important Safety Requirements
   Energy Isolation
   Instrumentation and Operating Controls
   Location
   Function
   Operation
   Basic Operator Checks and Maintenance
• All operators of this equipment must be conversant with the information contained within this manual before operating the machine.

INTRODUCTION

• The CL110 is designed and manufactured by Caterpillar, the loader is an 8000 kg payload capacity multi-purpose machine. This allows it to be used for general purpose work throughout the mine, which includes carrying heavy loads, materials and supplies. The CL110 is powered by a 116.2 kW MWM turbocharged four-stroke inline six cylinder flameproof diesel engine package.
• Flameproofing of the system includes a wet scrubber system complete with exhaust and intake flame traps. The start system is pneumatic and the diesel control system (DCS) is an intrinsically safe electronic monitoring and shutdown system which prevents the engine running outside of the predetermined safe operating parameters.
• The engine power output is connected to the constant four-wheel drive system via a drive coupling through a torque converter and out to a four speed Dana/Spicer 32000 Series transmission to heavy duty Dana 113 spiral bevel standard differential with inboard brakes and outboard planetary.

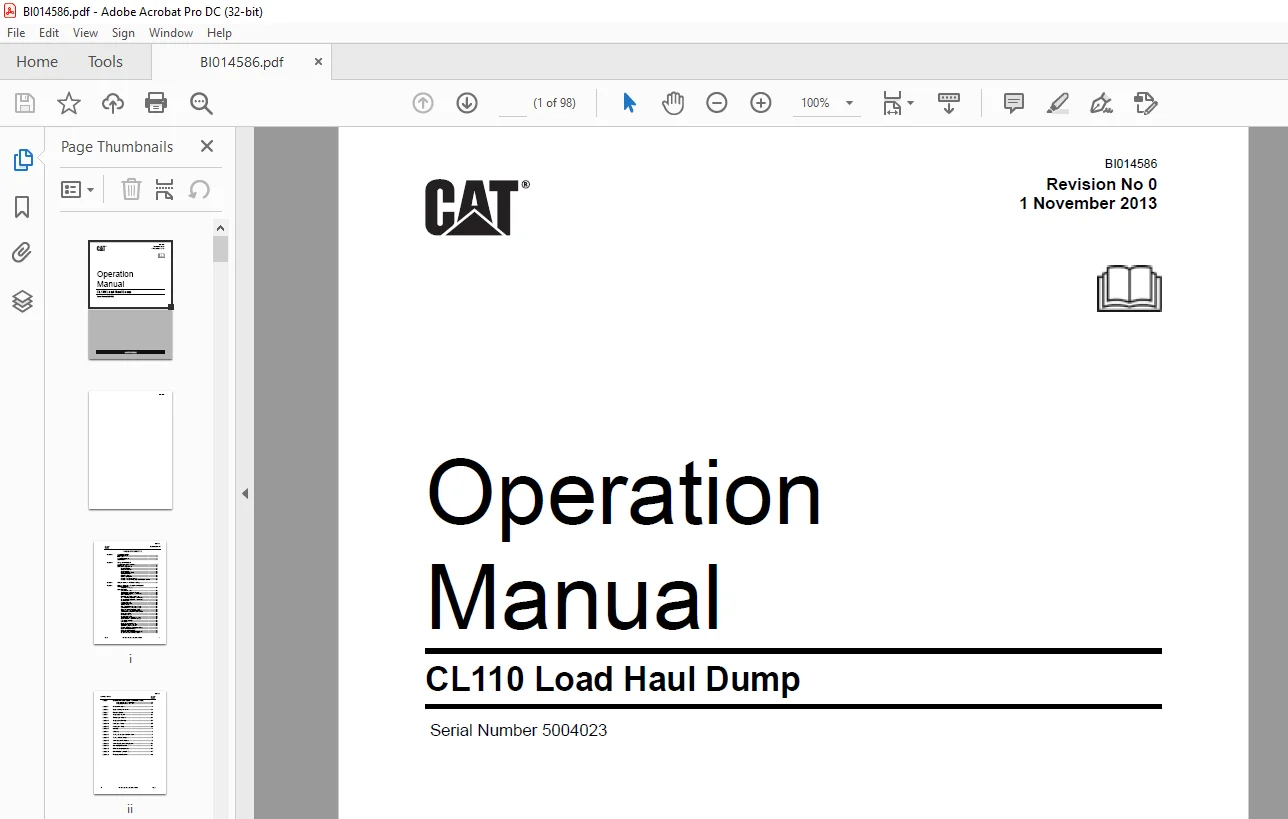

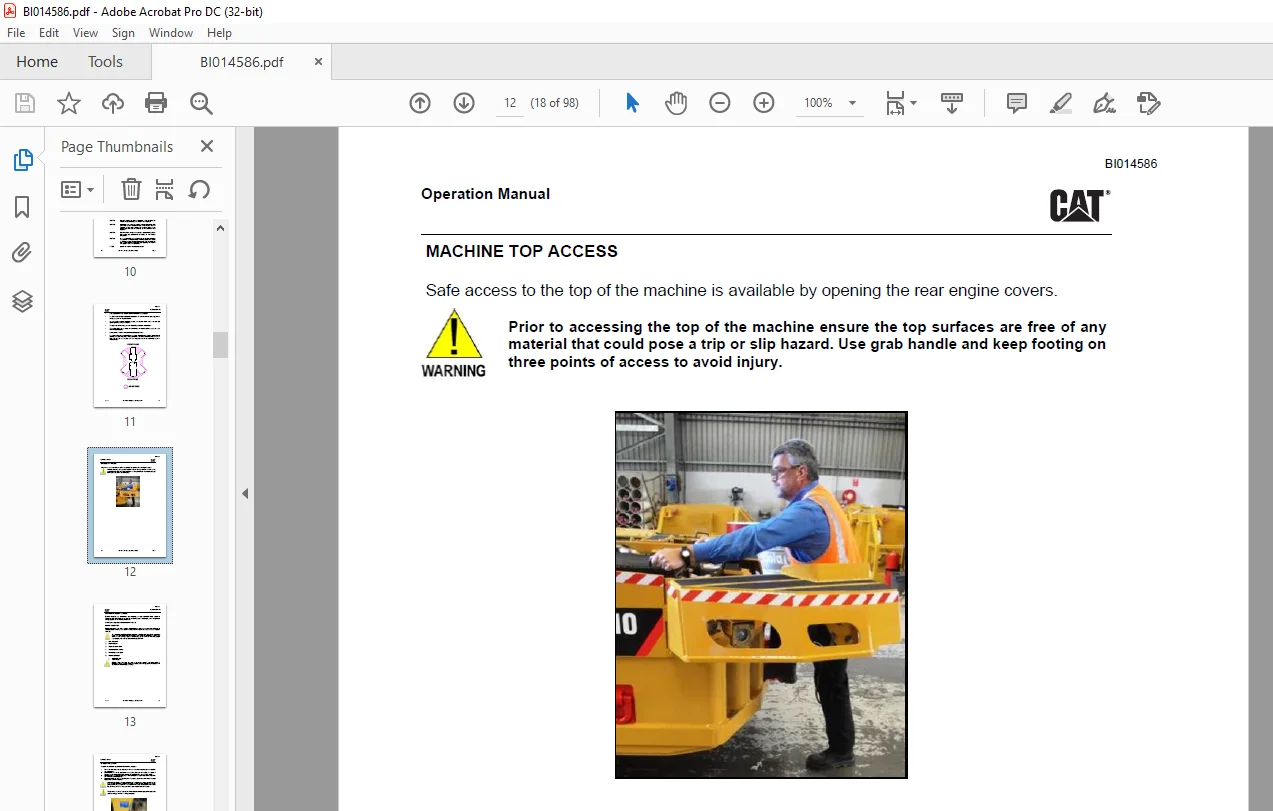

IMAGES PREVIEW OF THE MANUAL:

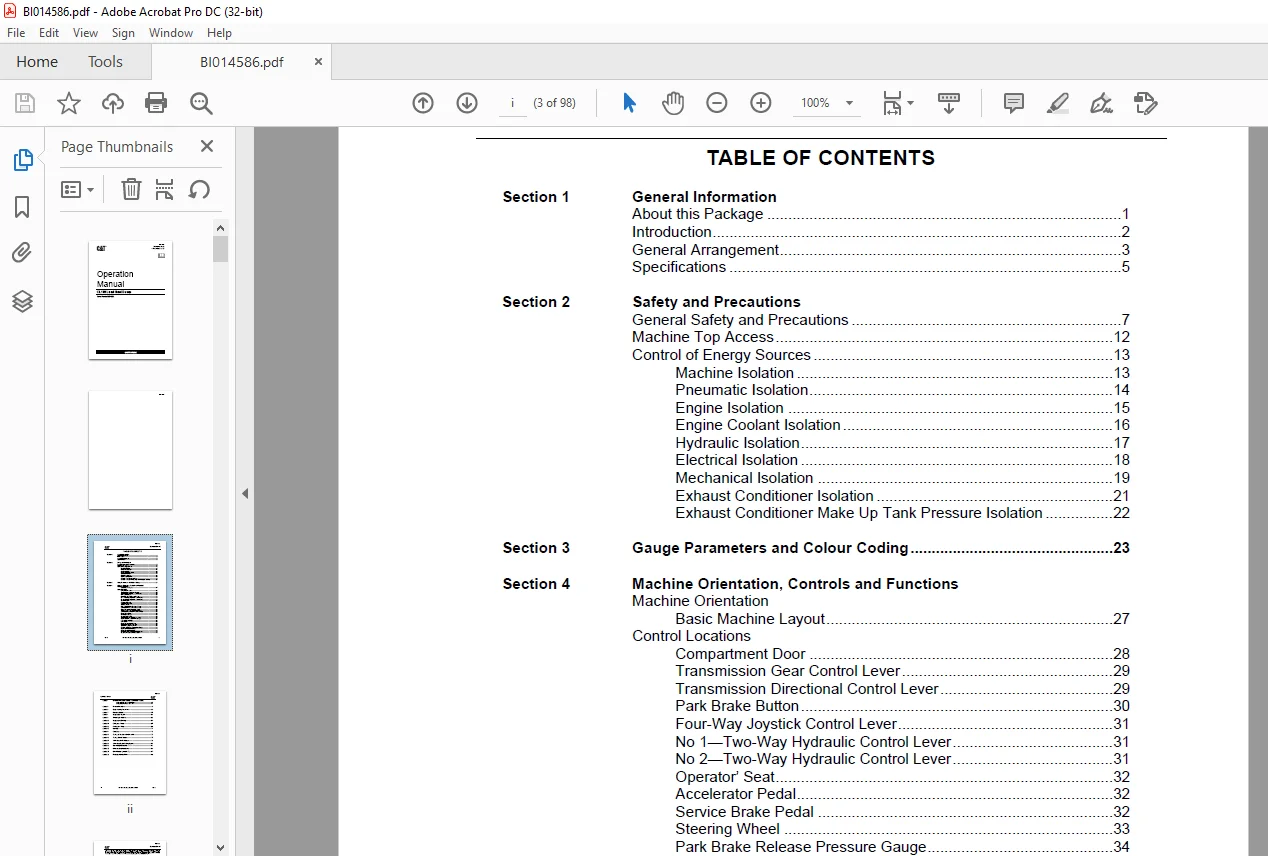

TABLE OF CONTENTS:

CAT CL110 Load Haul Dump Operation Manual SN 5004023 – PDF DOWNLOAD

Table of Contents 3
Section 1 General Information 7
Section 2 Safety and Isolation 13
Section 3 Gauge Parameters and Colour Coding 29
Section 4 Machine Orientation, Controls and Functions 33
Section 5 Pre-Start Procedure 51
Section 6 Engine Starting Procedure 61
Section 7 Post Start Checks 63
Section 8 Stopping the Engine 67
Section 9 Tramming the Machine 69
Section 10 Stopping and Braking 71
Section 11 Driving on a Ramp 73
Section 12 Parking on a Ramp 75
Section 13 Loading 77
Section 14 Dumping 79
Section 15 Towing the Machine when Disabled 81
Section 16 Towing with the Machine 83
Section 17 Air Venting the Fuel System 85
Section 18 Air Venting the Engine Cooling System 87
Section 19 Connecting Attachments 89
Section 20 Disconnecting Attachments 91
Section 21 Diesel Control System_DCS 93
Section 22 Fluid Specification Table 95

Need help? Contact: [email protected]

https://vimeo.com/858524100?share=copy

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
