CAT CL210 Load Haul Dump Operation Manual SN 5003958 – PDF DOWNLOAD

Description

CAT CL210 Load Haul Dump Operation Manual SN 5003958 – PDF DOWNLOAD

FILE DETAILS:

CAT CL210 Load Haul Dump Operation Manual SN 5003958 – PDF DOWNLOAD

Language : English
Pages :113
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT CL210 Load Haul Dump Operation Manual SN 5003958 – PDF DOWNLOAD

General Information
INTRODUCTION

• The operation of heavy mining machinery can be hazardous. To ensure safe operation, operators and personnel must be alert, competent, correctly trained, tested and licensed in the principles, capabilities and correct operating and isolation procedures of the machinery.
• This manual is designed to provide the CL210 Load Haul Dump operator with the proper information regarding the machine’s instrumentation, operating controls and general safe working procedures. All operators of this machine must be conversant with the information contained within this manual before operating the machine.
• To ensure safe and efficient operation, the CL210 Load Haul Dump must be adequately maintained by the operators and service personnel. To achieve this, the operator’s pre-start inspection procedure contained in Section 6 of this manual must be performed before any use of this machinery is undertaken. Any abnormalities should be reported immediately to service personnel to avoid costly machine repairs, production downtime and unsafe operation of the machine

DESCRIPTION

• The CL210 is a 10000 kg Load Haul Dump/Utility machine. This allows it to be used for general purpose work throughout the mine, which includes carrying heavy loads, materials and supplies. The motive force is provided by a 172 kW CAT 3126 turbocharged four-stroke inline six cylinder flameproof diesel engine package.
• Flameproofing of the system includes a dry exhaust conditioning system complete with exhaust and intake flame traps. The start system is pneumatic. The Diesel Control System (DCS) is an intrinsically safe electronic monitoring system. The engine power output is connected to the constant four-wheel
• Drive system via a drive coupling and converter through a four-speed bidirectional power shift transmission to heavy duty axles. The CL210 Load Haul Dump utilises a dry exhaust system complete with a replaceable particulate filter, catalysed exhaust post treatment purifier and an exhaust outlet flame trap

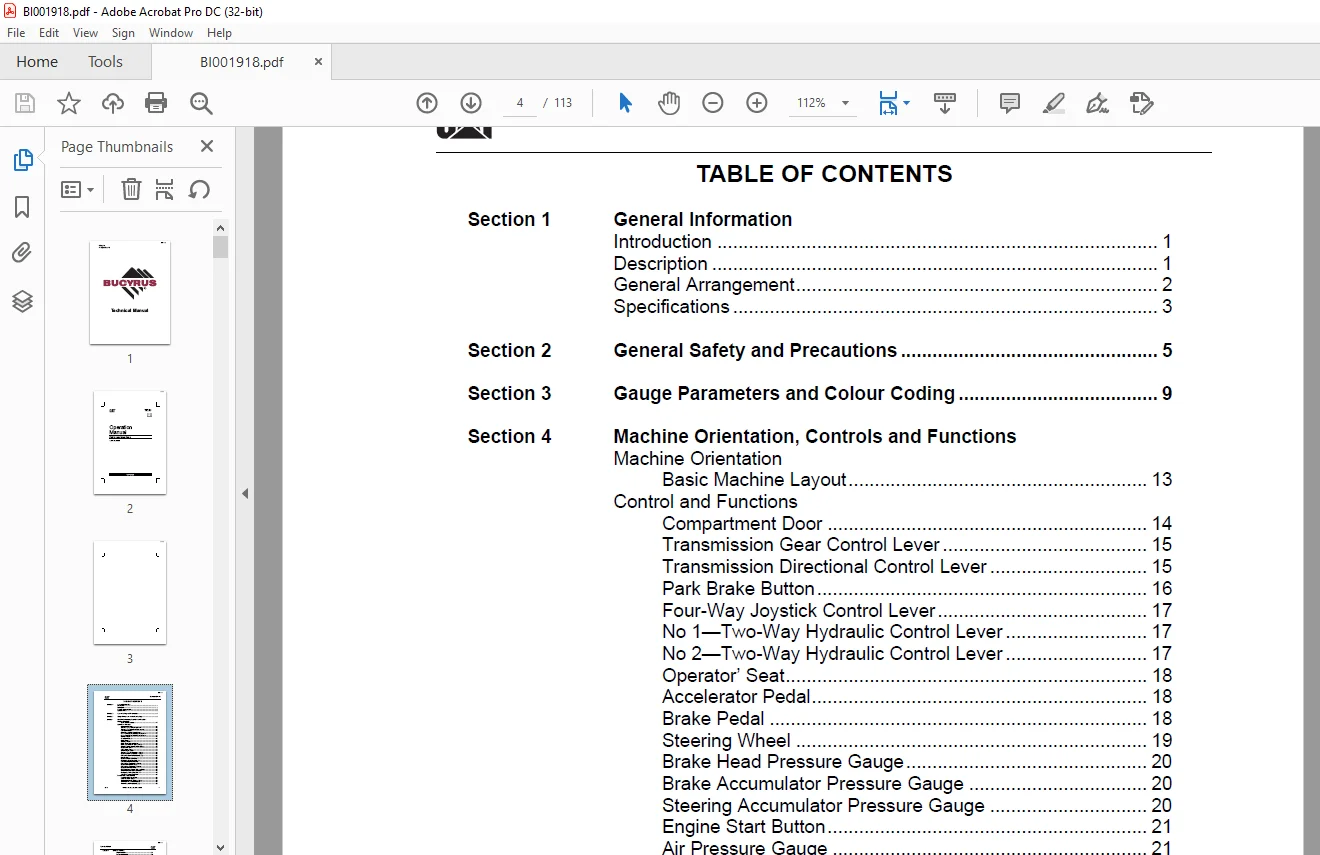

TABLE OF CONTENTS:

CAT CL210 Load Haul Dump Operation Manual SN 5003958 – PDF DOWNLOAD

BI001918-00-00-EN_ALL pdf 0
Table of Contents pdf 4
Section 1 General Information-Parallel Lift 8
Section 2 General Safety and Precautions 12
Section 3 Gauge Parameters and Colour Coding 16
Section 4 Machine Orientation, Controls and Functions 20
Section 5 Machine Isolation 38
Section 6 Pre-Start Procedure 46
Section 7 Engine Starting Procedure 56
Section 8 Post Start Checks 58
Section 9 Stopping the Engine 62
Section 10 Tramming the Machine 64
Section 11 Stopping and Braking 66
Section 12 Driving on a Ramp 68
Section 13 Parking on a Ramp 70
Section 14 Loading 72
Section 15 Dumping 74
Section 16 Towing the Machine when Disabled 76
Section 17 Towing with the Machine 78
Section 18 Air Venting the Fuel System 80
Section 19 Air Venting the Engine Cooling System 82
Section 20 Attaching Attachments 84
Section 21 Detaching Attachments 86
Section 22 Diesel Control System 88
Section 23 Fluid Specification Table 90
Section 24 Attachments_Adriyala 92
