CAT Continuous Haulage DBT 25M-2 PARTS Catalog Manual – PDF DOWNLOAD

Description

CAT Continuous Haulage DBT 25M-2 PARTS Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

CAT Continuous Haulage DBT 25M-2 PARTS Catalog Manual – PDF DOWNLOAD

Language : English
Pages :304
Downloadable : Yes
File Type : PDF
Size:1.87 MB

TABLE OF CONTENTS:

CAT Continuous Haulage DBT 25M-2 PARTS Catalog Manual – PDF DOWNLOAD

GENERAL INFORMATION
ELECTRICAL – GENERAL
DESCRIPTION
GENERAL ARRANGEMENT 25M2
CABLE OUTLINE FP LO V3 TD BR TB CT M
SCH DIA FP OE BB BR LO Vl TB CT
SCHEMATIC LEGEND
COMMON PARTS PUMP C-SPLINE&TRAM MTR
MOTOR CUTTERHEAD 250 HP
MOTOR,PUMP,950/550,60HZ,W/C-SPLINE
MOTOR,55HP,DC TRAM 460VDC W/R H20
KIT, MOTOR & GLAND GATHERING
MOTOR 40HP 950/550V60H2 GATHERING HEAD
COMMON PARTS TRAM & E-STOP SWITCH
SWITCH TRAM ISC 2480/2810/900
SWITCH E-STOP W/BOOT
TRAILING CABLE ENTRANCE GLAND KIT
CABLE ASS’Y I S TRAM
OPTION CONN BOX IN-LINE F/TLC
CONNECTION BOX ASSEMBLY
OPT FP RADIO FORCED POTATO W/AUX SW
RADIO FP PART SUMMARY FORCED POTATO
INST DIAG CSE 140B LD W/O XP
WD CSE 140B-LD W/O XP FIPOWER SU
LIGHTING SYSTEM OCENCO 3+ 3
HEADLIGHT-HE50
LIGHTING FIXTURE ARlOO
LOW OIL
SCH WD LOW OIL CIRCUIT -L
2 – ELECTRICAL – MAIN CASE (LEFT SIDE)
MATRIX MAIN LO 17CRL CS Vl FPBB BR
STANDARD ASSEMBLY, MAIN CONTROLLER CASE
WD MAIN-BBFP BR Vl RLl 7CEBLOCSW/OCT3
RADIO FP PART SUMMARY FORCED POTATO
PANEL ASSEMBLY, PUMP & CUTTERHEAD
ASSEMBLY SWING PANEL
*Indicates Drawing Not Included In Parts Catalog – For Reference Only
DRAWING NO.
OPT OVERLOAD F/25
OPT FP-BB AUX W/BATTERY BACK UP
OPT Vl SCRUBBER VACUUM lOHP FP
OPTION LO LOW OIL MAIN CASE FLOAT
MAIN CONTROLLER CASE – CS
MAIN CONTROLLER CASE – RL
OPT MH MAIN RUN CKT FROM HAULAGEONL Y
MATRIX OPER-OE SR TD FPBB 2BF 2BR
STANDARD ASSEMBLY, OPERATORS CONTROL CASE
WD OPER-FP,OE,SR,2B,BR,NC,EB
PUSHBUTTON OPERATOR ASSEMBLY
COVER ASSEMBLY
OPERATOR CONTROLLER- OE
OPT FP OPERA TOR CASE FORCED POTATO
OPERATOR CONTROLLER- SR
MATRIX OPER-OE SR TD FPBB 2BF 2BR
OPT 2BR OPER CASE-2 BREAKER FRONT
OPTION TD TRAM DEADMAN OPERATOR CASE
OPT MH HAULAGE TO MINER SHUT DOWN-12
BREAKER, MAIN, CBI, AUXILLARY CB2
4.;, ELECTRICAL – TRAM CASE (RJGHT SIDE)
MATRIX TRAM RL FP TBR CM CT El
STANDARD ASSY TRAM W/BREAKER-123
WD TRAM EI RL FP TB CT
RADIO FP PART SUMMARY FORCED POTATO
TROUBLE SHOOTING
TRAM DRIVE, EIMCO
CABLE ASSEMBLY I.S. TRAM
OPT CM COVER & METER
TRAM CASE – RL
OPT CT CUTTER MOTOR FEED BACK
OPT FP FORCE POTATO TRAM CASE
OPT TBR TRAM BREAKER RESET
OPT E 1 EIMCO DRIVE TRAM CASE
5-HYDRAULICSYSTEM
DESCRIPTION
HYDRAULIC SCHEMATIC 25M2
VAL VE BANK, 5 SECTION, XP
INLET ASSEMBLY
SECTION, SHEAR
SECTION, GATHERING HEAD
SECTION, CONVEYOR LIFT
SECTION, CONVEYOR SWING
SECTION, STABILIZER
OUTLET ASSEMBLY
SOLENOID VAL VE COMPLETE
HYDRAULIC PILOT VAL VE ASSEMBLY
PILOT OIL FILTER
ELEMENT, FILTER
RETURN FILTER
ELEMENT, FILTER (10 MICRON) F/49300080
POWER FILL PUMP
INSERT REMOVAL TOOL (CK. F/GREASE FITTING)
PUMP, 32-5, B MOUNT, C SHAFT
FILTER PILOT CIRCUIT 10 MICRON
SHEAR CYLINDER
OVER CENTER VAL VE SPECIFICATION
GATHERING HEAD LIFT CYLINDER
CONVEYOR LIFT CYLINDER
CONVEYOR SWING CYLINDER
STABILIZER CYLINDER
HYDRAULIC CIRCUIT
TRACTION FRAME ASSEMBLY
INSTL, COVERS & GRDS TOP LGTS
INSTALLATION BREATHER
INSTALLATION, DIP STICK
TFFINALFAB
ASSY/INSTL,HYD COMP RH REAR NON.OPER
INSTL., RUB RAILS
INSTL TOP COVERS
PIN INSTALLATION
BUSHING INSTALLATION
TRAM GROUP
TRAM DRIVE ASSEMBLY R.H.
TRAM DRIVE ASSEMBLY L.H.
PRIMARY PLANETARY ASSEMBLY
SECONDARY PLANETARY ASSEMBLY
*Indicates Drawing Not Included In Parts Catalog – For Reference Only
DRAWING NO.
DBT America Inc.
2045 W. Pike Street
Houston PA 15342
PERRY CO COAL COMP ANY – Serial Number 111726/25M2
DESCRIPTION
ASSY, TRACKBELT
IDLER ASSEMBLY
TRACK TAKE-UP ASSEMBLY
TAKE-UP CYLINDER
SHIM PACKAGE-FROND IDLER
STABILIZER ASSEMBLY
INSTL. 3 IN LIFT KIT – PIN TYPE
KIT INSTL COVERS RH REAR
LACING 41IN 2-1/2 DSB 3-112 BG
DRUM DRIVE ASSEMBLY R.H.
DRUM DRIVE ASSEMBLY L.H.
CUTTERHEAD ASSEMBLY
BOOM ASSEMBLY
CUTTER BOOM 2ND F AB
INSTALLATION, SHEAR JACK GUARD
INSTALL BOOM STOP 36″ DRUMS
G.H. FINAL ASSEMBLY
FOOTSHAFT ASSEMBLY
GATHERING HEAD GEAR CASE ASSEMBLY L.H.
GATHERING HEAD GEAR CASE ASSEMBLY R.H.
CONVEYOR ASSEMBLY 6 IN. FRONT & TAIL
ROLLER ASSEMBLY
FLIGHT SECTION
CONVEYOR SWING CYLINDER
DRAWING NO.
DESCRIPTION
WATER SCHEMATIC COOLING,DUST,FIRE
BALL VAL VE (1 “)
BALL VAL VE (2”)
VAL VE-PRESSURE REDUCING 1/2 IN
WATER VAL VE, HYDRAULIC PILOT
FIRE SUPPRESSION VAL VE
INS TL PAN SPRAYS
ASY SCRUBBER
SCRUBBER FAN
MIST ELIMINATOR (DEMISTER)
SCRUBBER SCREEN 30 MESH
INSTL DEMISTER & COVERS
INSTL SCRUBBER INTAKE DUCTS
LUBRICATION DIAGRAM
LUBRICATION PACKAGE
GEAR LUBRICANT, EP
HYDRAULIC OIL
MULTI-PURPOSE GREASE
POLYUREA GREASE
TOOLKIT

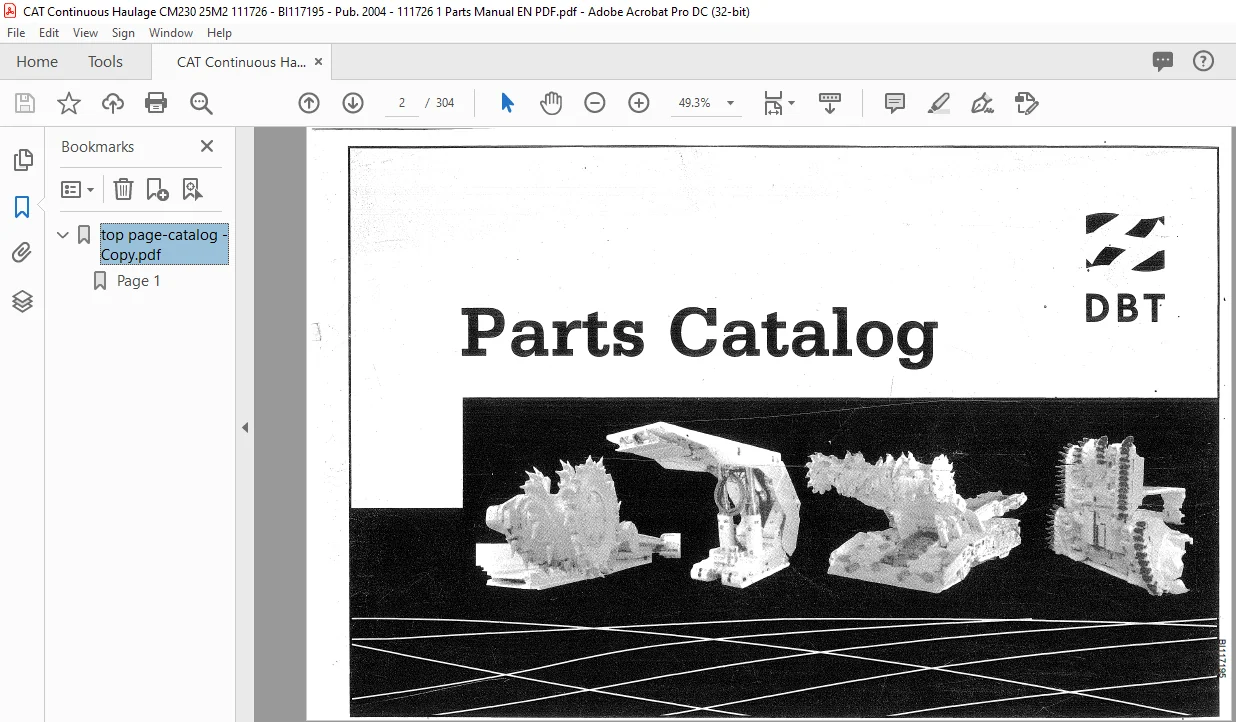

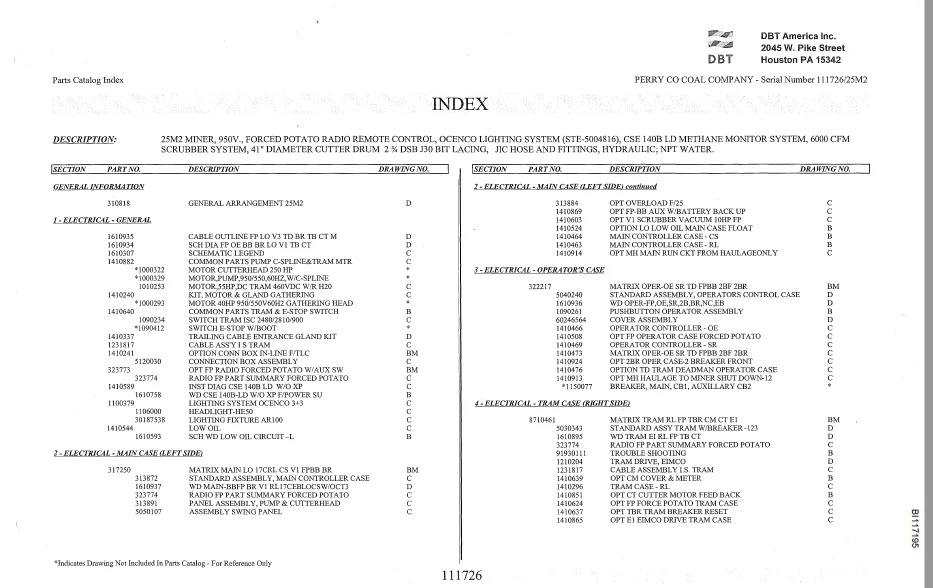

IMAGES PREVIEW OF THE MANUAL:
