Cat Continuous Miner 1038 Mannering Mechanical Training Manual – PDF DOWNLOAD


Cat Continuous Miner 1038 Mannering Mechanical Training Manual – PDF DOWNLOAD

$25.95 $98.95

  Happy to Help You :) Any queries / Requests? CLICK HERE to ask!

Cat Continuous Miner 1038 Mannering Mechanical Training Manual – PDF DOWNLOAD

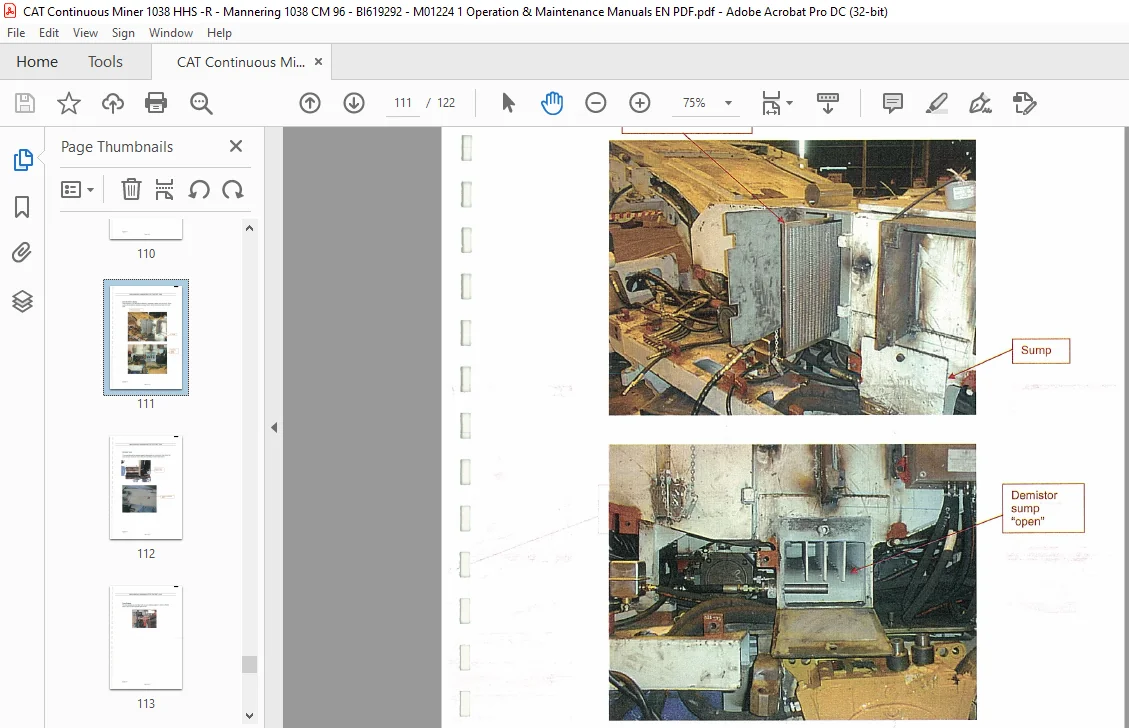

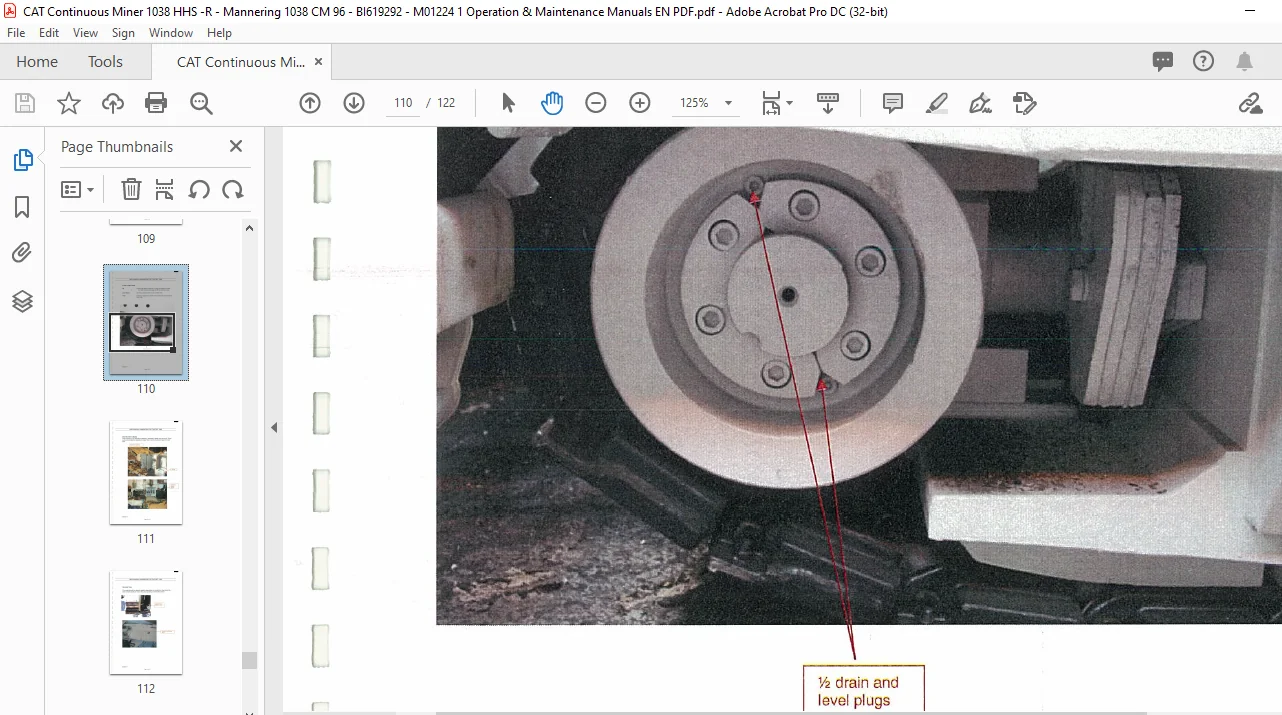

IMAGES PREVIEW OF THE MANUAL:

Cat Continuous Miner 1038 Mannering Mechanical Training Manual - PDF DOWNLOAD
Cat Continuous Miner 1038 Mannering Mechanical Training Manual – PDF DOWNLOAD
Cat Continuous Miner 1038 Mannering Mechanical Training Manual - PDF DOWNLOAD
Cat Continuous Miner 1038 Mannering Mechanical Training Manual – PDF DOWNLOAD

DESCRIPTION:

Cat Continuous Miner 1038 Mannering Mechanical Training Manual – PDF DOWNLOAD

MACHINE OPERATION :

The Jeffrey Model 1038 HHS-R is а radio-controlled drum type continuous miner with appropriate weight, balance, cutting and loading power to еnаЫе the productive mining of coal and other soft mineral seams ranging from 1,500 mm up to 4,000 mm thick. The machine is mounted on crawler tracks which provide full moЬility and sharp turning radius in both bord-and-pillar and long wall development mining plans. The ranging cutting head mines material from the solid face using а chainless-driverotating drum, and а CLA-type gathering head and high-speed conveyor work to gather and transport the mined material to the haulage system behind the miner.

The machine’s functional groups are as follows:
1. Cutting Head AssemЫy
2. Gathering Head AssemЫy
3. Conveyor AssemЫy
4. Traction Drive AssemЫy
5. Dust Scrubber System
6. StaЬiliser
7. Remote Control Equipment
8. Hydraulic System
9. Electrical System
1 О. Water System

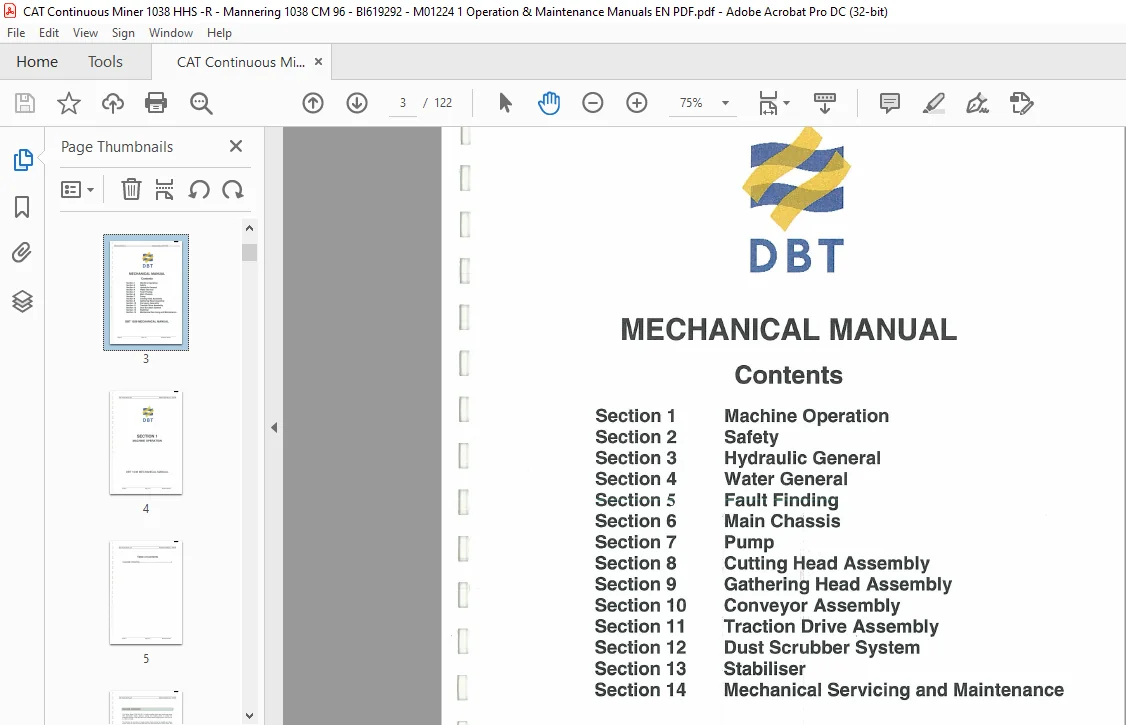

TABLE OF CONTENTS:
