Cat DBT Shield Support 182.8/396 2X3619 kN Operating Manual BI377402 – PDF DOWNLOAD

Description

Cat DBT Shield Support 182.8/396 2X3619 kN Operating Manual BI377402 – PDF DOWNLOAD

FILE DETAILS:

Cat DBT Shield Support 182.8/396 2X3619 kN Operating Manual BI377402 – PDF DOWNLOAD

Language : English
Pages : 419
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Cat DBT Shield Support 182.8/396 2X3619 kN Operating Manual BI377402 – PDF DOWNLOAD

About this manual:
This section provides important information that will simplify operation with this instruction
manual. In addition, it contains information on the structure of the manual and on the symbols
employed.

Before starting work:
If you employ an operating manual that does not apply specifically to the present shield type, you
endanger yourself and others. Ensure that the type specifications on the shield agree with those
of the operating manual. This operating manual applies to the following shield types:
DBT Shield Support 182.8 / 396 2 X 3619 kN
Identification no.: 7420 039 000 00 00 variant 01
Its use is permissible only for shields of these types! An operating manual must always be
available for the support at the site of operation. Request a new operating manual immediately, if
the existing manual is no longer complete, or has become illegible.

Persons for whom the operating manual is intended
This operating manual is intended for those persons who work with or on the shields. Every person
who works in the face or in the zone at the edge of the face must read this operating manual.
 This includes persons whom:
• are in charge of transport,
• erect the rise heading,
• perform assembly I disassembly work,
• operate the shields,
• correct malfunctions,
• perform daily routine work in the face,
• monitor I care for the hydraulic system,
• perform maintenance work,
• perform repair work;

 Supervisory personnel who
• initiate or
• supervise
• The activities just indicated, or both.

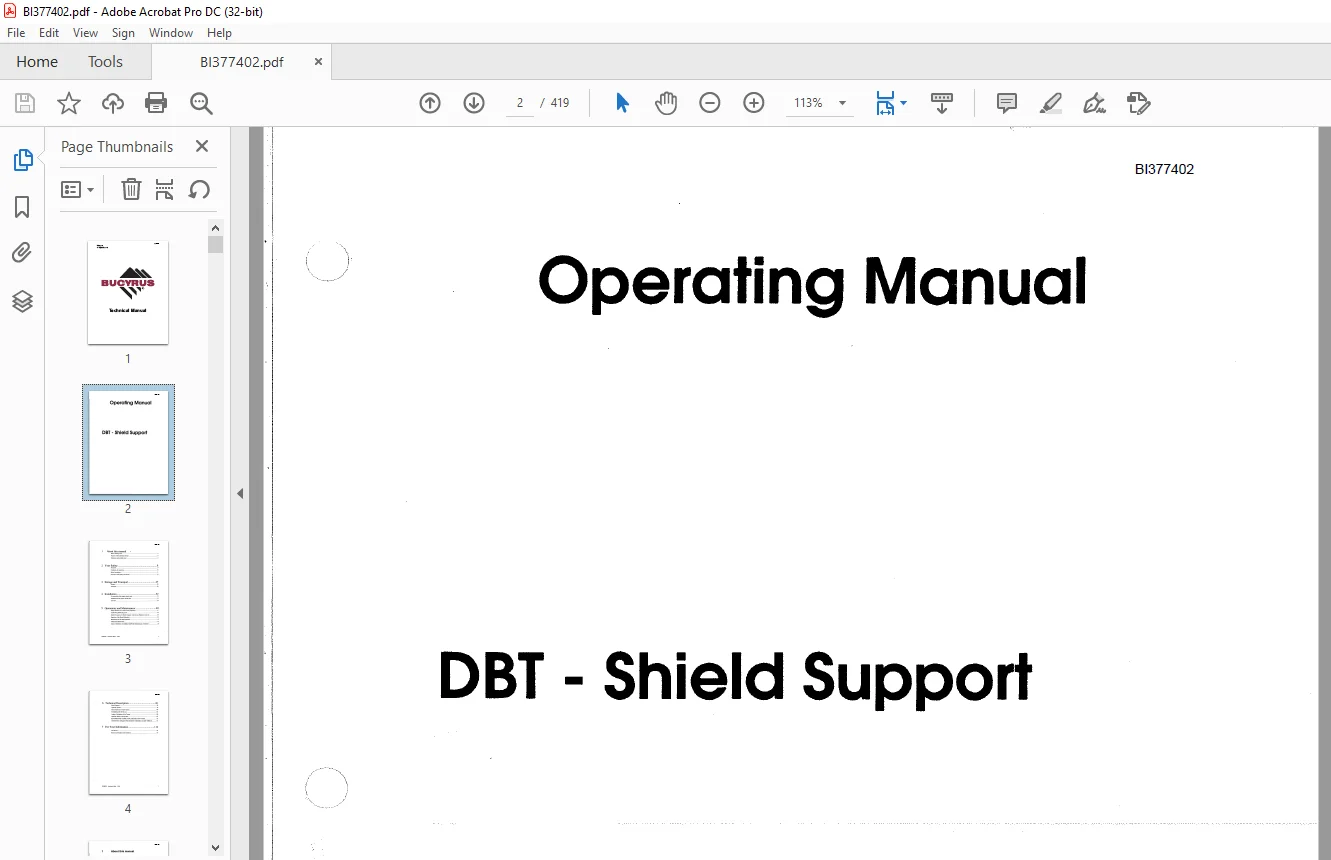

IMAGES PREVIEW OF THE MANUAL:

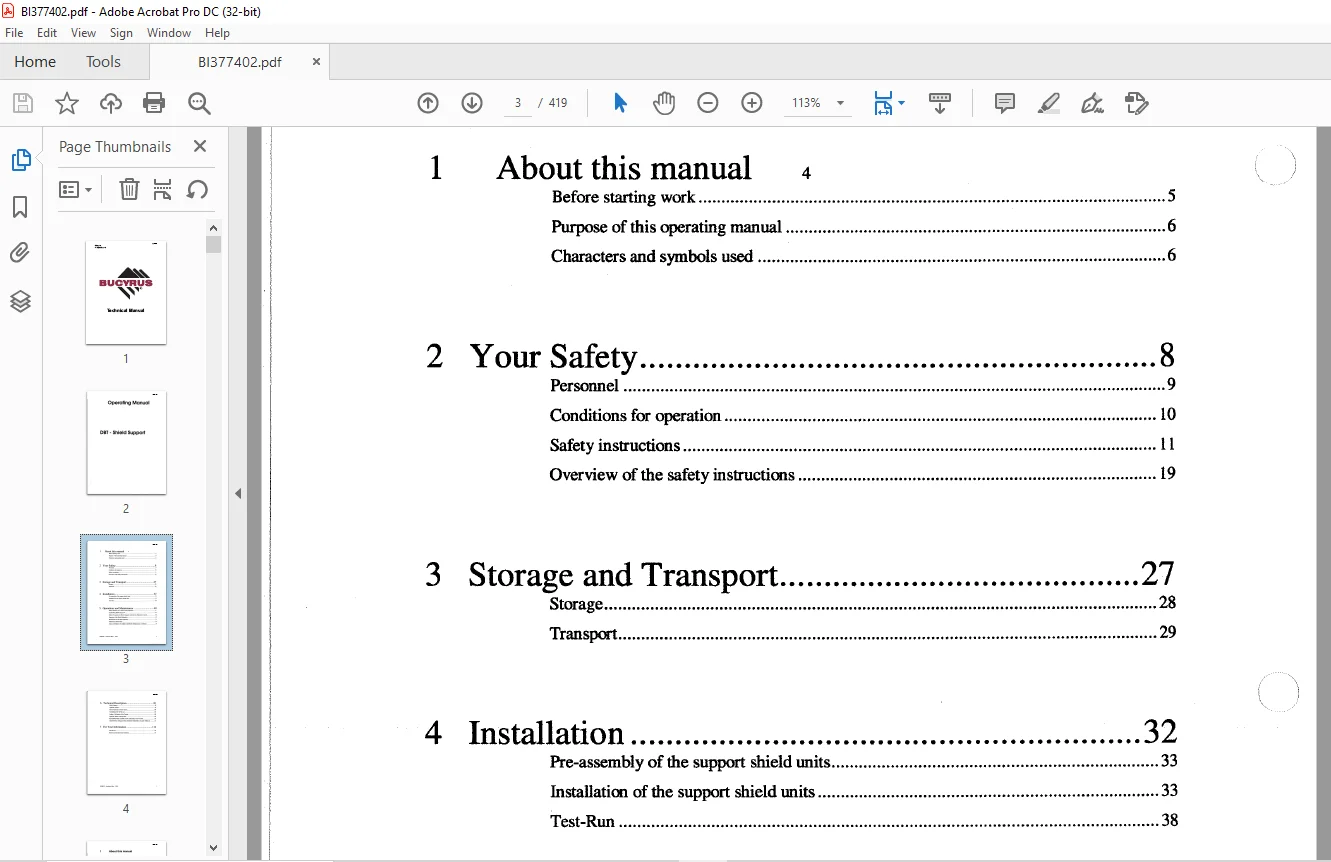

TABLE OF CONTENTS:

Cat DBT Shield Support 182.8/396 2X3619 kN Operating Manual BI377402 – PDF DOWNLOAD

1 About this manual 4
Before starting work 5
Purpose of this operating manual 6
Characters and symbols used 6
Personnel 9
Conditions for operation 10
Safety instructions 11
Overview of the safety instructions 19
3 ~torag~ and Transport ~7
Storage 28
Transport 29
4 Installation 3~
Pre-assembly of the support shield units 33
Installation of the support shield units 33
Test-Run 38
5 Op~rations and Maint~nanc~ 40
Safety Measures to be taken during Operation .41
Operating Shield Support 45
Safety Precautions for Shield Supports with Electro-Hydraulic Controls 50
Operation of the Shield Hydraulics 52
Maintenance of the shield hydraulic 73
TROUBLE SHOOTING 75
FAULT FINDING ON SHIELD SUPPORT HYDRAULIC SYSTEM 78
OXBOW – Sanbome Mine – 1998 2
BI377402
6 Technical Description 81
Shield Support 82
Hydraulic System 92
Electro-Hydraulic Control System 104
PANZERMATIC 0 PM-4/A 105
Angles of Inclination of the Canopy 106
Hydraulic Fluids of Group I1FA 107
RECOMMENDED LUBRICATING GREASES AND PASTES 110
TIGHfENING TORQUES FOR SCREWS WIMETRIC COARSE THREAD 113
7 For Your Information 114
Our Service 115
Referenced Standards and Guidelines 116
