INTRODUCTION

I. Read Instruction Manual Carefully.

This manual has been compiled to give the owner and operator information as to the care, operation and maintenance of the machine. For convenience this manual has been written in sections. Familiarize yourself with the various sections so that you can easily locate the particular information you may need. Every effort has been made to have this manual as complete as possible at the time of printing. However, since the Bucyrus-Erie Company reserves the right to improve its products continually, changes may be made that are not covered in this manual.

II. General Maintenance.

A regular planned inspection of all moving machinery parts should be made at least once each shift. Structural parts, castings and all non-moving connections should be inspected once a week. Keep all bolts tight and free from oil or grease. Keep the machine clean and painted. Motors, generators and other electrical equipment should be cleaned frequently. It is best to dig with crawler belts tight on the bottom. Check grounding of machine frequently. Contact resistance of each ground should never exceed 25 ohms. Never attempt to inspect the collector rings unless the trail cable is disconnected from the power line. An open switch may not be suf ficient protection since there is the possibility that dirt or water in the oil might cause sufficient leakage to result in a dangerously high voltage.

III  ALWAYS USE THE PARTS CATALOG WHEN ORDERING PARTS TO INSURE GETTING THE RIGHT PART FOR YOUR SPECIFIC SERIAL NUMBERED MACHINE. 2 X-2470 REV.9-70  BI180841 GENERAL OPERATING INSTRUCTIONS

• How to operate a power excavator efficiently must be learned in much the same way as any skilled trade- No one is a “born” operator. Regardless of previous experience, the new operator must use care to operate the machine safely so as not to endanger men or equipment.
• At first glance the large number of levers and switches looks as though operating the machine might be complicated, but most of them control some auxiliary function of the machine such as steering, etc., and are not used in the regular operating cycle.
• The two tall levers and the two pedals in front of the operator are the principal controls used in the regular operating cycle and their use will be described in detail further on in these instructions.
• The first thing the new operator must do is to familiarize himself with the purpose of each of these levers and operating switches. When learning to operate the machine it is a good plan to study each separate function until fully familiar with the control of all the auxiliary functions of the machine such as propelling, steering, etc., then try out the main controls which are used in actual digging operations.
• The main functions can be tried separately until the operator becomes accustomed to the response of the machine to the controls. When learning to handle the controls be sure there is plenty of clearance and no danger spots around the machine such as overhead wires, culverts, ditches or embankments

A. INSPECT MACHINE BEFORE STARTING SHIFT

Before beginning to operate the machine at the start of a shift, make a general inspection of the machine to make sure it is ready for operation:

1. Look under the cats and around the machinery to see if there is any evidence of lubricating oil leaks. Correct any major leaks and refill to required level. Make a note of minor leaks and correct at first opportunity possible.
2.  Look over the electrical accessories to make sure all units are securely mounted and properly adjusted.

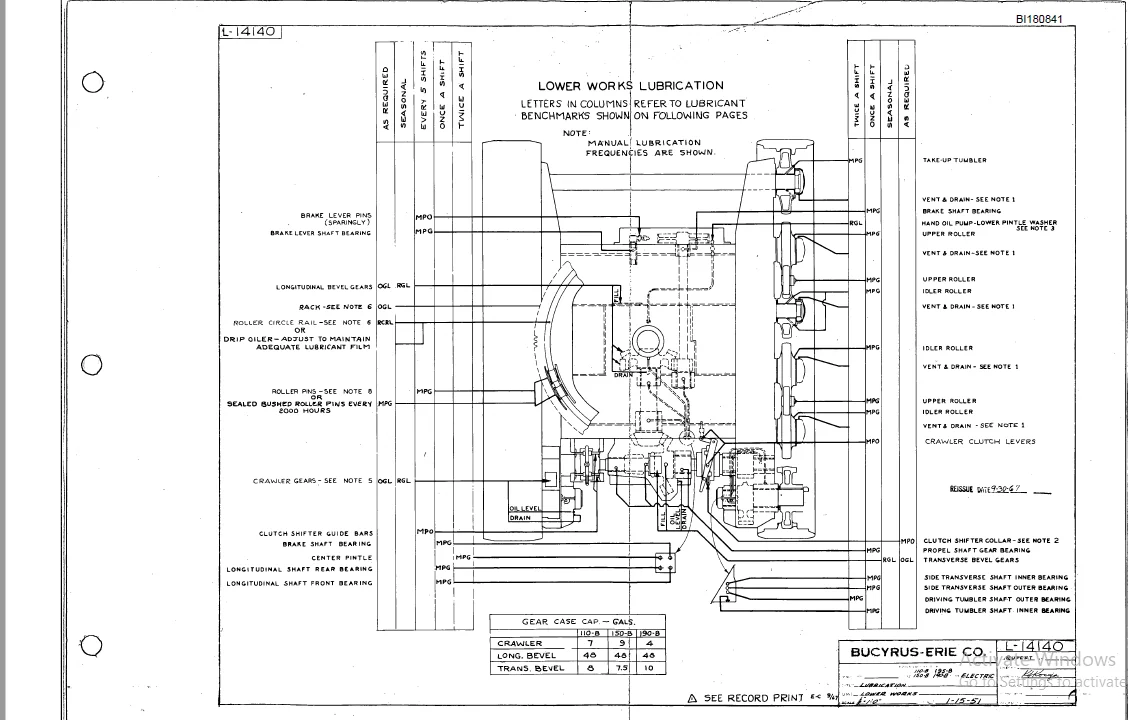

3.  Lubricate all twice-a-shift (k hour) and once-a-shift (8 hour) points as covered in the lubrication section of this instruction book.
4. Consult the lubrication record for the machine and service all points which have gone the specified length of time since the last previous servicing.
5. Check operation of all hand levers and foot pedals to see that they work freely without binding, yet with no lost motion.
6. Check main line air pressure which must be at least 110 lb. sq. inch.
7.  Engage the clutches to check operation of each motion.

B. POINTS TO WATCH DURING SHIFT

During the shift, watch for any signs of improper operation or adjustment. The following items are of particular importance:

1. Check generator, motors and gears for any unusual noise, loss of power or failure to respond. Page 1 X-l4l3a Rev. 11-64 BI180841
2.  Check the clutches immediately if they should start to slip excessively during normal operation.
3. Watch the cables to see that they do not become crossed on the drums.
4. When propelling check the tracking of the drive tumblers on the cat links and, if necessary, readjust the belts to correct improper operation.
5. When operating auxiliary functions such as the steering clutches, etc., note any tendency of the controls to “hang up” or jam which would indicate improper operation. Correct the adjustment at the earliest possible opportunity
6. .  Watch the air gauge in the operator’s cab and investigate immediately should there be a sudden drop in air pressure

TABLE OF CONTENTS:

CAT Electric Rope Shovel 195B Operation & Instruction Manual – PDF DOWNLOAD

Language : English
Pages :321
Downloadable : Yes
File Type : PDF
Size:18.8 MB

CAT ELECTRIC ROPE SHOVEL 195B OPERATION & INSTRUCTION MANUAL – PDF DOWNLOAD:

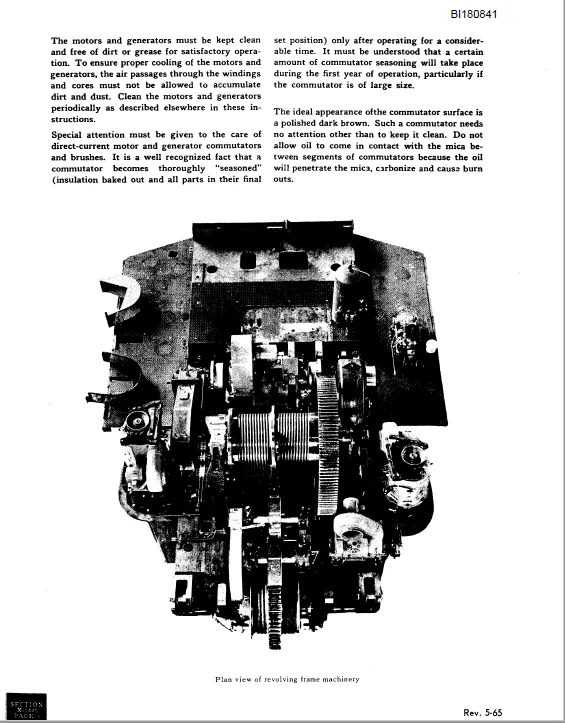

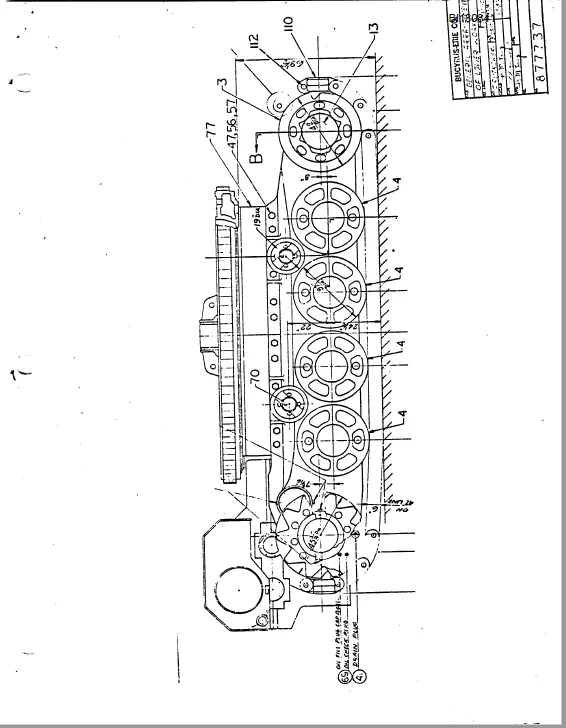

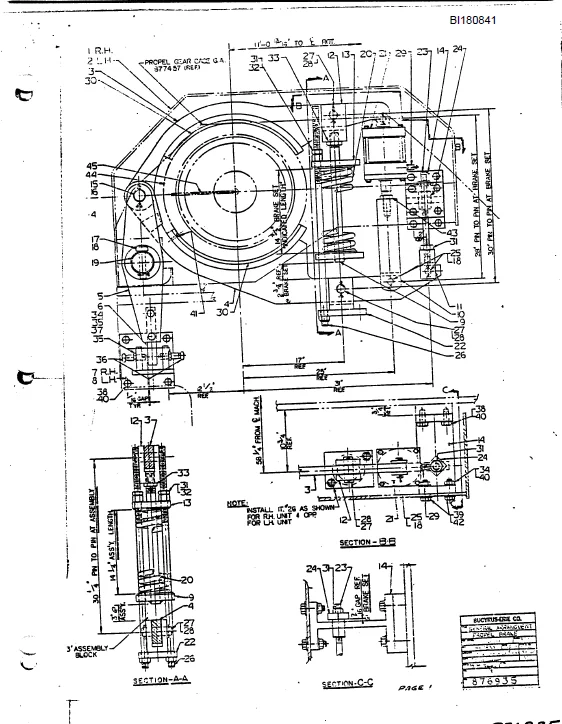

IMAGES PREVIEW OF THE MANUAL:
