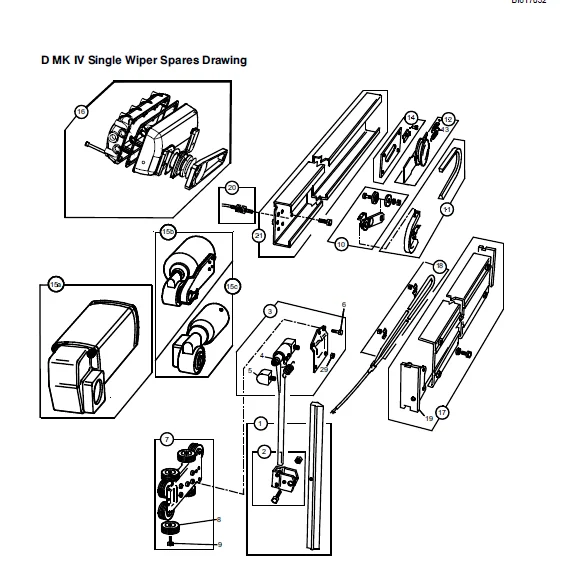

Type D MK IV Wiper Installation

CAUTION: Ensure that the correct wiper, blade and arms are selected for each window.

CAUTION: Before drilling, ensure that there are no obstructions / hazards at the chosen mounting position. The main frame should be mounted on a flat surface that will not bend or twist the casing, as this will prevent correct operation of the wiper

CAUTION: Where more than one wiper unit is to be mounted close together, allow a distance of 70mm minimum between the wiper units

1. Locate the self-adhesive template in the correct mounting position on the outside of bulkhead NOTE: For motors mounted at the opposite end, the template should be inverted.

2. Drill the wiper 2 off fixing holes (11 mm diameter).

3. Detach the back casing from main unit. Hold the back casing in the required position and mark-out the remaining two wiper fixing holes, or calculate stroke length plus 172 mm.

4. Drill the remaining wiper fixing, and cable holes for the motor, heater and park sensor, ensuring that all holes are de-burred. Treat bare metal to prevent corrosion.

5. Fit the wiper case into position and secure with M10 bolts. Ensure that the bolts are sealed where they pass through the bulkhead.

6. Using the supplied M6 x 10mm screws, secure the blade arm to the carriage plate.

CAUTION: Ensure the correct length screws are used, as supplied. Longer screws will cause the carriage assembly to jam.

7. Bolt the front case to the back case using the 2 off M10 bolts fitted.

8. If necessary, slacken the screws on the blade attachment clip, move the blade up or down for optimum position and then retighten screws.

9. Move the blade assembly over its full stroke and check that there is no restriction to movement (the motor will offer some resistance, but should not jam the wiper). Investigate and rectify any restrictions. If necessary adjust the blade up or down on the arm to avoid the window frame.

10. Pass the cables through the bulkhead, leaving sufficient spare cable to allow the front assembly to be lifted away from the rear case during the maintenance period. Ensure the wiper is correctly earthed.

11. Ensure that wherever the cable passes through the bulkhead a suitable cable gland or seal is used to prevent water ingress and cable chaffing.

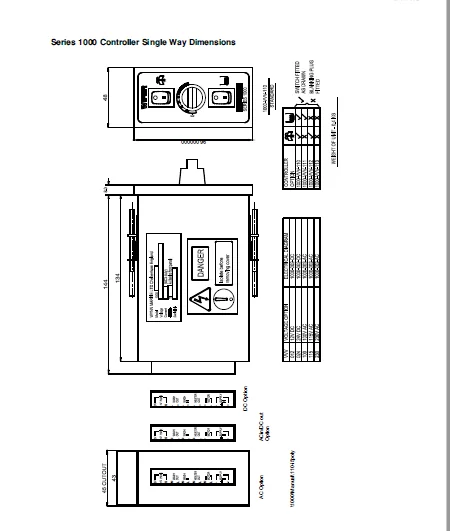

Series 1000 Control Unit

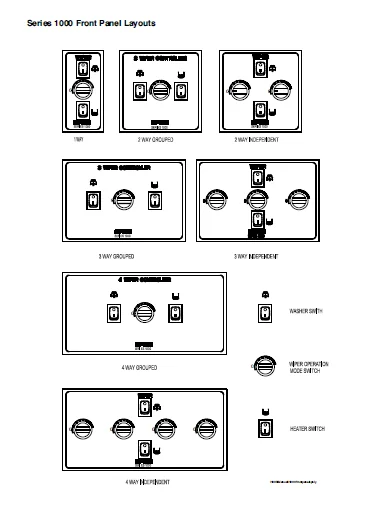

Series 1000 controllers are available in units from 1 – 4 ways. They allow direct connection to the wiper motor without the need for intermediate power supplies. Wipers are controlled in continuous or variable intermittent modes. Switches are fitted for Spray and Heater control. A park sensor allows the wiper to park at the motor end when it reaches the end of stroke. The system complies with all relevant safety and EMC regulations
