DESCRIPTION:

CAT FBL-10 (CL210) Load Haul Dump Operation Manual SN 5001724 – PDF DOWNLOAD

General Information
INTRODUCTION

• The operation of heavy mining machinery can be hazardous. To ensure safe operation, operators and personnel must be alert, competent, correctly trained, tested and licensed in the principles, capabilities and correct operating and isolation procedures of the machinery.
• This manual is designed to provide the CL210 Load Haul Dump operator with the proper information regarding the machine’s instrumentation, operating controls and general safe working procedures. All operators of this machine must be conversant with the information contained within this manual before operating the machine.
• To ensure safe and efficient operation, the CL210 Load Haul Dump must be adequately maintained by the operators and service personnel. To achieve this, the operator’s pre-start inspection procedure contained in Section 6 of this manual must be performed before any use of this machinery is undertaken. Any abnormalities should be reported immediately to service personnel to avoid costly machine repairs, production downtime and unsafe operation of the machine.

DESCRIPTION

• The CL210 is a 10000 kg Load Haul Dump/Utility machine. This allows it to be used for general purpose work throughout the mine, which includes carrying heavy loads, materials and supplies. The CL210 is powered by a 172 kW (230 HP) CAT 3126 turbocharged four-stroke inline six cylinder flameproof diesel engine package.
• Flameproofing of the system includes a wet bath exhaust conditioning system complete with exhaust and intake flame traps. The start system is pneumatic.
• The Electronic Shutdown System is an intrinsically safe electronic monitoring system. The engine power output is connected to the constant four-wheel drive system via a drive coupling and converter through a four-speed bidirectional power shift transmission to heavy duty axles. The CL210 Load Haul Dump utilises a wet bath exhaust system complete with an exhaust purifier.

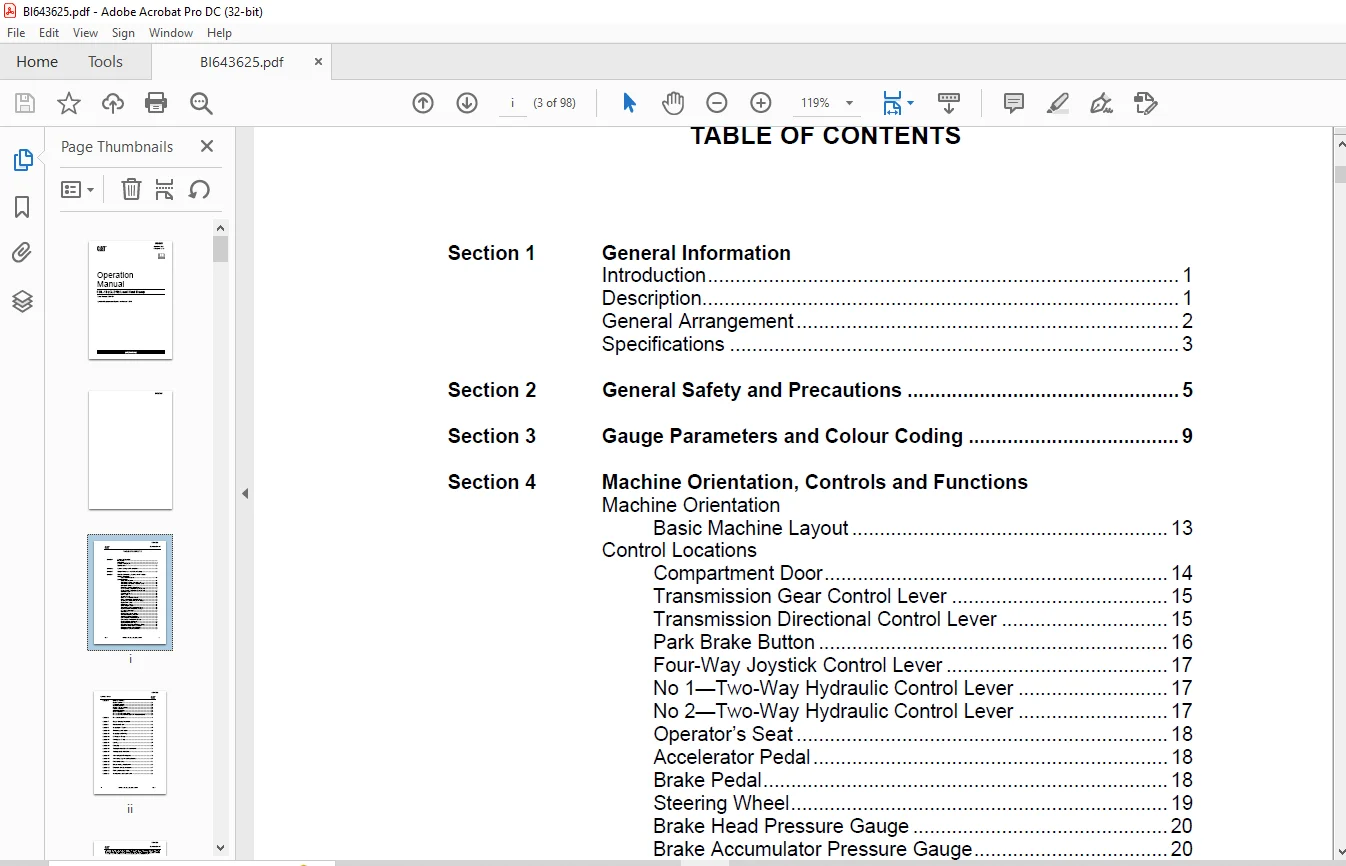

TABLE OF CONTENTS:

CAT FBL-10 (CL210) Load Haul Dump Operation Manual SN 5001724 – PDF DOWNLOAD

Table of Contents 3
Section 1 General Information-Wet 7
Section 2 General Safety and Precautions 11
Section 3 Gauge Parameters and Colour Coding 15
Section 4 Machine Orientation, Controls and Functions 19
Section 5 Machine Isolation 37
Section 6 Pre-Start Procedure 47
Section 7 Engine Starting Procedure 57
Section 8 Post Start Checks 59
Section 9 Stopping the Engine 63
Section 10 Tramming the Machine 65
Section 11 Stopping and Braking 67
Section 12 Driving on a Ramp 69
Section 13 Parking on a Ramp 71
Section 14 Loading 73
Section 15 Dumping 75
Section 16 Towing the Machine when Disabled 77
Section 17 Towing with the Machine 79
Section 18 Air Venting the Fuel System 81
Section 19 Air Venting the Engine Cooling System 83
Section 20 RAS Attachments 85
Section 21 Disconnecting Attachments 87
Section 22 Electronic Shutdown System 89
Section 23 Fluid Specification Table 93
Section 24 Attachments 95
