CAT FBL-10 LHD Utility Operator’s Manual SN80042 – PDF DOWNLOAD

Description

CAT FBL-10 LHD Utility Operator’s Manual SN80042 – PDF DOWNLOAD

FILE DETAILS:

CAT FBL-10 LHD Utility Operator’s Manual SN80042 – PDF DOWNLOAD

Language : English
Pages :116
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT FBL-10 LHD Utility Operator’s Manual SN80042 – PDF DOWNLOAD

• The operation of heavy mining machinery can be hazardous. To ensure safe operation, operators and personnel must be alert, competent, correctly trained, tested and licensed in the principles, capabilities and correct operating and isolation procedures of the machinery.
• This manual is designed to provide the FBL-10 LHD/Utility operator with the proper information regarding the machine’s instrumentation, operating controls and general safe working procedures. All operators of this machine must be conversant with the information contained within this manual before operating the machine.
• To ensure safe and efficient operation, the FBL-10 LHD/Utility must be adequately maintained by the operators and service personnel.
• To achieve this, the operator’s pre-start inspection procedure contained in Section 6 of this manual must be performed before any use of this machinery is undertaken. Any abnormalities should be reported immediately to service personnel to avoid costly machine repairs, production downtime and unsafe operation of the machine.

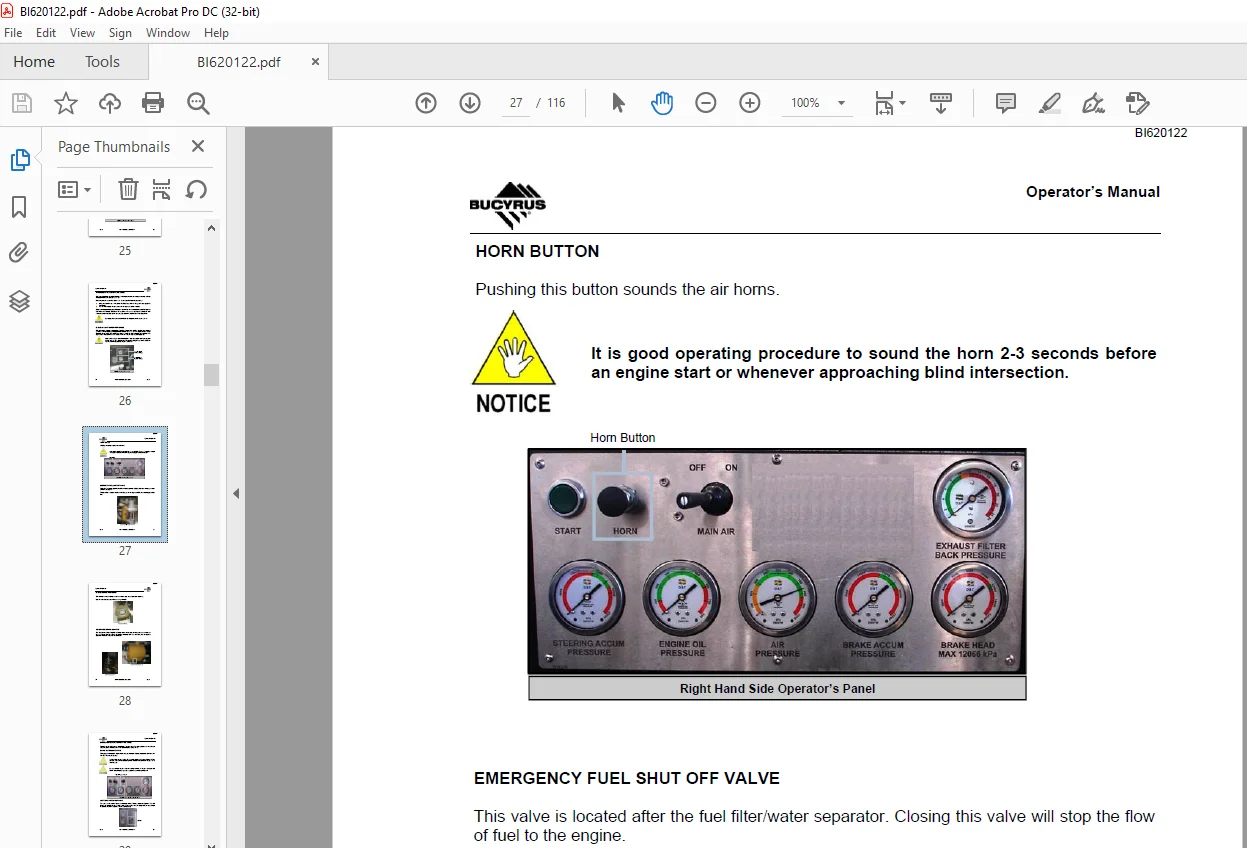

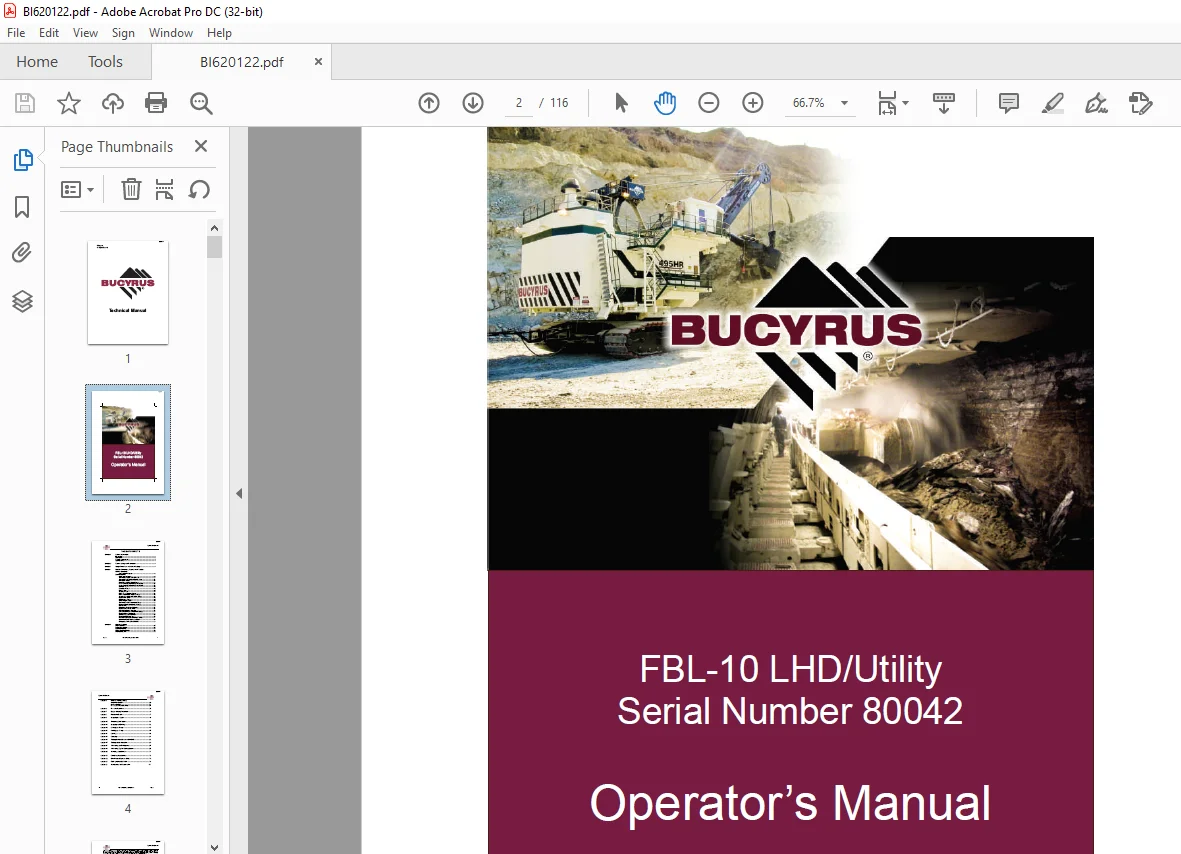

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CAT FBL-10 LHD Utility Operator’s Manual SN80042 – PDF DOWNLOAD

Section 1 General Information
Introduction 1
Description 1
General Arrangement 2
Specifications 3
Section 2 General Safety and Precautions 5
Section 3 Gauge Parameters and Colour Coding 9
Section 4 Machine Orientation, Controls and Functions
Machine Orientation
Basic Machine Layout 11
Control Locations
Compartment Door 12
Transmission Gear Control Lever 13
Transmission Directional Control Lever 13
Park Brake Button 14
Four-Way Joystick Control Lever 15
No 1—Two-Way Hydraulic Control Lever 15
No 2—Two-Way Hydraulic Control Lever 15
Operator’ Seat 16
Accelerator Pedal 16
Brake Pedal 16
Steering Wheel 17
Brake Head Pressure Gauge 18
Brake Accumulator Pressure Gauge 18
Steering Accumulator Pressure Gauge 18
Engine Start Button 19
Air Pressure Gauge 19
On/Off Toggle Switch 19
Transmission Oil Temperature Gauge 20
Engine Coolant Temperature Gauge 20
Horn Button 21
Emergency Fuel Shut Off Valve 21
Engine Service Hour Meter 22
Air Cleaner Service Indicator 22
Exhaust Outlet Gas Temperature Gauge 23
Engine Oil Pressure Gauge 23
Shutdown System Test Valve 23
Engine Fuel Primer Pump 24
RAS Pilot Lock Cylinder Release Button 24
Attachment Quick Connects Button 24
Emergency Intake Shut Off Valve 25
Section 5 Machine Isolation
Engine Isolation 27
Pneumatic Isolation 28
Hydraulic Isolation 29
Engine Coolant Isolation 30
Electrical Isolation 31
Articulation Isolation 32
Lift Arm Isolation 33
Exhaust Conditioner Isolation 34
Section 6 Pre-Start Procedure 35
Section 7 Engine Starting Procedure 45
Section 8 Post Start Checks 47
Section 9 Stopping the Engine 49
Section 10 Tramming the Machine 51
Section 11 Stopping and Braking 53
Section 12 Driving on a Ramp 55
Section 13 Parking on a Ramp 57
Section 14 Loading 59
Section 15 Dumping 61
Section 16 Towing the Machine when Disabled 63
Section 17 Towing with the Machine 65
Section 18 Air Venting the Fuel System 67
Section 19 Air Venting Engine Cooling System 69
Section 20 Attaching Attachments 71
Section 21 Detaching Attachments 73
Section 22 Diesel Control System (DCS) 75
Section 23 Fluid Specification Table 79
Section 24 Attachments and Accessories 81
