Cat Feeder Breaker FBL-55 Shield Hauler with wet scrubber Operator Manual – PDF DOWNLOAD

Description

Cat Feeder Breaker FBL-55 Shield Hauler with wet scrubber Operator Manual – PDF DOWNLOAD

DESCRIPTION:

Cat Feeder Breaker FBL-55 Shield Hauler with wet scrubber Operator Manual – PDF DOWNLOAD

Introduction

• The operation of heavy mining equipment can be hazardous. To ensure safe operation, operators and personnel must be alert, competent, correctly trained, tested and licensed in the principles, capabilities and correct operating and isolation procedures of the equipment.
• This manual is designed to provide the FBL-55 Shield Hauler Operator with the proper information regarding the equipment’s instrumentation, operating controls and safe working procedures. All operators of this machine must be conversant with the information contained within this manual before operating the machine.
• To ensure safe and efficient operation, the FBL-55 Shield Hauler must be adequately maintained by the operators and service personnel. To achieve this, the operator’s pre-start inspection procedure contained in Section 5 of this manual must be performed. Any abnormalities should be reported immediately to maintenance personnel to avoid costly machine repairs, production down time and unsafe operation of the machine

Description

• The FBL-55 is a 55,000 kg high capacity Shield Hauler. It has been designed for lifting and carrying heavy pieces of equipment and machinery in underground coal mines. Its main function will be carrying and placing of longwall equipment and shields. The machine comes standard with a set of fork tines and winch for this purpose.
• The motive force is provided by a 195 kW Caterpillar 3216 six cylinder turbo charged 4 Stroke Inline 6 Cylinder FLAMEPROOF diesel engine package. Flame proofing of the system includes a wet bath exhaust conditioning system complete with exhaust and intake flame traps.
• The start system is pneumatic and the safety system is an intrinsically safe electronic monitoring system. The engine power output is connected to the constant 4 wheel drive system via a drive coupling through a 4 speed bi-directional power shift transmission to heavy duty axles with liquid cooled POSI -STOP brakes.
• The FBL-55 utilises a wet exhaust system complete with a replaceable particulate filter and a purifier. A removable flame trap for ease of cleaning is fitted on the outlet of the exhaust filter housing.

TABLE OF CONTENTS:

Cat Feeder Breaker FBL-55 Shield Hauler with wet scrubber Operator Manual – PDF DOWNLOAD

1. GENERAL INFORMATION
2. GENERAL SAFETY AND PRECAUTIONS
3. GAUGE PARAMETERS AND COLOUR CODING
4. MACHINE ORIENTATION, CONTROLS AND FUNCTIONS
5. MACHINE ISOLATION
6. PRE-START PROCEDURE
7. ENGINE STARTING PROCEDURE
8. POST START CHECKS
9. STOPPING THE ENGINE
10. TRAMMING THE MACHINE
11. STOPPING AND BRAKING
12. DRIVING ON A RAMP
13. PARKING ON A RAMP
14. LOADING
15. COOKIE PLATE USE
16. TOWING THE VEHICLE WHEN DISABLED
17. TOWING WITH THE VEHICLE
18. AIR VENTING THE FUEL SYSTEM
19. AIR VENTING ENGINE COOLING SYSTEM
20. ELECTRONIC SHUTDOWN SYSTEM
21. FBL-55 FLUID SPECIFICATION TABLE

CAT FEEDER BREAKER FBL-55 SHIELD HAULER WITH WET SCRUBBER OPERATOR MANUAL – PDF DOWNLOAD:

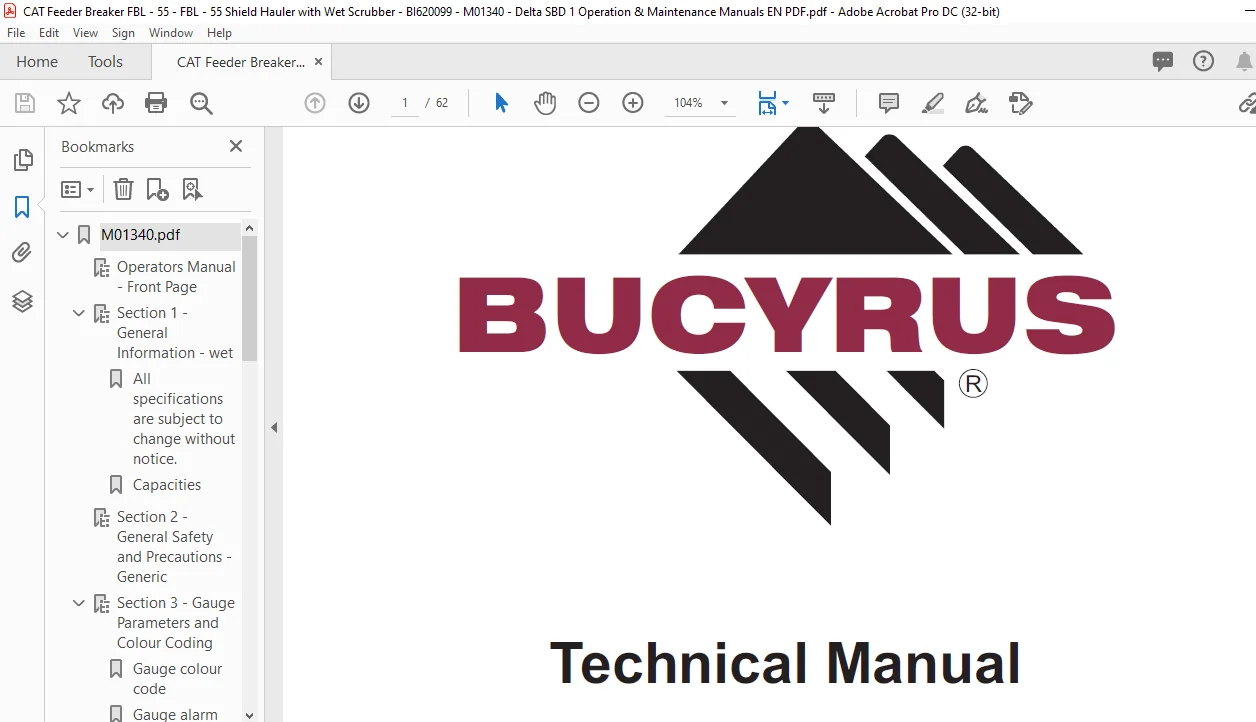

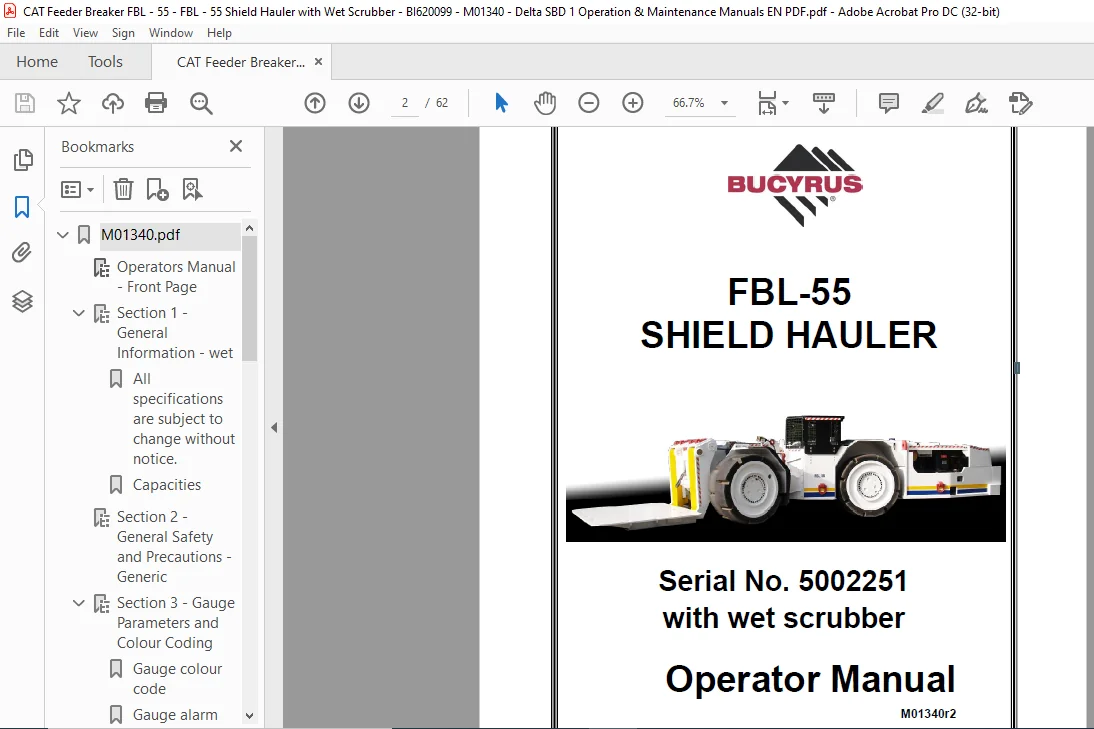

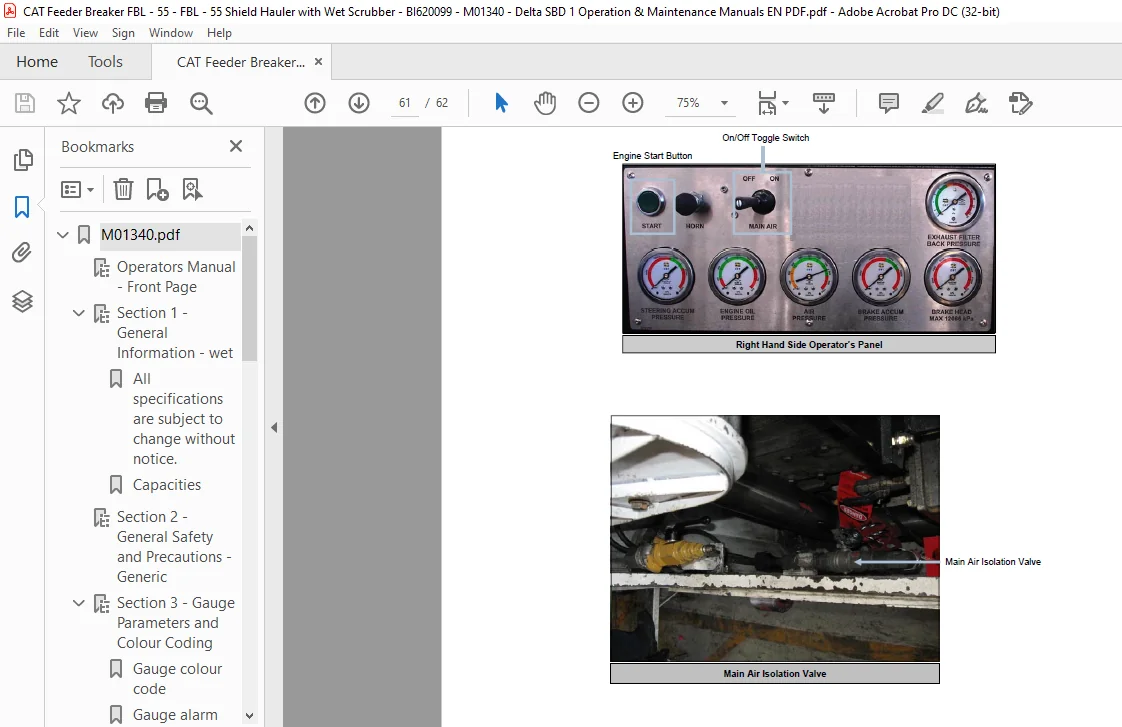

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
