CAT Feeder Breaker Ravensworth Service Equipment Crawler Units (Size 9) Operation & Maintenance Manual – PDF DOWNLOAD

Description

CAT Feeder Breaker Ravensworth Service Equipment Crawler Units (Size 9) Operation & Maintenance Manual – PDF DOWNLOAD

DESCRIPTION:

CAT Feeder Breaker Ravensworth Service Equipment Crawler Units (Size 9) Operation & Maintenance Manual – PDF DOWNLOAD

General Safety

•  Isolation and tagging procedures must be followed when working on equipment.
•  Isolate and tag any other related equipment where its operation will cause danger to personnel or damage to equipment. Before operating equipment make sure that nobody is inside or in the immediate area of the equipment.
•  Maintenance and repair should be undertaken by trained personnel.
•  Always wear safety glasses when working on hydraulics systems.
• Ensure that any relevant circuits are depressurised. Release of high pressure fluids can be fatal. As a final check twist the hose to ensure it is loose before removing staples.
•  Always be aware of E Stop locations, in case of emergency.
•  Before attempting to free-wheel the machine, ensure the hydraulic power to the crawler circuit is switched off, the machine is positioned on a level ground and not moving, and the towing vehicle has the capacity to brake this additional load in up and down grades.
• Do not disengage the hubs until the Towing vehicle is attached to this machine
•  Once both hubs are disengaged, this machine will not have any sort of brake capability and there is a danger of running away on grades if the towing vehicle does not have the braking capacity
•  High pressure fluids can penetrate skin and enter a human body. These fluid injections may cause severe tissue damage and loss of limb. If a fluid-injection accident occurs, see a doctor immediately. DO NOT DELAY OR TREAT AS A SIMPLE CUT! July

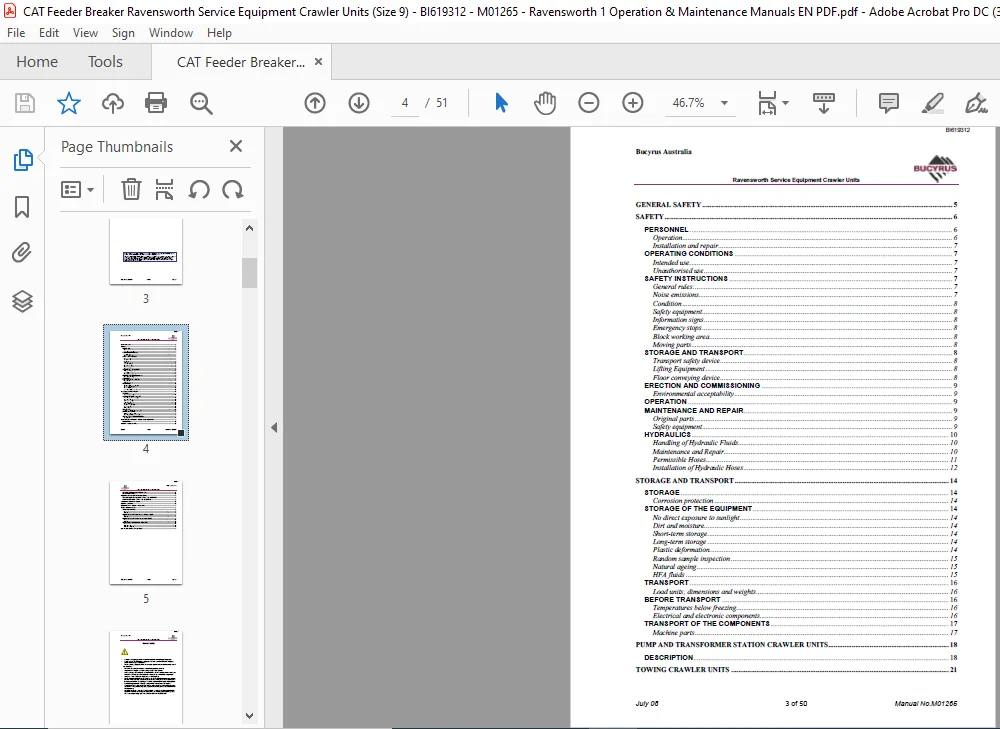

TABLE OF CONTENTS:

CAT Feeder Breaker Ravensworth Service Equipment Crawler Units (Size 9) Operation & Maintenance Manual – PDF DOWNLOAD

GENERAL SAFETY 5
SAFETY 6
PERSONNEL 6
Operation 6
Installation and repair 7
OPERATING CONDITIONS 7
Intended use 7
Unauthorised use 7
SAFETY INSTRUCTIONS 7
General rules: 7
Noise emissions 7
Condition 8
Safety equipment 8
Information signs 8
Emergency stops 8
Block working area 8
Moving parts 8
STORAGE AND TRANSPORT 8
Transport safety device 8
Lifting Equipment 8
Floor conveying device 8
ERECTION AND COMMISSIONING 9
Environmental acceptability 9
OPERATION 9
MAINTENANCE AND REPAIR 9
Original parts 9
Safety equipment 9
HYDRAULICS 10
Handling of Hydraulic Fluids 10
Maintenance and Repair 10
Permissible Hoses 11
Installation of Hydraulic Hoses 12
STORAGE AND TRANSPORT 14
STORAGE 14
Corrosion protection 14
STORAGE OF THE EQUIPMENT 14
No direct exposure to sunlight 14
Dirt and moisture 14
Short-term storage 14
Long-term storage 14
Plastic deformation 14
Random sample inspection 15
Natural ageing 15
HFA fluids 15
TRANSPORT 16
Load units; dimensions and weights 16
BEFORE TRANSPORT 16
Temperatures below freezing 16
Electrical and electronic components 16
TRANSPORT OF THE COMPONENTS 17
Machine parts 17
PUMP AND TRANSFORMER STATION CRAWLER UNITS 18
DESCRIPTION 18
TOWING CRAWLER UNITS 21
July 08 3 of 50 Manual NoM01265
BI619312
Bucyrus Australia
Ravensworth Service Equipment Crawler Units
CONNECT TOWING UNIT TO DRAW BAR 21
DISENGAGE TRACKS 23
HOOKING UP AND DRIVING TRACK UNITS 28
TRANSFORMER STATION CONNECTION AND OPERATION 28
PUMP STATION CONNECTION AND OPERATION 30
LOWERING PUMP PLATFORMS 33
RAISING THE TANK 34
DISCONNECTING THE CRAWLER UNIT 35
TRACK MAINTENANCE 36
TENSIONING TRACKS 36
General 36
Procedure 36
REPLACEMENT OF TRACK TENSIONING CYLINDER 39
General 39
Procedure 39
REPLACEMENT OF TRACK FROM TRACK FRAME 42
General 42
Procedure 42
TRACK ASSEMBLY REMOVAL COMPLETE 44
General 44
Procedure – Removal 44
Procedure – Refitting 47

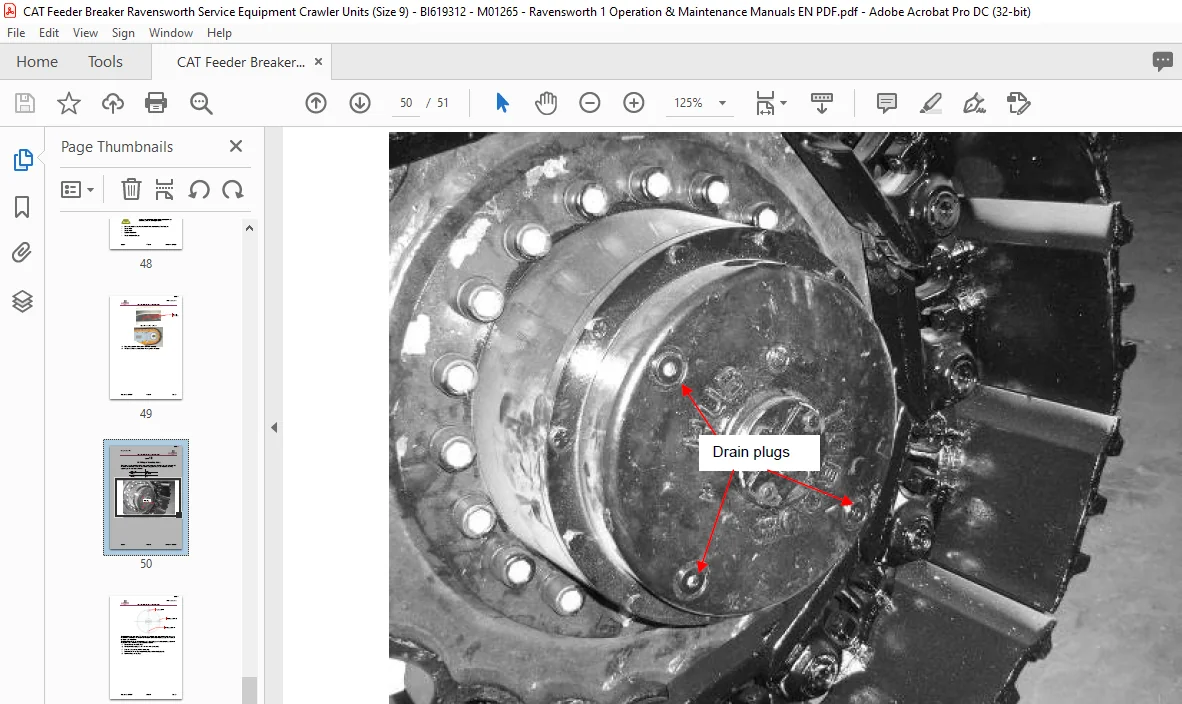

OIL FILLING OF PLANETARY HUBS 49
Manual

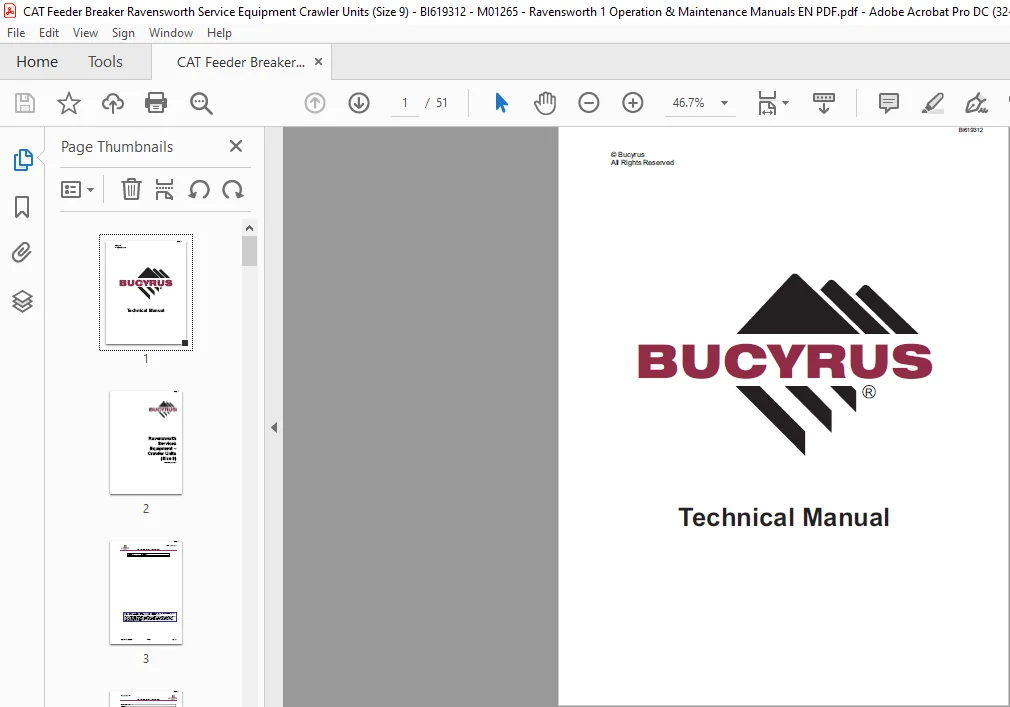

IMAGES PREVIEW OF THE MANUAL:

CAT FEEDER BREAKER RAVENSWORTH SERVICE EQUIPMENT CRAWLER UNITS (SIZE 9) OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
