Cat Hydraulic Shovel D 60Hz E 50Hz Pump Drive Type Operation & Maintenance Manual – PDF DOWNLOAD

Description

Cat Hydraulic Shovel D 60Hz E 50Hz Pump Drive Type Operation & Maintenance Manual – PDF DOWNLOAD

FILE DETAILS:

Cat Hydraulic Shovel D 60Hz E 50Hz Pump Drive Type Operation & Maintenance Manual – PDF DOWNLOAD

Language : English
Pages : 72
Downloadable : Yes
File Type : PDF

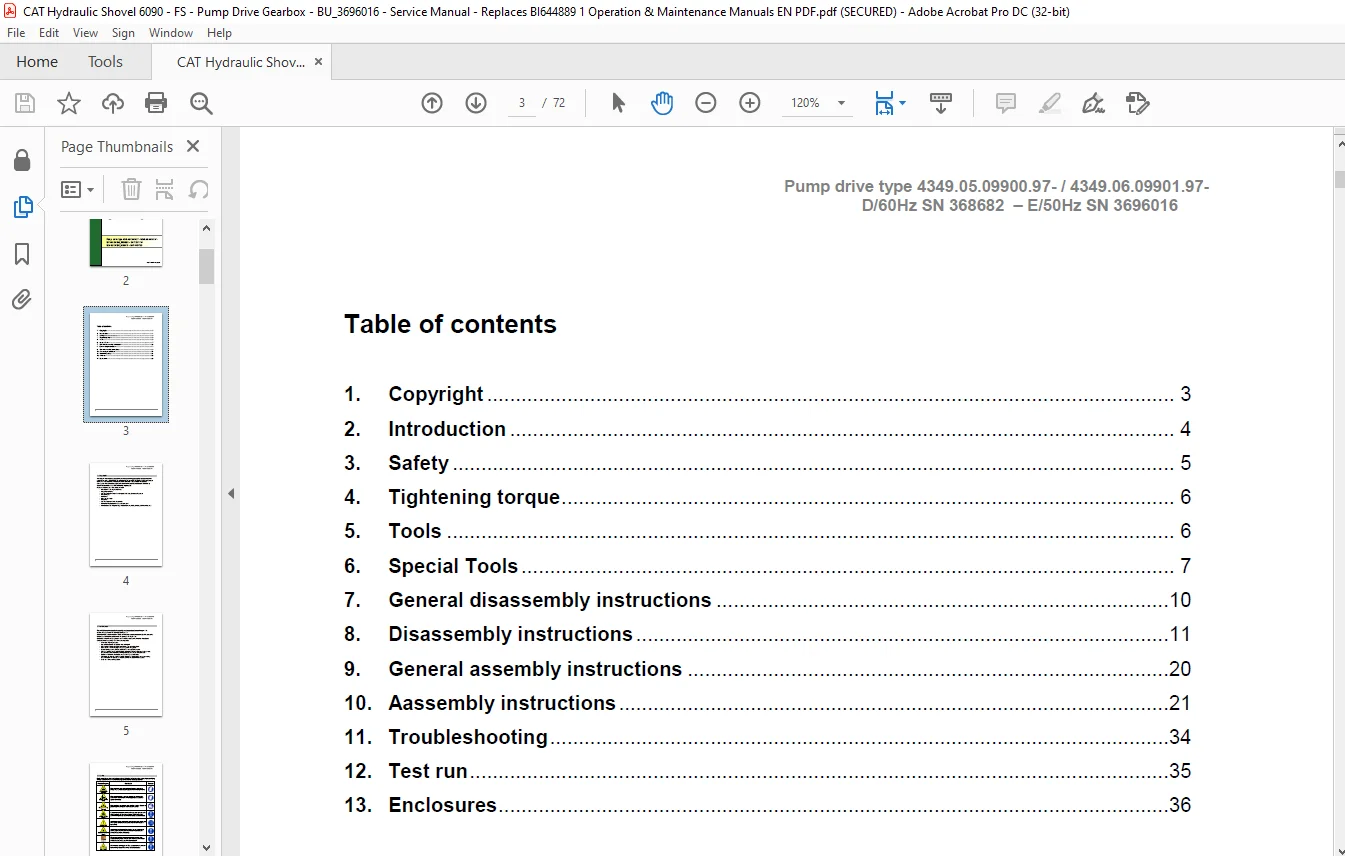

TABLE OF CONTENTS:

Cat Hydraulic Shovel D 60Hz E 50Hz Pump Drive Type Operation & Maintenance Manual – PDF DOWNLOAD

1 Copyright 3
2 Introduction 4
3 Safety 5
4 Tightening torque 6
5 Tools 6
6 Special Tools 7
7 General disassembly instructions 10
8 Disassembly instructions 11
9 General assembly instructions 20
10 Aassembly instructions 21
11 Troubleshooting 34
12 Test run 35
13 Enclosures 36

DESCRIPTION:

Cat Hydraulic Shovel D 60Hz E 50Hz Pump Drive Type Operation & Maintenance Manual – PDF DOWNLOAD

Pump drive type 4349.05.09900.97- / 4349.06.09901.97-
D/60Hz SN BU_3686882 – SAP 1521790
E/50Hz SN BU_3696016 – SAP 4421755

Introduction:
The available instructions describe the assembly and disassembly of pump drive type 4349.
Observe the references on the assembly drawing A4349.
Stiebel-Getriebebau does not assume liability for third party assembly or disassembly of the pump
drive. All items and their positions are shown on the spare part drawing E4349.
Absolutely consider the safety regulations and the relevant rules for the prevention of accidents!
Consider for this the operating instructions for pump drives.
▪ Attach only original spare parts.
▪ Use suitable collection receptacles when draining oil.
▪ Mark before the separation bolted and toothed parts on their positions.
▪ Make sure that no dirt or foreign substance gets into the gearbox.
▪ Replace damaged parts, O-rings, seal rings and end caps by new parts.
▪ Warm up bearings and gear wheels before assembling only on hot plates or in the
furnace. Never warm up with direct flame. All fixing bolts must be secured with Loctite 573.
▪ Before the installation all movably parts and seal rings are to be oiled.
▪ Sometimes the coat of paint of the gearbox is damaged by dismantling and
re-assembling. Renew therefore the coat of paint in order to protect the gearbox from corrosion.
▪ Carry out a test run of the gearbox.

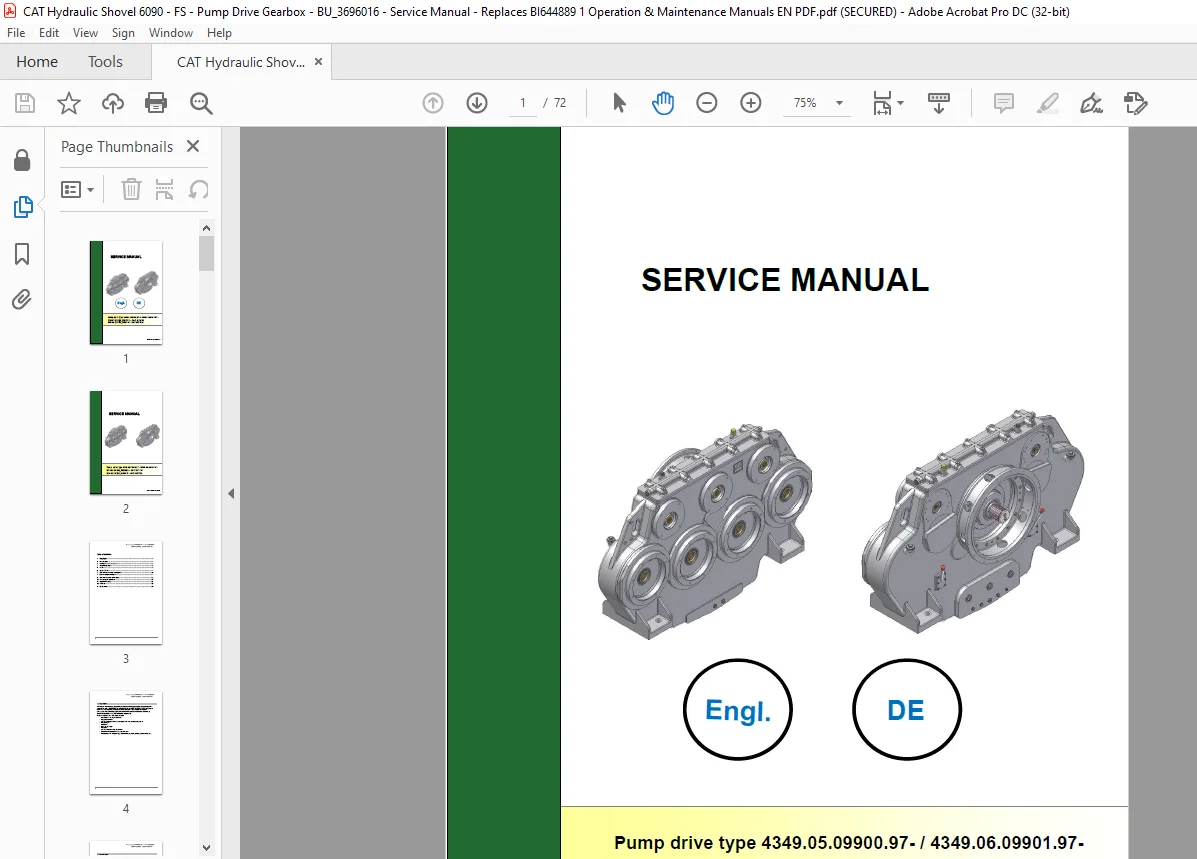

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
