CAT Roof Support Ravensworth Set 2 BSL Operation & Maintenance Manual – PDF DOWNLOAD

Description

CAT Roof Support Ravensworth Set 2 BSL Operation & Maintenance Manual – PDF DOWNLOAD

DESCRIPTION:

CAT Roof Support Ravensworth Set 2 BSL Operation & Maintenance Manual – PDF DOWNLOAD

General Safety

• Isolation and tagging procedures must be followed when working on equipment.
• Isolate and tag any other related equipment where its operation will cause danger to personnel or damage to equipment. Before operating equipment make sure that nobody is inside or in the immediate area of the equipment.
• Maintenance and repair should be undertaken by trained personnel. Always wear safety glasses when working on hydraulics systems. Ensure that any relevant circuits are depressurised. Release of high pressure fluids can be fatal.
• As a final check twist the hose to ensure it is loose before removing staples. Always be aware of E Stop locations, in case of emergency. Walkways with anti-slip plates are provided.
• When using the walkway operators should monitor face conditions to ensure they do not encounter falling coal. All guards have to be in place when system is in operation (POCV guard, hose shrouding, hose retainers) High pressure fluids can penetrate skin and enter a human body.
• These fluid injections may cause severe tissue damage and loss of limb. If a fluid-injection accident occurs, see a doctor immediately. DO NOT DELAY OR TREAT AS A SIMPLE CUT!

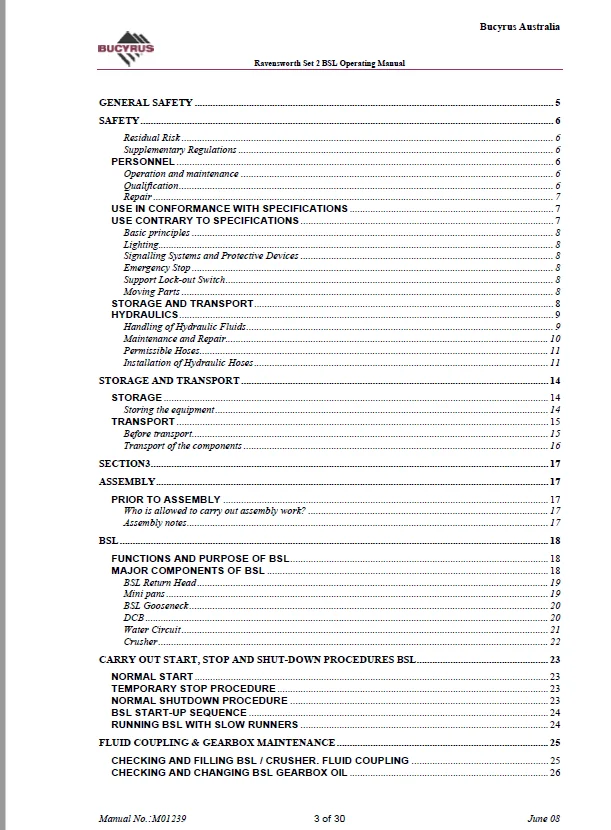

TABLE OF CONTENTS:

CAT Roof Support Ravensworth Set 2 BSL Operation & Maintenance Manual – PDF DOWNLOAD

GENERAL SAFETY 5
SAFETY 6
Residual Risk 6
Supplementary Regulations 6
PERSONNEL 6
Operation and maintenance 6
Qualification 6
Repair 7
USE IN CONFORMANCE WITH SPECIFICATIONS 7
USE CONTRARY TO SPECIFICATIONS 7
Basic principles 8
Lighting 8
Signalling Systems and Protective Devices 8
Emergency Stop 8
Support Lock-out Switch 8
Moving Parts 8
STORAGE AND TRANSPORT 8
HYDRAULICS 9
Handling of Hydraulic Fluids 9
Maintenance and Repair 10
Permissible Hoses 11
Installation of Hydraulic Hoses 11
STORAGE AND TRANSPORT 14
STORAGE 14
Storing the equipment 14
TRANSPORT 15
Before transport 15
Transport of the components 16
SECTION3 17
ASSEMBLY 17
PRIOR TO ASSEMBLY 17
Who is allowed to carry out assembly work? 17
Assembly notes 17
BSL 18
FUNCTIONS AND PURPOSE OF BSL 18
MAJOR COMPONENTS OF BSL 18
BSL Return Head 19
Mini pans 19
BSL Gooseneck 20
DCB 20
Water Circuit 21
Crusher 22
CARRY OUT START, STOP AND SHUT-DOWN PROCEDURES BSL 23
NORMAL START 23
TEMPORARY STOP PROCEDURE 23
NORMAL SHUTDOWN PROCEDURE 23
BSL START-UP SEQUENCE 24
RUNNING BSL WITH SLOW RUNNERS 24
FLUID COUPLING & GEARBOX MAINTENANCE 25
CHECKING AND FILLING BSL / CRUSHER FLUID COUPLING 25
CHECKING AND CHANGING BSL GEARBOX OIL 26
BI619305
Bucyrus Australia
Ravensworth Set 2 BSL Operating Manual
June 08 4 of 30 Manual No:M01239
To check the BSL drive oil level 26
To top up oil 26
LUBRICATION & INSPECTIONS 28
CRUSHER GEARBOX29
INSPECTION (SHIFT)30
INSPECTION (DAILY) 30
