CAT Rotary Track Drills 35HR Technical Manual PDF – DOWNLOAD (BI005557)

Description

CAT Rotary Track Drills 35HR Technical Manual PDF – DOWNLOAD (BI005557)

DESCRIPTION:

CAT Rotary Track Drills 35HR Technical Manual PDF – DOWNLOAD (BI005557)

GENERAL

•  The importance of overall safety in the maintenance of mining equipment should always be emphasized; excavating operations may involve a variety of hazardous conditions. Many critical 3 BI005557 components are subject to wear and other deterioration which limits their useful life; thus they are expendable. When new, all such parts have a built-in reserve strength against unknown factors and reasonable loss of durability from gradual wear.
• If however, inspection and adjustment are neglected, these parts eventually reach a condition where they become a safety problem. Similarly, failure to replace various mechanisms to insure proper performance of the machine also constitutes a safety problem.
• Study this manual carefully and follow all recommended procedures. Supervisor, operators and maintenance men should continuously follow safe practices. IN-OPERATION MAINTENANCE Safety requirements dictate that all machines in active service be inspected at regular intervals for proper adjustment of operating mechanism, excessive wear of components, system cleanliness and any other defects.
• Inoperational deficiencies should be carefully investigated. It should be determined if a safety problem exists. Remember maintenance is vital to safe operation. It should be performed systematically by competent personnel. From an economic stand point, it is advisable to perform as much of the upkeep as can be safely accomplished while the machine is running.
• Obviously, there are some maintenance procedures, such a gear tooth inspection and replacement, which requires machine shut down. However, many support duties can be safely and effectively handled at shift change when the machine is still activated. Parts of the machinery may be manually lubricated in a safe manner though extended grease or oil fittings designed to keep operators hands at a safe distance.
• Where this is not possible, the machine must be shut down during the required lubrication. A repair or maintenance job is not complete until guards, plates and other safety devices have been replaced before the equipment is restored to operation.

TABLE OF CONTENTS:

CAT Rotary Track Drills 35HR Technical Manual PDF – DOWNLOAD (BI005557)

TABLE OF CONTENTS
CHAPTER 1 – MECHANICAL MAINTENANCE PAGE
SECTION 1 – MAINTENANCE PROCEDURE 3
SECTION 2 – UNDERCARRIAGE
• GENERAL 5
• TRACK CARRIER ROLLERS 7
• REMOVE ANDINSTALL TRACK ROLLERS 11
• TRACK ROLLERS – MAINTENANCE 13
• TRACK ASSEMBLIES 16
• FRONT IDLERS 21
RECOIL SPRINGS 25
• HYDRAULIC TRACK ADJUSTERS 29
• FINAL DRIVE SPROCKETS 32
• TRAVEL BRAKES VALVES 33
TRAVEL MOTORS 37
• FINAL DRIVES 52
SECTION 3 – MAINFRAME
• LEVELlNGJACKS 75
• OPERATOR’S CAB 77
• HYDRAULIC PUMP DRIVE 78
• DIESEL ENGINE 79
• MAINTENANCE INTERVAL CAT C-15 ENGINE 80
ENGINE COOLING RADIATOR 88
• ENGINE EXHAUST SYSTEM 88
• ENGINE FILTER SYSTEM 88
SECTION 4 – MAST
• MAST STRUCTURE 90
• MAST LOCK ASSEMBLY 91
ROTARY GEARCASE 91
• ROTARY MOTOR AND GEARBOX ASSEMBLY 93
HOIST/PULLDOWN MACHINERY 95
• IDLER SPROCKETS 96
• BARREL LOADER ASSEMBLY 97
• TOOL WRENCHES 98
• WINCH 99
POWER BREAKOUT WRENCH 99
WINCH JIB 100
• PIPE POSITIONER 101
• MAST BRACES 101
CHAPTER 2 – HYDRAULIC SYSTEM
GENERAL MAINTENANCE
COMPONENT MAINTENANCE
FEED PISTON PUMP
MAIN PISTON PUMP
ROTARY MOTOR
• WINCH
• WINCH MOTOR
• VANE TYPE SINGLE PUMP
• SOLENOID OPERATION DIRECTIONAL VALVE
CHAPTER 3 – AIR SYSTEM
MAIN AIR SYSTEM
ROTARY SCREW COMPRESSOR
CHAPTER 4 – LUBRICATION
LUBRICATION AND MAINTENANCE SCHEDULE
FILTER LOCATION CHART
OIL AND GREASE ZERK CHART

Appendix 1 – RECOMENDEDE PROCEDURES FOR MAINTENANCE WELDING 134
OF PRINCIPAL STRUCTURES ON 35HR BLAST HOLE DRILL
Appendix 2· Capacities
CAT ROTARY TRACK DRILLS 35HR TECHNICAL MANUAL PDF – DOWNLOAD (BI005557):

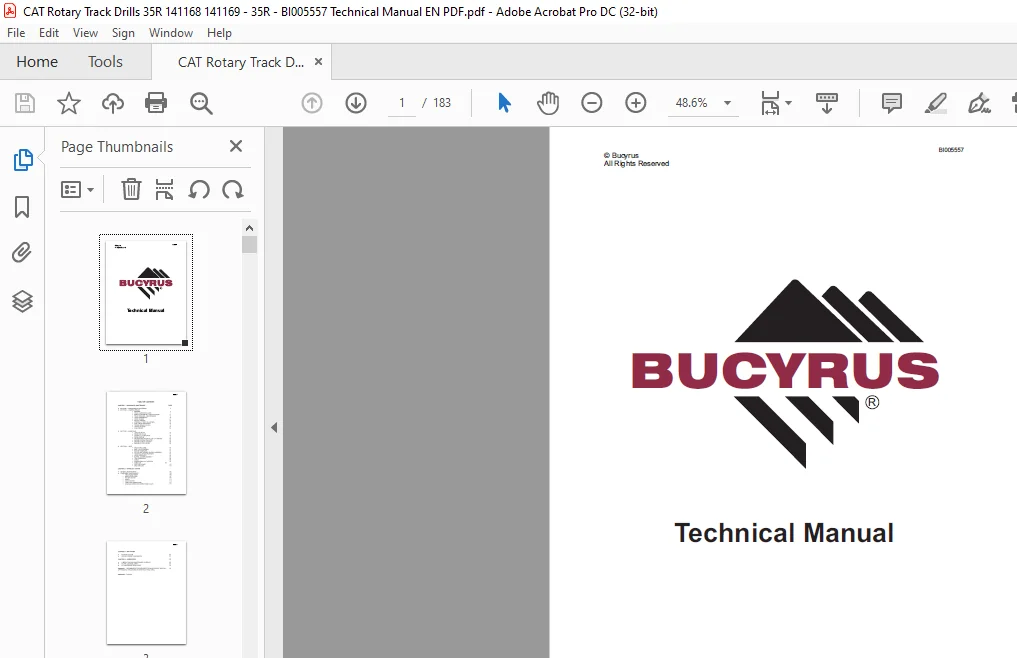

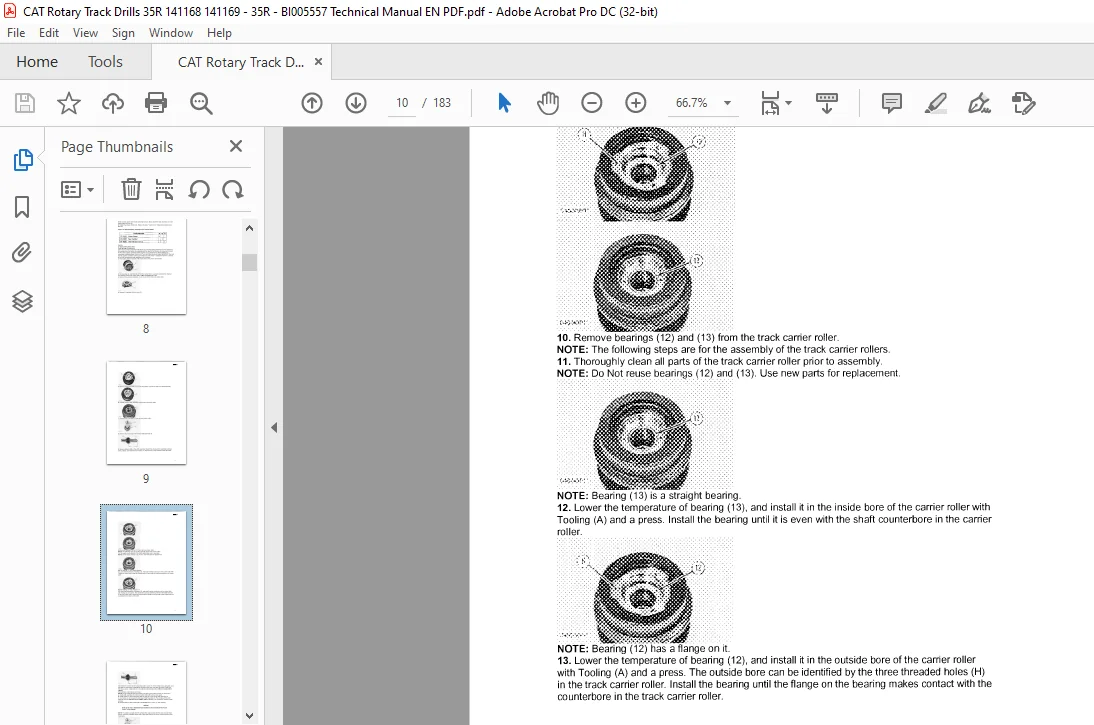

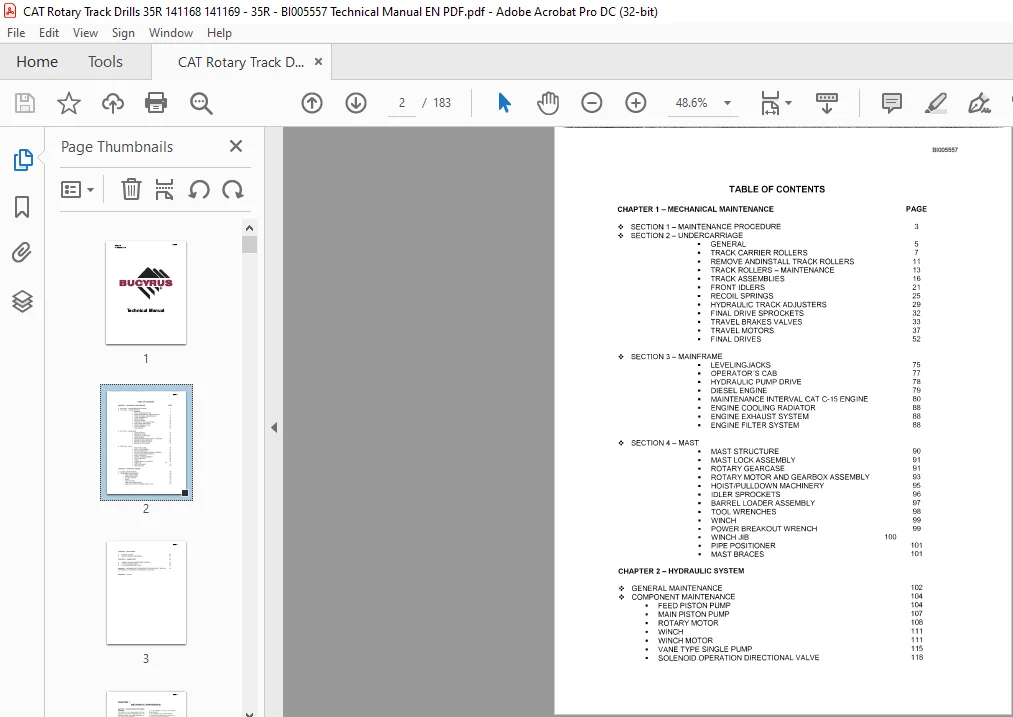

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
