CAT Rotary Track Drills MD6640 SK40i 45i 50i 55i Infinity Blasthole Drill Technical Manual – PDF DOWNLOAD (BI615922)

Description

CAT Rotary Track Drills MD6640 SK40i 45i 50i 55i Infinity Blasthole Drill Technical Manual – PDF DOWNLOAD (BI615922)

DESCRIPTION:

CAT Rotary Track Drills MD6640 SK40i 45i 50i 55i Infinity Blasthole Drill Technical Manual – PDF DOWNLOAD (BI615922)

Introduction Caution:

• The equipment covered by these instructions should be installed and serviced by competent personnel familiar with good safety practices. This instruction is written for such personnel and is not intended as a substitute for adequate training and experience in safe procedures for this type of equipment. This manual is furnished with your Reedrill Infinity Series Balsthole Drill to acquaint you with its operation and provide the necessary equipment daily maintenance information.
• Note:
• This manual should be considered a permanent part of your unit and must remain with the unit at all times. These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with operation or daily maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the matter should be referred to Reedrill, Inc.
• The descriptions and specifications contained in this manual were in effect at the time of printing. The right is reserved to make changes at any time without notice and without obligation. Caution: Do not modify this machine or add attachments without the approval of Reedrill, Inc. Unauthorized modification will not only void your warranty, but may cause equipment failure and/ or a serious accident.

General Information

• Introduction This manual contains instructions and technical Information required by the operator to properly operate and maintain the Reedrlll Infinity Serles Blasthole Drill in good working condition at all times.
• The information and instructions contained in this manual are for typical machines and may not include Information pertinent to all components. The maintenance procedures and general instructions in this manual are recommendations only and are based on normal equipment working conditions.
• By faithfully using this manual as a guide and observing the procedures and recommendations, your Reedrill Infinity Blasthole Drill will give years of dependable and efficient service at a minimum cost of operation.

TABLE OF CONTENTS:

CAT Rotary Track Drills MD6640 SK40i 45i 50i 55i Infinity Blasthole Drill Technical Manual – PDF DOWNLOAD (BI615922)

General Information
Introduction
Product Description
General Safety Procedures
SK-40i General Component Locator
SK-40i Technical Specifications
SK40/45/50/55 Decal Orientation
II Operator’s Controls/Indicators
SK40/45/50/55 Operator’s Controls
Indicators
Description of Operator’s Controls
Indicators
Ill Operating Instructions
Pre-Operation Procedure/Check
Engine Start-Up Procedure
Drilling Operations
A. Leveling Machine
B. Raising Mast
C. Adding Drill Pipe
D. Returning Drill Pipe to Rack
E. Drilling Tools
F. Auto-Tool Wrench
G.Drllllng – Multiple Pass
IV Lubrication and Preventive Maintenance
General Information
Equipment Lubrication
Care of Lubrication Points
Preventive Maintenance
Hydraulic System Maintenance
Cooling System Maintenance
Cooling System Freeze Protection
Air Cleaner – Oil Bath Type
Air Filter Elements
Electrical System
Lubrication Diagrams and Charts
SK40/45/50/55 Lubrication Diagram
SK40/45/50/55 Lubrication and Maintenance Chart
Cummins Engine Lubrication Chart
Capterpillar Engine Lubrication Chart
Detroit Diesel Engine Lubrication Chart
Compressor Lubrication Procedure
Winch Assembly Lubrication
Dust Control Blower Lubrication
SK40/45/50/55 Filters/Filter Elements

CAT ROTARY TRACK DRILLS MD6640 SK40I 45I 50I 55I INFINITY BLASTHOLE DRILL TECHNICAL MANUAL – PDF DOWNLOAD (BI615922):

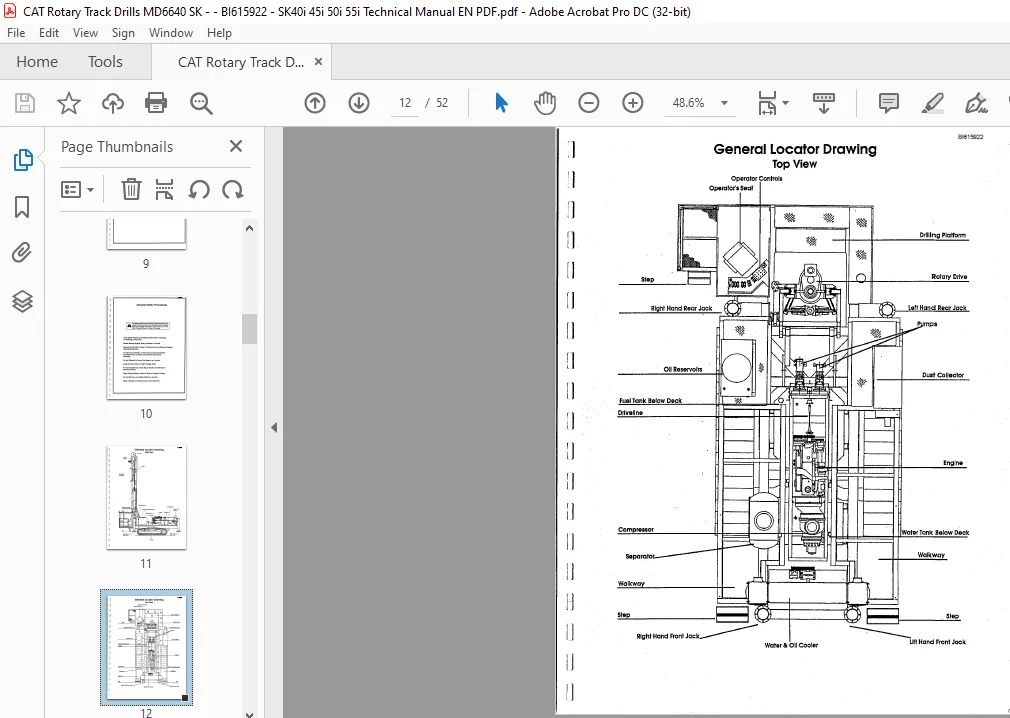

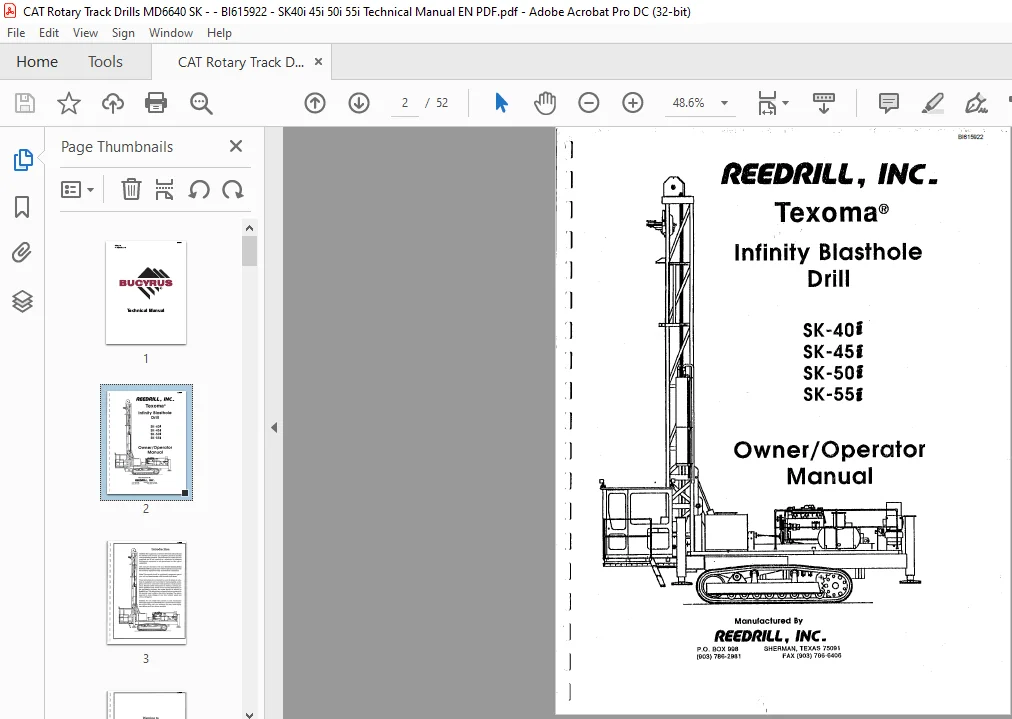

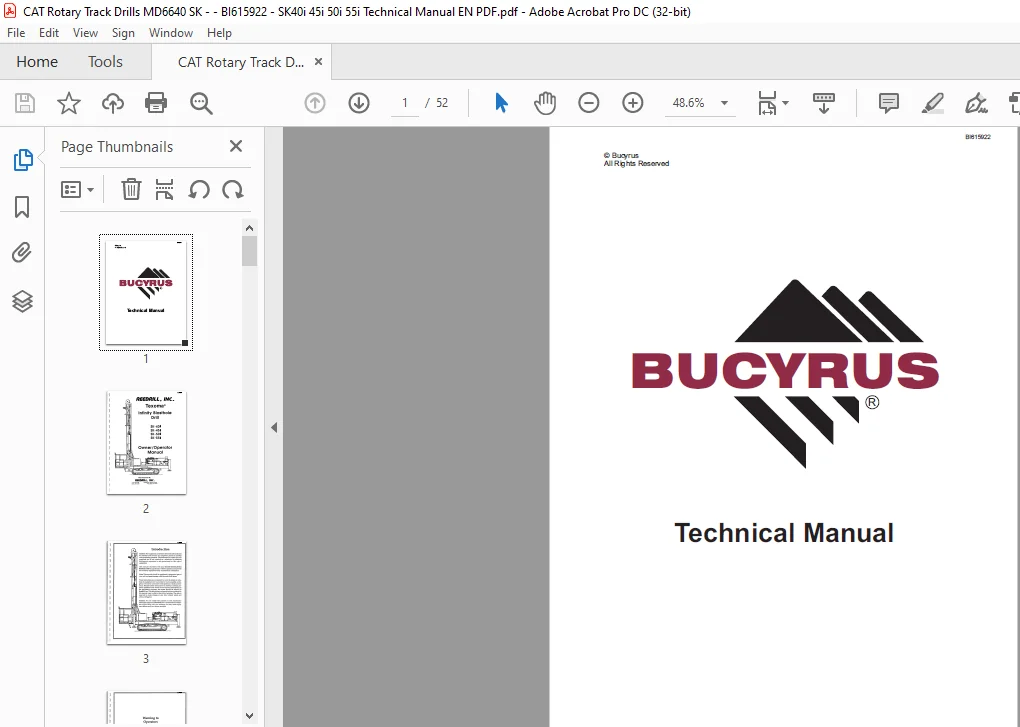

IMAGES PREVIEW OF THE MANUAL:
