This official CAT S4S diesel engine service manual is an essential resource for mechanics and technicians working on Mitsubishi S4S diesel engine repair and maintenance. Designed specifically for CAT lift truck chassis models, it provides in-depth coverage of engine specifications, maintenance standards, adjustment procedures, and service procedures including disassembly, inspection, repair, and reassembly. Whether you’re handling routine S4S engine troubleshooting and diagnostics or a full S4S diesel engine overhaul guide, this manual ensures safe and efficient operations by emphasizing proper use of tools, torque specifications, and safety protocols.

Key sections draw from the manual’s structure, organized into groups for quick reference. While a full table of contents isn’t detailed in the initial pages, the document outlines major areas such as:

• Foreword and How to Use This Manual: Explains the manual’s purpose for maintaining Mitsubishi S4S diesel engine performance, with guidelines on reading procedures for disassembly, inspection, repair, and assembly. It covers terms like nominal values, standards, limits, and abbreviations (e.g., BTDC, ATDC, TIR, API, ASTM, JIS, LLC, MIL, MSDS, SAE). Units of measurement are based on SI with metric conversions for pressure, torque, force, horsepower, etc.
• Safety Cautions: A critical section on preventing accidents during S4S engine repair and overhaul. Categorized into key areas with warnings and cautions:
  • Fire and Explosion Protection: Keep flames away, tidy up around the engine, check for leaks, use explosion-proof lights, prevent short circuits, keep fire extinguishers handy.
  • Stay Away From Rotating and Moving Parts: Install protective covers, check safety before starting, use dedicated tools for turning, lockout/tagout procedures.
  • Reduce the Risk of Exhaust Gas Poisoning: Ensure proper ventilation.
  • Reduce the Risk of Hearing Loss: Wear ear plugs during operation.
  • Be Careful When Handling the Engine: Lift carefully with slings, use specified fuel/oil/coolant, proper disposal of waste.
  • Reduce the Risk of Burns: Avoid touching hot parts, handle radiator cap safely, no high-pressure fuel contact.
  • Battery Safety Precautions: Handle with care to avoid explosions or acid exposure.
  • When Abnormality Occurs: Cool down overheated engines, stop on low oil pressure or belt breaks.
  • Other Precautions: No tampering, perform inspections, wear protective gear, engine break-in, warm-up/cool-down, avoid low-load operation, no water splashing, air cleaner maintenance, obey work site rules.

The manual integrates exploded views with index numbers for disassembly sequences, inspections in boxes, and maintenance standards listed collectively in Group 2 (General Contents). It references the Operation and Maintenance Manual for daily use and the Parts Catalogue for components. For CAT forklift S4S engine maintenance procedures, it stresses avoiding common pitfalls like continuous low-load operation or improper coolant handling to prevent issues like carbon buildup or seizures.

This S4S diesel engine service manual is perfect for professionals seeking a reliable Mitsubishi S4S diesel engine repair and maintenance guide, with natural integration of best practices for S4S engine troubleshooting and diagnostics. Note: The remaining 160 pages likely expand on technical groups like engine structure, function, and specific repair workflows.

File Details:

• Manual Name: Service Manual S4S Diesel Engine
• Models Covered: DP20N-DP35N, DP20NM-DP35NM, P4000-P7000, 2PD4000-2PD7000 Chassis (Engine Serial 194618-up)
• Year: Applicable from engine production starting 194618 (manual part number 99729-88100; no specific publication year listed)

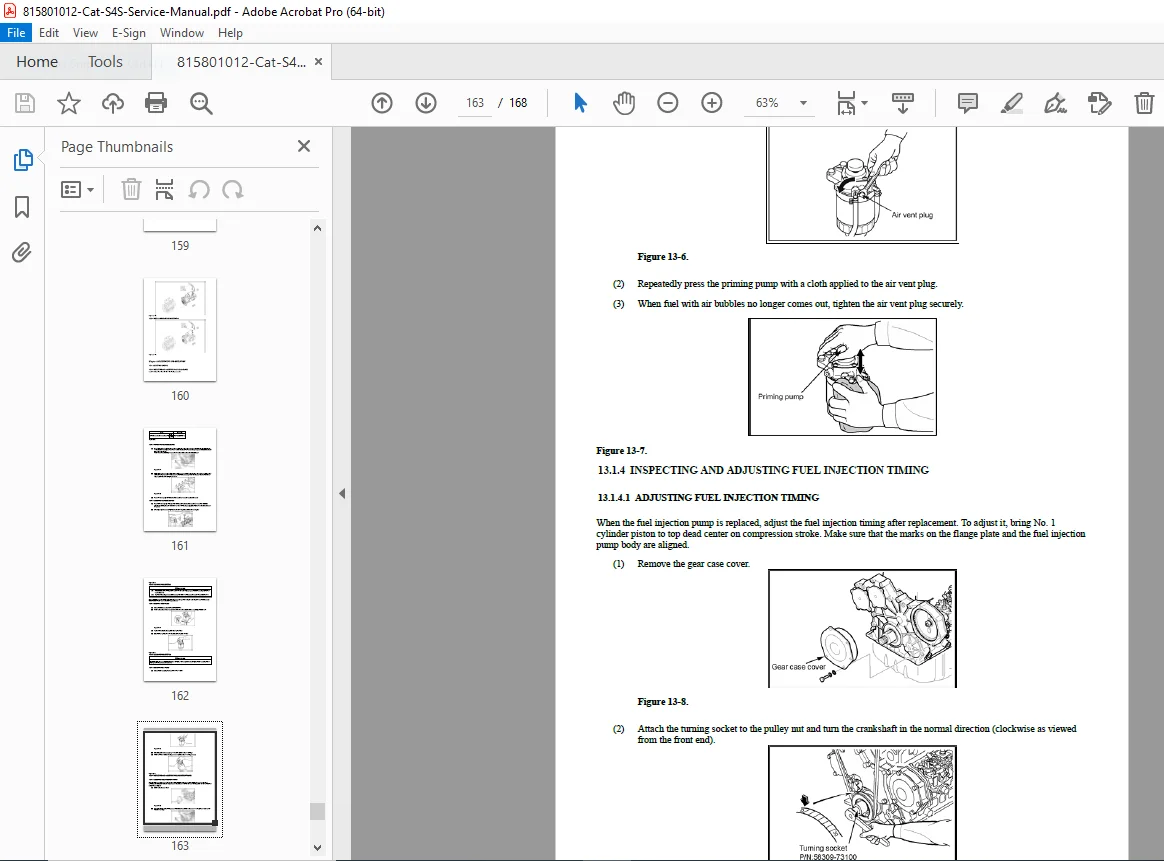

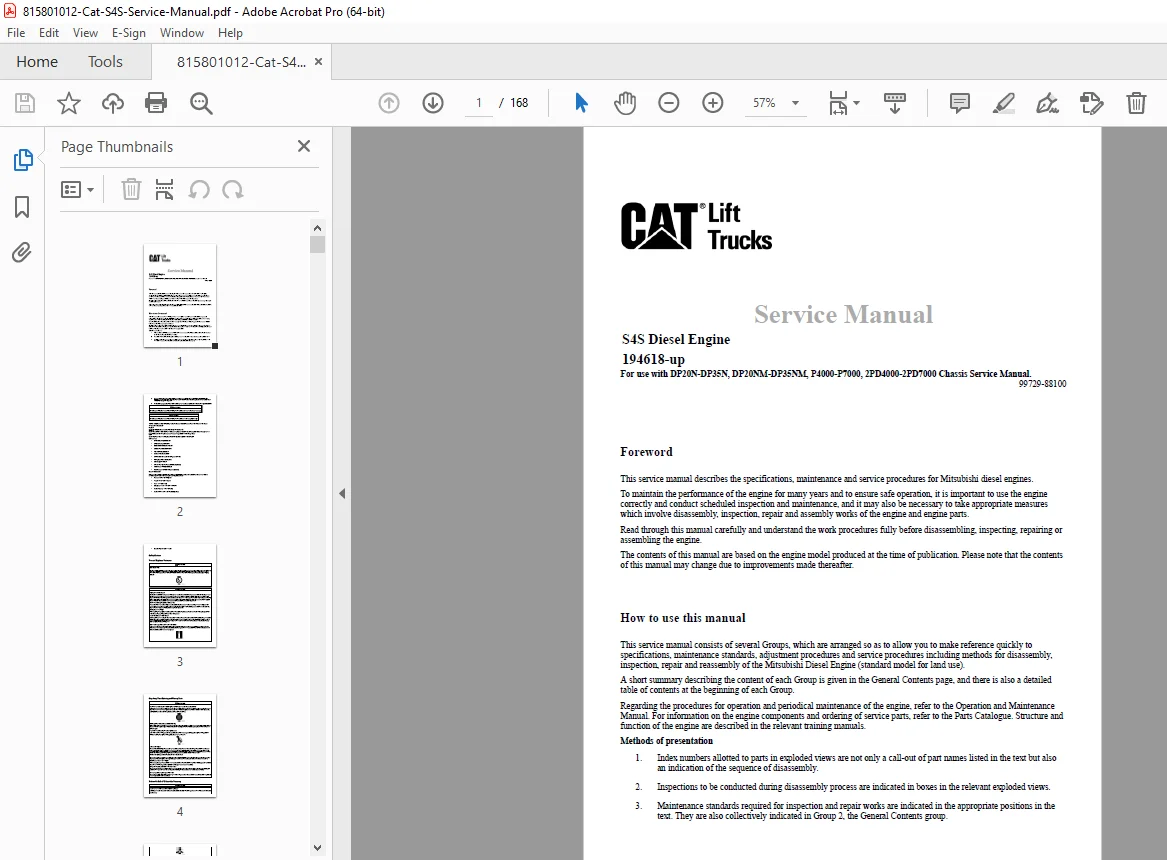

• Manual PDF Quality: High-quality digital scan with clear text, diagrams, and warnings; fully searchable and readable
• No. of Pages: 168
