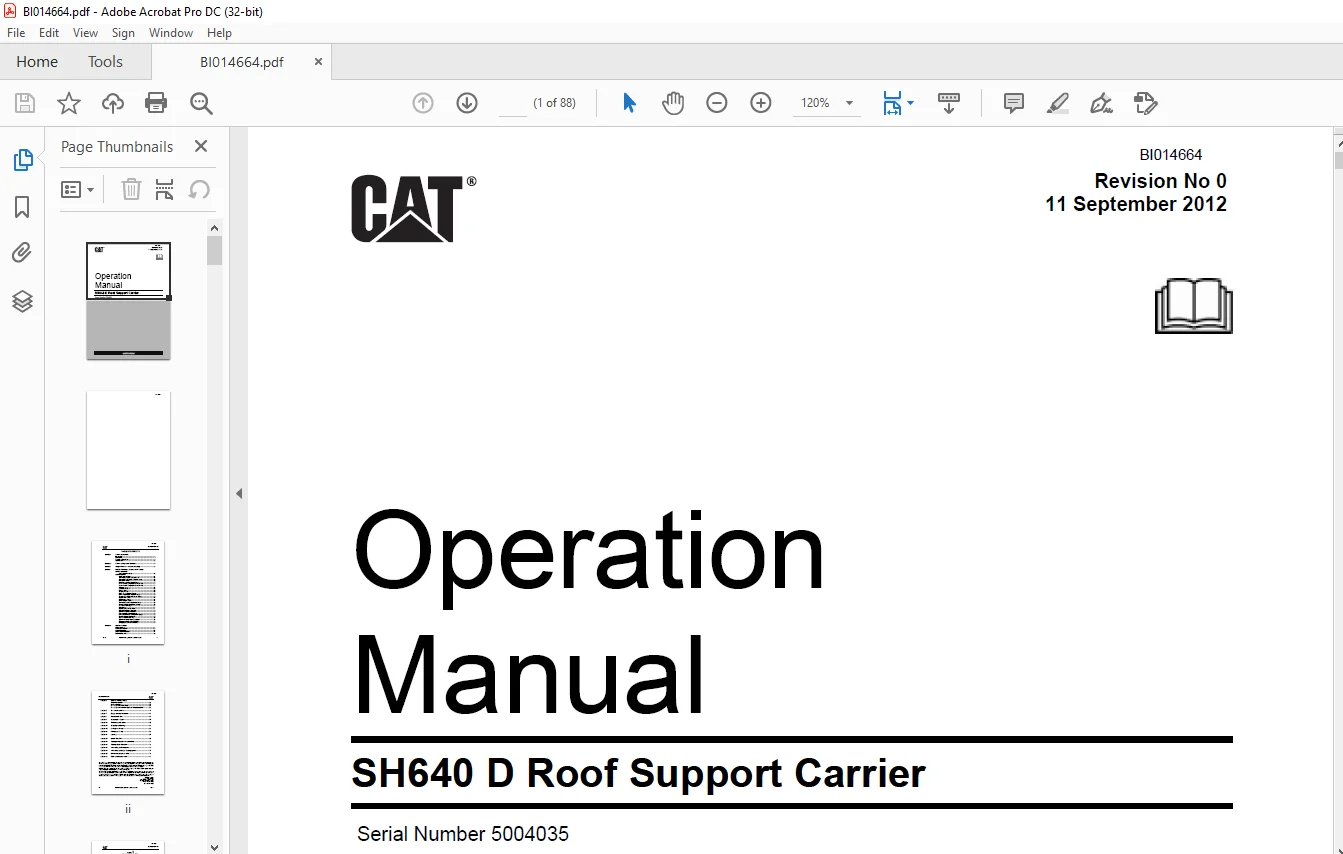

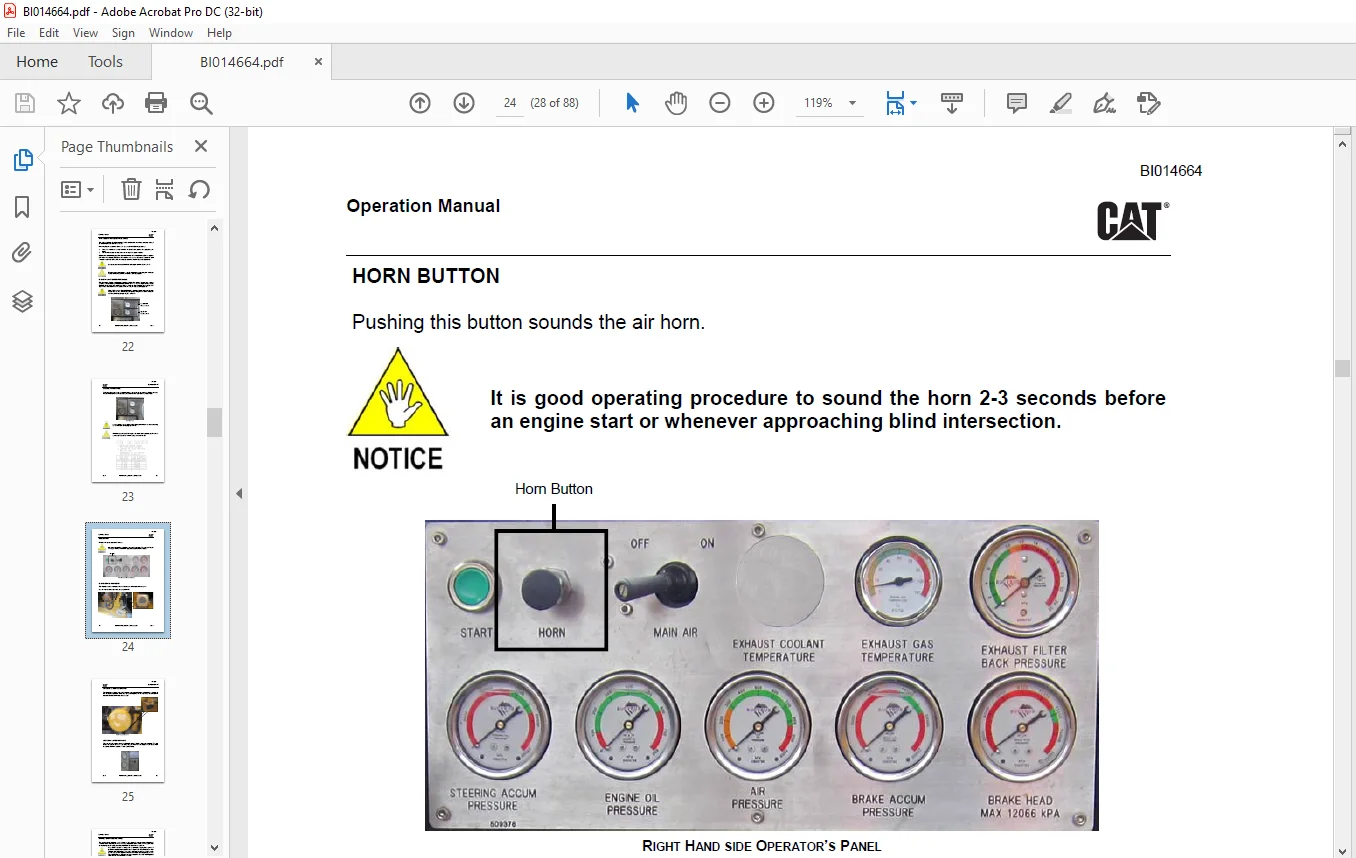

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cat SH640 D Roof Support Carrier Operation Manual SN 5004035 – PDF DOWNLOAD

General Information:
INTRODUCTION:

The operation of heavy mining machinery can be hazardous. To ensure safe operation,
operators and personnel must be alert, competent, correctly trained, tested and licensed in the
principles, capabilities and correct operating and isolation procedures of the machinery.

• This manual is designed to provide the SH640 D Roof Support Carrier operator with the proper
  information regarding the machine’s instrumentation, operating controls and general safe working
  procedures. All operators of this machine must be conversant with the information
  contained within this manual before operating the machine.
• To ensure safe and efficient operation, the SH640 D Roof Support Carrier must be
  adequately maintained by the operators and service personnel. To achieve this, the
  operator’s pre-start inspection procedure contained in Section 6 of this manual must be
  performed before any use of this machinery is undertaken.
• Any abnormalities should be reported immediately to service personnel to avoid costly
  machine repairs, production downtime and unsafe operation of the machine.

DESCRIPTION:

• The SH640 D is a 40000 kg high capacity Roof Support Carrier. It has been designed for lifting and
  carrying heavy pieces of equipment and machinery in underground coal mines. Its main function is
  carrying and placing of longwall equipment and shields. The machine comes standard with a set of
  fork tines and winch for this purpose.
• The motive force is provided by a 172 kW (230 HP) Caterpillar 3126 turbocharged four-
  stroke inline six cylinder flameproof diesel engine package. Flameproofing of the system
  includes a wet bath exhaust conditioning system complete with intake flame traps and dual
  particulate filtration. The start system is pneumatic. The Diesel Control System (DCS) is an
  intrinsically safe electronic monitoring system. The engine power output is connected to the
  constant four-wheel drive system via a drive coupling and converter through a four-speed bidirecti
  nal power shift transmission to heavy duty axles with liquid cooled Posi-Stop
  brakes.

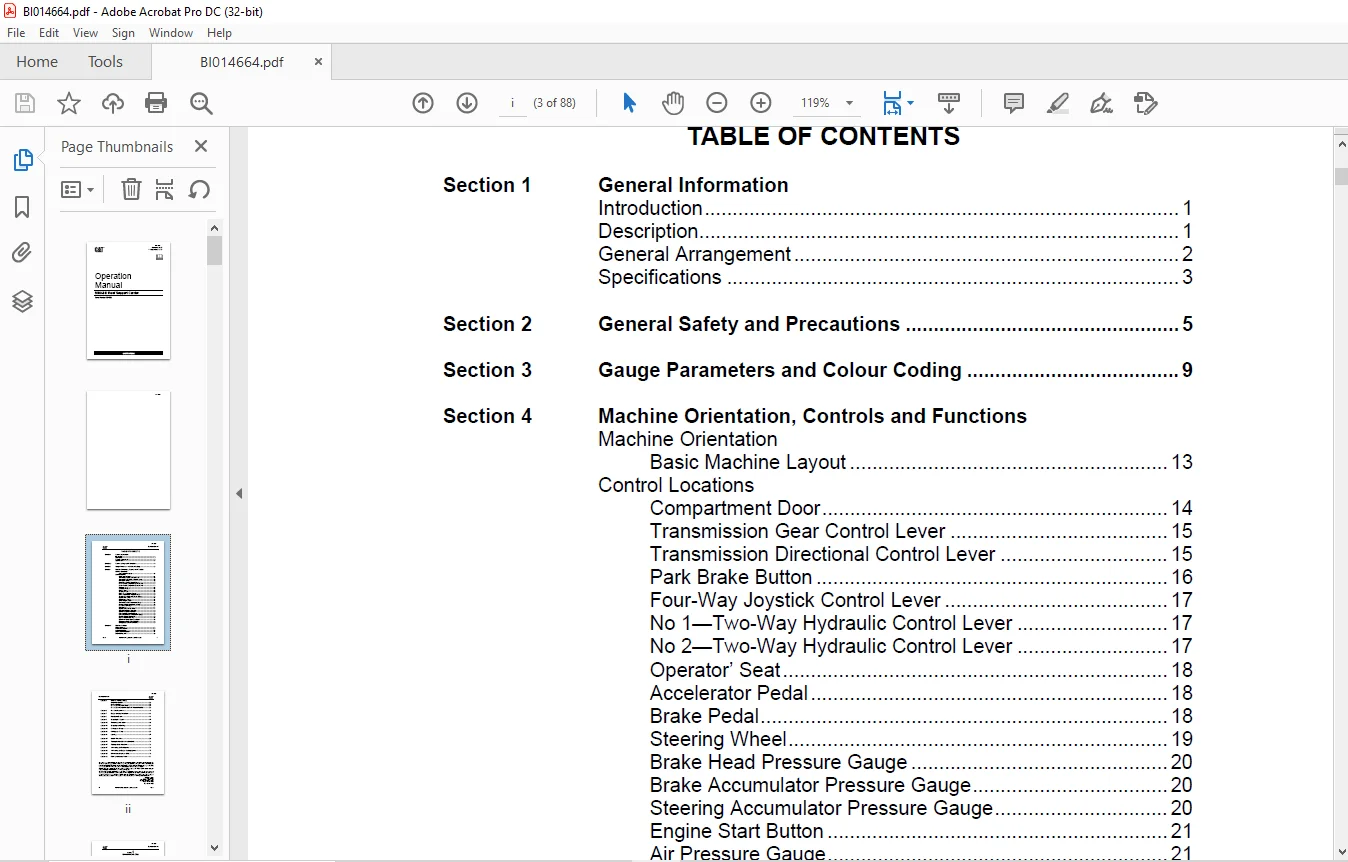

TABLE OF CONTENTS:

Cat SH640 D Roof Support Carrier Operation Manual SN 5004035 – PDF DOWNLOAD

Table of Contents........................................ 3
Section 1 General Information-Wet........................ 5
Section 2 General Safety and Precautions................. 9
Section 3 Gauge Parameters and Colour Coding.............13
Section 4 Machine Orientation, Controls and Functions....17
Section 5 Machine Isolation..............................35
Section 6 Pre-Start Procedure............................45
Section 7 Engine Starting Procedure......................55
Section 8 Post Start Checks..............................57
Section 9 Stopping the Engine............................61
Section 10 Tramming the Machine..........................63
Section 11 Stopping and Braking..........................65
Section 12 Driving on a Ramp.............................67
Section 13 Parking on a Ramp.............................69
Section 14 Loading.......................................71
Section 15 Cookie Plate Use..............................73
Section 16 Towing the Machine when Disabled..............75
Section 17 Towing with the Machine.......................77
Section 18 Air Venting the Fuel System...................79
Section 19 Air Venting the Engine Cooling System.........81
Section 20 Diesel Control System_DCS.....................83
Section 21 Fluid Specification Table.....................87
