CAT SH660 D Roof Support Carrier Operation Manual SN 5004156 PDF DOWNLOAD

Description

CAT SH660 D Roof Support Carrier Operation Manual SN 5004156 PDF DOWNLOAD

FILE DETAILS:

CAT SH660 D Roof Support Carrier Operation Manual SN 5004156 PDF DOWNLOAD

Language : English
Pages : 92
Downloadable : Yes
File Type : PDF

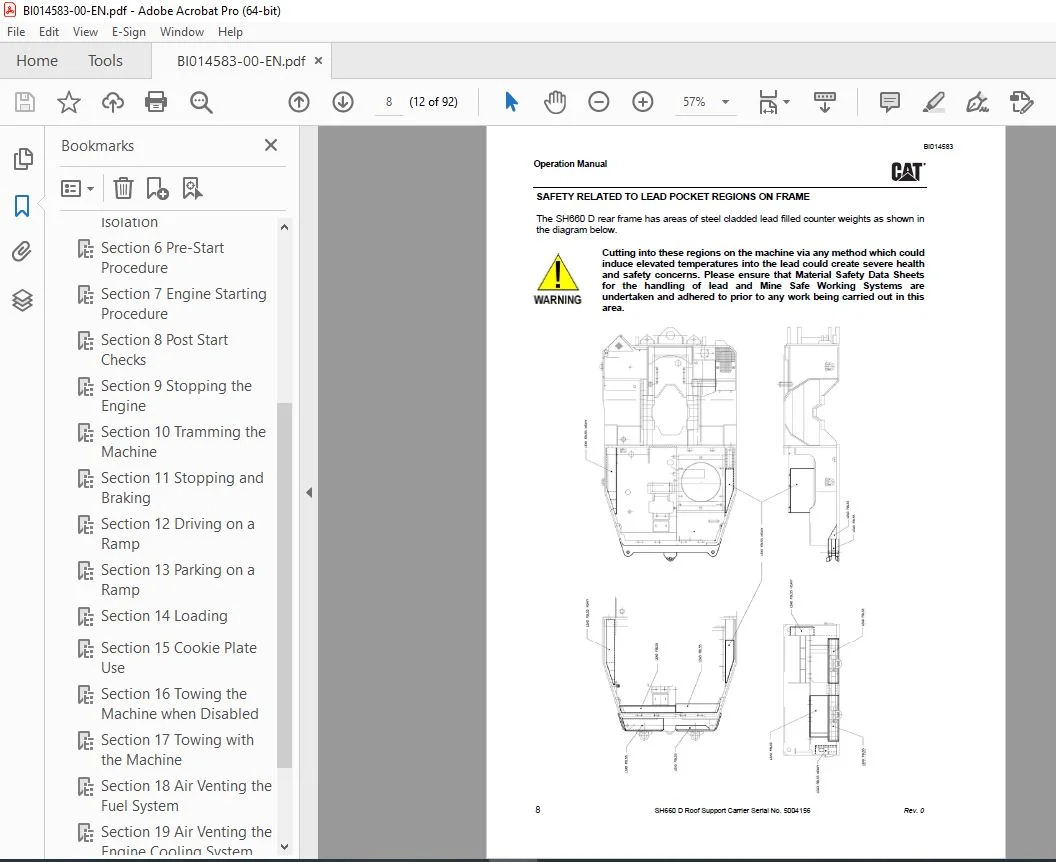

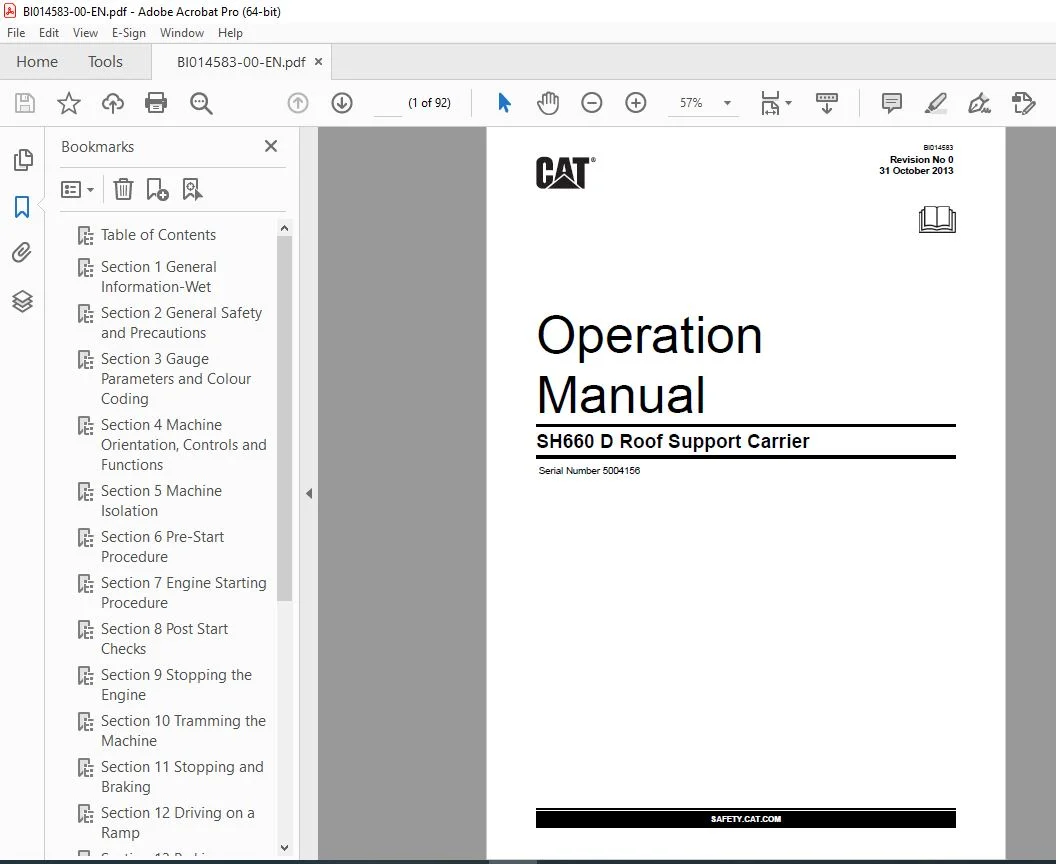

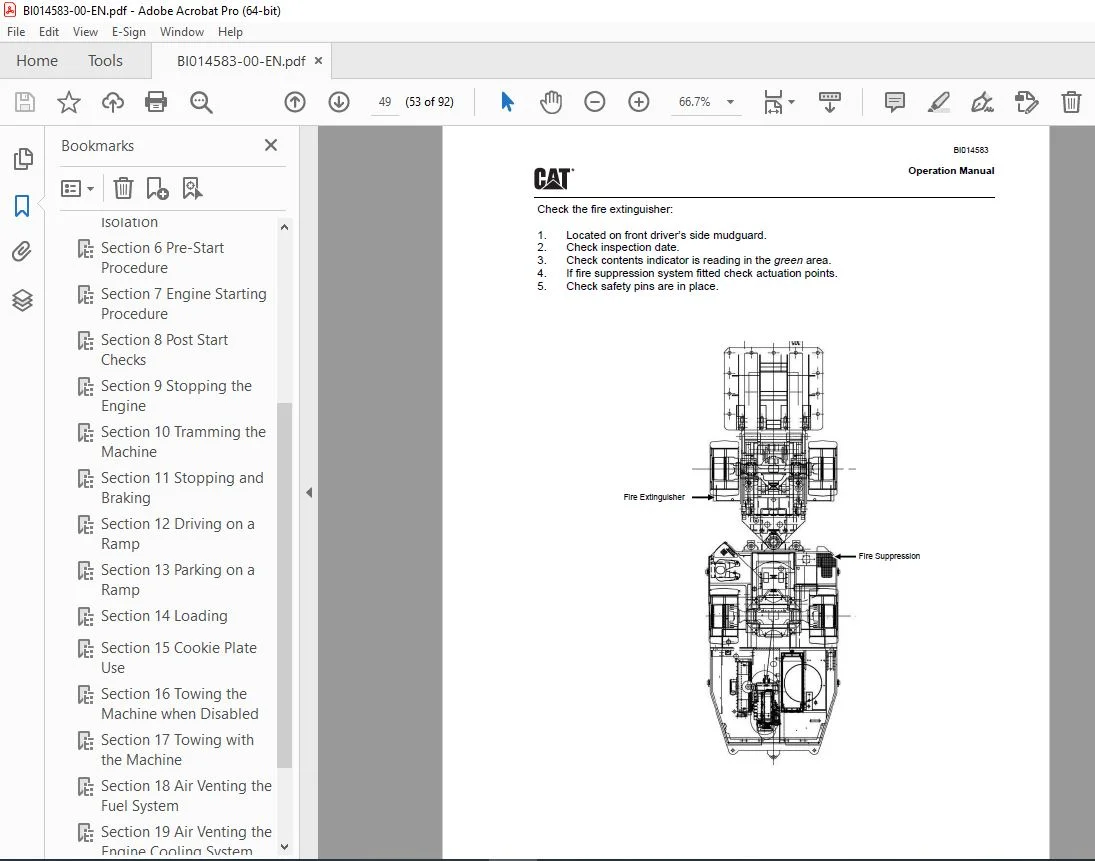

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CAT SH660 D Roof Support Carrier Operation Manual SN 5004156 PDF DOWNLOAD

Table of Contents........................................ 3
Section 1 General Information-Wet........................ 5
Section 2 General Safety and Precautions................. 9
Section 3 Gauge Parameters and Colour Coding.............15
Section 4 Machine Orientation, Controls and Functions....19
Section 5 Machine Isolation..............................37
Section 6 Pre-Start Procedure............................47
Section 7 Engine Starting Procedure......................57
Section 8 Post Start Checks..............................59
Section 9 Stopping the Engine............................63
Section 10 Tramming the Machine..........................65
Section 11 Stopping and Braking..........................67
Section 12 Driving on a Ramp.............................69
Section 13 Parking on a Ramp.............................71
Section 14 Loading.......................................73
Section 15 Cookie Plate Use..............................75
Section 16 Towing the Machine when Disabled..............77
Section 17 Towing with the Machine.......................79
Section 18 Air Venting the Fuel System...................81
Section 19 Air Venting the Engine Cooling System.........83
Section 20 Diesel Control System_DCS.....................85
Section 21 Fluid Specification Table.....................89

Need help? Contact: [email protected]

https://vimeo.com/855626177?share=copy

DESCRIPTION:

CAT SH660 D Roof Support Carrier Operation Manual SN 5004156 PDF DOWNLOAD

INTRODUCTION

• The operation of heavy mining machinery can be hazardous.
• To ensure safe operation, operators and personnel must be alert, competent, correctly trained, tested and licensed in the principles, capabilities and correct operating and isolation procedures of the machinery.
• This manual is designed to provide the SH660 D Roof Support Carrier operator with the proper information regarding the machine’s instrumentation, operating controls and general safe working procedures. All operators of this machine must be conversant with the information contained within this manual before operating the machine. To ensure safe and efficient operation, the SH660 D Roof Support Carrier must be adequately maintained by the operators and service personnel.
• To achieve this, the operator’s pre-start inspection procedure contained in Section 6 of this manual must be performed before any use of this machinery is undertaken.
• Any abnormalities should be reported immediately to service personnel to avoid costly machine repairs, production downtime and unsafe operation of the machine.

DESCRIPTION

• The SH660 D is a 55000 kg high capacity Roof Support Carrier. It has been designed for lifting and carrying heavy pieces of equipment and machinery in underground coal mines. Its main function is carrying and placing of longwall equipment and shields. The machine comes standard with a set of fork tines and winch for this purpose.
• The machine is powered by a 195 kW (260 HP) Caterpillar 3126 turbocharged four-stroke inline six cylinder flameproof diesel engine package. Flameproofing of the system includes a wet exhaust conditioning system complete with exhaust and intake flame traps. The start system is pneumatic.
• The diesel control system is an intrinsically safe electronic monitoring system. The engine power output is connected to the constant four-wheel drive system via a drive coupling through a four-speed bidirectional power shift transmission to heavy duty axles.
• The SH660 D utilises a wet bath exhaust system complete with a exhaust purifier. A removable flame trap for ease of cleaning is fitted on the outlet of the exhaust conditioner housing.
