CAT SH660 HD Roof Support Carrier Operation Manual SN 5004079 – PDF DOWNLOAD

Description

CAT SH660 HD Roof Support Carrier Operation Manual SN 5004079 – PDF DOWNLOAD

FILE DETAILS:

CAT SH660 HD Roof Support Carrier Operation Manual SN 5004079 – PDF DOWNLOAD

Language : English
Pages : 92
Downloadable : Yes
File Type : PDF

DESCRIPTION:

CAT SH660 HD Roof Support Carrier Operation Manual SN 5004079 – PDF DOWNLOAD

General Information:
INTRODUCTION:

The operation of heavy mining machinery can be hazardous. To ensure safe operation,
operators and personnel must be alert, competent, correctly trained, tested and licensed in the
principles, capabilities and correct operating and isolation procedures of the machinery.

• This manual is designed to provide the SH660 HD Roof Support Carrier operator with the proper
  information regarding the machine’s instrumentation, operating controls and general safe working
  procedures. All operators of this machine must be conversant with the information
  contained within this manual before operating the machine.
• To ensure safe and efficient operation, the SH660 HD Roof Support Carrier must be
  adequately maintained by the operators and service personnel. To achieve this, the
  operator’s pre-start inspection procedure contained in Section 6 of this manual must be
  performed before any use of this machinery is undertaken.
• Any abnormalities should be reported immediately to service personnel to avoid costly
  machine repairs, production downtime and unsafe operation of the machine.

DESCRIPTION:

• The SH660 HD is a 60000 kg high capacity Roof Support Carrier. It has been designed for lifting and
  carrying heavy pieces of equipment and machinery in underground coal mines. Its main function is
  carrying and placing of longwall equipment and shields. The machine comes standard with a set of
  fork tines and winch for this purpose.
• The SH660 HD is powered by a 172 kW (230 HP) Caterpillar 3126 turbocharged four-
  stroke inline six cylinder explosion protected diesel engine package. Flameproofing of the system
  includes a wet exhaust conditioning system complete with intake flame traps and dual particulate
  filtration. The start system is pneumatic. The Diesel Control System (DCS) is an intrinsically safe
  electronic monitoring system. The engine power output is connected to the constant four-wheel
  drive system via a drive coupling through a four-speed bidirectional power shift transmission to heavy duty axles.

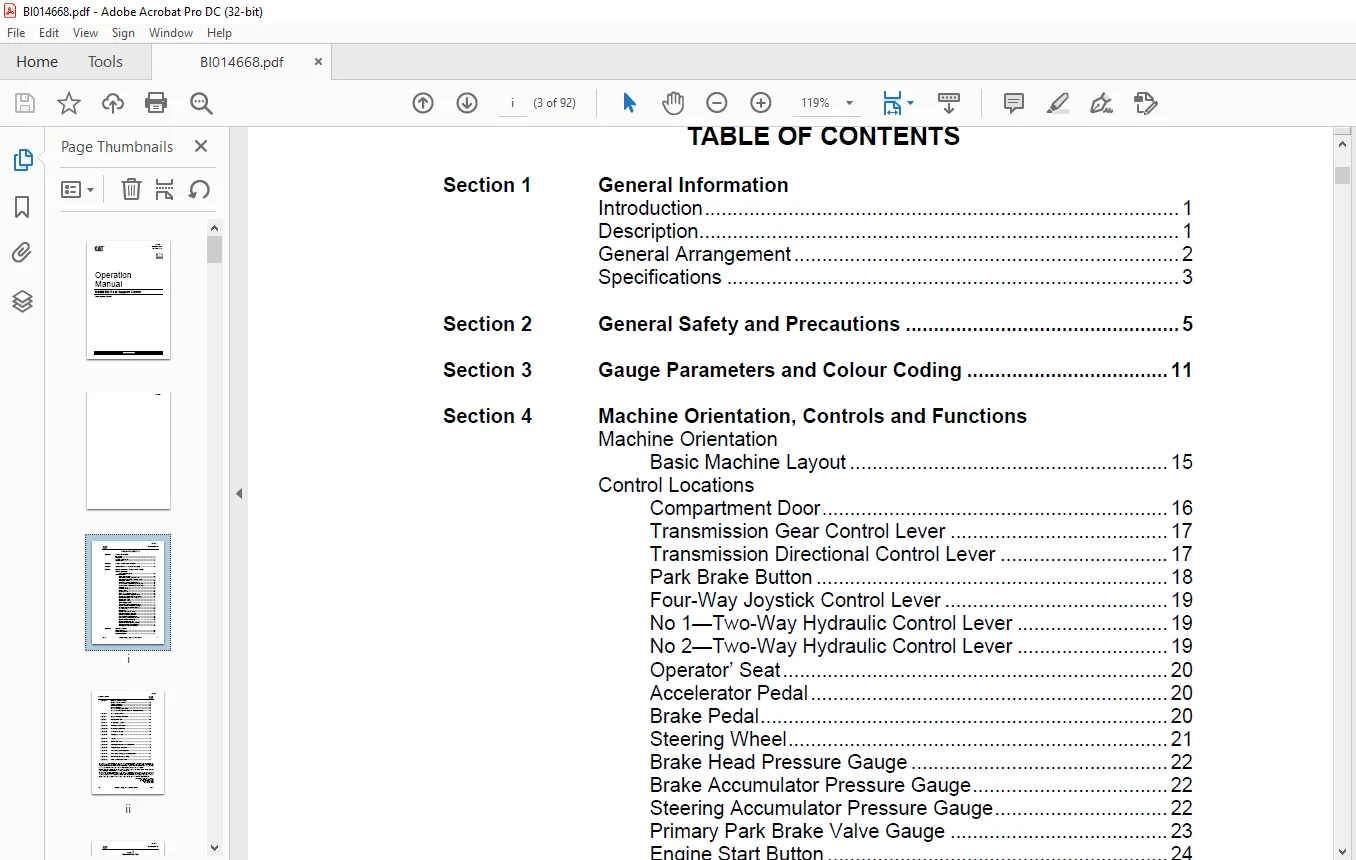

TABLE OF CONTENTS:

CAT SH660 HD Roof Support Carrier Operation Manual SN 5004079 – PDF DOWNLOAD

Section 1 General Information
Introduction 1
Description 1
General Arrangement 2
Specifications 3
Section 2 General Safety and Precautions 5
Section 3 Gauge Parameters and Colour Coding 11
Section 4 Machine Orientation, Controls and Functions
Machine Orientation
Basic Machine Layout 15
Control Locations
Compartment Door 16
Transmission Gear Control Lever 17
Transmission Directional Control Lever 17
Park Brake Button 18
Four-Way Joystick Control Lever 19
No 1—Two-Way Hydraulic Control Lever 19
No 2—Two-Way Hydraulic Control Lever 19
Operator’ Seat 20
Accelerator Pedal 20
Brake Pedal 20
Steering Wheel 21
Brake Head Pressure Gauge 22
Brake Accumulator Pressure Gauge 22
Steering Accumulator Pressure Gauge 22
Primary Park Brake Valve Gauge 23
Engine Start Button 24
Air Pressure Gauge 24
On/Off Toggle Switch 24
Transmission Oil Temperature Gauge 25
Engine Coolant Temperature Gauge 25
Hydraulic Oil Temperature Gauge 26
Load Indicator 27
Horn Button 28
Engine Service Hour Meter 28
Air Cleaner Service Indicator 29
Shutdown System Test Valve 29
Exhaust Back Pressure Gauge 30
Exhaust Gas Temperature Gauge 30
Engine Oil Pressure Gauge 30
Engine Fuel Primer Pump 31
Attachment Quick Connects Button 31
Emergency Intake Shut Off Valve 32
Emergency Fuel Shut Off Valve 33
Section 5 Machine Isolation
Engine Isolation 35
Pneumatic Isolation 36
Hydraulic Isolation 37
Section 5 Machine Isolation (cont )
Engine Coolant Isolation 38
Electrical Isolation 39
Articulation Isolation 40
Lift Arm Isolation 41
Exhaust Conditioner Isolation 42
Exhaust Conditioner Make Up Tank Pressure Isolation 43
Section 6 Pre-Start Procedure 45
Section 7 Engine Starting Procedure 55
Section 8 Post Start Checks 57
Section 9 Stopping the Engine 61
Section 10 Tramming the Machine 63
Section 11 Stopping and Braking 65
Section 12 Driving on a Ramp 67
Section 13 Parking on a Ramp 69
Section 14 Loading 71
Section 15 Cookie Plate Use 73
Section 16 Towing the Machine when Disabled 75
Section 17 Towing with the Machine 77
Section 18 Air Venting the Fuel System 79
Section 19 Air Venting the Engine Cooling System 81
Section 20 Diesel Control System (DCS) 83
Section 21 Fluid Specification Table 87

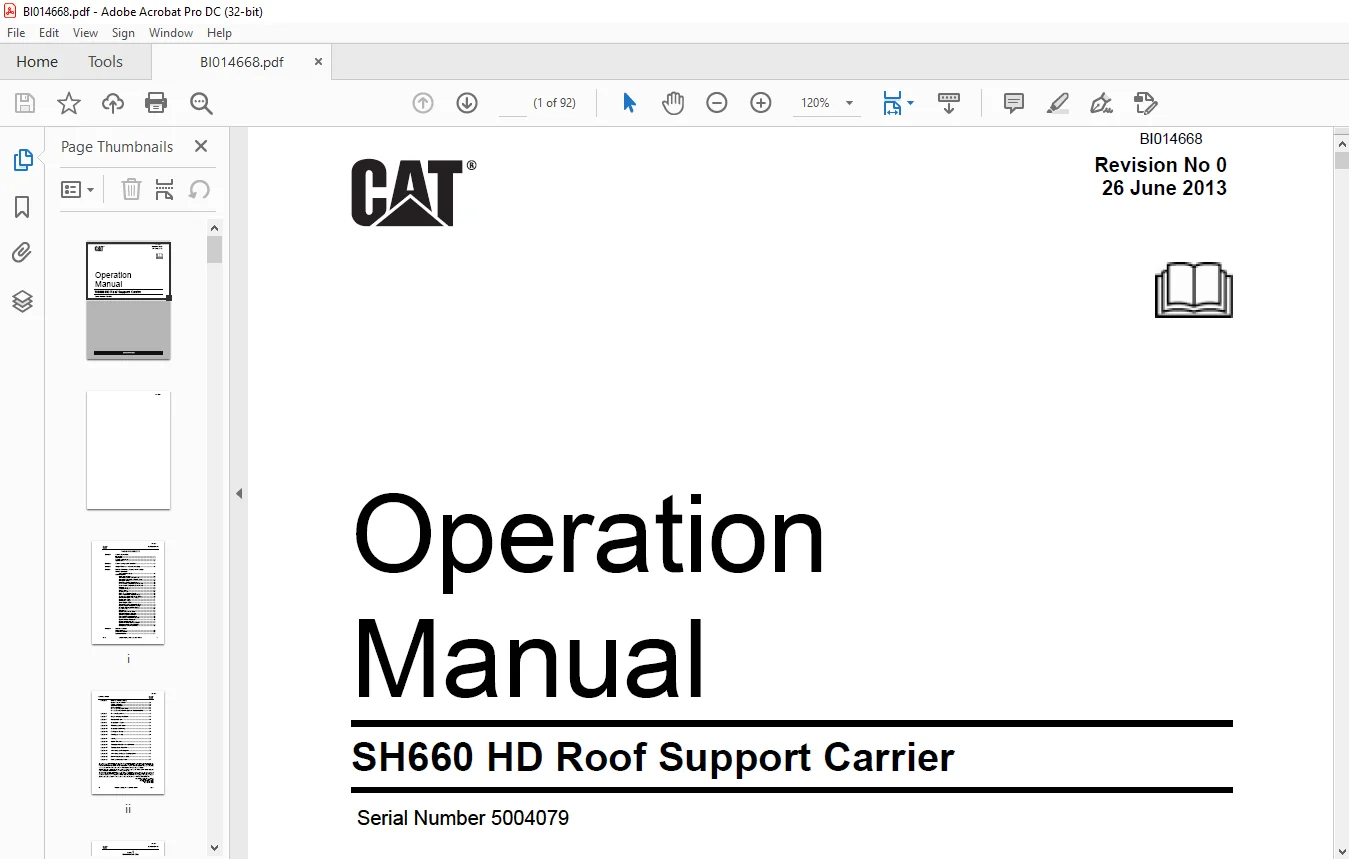

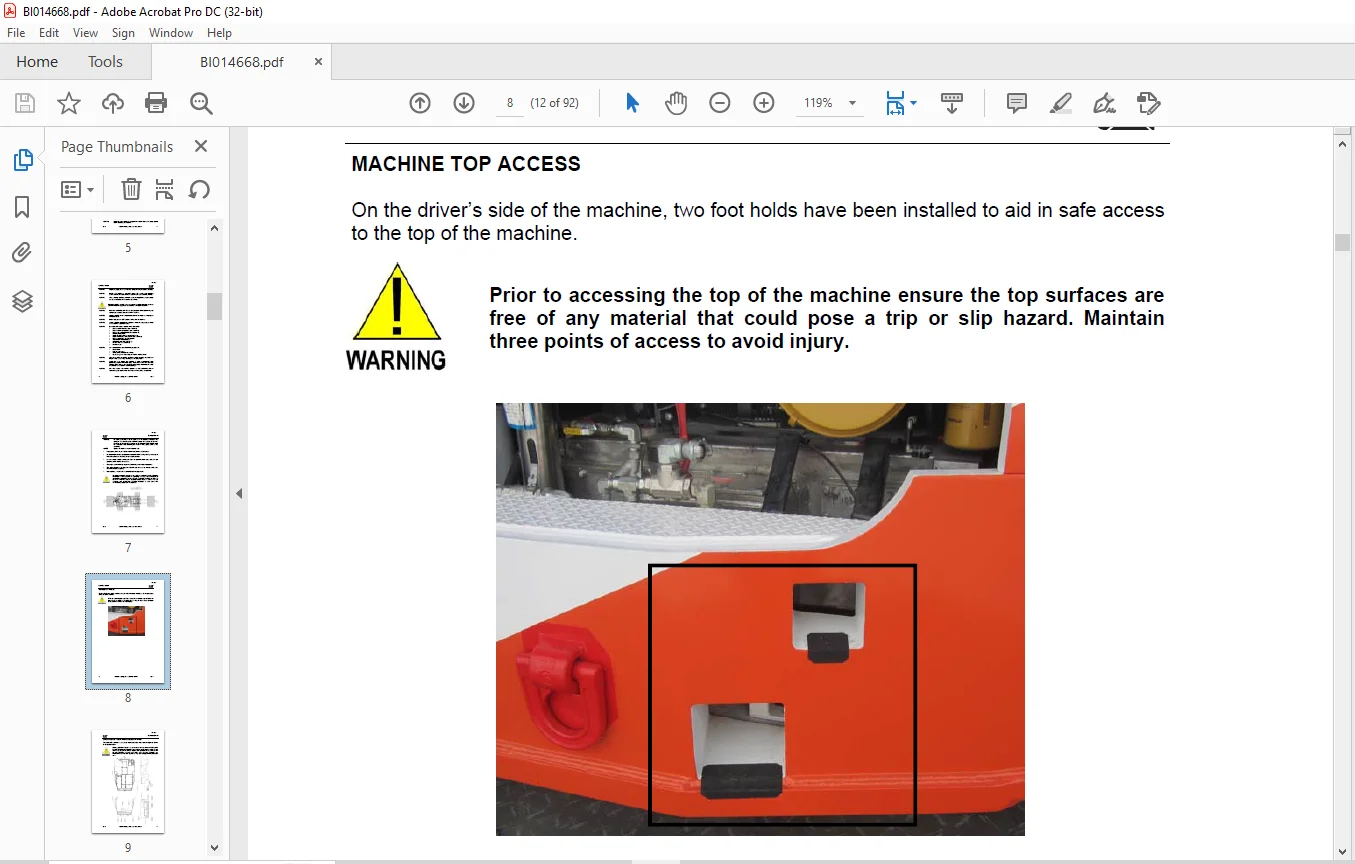

IMAGES PREVIEW OF THE MANUAL:

Questions? Email us: [email protected]

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
