Cat Shield support 16263048-2X5341-2056 Operating Manual EM020621-0 – PDF DOWNLOAD
$27.95
Cat Shield support 16263048-2X5341-2056 Operating Manual EM020621-0 – PDF DOWNLOAD
Description
Cat Shield support 16263048-2X5341-2056 Operating Manual EM020621-0 – PDF DOWNLOAD
FILE DETAILS:
Cat Shield support 16263048-2X5341-2056 Operating Manual EM020621-0 – PDF DOWNLOAD
Language : English
Pages : 167
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Cat Shield support 16263048-2X5341-2056 Operating Manual EM020621-0 – PDF DOWNLOAD
This chapter contains important information that makes it easier for
you to use this manual. It provides you with information about the
structure of the manual and the symbols used in it.
Before starting work:
Using an operating manual that is not written for the product type at
hand can result in a safety hazard for yourself and others.
Ensure that the data on the shield agrees with the data given in the
operating manual.
This operating manual belongs to the:
Shield support 1626/3048-2X5341-2056 *
ID number 7420 227 000 00 01
and is only permitted to be used for shields of this type!
The operating manual must be accessible at all times to all persons
working on or with the shield.
There should, if possible, always be an operating manual for the
product available at the place of operation.
Send for a new operating manual immediately if the present operating
manual is no longer complete or has become illegible.
Persons for whom the operating manual is intended
This operating manual is intended for those persons who work with
or on the shields.
All persons working on the face, at the edge of the face or at the
entry must read this operating manual.
- are in charge of transport,
- prepare the rise heading,
- perform assembly/disassembly work,
- operate the shields,
- correct malfunctions,
- perform daily routine work on the face,
- monitor/look after for the hydraulic system,
- perform maintenance work,
- perform repair work.
- supervisory personnel who:
Supervisory personnel who: - initiate the activities named above and/or
- supervise the activities named above.

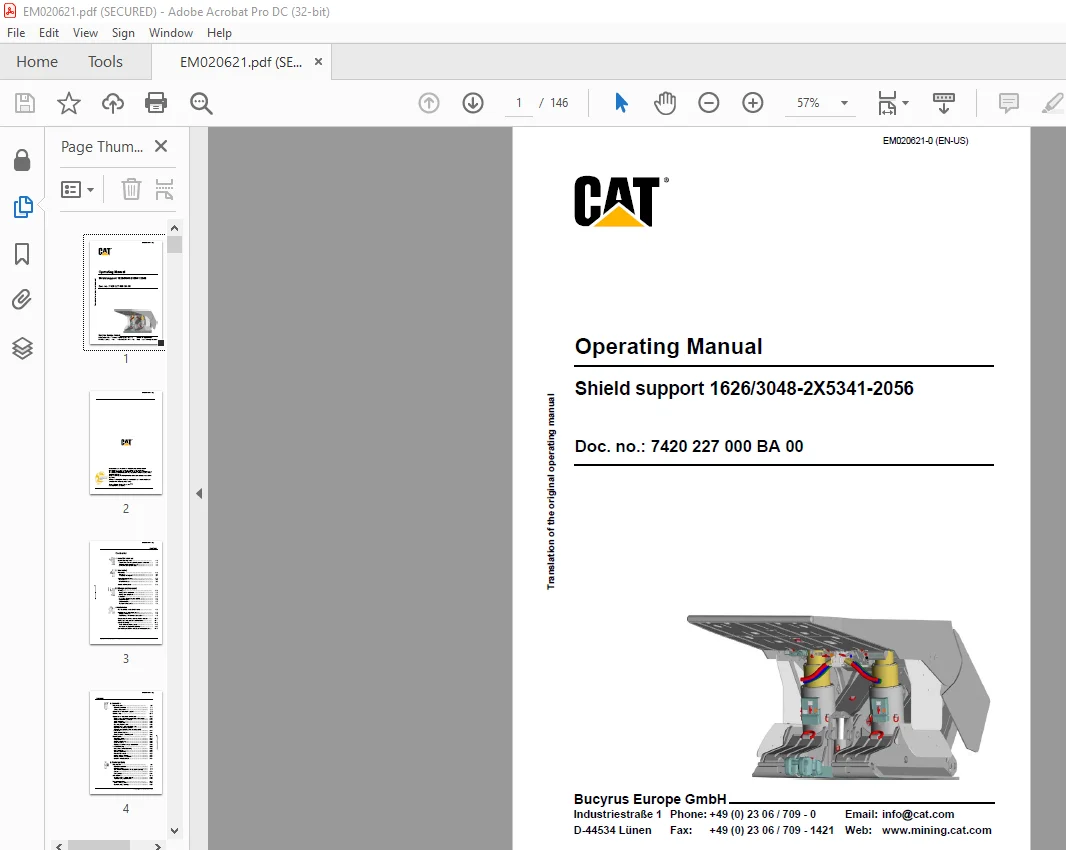

IMAGES PREVIEW OF THE MANUAL:

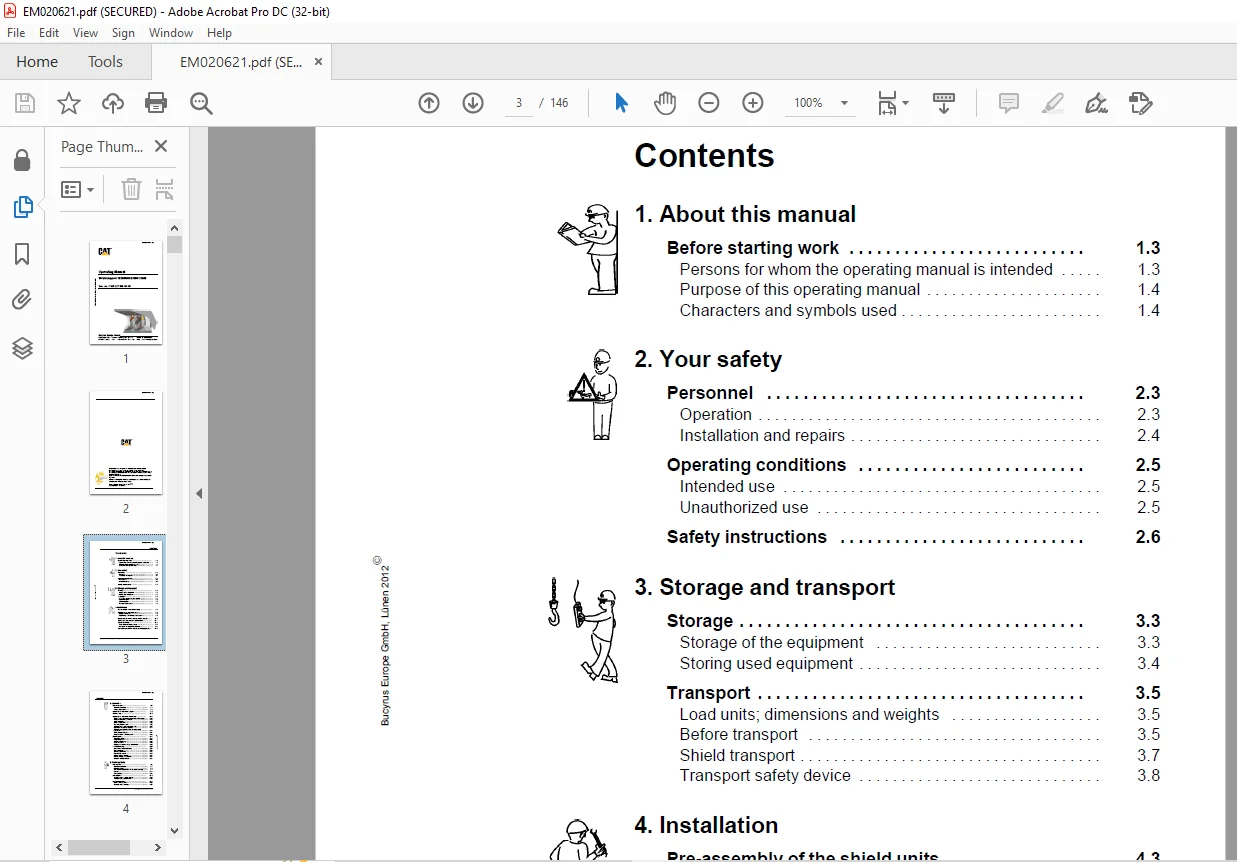

TABLE OF CONTENTS:
Cat Shield support 16263048-2X5341-2056 Operating Manual EM020621-0 – PDF DOWNLOAD
1 About this manual
Before starting work 1 3
Persons for whom the operating manual is intended 1 3
Purpose of this operating manual 1 4
Characters and symbols used 1 4
2 Your safety
Personnel 2 3
Operation 2 3
Installation and repairs 2 4
Operating conditions 2 5
Intended use 2 5
Unauthorized use 2 5
Safety instructions 2 6
3 Storage and transport
Storage 3 3
Storage of the equipment 3 3
Storing used equipment 3 4
Transport 3 5
Load units; dimensions and weights 3 5
Before transport 3 5
Shield transport 3 7
Transport safety device 3 8
4 Installation
Pre-assembly of the shield units 4 3
Installation of the shield units 4 3
Supply connections 4 5
Establishing a link between connections 4 9
Requirements for the face hydraulic system 4 10
Water spraying system requirements 4 11
Commissioning 4 12
To be observed prior to startup 4 12
How to put the support into operation 4 14
Corrosion protection of hydraulic components 4 14
Bucyrus Europe GmbH, Lünen 2012E
EM020621-0 (EN-US)
Contents
Shield support 1626/3048-2X5341-2056
5 Operation
Requirements 5 3
Operating conditions 5 3
Safety requirements 5 6
Operation of the shield support 5 9
Work safety 5 14
Operation of the shield hydraulics 5 15
Arrangement of hydraulic components on the support 5 15
Functions of the HP ball valves 5 17
Shield hydraulics 5 18
Shield components 5 26
Plug with pressure relief 5 36
Operation of the double backflush filter 5 40
Repair and emergency operation 5 41
Operation and functions of the electrohydraulic
control unit 5 43
Shield variant functions 5 44
Functions of the water valve unit 5 46
Maintenance 5 47
Special measures 5 47
Daily maintenance 5 48
Weekly maintenance 5 49
Every six months 5 49
Regular, scheduled damage assessment 5 49
Troubleshooting 5 50
Instructions for troubleshooting 5 50
Fault localization 5 50
3/2-way or pilot valve 5 53
Piloted check valves 5 53
Internal by-pass in props 5 54
Pressure relief valve defective 5 54
Defective or blocked filter 5 54
6 Technical Data
Description 6 3
Main subassemblies 6 4
Main dimensions 6 6
Skid with lemniscatic links and relay bar assembly 6 7
Canopy 6 11
Caving shield 6 14
Accessories 6 16
Steering device “canopy – canopy” 6 16
Technical data, steel structure 6 19
Hydraulic system 6 20
Shield control system 6 20
Hydraulic prop, two-stage 6 22
Bucyrus Europe GmbH, Lünen 2012E
EM020621-0 (EN-US)
Contents
Doc no : 7420 227 000 BA 00 VSSS / 01
Hydraulic cylinder 6 24
Shifting ram 6 25
Stabilizing cylinder 6 25
Lifting cylinder 6 26
Technical data, hydraulic cylinder 6 27
Pressure relief valves 6 29
Angles of inclination of the canopy 6 31
Permissible media 6 32
Hydraulic fluids 6 32
Quality of the process water 6 34
Lubricating greases and pastes 6 36
Tightening torques 6 38
Screws with ISO metric thread 6 38
7 For your information
Standards and guidelines 7 3
Referenced standards and guidelines 7 3
Identification of the shield 7 5
Name plate 7 5
Shield number 7 6
