CAT Terex MK7 Electric/Hydraulic Two Boom Jumbo Maintenance Manual SN:S07-4180 – PDF DOWNLOAD

Description

CAT Terex MK7 Electric/Hydraulic Two Boom Jumbo Maintenance Manual SN:S07-4180 – PDF DOWNLOAD

FILE DETAILS:

CAT Terex MK7 Electric/Hydraulic Two Boom Jumbo Maintenance Manual SN:S07-4180 – PDF DOWNLOAD

Language : English
Pages : 791
Downloadable : Yes
File Type : PDF

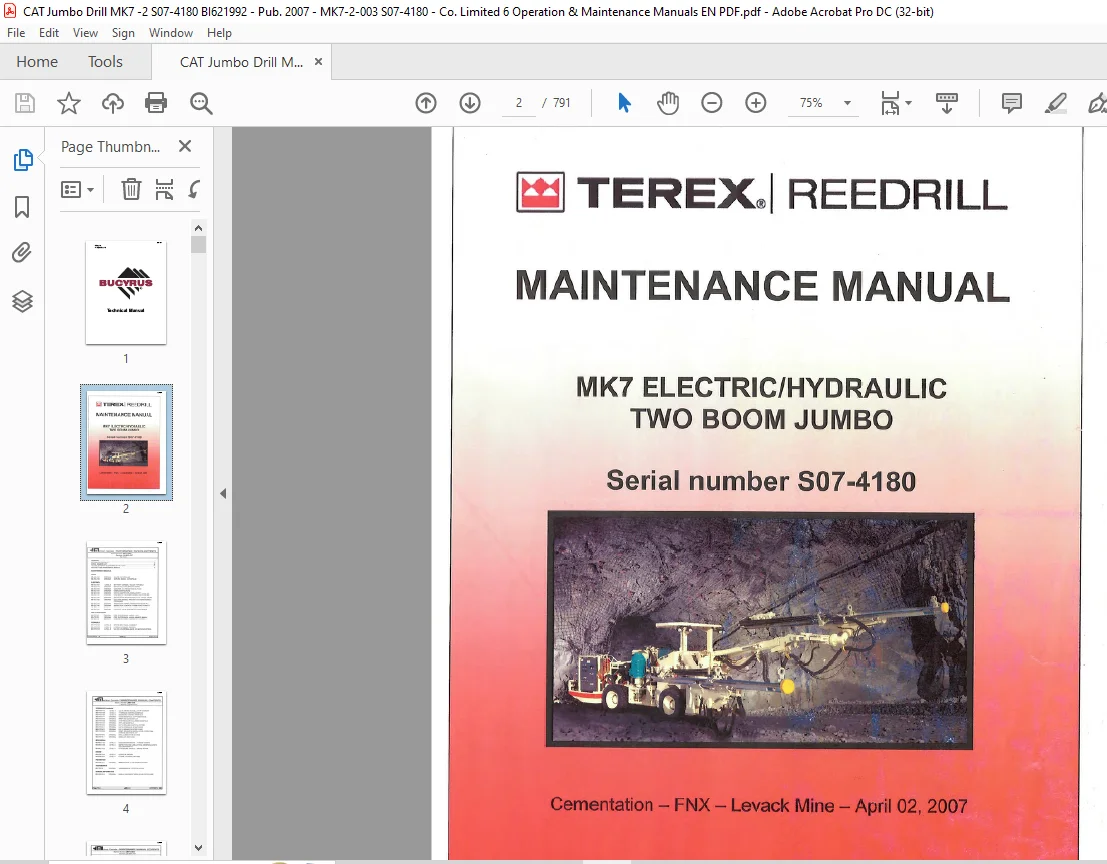

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CAT Terex MK7 Electric/Hydraulic Two Boom Jumbo Maintenance Manual SN:S07-4180 – PDF DOWNLOAD

OPERATION:
1) The equalize timer (Option) should be set to the “float charge” setting.
2) Turn the main switch to the “ON” position. The “AC ON” pilot lamp should light.
3) If the battery is discharged, the charger will begin to charge it at the maximum charger rating. The red “current limit” lamp will light.
4) When the battery terminal voltage reaches the predetermined float voltage setting the red “current limit” lamp will go out and the green “float charge” lamp will light. At this point the charger output current will decrease rapidly (with respect to battery terminal voltage).
5) If it is desired to equalize the battery, this may be accomplished by turning the equalize timer to the desired time setting. The yellow “equalize charge” lamp will light as well. While the charger is in the equalize mode, the red “current limit” lamp may light (indicating that the current limit function is enabled). When the green “float voltage” lamp lights this indicates that the battery has reached the equalize voltage limit.

TABLE OF CONTENTS:

CAT Terex MK7 Electric/Hydraulic Two Boom Jumbo Maintenance Manual SN:S07-4180 – PDF DOWNLOAD

AXLES, CATERPILLAR
MB-AXL 1428 ORIGINAL SERVICE BRAKE, CATERPILLAR
ELECTRICAL
BATTERY CHARGER, VULCAN TYPE SCA
MOTOR, ELECTRIC BROOK HANSEN
MONITOR, MULTIFUNCTION VOLTAGE
DESICCANT PACKETS
DIGITAL VOLTMETER, MAIN AC PANEL

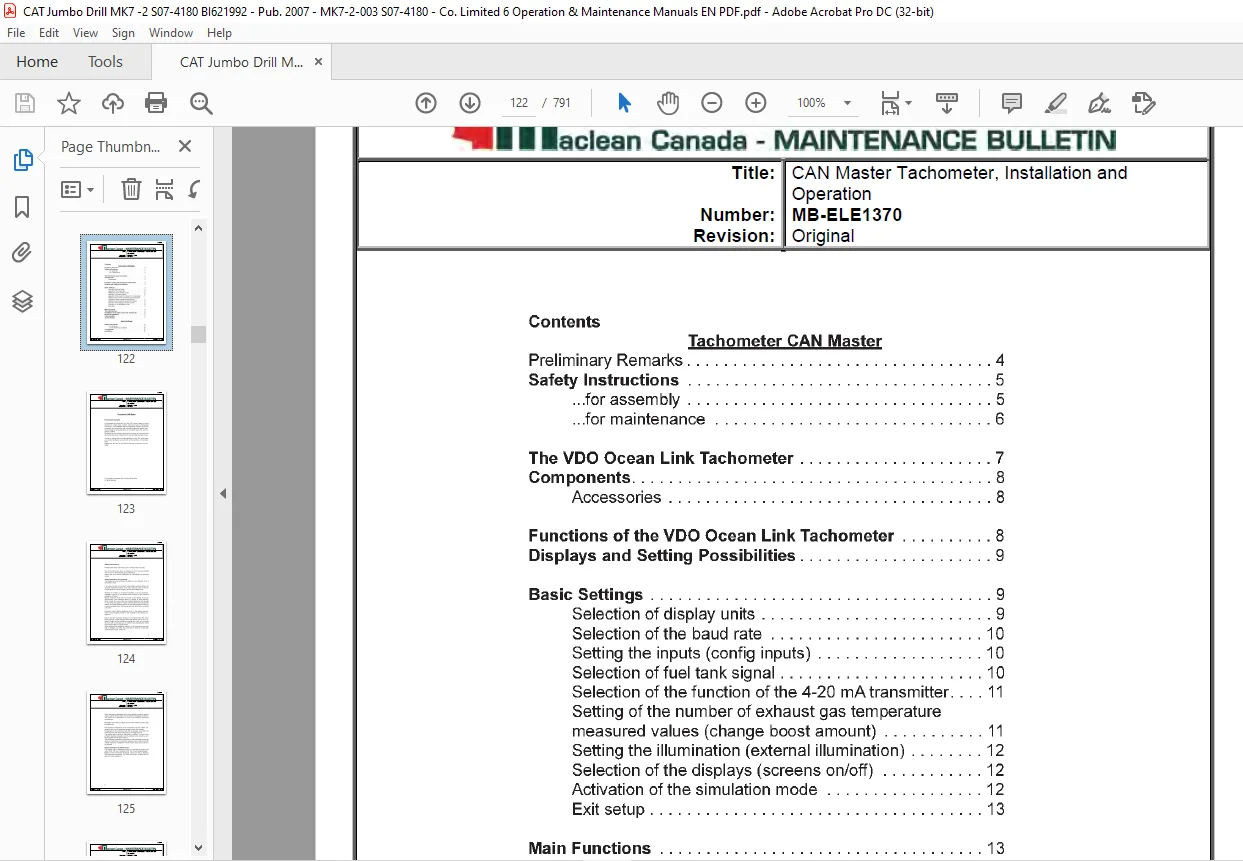

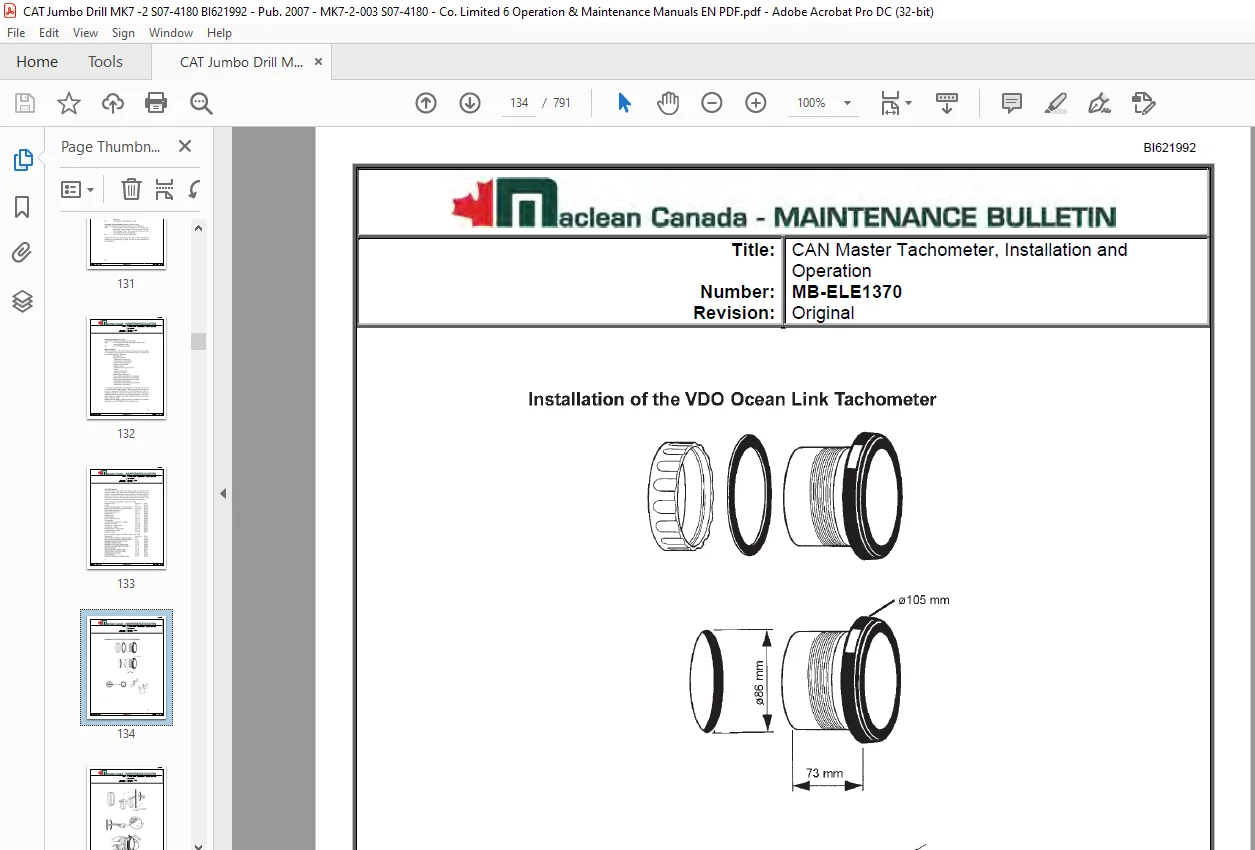

CAN MASTER TACHOMETER, INSTALLATION AND
OPERATION
INSTALLATION INSTRUCTIONS, FUEL LEVEL SENDER
ELECTRICAL PANEL PREVENTATIVE MAINTENANCE
PROCEDURE
INSPECTION, JUMBO CARRIEH CONTROLS MK-7
INSPECTION, CONTROL SYSTEM FUNCTIONALITY
PROCEDURE, HAWE VALVE CONTROLLER SET-UP
CAVOTEC CABLE REELINSTRUCTION MANUAL
FIRE SUPPRESS/ON
FIRE SUPPRESSION, ANSUL A-101
FIRE SUPPRESSION, ANSUL OWNERS MANUAL
HYDRAULICS
BRAKE, MICO PEDAL ASSEMBLY
HYDRAULIC PUMPS, REXROTl’-1
VALVE, COUNTERBALANCE AI\JD MOTION CONTROL
HYDRAULICS continued
VALVE, MICRO ACCUMULATOR CHARGER
HYDRAULIC CONTROL MANIFOLD
PRESSURE CONTROL MANIFOLD
BRAKE MANIFOLD, CAT POWERTRAIN
PUMP UNLOAD MANIFOLD
LOW PRESSURE COLLARING MANIFOLD
ANITI-JAM MANIFOLD
MK7-2 DRILLING CONTROL SYSTEM
MK7-2 HYDRAULIC SET-UP GUIDE
MK7-2 AIR/WATER SET-UP GUIDE
PUMP, GRUNDFOS INSTALLATION, OPERATION,
SERVICE AND PARTS LIST
DRILL LUBRICATION SYSTEM
HOSE LIST, MK7-2-002
MECHANICAL
MACLEAN ENGINEERING TORQUE CHARTS
INSPECTION AND LUBRICATION, UNIVERSAL JOINTS
ANID DRIVESHAFTS
PROCEDURE, DRIVELINE BRAKE REPAIR
ENGINE
RADIATOR, MESABI
ENGINE, CATERPILLAR 3056E
PNEUMATICS
COMPRESSOR, CT3B GARNER-DENVER
TRANSMISSION
TRANSMISSION, CATERPILLAR 928
GENERAL INFORMATION
MOBILE EQUIPMENT WASH DOWN PROCEDURE
