Caterpillar Custom Track Service Handbook Manual
FILE DETAILS:
Caterpillar Custom Track Service Handbook Manual
Language: English
Size: 4.71 MB
Pages: 826
Format: PDF
Downloadable: YES
DESCRIPTION:
Caterpillar Custom Track Service Handbook Manual
SAMPLE PAGES FROM THE MANUAL :
The variables that determine complete undercarriage system life and wear balance between components can be divided into three major groupings. The first are those which, to a great extent, are controllable. Controllable variables include track tension adjustment (controlled by user operating and/or maintenance personnel), shoe width (controlled by user operating and purchasing personnel) and on some models, alignment (controlled by user and/or dealer service personnel).
- The second major group, non-controllable variables, discussed later in this major section include those life determining factors which are “givens.” They come with the job. They are 100 percent determined by the underfoot conditions and include impact, abrasiveness, packing, moisture, terrain and even application, meaning what the machine is doing.
- The final major group is sometimes called partially controllable variables and mainly involve machine operator controllable events such as “habits.” A thorough knowledge of each of the elements of all these three major groups is essential if the CTS expert is going to be able to not only explain “what has happened,” but also “what could be expected to happen,” especially as any of these variables were to change.
- Awareness of the relative interplay between these variables on the final wear or structural life of specific components, and even on the system is so important that their discussion has been placed at the front of this book. To use the rest of the book before understanding these would be counterproductive.

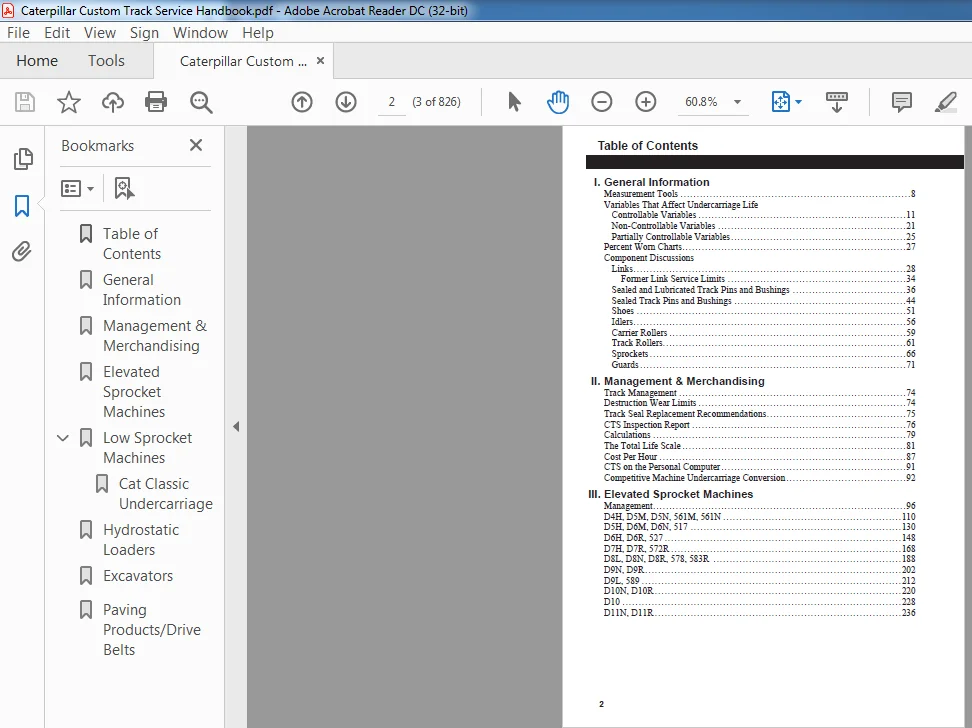

TABLE OF CONTENTS:
Caterpillar Custom Track Service Handbook Manual
I General Information
Measurement Tools 8
Variables That Affect Undercarriage Life
Controllable Variables11
Non-Controllable Variables 21
Partially Controllable Variables25
Percent Worn Charts 27
Component Discussions
Links 28
Former Link Service Limits 34
Sealed and Lubricated Track Pins and Bushings 36
Sealed Track Pins and Bushings 44
Shoes 51
Idlers 56
Carrier Rollers 59
Track Rollers61
Sprockets66
Guards 71
II Management & Merchandising
Track Management 74
Destruction Wear Limits74
Track Seal Replacement Recommendations 75
CTS Inspection Report 76
Calculations 79
The Total Life Scale81
Cost Per Hour 87
CTS on the Personal Computer 91
Competitive Machine Undercarriage Conversion 92
III Elevated Sprocket Machines
Management 96
D4H, D5M, D5N, 561M, 561N 110
D5H, D6M, D6N, 517 130
D6H, D6R, 527 148
D7H, D7R, 572R 168
D8L, D8N, D8R, 578, 583R 188
D9N, D9R 202
D9L, 589 212
D10N, D10R 220
D10 228
D11N, D11R 236
2
Table of Contents
IV Low Sprocket Machines
Management 248
Genuine Cat® Undercarriage
D3, D4B, D4C, D4G, 931, 933, 935 258
D4, D4D, D4E, 941 278
D5C, D5G, 939 294
D5, D5B, 951, 955, 561 310
D6, D6B, D6C, D6D, 955326
D7, D7D, D7E, D7F, D7G, 977, 571, 572 348
D8, 983366
D9, 594378
Cat Classic Undercarriage
D5B 390
D6 400
D7 410
D8 418
V Hydrostatic Loaders
Management 428
943 436
953 444
963 460
973 472
VI Excavators
Management 490
307, 308 498
311, 312, 313, 314508
315, 317, 318, 320, 322, 320 FM 516
320S, 322 FM, 325, 325 FM 530
330 544
330 FM, 345 556
350 566
365, 375, 385, 5080, 5090 574
5110 584
5130 592
5230 602
205, 211, 213 608
215 616
225, 219, 215SA, FB221, FB217, DL221 630
225 646
227, 229, 231, 225SA, LL225 656
235, LL235 666
235 684
245 692
3
Table of Contents
E70B710
E110B, E120B 720
E140 728
E180, EL180 736
E200B, EL200B 744
EL240B, E240B, EL240, E240 752
E300B, EL300B, EL300 760
E300 768
E450 776
E650 784
VII Paving Products/Drive Belts
PR1000, PR750B, SF550, SF500, TR500 794
AP1050 800
PR450B, SF350, SF250B, TR225B 808
VIDEO PREVIEW OF THE MANUAL:

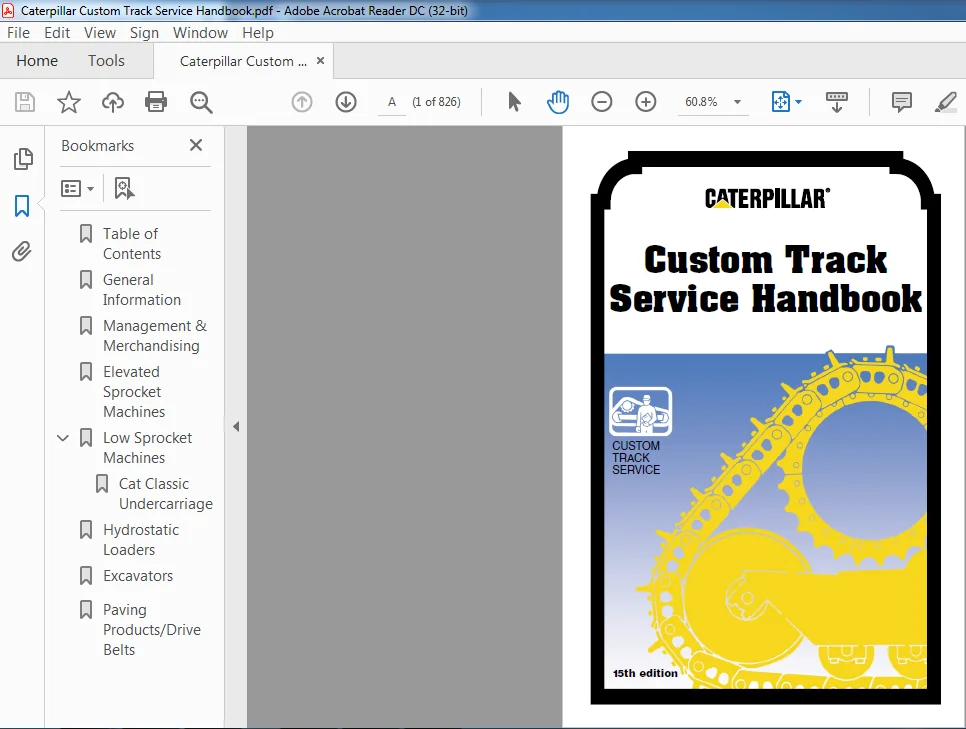

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME MANUAL used by the dealerships to diagnose your vehicle
- No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
- Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
- So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
