Caterpillar NPV20N Lift Trucks Service Manual + Operation & Maintenance Manual – PDF DOWNLOAD

Description

Caterpillar NPV20N Lift Trucks Service Manual + Operation & Maintenance Manual – PDF DOWNLOAD

DESCRIPTION:

Caterpillar NPV20N Lift Trucks Service Manual + Operation & Maintenance Manual – PDF DOWNLOAD

Safety instructions
Instructions for site supervision
• Familiarise yourself with the operating instructions and their contents
• Train the operator on the use, safety and maintenance aspects of the truck
• Control that the operating and maintenance instructions, and safety regulations are observed
Occupational safety
• Keep the truck clean and in good working order. Carry out the daily and weekly maintenance checks in
accordance with the maintenance instructions and schedule to avoid faults and operational errors.
• If you notice any faults or deficiencies that may effect the safe operation of the truck, take the truck out of
operation until the faults or deficiencies have been remedied
• In the event of a malfunction, switch off the power and notify the site supervision.
• Do not repair anything on the truck without the permission from the site supervision
• When using the truck, you are responsible for both your own and your environment’s safety
• Immediately notify the site supervision of any accidents or injuries. In such a case, leave the truck at the place
of the accident
• The truck can only be used for purposes corresponding with its equipment. Intended use, see Chapter 4.
Truck operator
Requirements:
• At least 18 years old
• Sufficient physical (e.g. good hearing and sight) and mental abilities for operating the truck without risks
• Appropriately trained; familiar with operating, safety and maintenance instructions
• Has written permission from the site supervision to operate the truck
• Knows and masters the drive and operational features of the truck.

TABLE OF CONTENTS:

Caterpillar NPV20N Lift Trucks Service Manual + Operation & Maintenance Manual – PDF DOWNLOAD

SWHPU-00112-01_TRUCK.......................................................  1
SWHPU-00112-02_SAFETY_INSTRUCTIONS.........................................  5
SWHPU-00112-03_OPERATING_ENVIRONMENT.......................................  8
SWHPU-00112-04_OPERATING_DEVICES........................................... 10
SWHPU-00112-05_DRIVING_INSTRUCTIONS........................................ 13
SWHPU-00112-06_LOAD_HANDLING............................................... 17
SWHPU-00112-07_BATTERIES................................................... 20
SWHPU-00112-08_MAINTENANCE................................................. 23
SWHPU-00112-09_SERVICE..................................................... 25
SWHPU-00112-10_TRANSPORTATION_AND_STORAGE.................................. 26
SWHPU-00112-11_TROUBLESHOOTING_AND_ALARMS.................................. 27
SWHPU-00112-12_TECHNICAL_SPECIFICATIONS.................................... 29
AC1T2KE_RO1.27_110311...................................................... 35
EPS_RO.82C................................................................. 37
ERROR_CODES_DISPLAY_010206................................................. 39
POWER_PALLET_TRUCK_ELECTRIC_STEERING_CALIBRATION........................... 41
	Instructions........................................................... 41
	Teaching the Tiller arm hall sensor (P1/SB)............................ 41
	Steering angle limitations and teaching the feedback sensor (P2/FB).... 41
	Finetuning the steering angle limitations.............................. 42
	Adjusting driving unit straight position by driving.................... 42
SWHPU-00112-09_SERVICE..................................................... 43
TH50_0905.................................................................. 47
TS1200511PDF_WITH_NEW_TILLER............................................... 48
Unlock-AC1_SSL............................................................. 55
Unlock-ZAPI_EPS-AC0........................................................128
WHSM0003-01_INTRODUCTION...................................................223
WHSM0003-02_OPERATING_THE_TRUCK............................................227
WHSM0003-03_REGULAR_MAINTENANCE............................................245
WHSM0003-04_ELECTRICAL_OPERATION_AND_MAINTENANCE...........................277
WHSM0003-05_HYDRAULIC_OPERATION_AND_MAINTENANCE............................356
WHSM0003-06_MECHANICAL_MAINTENANCE.........................................361

CATERPILLAR NPV20N LIFT TRUCKS SERVICE MANUAL + OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD:

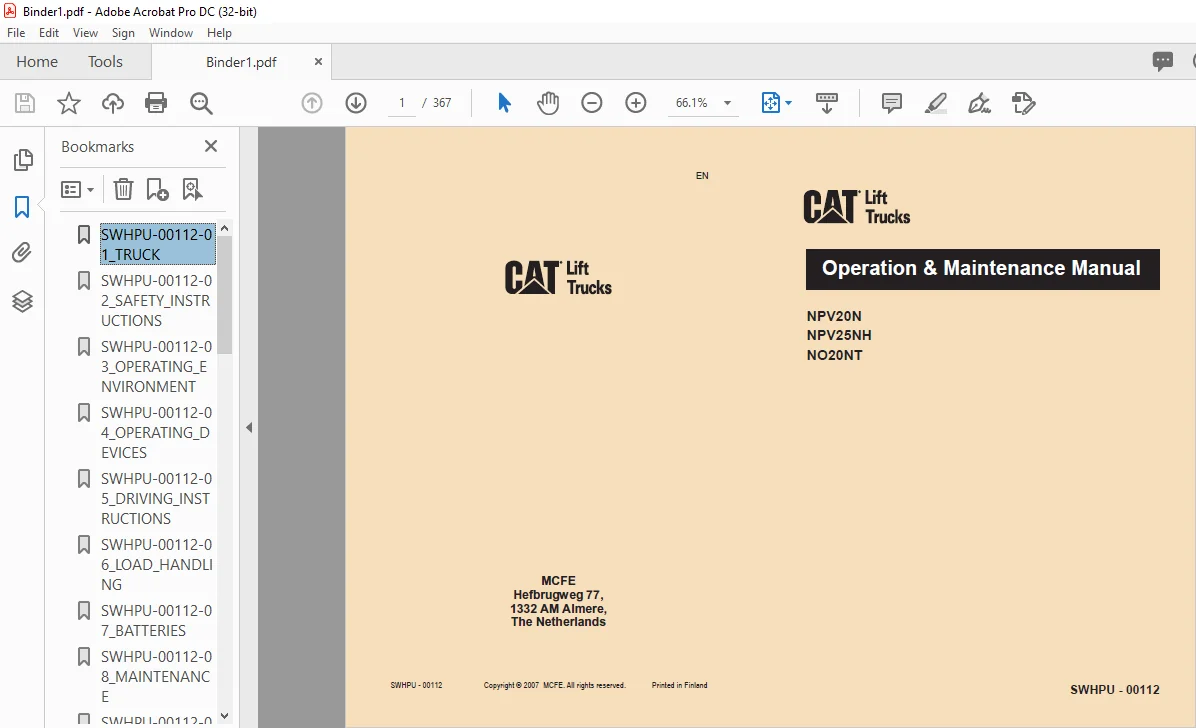

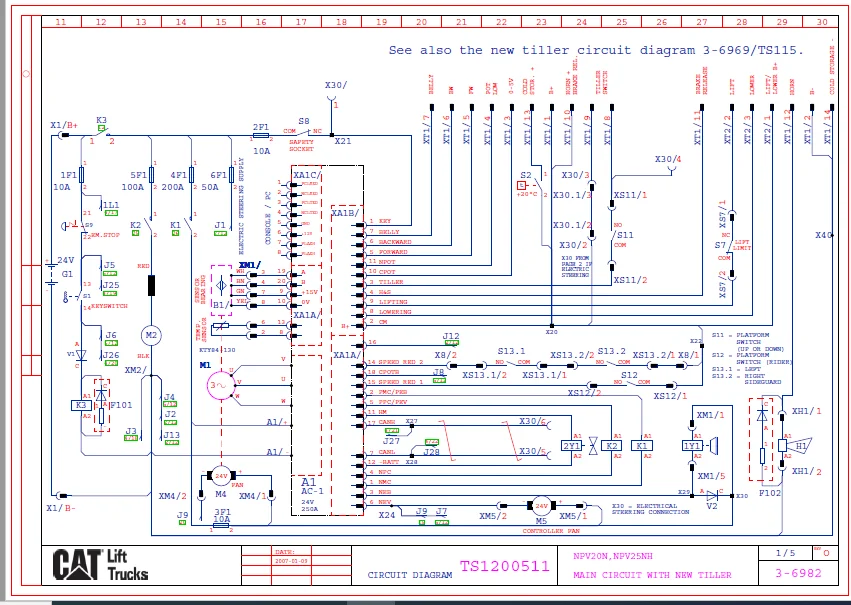

IMAGES PREVIEW OF THE MANUAL:
