DESCRIPTION:

Challenger EU Applicators 900 1100 1300 Gallons Row Crop System Workshop Service Manual – PDF DOWNLOAD

Important safety information :

Most accidents that involve product operation, maintenance and repair are caused by failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an accident occurs. A person must be alert to potential hazards. This person must also have the necessary training, skills and tools to do these functions correctly. Incorrect operation, lubrication, maintenance, or repair of this product can be dangerous and can result in injury or death.

• Do not operate or do any lubrication, maintenance or repair on this product, until you read and understand the operation, lubrication, maintenance, and repair information. Safety precautions and warnings are provided in this manual and on the product. If these hazard warnings are not heeded, bodily injury or death can occur to you or other persons. AGCO cannot anticipate every possible circumstance that might involve a potential hazard.
• The warnings in this publication and on the product are, thus, not all-inclusive. If a tool, procedure, work method or operating technique that is not specifically recommended by AGCO is used, you must satisfy yourself that it is safe for you and others. You must make sure the product will not be damaged or made unsafe by the operation, lubrication, maintenance, or repair procedures that you choose.
• The information, specifications, and illustrations in this publication are based on the information that was available at the time that the publication was written. The specifications, torques, pressures, measurements, adjustments, illustrations, and other items can change at any time. These changes can affect the service that is given to the product. Obtain the complete and most current information before you start any job. AGCO dealers have the most current information available.

FILE DETAILS:

Challenger EU Applicators 900 1100 1300 Gallons Row Crop System Workshop Service Manual – PDF DOWNLOAD

Size: 51.4 MB
Format: PDF
Language: English
Brand: Challenger
Type of Machine: Applicators
Type of document: Workshop Service Manual
Model: Challenger EU Application System 900 1100 and 1300 Gallons Row Crop System
Number of Pages: 410 pages
Date Modified: 10/2017
Part Number: 79037250

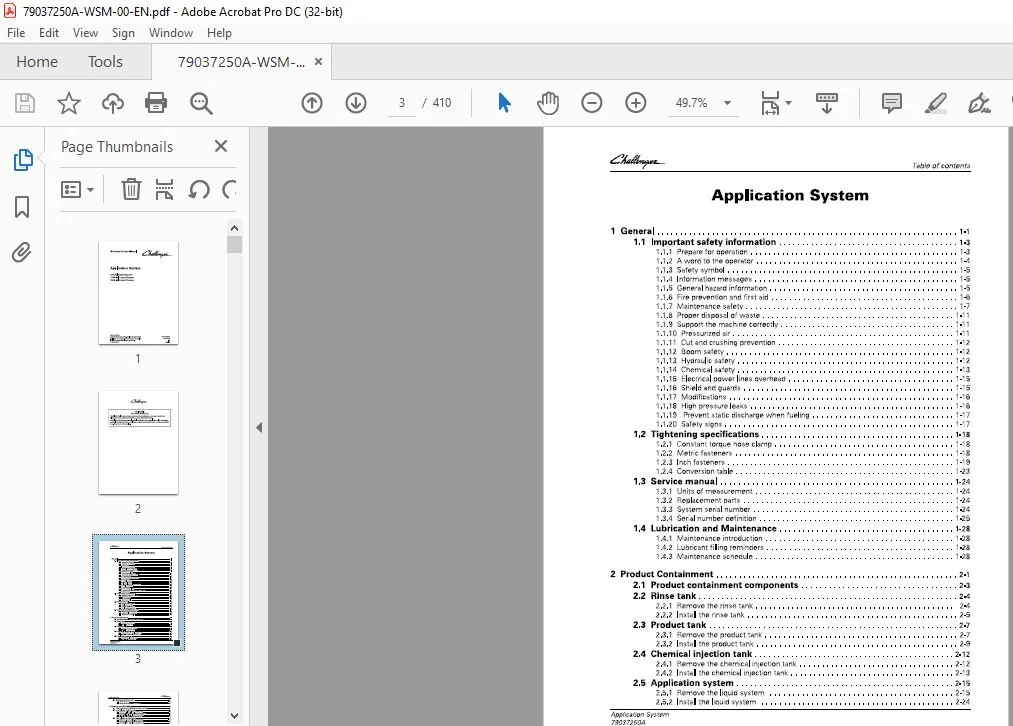

TABLE OF CONTENTS:

Challenger EU Applicators 900 1100 1300 Gallons Row Crop System Workshop Service Manual – PDF DOWNLOAD

1 General 1-1
1 1 Important safety information 1-3
1 1 1 Prepare for operation 1-3
1 1 2 A word to the operator 1-4
1 1 3 Safety symbol 1-5
1 1 4 Information messages 1-5
1 1 5 General hazard information 1-5
1 1 6 Fire prevention and first aid 1-6
1 1 7 Maintenance safety 1-7
1 1 8 Proper disposal of waste 1-1 1
1 1 9 Support the machine correctly 1-1 1
1 1 10 Pressurized air 1-1 1
1 1 1 1 Cut and crushing prevention 1-1 2
1 1 1 2 Boom safety 1-1 2
1 1 1 3 Hydraulic safety 1-1 2
1 1 1 4 Chemical safety 1-1 3
1 1 1 5 Electrical power lines overhead 1-1 5
1 1 16 Shield and guards 1-1 5
1 1 17 Modifications 1-16
1 1 18 High pressure leaks 1-16
1 1 19 Prevent static discharge when fueling 1-17
1 1 20 Safety signs 1-17
1 2 Tightening specifications 1-18
1 2 1 Constant torque hose clamp 1-18
1 2 2 Metric fasteners 1-18
1 2 3 Inch fasteners 1-19
1 2 4 Conversion table 1-2 3
1 3 Service manual 1-24
1 3 1 Units of measurement 1-2 4
1 3 2 Replacement parts 1-2 4
1 3 3 System serial number 1-2 4
1 3 4 Serial number definition 1-2 5
1 4 Lubrication and Maintenance 1-28
1 4 1 Maintenance introduction 1-28
1 4 2 Lubricant filling reminders 1-28
1 4 3 Maintenance schedule 1-28
2 Product Containment 2-1
2 1 Product containment components 2-3
2 2 Rinse tank 2-4
2 2 1 Remove the rinse tank 2-4
2 2 2 Install the rinse tank 2-5
2 3 Product tank 2-7
2 3 1 Remove the product tank 2-7
2 3 2 Install the product tank 2-9
2 4 Chemical injection tank 2-12
2 4 1 Remove the chemical injection tank 2-1 2
2 4 2 Install the chemical injection tank 2-1 3
2 5 Application system 2-15
2 5 1 Remove the liquid system 2-1 5
2 5 2 Install the liquid system 2-2 4
Application System
79037250A
Table of contents
2 6 Maintenance information 2-35
2 6 1 Rinse the tank 2-3 5
2 6 2 Rinse the chemical injection system 2-3 5
3 Primary Product Distribution 3-1
3 1 Primary product distribution components 3-3
3 2 Low volume product pump 3-5
3 2 1 Remove the low volume product pump 3- 5
3 2 2 Disassemble the low volume product pump 3-9
3 2 3 Assemble the low volume product pump 3-9
3 2 4 Install the low volume product pump 3- 10
3 3 High volume product pump 3-13
3 3 1 Remove the high volume product pump 3- 1 3
3 3 2 Disassemble the high volume product pump 3- 16
3 3 3 Assemble the high volume product pump 3- 17
3 3 4 Install the high volume product pump 3- 18
3 4 Valves 3-21
3 4 1 Remove the bypass valve 3-2 1
3 4 2 Install the bypass valve 3-22
3 4 3 Remove the 3- way valve 3-22
3 4 4 Install the 3- way valve 3-2 3
3 4 5 Remove the pump vent valve 3-2 3
3 4 6 Install the pump vent valve 3-2 4
3 4 7 Remove the sparge valve 3-2 4
3 4 8 Install the sparge valve 3-2 5
3 4 9 Remove the sump valve 3-26
3 4 10 Install the sump valve 3-27
3 4 1 1 Remove the reload suction valve 3-28
3 4 12 Install the reload suction valve 3-29
3 4 1 3 Remove the front reload valve – if equipped 3-29
3 4 1 4 Install the front reload valve – if equipped 3-30
3 5 Flowmeter 3-32
3 5 1 Low volume flowmeter 3-32
3 5 1 1 Remove the low- rate flowmeter 3-32
3 5 1 2 Disassemble the low volume flowmeter 3-3 3
3 5 1 3 Assemble the low volume flowmeter 3-3 4
3 5 1 4 Install the low- rate flowmeter 3-3 5
3 5 2 High volume flowmeter 3-36
3 5 2 1 Remove the flowmeter 3-36
3 5 2 2 Disassemble the high volume flowmeter 3-3 7
3 5 2 3 Assemble the high volume flowmeter 3-38
3 5 2 4 Install the flowmeter 3-39
3 6 Chemical eductor 3-41
3 6 1 Remove the chemical eductor 3-4 1
3 6 2 Install the chemical eductor 3-4 1
3 7 Chemical injection system 3-43
3 7 1 Remove the chemical injection motor 3-4 3
3 7 2 Install the chemical injection motor 3-4 3
3 7 3 Remove the chemical injection pump 3-4 4
3 7 4 Install the chemical injection pump 3-4 5
3 8 Maintenance information 3-47
3 8 1 Clean the high volume system line strainer 3-47
3 8 2 Clean the low volume system line strainers 3-48
3 8 3 Rinse the chemical injection system 3-49
4 Secondary Product Distribution 4-1
Application System
79037250A
Table of contents
4 1 Secondary product distribution components 4-3
4 2 Valves 4-4
4 2 1 Remove the main shut off valve 4-4
4 2 2 Install the main shut off valve 4-5
4 2 3 Remove the product recovery valve 1 – center feed 4-7
4 2 4 Install the product recovery valve 1 – center feed 4-8
4 2 5 Remove the product recovery valve 2 – manifold 4-9
4 2 6 Install the product recovery valve 2 – manifold 4-9
4 2 7 Remove the recirculation manual valve 4-10
4 2 8 Install the recirculation manual valve 4-12
4 3 Maintenance information 4-13
4 3 1 Check and clean a tip 4-1 3
4 3 2 Liquid system hoses 4-1 3
4 3 3 Hydraulic lines 4-1 3
5 Booms 5-1
5 1 90 / 100 foot booms 5-3
5 1 1 Remove the 90 / 100 foot boom tip 5-3
5 1 2 Remove the 90 / 100 foot inner boom 5-4
5 1 3 Install the 90 / 100 foot inner boom 5-6
5 1 4 Install the 90 / 100 foot boom tip 5-7
5 2 120 foot booms 5-1 o
5 2 1 Remove the 120 foot boom tip 5-10
5 2 2 Remove the 120 foot middle boom 5-12
5 2 3 Remove the 120 foot inner boom 5-1 4
5 2 4 Install the 120 foot middle boom 5-1 6
5 2 5 Install the 120 foot inner boom 5-1 9
5 2 6 Install the 120 foot middle boom 5-20
5 2 7 Install the 120 foot boom tip 5-2 3
5 3 Adjustment information 5-26
5 3 1 Adjust the 90 ft – 100 ft boom breakaway 5-2 6
5 3 2 Adjust the boom lead on 90 and 100 ft booms 5-27
5 3 3 Adjust the boom lead on 120 ft booms 5-28
5 3 4 Placement of the foldback rest and wear angle for 90 ft booms 5-2 9
5 3 5 Placement of the foldback rest and wear angle for 100 ft booms 5-30
5 3 6 Adjust the 120 ft boom breakaway 5-30
5 3 7 Adjust the 120 ft boom tip breakaway 5-3 1
5 3 8 Placement of the foldback rest bump stop and wear angle for 120 ft booms 5-3 3
5 3 9 Adjust the boom wear pad clearance 5-3 4
5 4 Maintenance information 5-36
5 4 1 Lubricate the large boom tree 5-36
5 4 2 Lubricate the small boom tree 5-36
5 4 3 Lubricate the 90 and 100 foot booms 5-37
5 4 4 Lubricate the 120 foot booms 5-38
6 Hydraulic System 6-1
6 1 Hydraulic pump 6-3
6 1 1 Removing the hydraulic pump 6-3
6 1 2 Replace the proportional solenoid 6-4
6 1 3 Replace the control valve 6-5
6 1 4 Replace the O-rings and seals 6-6
6 1 5 Install the hydraulic pump 6-10
6 2 Product pump motor 6-12
6 2 1 High volume hydraulic motor 6-12
Application System
79037250A
6 2 1 1 Remove the high volume hydraulic motor 6-12
6 2 1 2 Disassembling the high volume hydraulic motor 6-1 3
Table of contents
6 2 1 3 Assembling the high volume hydraulic motor 6-1 3
6 2 1 4 Install the high volume hydraulic motor 6-1 4
6 2 2 Low volume hydraulic motor 6-1 4
6 2 2 1 Disassemble the low volume hydraulic motor 6-1 4
6 2 2 2 Assemble the low volume hydraulic motor 6-1 5
6 3 Hydraulic cylinders 6-17
6 3 1 Remove the boom lift cylinder 6-17
6 3 2 Install the boom lift cylinder 6-18
6 3 3 Remove a boom tilt cylinder 6-20
6 3 4 Install a boom tilt cylinder 6-2 1
6 3 5 Remove a boom swing cylinder 6-2 3
6 3 6 Install a boom swing cylinder 6-2 4
6 3 7 Remove a boom fold cylinder 6-2 5
6 3 8 Install a boom fold cylinder 6-27
6 3 9 Remove the boom break away cylinder 6-2 9
6 3 10 Install the boom break away cylinder 6-30
6 3 1 1 Remove the head gland (wrap-in wire) 6-3 1
6 3 12 Remove the head gland (with external threads) 6-32
6 3 1 3 Remove the head gland (with internal threads) 6-3 4
6 3 1 4 Remove the head gland (retaining ring) 6-36
6 3 1 5 Remove the rod assembly 6-37
6 3 1 6 Remove a threaded piston 6-37
6 3 17 Remove a lock nut piston 6-39
6 3 18 Remove the head gland seal 6-40
6 3 1 9 Remove the piston seal 6-4 1
6 3 20 Install the piston seal 6-42
6 3 2 1 Install the head gland seal 6-4 3
6 3 22 Install the head gland (wrap-in wire) 6-4 4
6 3 2 3 Install the head gland (with external threads) 6-47
6 3 2 4 Install the head gland (with internal threads) 6-48
6 3 2 5 Install the head gland (retaining ring) 6-4 9
6 3 2 6 Install a threaded piston 6-50
6 3 27 Install a lock nut piston 6-52
6 3 28 Install the rod assembly 6-5 4
6 4 Calibration information 6-56
6 4 1 Calibrate the automatic fold 6-5 6
7 Electrical system 7-1
7 1 Lamps 7-3
7 1 1 Worklamps 7-3
7 1 2 Remove a worklamp 7-4
7 1 3 Install a worklamp 7-4
7 1 4 Amber flashing lamps 7-5
7 1 5 Remove the amber flashing lamps 7-5
7 1 6 Install the amber flashing lamps 7-7
7 1 7 Beacon 7-8
7 1 8 Remove the beacon 7-8
7 1 9 Install the beacon 7-9
7 2 Automatic boom fold 7-11
7 2 1 Remove the automatic boom fold sensor 7-1 1
7 2 2 Install the automatic boom fold sensor 7-1 3
7 2 3 Troubleshoot the automatic boom fold 7-1 5
8 Air System 8-1
8 1 Air system options 8-3
8 1 1 Remove the front reload air assembly – if equipped 8-3
8 1 2 Install the front reload air assembly – if equipped 8-4
Application System
79037250A
Table of contents
9 Diagrams 9-1
9 1 Liquid fault codes 9-9
9 1 1 Code 128 522000 3 1 9-9
9 1 2 Code 128 52200 1 3 1 9-9
9 1 3 Code 128 522002 3 1 9-9
9 1 4 Code 128 52200 3 3 9-9
9 1 5 Code 128 52200 3 4 9-9
9 1 6 Code 128 522 100 3 1 9-9
9 1 7 Code 128 522 10 1 3 1 9-9
9 1 8 Code 128 522 102 3 1 9-9
9 1 9 Code 128 522 10 3 3 1 9-9
9 1 10 Code 128 522 10 4 1 1 9-9
9 1 1 1 Code 128 522 10 4 3 9-1 0
9 1 12 Code 128 522 10 4 5 9-1 0
9 1 1 3 Code 128 522 10 4 6 9-1 o
9 1 1 4 Code 128 522 10 5 1 1 9-10
9 1 1 5 Code 128 522 10 5 3 9-10
9 1 1 6 Code 128 522 10 5 4 9-10
9 1 17 Code 128 522 10 5 5 9-10
9 1 18 Code 128 522 10 5 6 9-10
9 1 1 9 Code 128 522 10 6 1 1 9-10
9 1 20 Code 128 522 10 6 3 9-10
9 1 2 1 Code 128 522 10 6 4 9-1 1
9 1 22 Code 128 522 10 6 5 9-1 1
9 1 2 3 Code 128 522 10 6 6 9-1 1
9 1 2 4 Code 128 522 107 1 1 9-1 1
9 1 2 5 Code 128 522 107 3 9-1 1
9 1 2 6 Code 128 522 107 4 9-1 1
9 1 27 Code 128 522 107 5 9-1 1
9 1 28 Code 128 522 107 6 9-1 1
9 1 2 9 Code 128 522 108 1 1 9-1 1
9 1 30 Code 128 522 108 3 9-1 1
9 1 3 1 Code 128 522 108 4 9-12
9 1 32 Code 128 522 108 5 9-12
9 1 3 3 Code 128 22 108 6 9-12
9 1 3 4 Code 128 522 10 9 1 1 9-12
9 1 3 5 Code 128 522 10 9 3 9-12
9 1 3 6 Code 128 522 10 9 4 9-12
9 1 37 Code 128 522 10 9 5 9-12
9 1 38 Code 128 522 10 9 6 9-12
9 1 39 Code 128 522 1 10 1 1 9-12
9 1 40 Code 128 522 1 10 3 9-12
9 1 4 1 Code 128 522 1 10 4 9-1 3
9 1 42 Code 128 522 1 10 5 9-1 3
9 1 4 3 Code 128 522 1 10 6 9-1 3
9 1 4 4 Code 128 522 1 1 1 1 1 9-1 3
9 1 4 5 Code 128 522 1 1 1 3 9-1 3
9 1 4 6 Code 128 522 1 1 1 4 9-1 3
9 1 47 Code 128 522 1 1 1 5 9-1 3
9 1 48 Code 128 522 1 1 1 6 9-1 3
9 1 4 9 Code 128 522 1 12 1 1 9-1 3
9 1 50 Code 128 522 1 12 3 9-1 3
9 1 5 1 Code 128 522 1 12 4 9-1 4
9 1 52 Code 128 522 1 12 5 9-1 4
9 1 5 3 Code 128 522 1 12 6 9-1 4
9 1 5 4 Code 128 522 1 1 3 1 1 9-1 4
9 1 5 5 Code 128 522 1 1 3 3 9-1 4

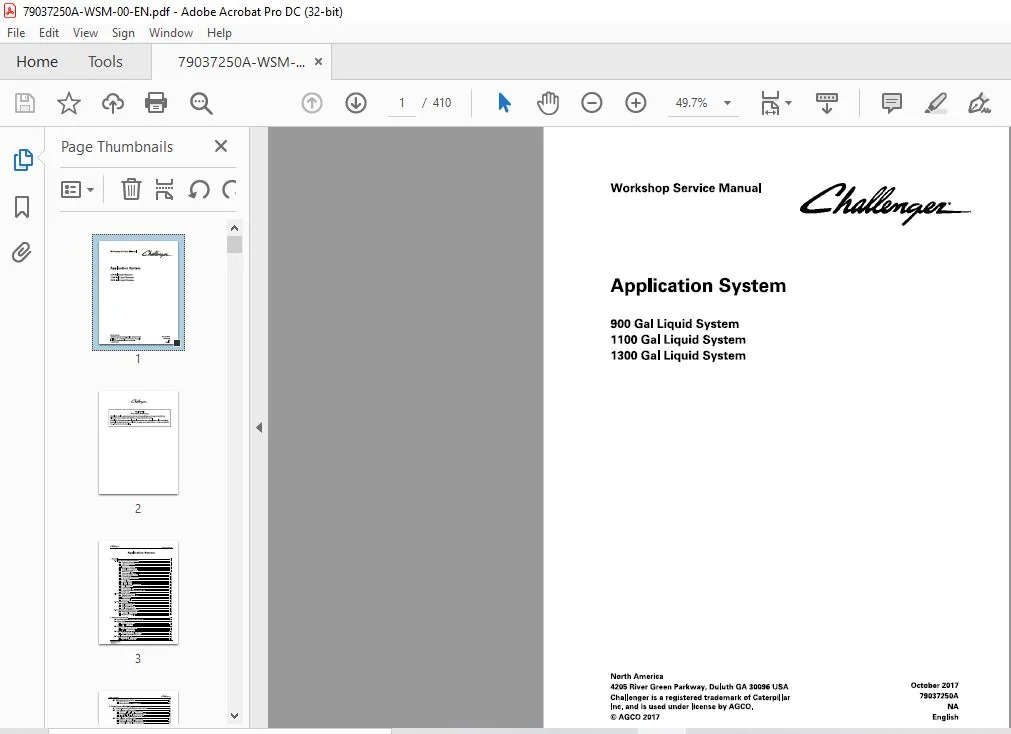

Application System
79037250A
Table of contents
9 1 5 6 Code 128 522 1 1 3 4 9-1 4
9 1 57 Code 128 522 1 1 3 5 9-1 4
9 1 58 Code 128 522 1 1 3 6 9-1 4
9 1 5 9 Code 128 522 1 1 4 1 1 9-1 4
9 1 60 Code 128 522 1 1 4 3 9-1 4
9 1 6 1 Code 128 522 1 1 4 4 9-1 5
9 1 62 Code 128 522 1 1 4 5 9-1 5
9 1 6 3 Code 128 522 1 1 4 6 9-1 5
9 1 6 4 Code 128 522 1 1 5 1 1 9-1 5
9 1 6 5 Code 128 522 1 1 5 3 9-1 5
9 1 6 6 Code 128 522 1 1 5 4 9-1 5
9 1 67 Code 128 522 1 1 5 5 9-1 5
9 1 68 Code 128 522 1 1 5 6 9-1 5
9 1 6 9 Code 128 522 1 1 6 1 1 9-1 5
9 1 70 Code 128 522 1 1 6 3 9-1 5
9 1 7 1 Code 128 522 1 1 6 4 9-1 6
9 1 72 Code 128 522 1 1 6 5 9-1 6
9 1 7 3 Code 128 522 1 1 6 6 9-1 6
9 1 74 Code 128 522 1 17 1 1 9-1 6
9 1 7 5 Code 128 522 1 17 3 9-1 6
9 1 76 Code 128 522 1 17 4 9-1 6
9 1 77 Code 128 522 1 17 5 9-1 6
9 1 78 Code 128 522 1 17 6 9-1 6
9 1 79 Code 128 522 1 18 1 1 9-1 6
9 1 80 Code 128 522 1 18 3 9-1 6
9 1 8 1 Code 128 522 1 18 4 9-1 6
9 1 82 Code 128 522 1 18 5 9-17
9 1 8 3 Code 128 522 1 18 6 9-17
9 1 84 Code 128 522 1 1 9 1 1 9-17
9 1 8 5 Code 128 522 1 1 9 3 9-17
9 1 86 Code 128 522 1 1 9 4 9-17
9 1 87 Code 128 522 1 1 9 5 9-17
9 1 88 Code 128 522 1 1 9 6 9-17
9 1 89 Code 128 522 120 1 1 9-17
9 1 90 Code 128 522 120 3 9-17
9 1 9 1 Code 128 522 120 4 9-17
9 1 92 Code 128 522 120 5 9-17
9 1 9 3 Code 128 522 120 6 9-18
9 1 9 4 Code 128 522 12 1 1 1 9-18
9 1 9 5 Code 128 522 12 1 3 9-18
9 1 9 6 Code 128 522 12 1 4 9-18
9 1 97 Code 128 522 12 1 5 9-18
9 1 98 Code 128 522 12 1 6 9-18
9 1 9 9 Code 128 522 122 1 1 9-18
9 1 100 Code 128 522 122 3 9-18
9 1 10 1 Code 128 522 122 4 9-18
9 1 102 Code 128 522 122 5 9-18
9 1 10 3 Code 128 522 122 6 9-1 9
9 1 10 4 Code 128 522 12 3 1 1 9-1 9
9 1 10 5 Code 182 522 12 3 4 9-1 9
9 1 10 6 Code 182 522 12 3 5 9-1 9
9 1 107 Code 182 522 12 3 6 9-1 9
9 1 108 Code 128 522 12 4 1 1 9-1 9
9 1 10 9 Code 128 522 12 4 3 9-1 9
9 1 1 1 o Code 128 522 12 4 4 9-1 9
9 1 1 1 1 Code 128 522 12 4 5 9-1 9
9 1 1 12 Code 128 522 12 4 6 9-1 9
9 1 1 1 3 Code 128 522 12 5 1 1 9-20
Application System
79037250A
Table of contents
9 1 1 1 4 Code 128 522 12 5 3 9-20
9 1 1 1 5 Code 128 522 12 5 4 9-20
9 1 1 16 Code 128 522 12 5 5 9-20
9 1 1 17 Code 128 522 12 5 6 9-20
9 1 1 18 Code 128 522 126 1 1 9-20
9 1 1 19 Code 128 522 126 3 9-20
9 1 120 Code 128 522 126 4 9-20
9 1 12 1 Code 128 522 126 5 9-20
9 1 122 Code 128 522 126 6 9-20
9 1 12 3 Code 128 522 127 1 1 9-2 1
9 1 12 4 Code 128 522 127 3 9-2 1
9 1 12 5 Code 128 522 127 4 9-2 1
9 1 126 Code 128 522 127 5 9-2 1
9 1 127 Code 128 522 127 6 9-2 1
9 1 128 Code 128 522 128 1 1 9-2 1
9 1 129 Code 128 522 128 3 9-2 1
9 1 1 30 Code 128 522 128 4 9-2 1
9 1 1 3 1 Code 128 522 128 5 9-2 1
9 1 1 32 Code 128 522 128 6 9-2 1
9 1 1 3 3 Code 128 522200 3 1 9-22
9 1 1 3 4 Code 128 522 300 3 1 9-22
9 1 1 3 5 Code 128 522 30 1 3 1 9-22
9 1 1 36 Code 128 522 400 3 1 9-22
9 1 1 3 7 Code 128 522 40 1 3 1 9-22
9 1 1 38 Code 128 522 402 3 1 9-22
9 1 1 39 Code 128 522 403 3 1 9-22
9 1 1 40 Code 128 522 404 4 9-22
9 1 1 4 1 Code 128 522 50 4 9-22
9 1 1 42 Code 128 522 500 3 1 9-22
9 1 1 4 3 Code 128 522 50 1 1 1 9-2 3
9 1 1 4 4 Code 128 522 50 1 3 9-2 3
9 1 1 4 5 Code 128 522 50 1 4 9-2 3
9 1 1 46 Code 128 522 50 1 5 9-2 3
9 1 1 47 Code 128 522 50 1 6 9-2 3
9 1 1 48 Code 128 522 502 1 1 9-2 3
9 1 1 49 Code 128 522 502 3 9-2 3
9 1 1 50 Code 128 522 502 4 9-2 3
9 1 1 5 1 Code 128 522 502 5 9-2 3
9 1 1 52 Code 128 522 502 6 9-2 3
9 1 1 5 3 Code 128 522 503 6 9-2 4
9 1 1 5 4 Code 128 522 503 1 1 9-2 4
9 1 1 5 5 Code 128 522 503 3 9-2 4
9 1 1 56 Code 128 522 503 4 9-2 4
9 1 1 57 Code 128 522 503 5 9-2 4
9 1 1 58 Code 128 522 504 1 1 9-2 4
9 1 1 59 Code 128 522 504 3 9-2 4
9 1 160 Code 128 522 504 4 9-2 4
9 1 16 1 Code 128 522 504 5 9-2 4
9 1 162 Code 128 522 504 6 9-2 4
9 1 16 3 Code 128 522 505 1 1 9-2 5
9 1 16 4 Code 128 522 505 3 9-2 5
9 1 16 5 Code 128 522 505 5 9-2 5
9 1 166 Code 128 522 505 6 9-2 5
9 1 167 Code 128 522 506 1 1 9-2 5
9 1 168 Code 128 522 506 3 9-2 5
9 1 169 Code 128 522 506 4 9-2 5
9 1 170 Code 128 522 506 5 9-2 5
9 1 17 1 Code 128 522 506 6 9-2 5
Application System
79037250A
Table of contents
9 1 172 Code 128 522 509 1 1 9-2 5
9 1 17 3 Code 128 522 509 3 9-26
9 1 17 4 Code 128 522 509 4 9-26
9 1 17 5 Code 128 522 509 5 9-26
9 1 176 Code 128 522 509 6 9-26
9 1 177 Code 128 522 5 10 1 1 9-26
9 1 178 Code 128 522 5 10 3 9-26
9 1 179 Code 128 522 5 10 4 9-26
9 1 180 Code 128 522 5 10 5 9-26
9 1 18 1 Code 128 522 5 10 6 9-26
9 1 182 Code 128 522 5 1 1 1 1 9-26
9 1 18 3 Code 128 522 5 1 1 3 9-27
9 1 18 4 Code 128 522 5 1 1 4 9-27
9 1 18 5 Code 128 522 5 1 1 5 9-27
9 1 186 Code 128 522 5 1 1 6 9-27
9 1 187 Code 128 522 5 12 1 1 9-27
9 1 188 Code 128 522 5 12 3 9-27
9 1 189 Code 128 522 5 12 4 9-27
9 1 190 Code 128 522 5 12 5 9-27
9 1 19 1 Code 128 522 5 12 6 9-27
9 1 192 Code 128 522 5 1 3 1 1 9-27
9 1 193 Code 128 522 5 1 3 3 9-28
9 1 194 Code 128 522 5 1 3 4 9-28
9 1 195 Code 128 522 5 1 3 5 9-28
9 1 196 Code 128 522 5 1 3 6 9-28
9 1 197 Code 128 522 5 1 4 1 1 9-28
9 1 198 Code 128 522 5 1 4 3 9-28
9 1 199 Code 128 522 5 1 4 4 9-28
9 1 200 Code 128 522 5 1 4 5 9-28
9 1 20 1 Code 128 522 5 1 4 6 9-28
9 1 202 Code 128 522 5 1 5 1 1 9-28
9 1 203 Code 128 522 5 1 5 3 9-29
9 1 204 Code 128 522 5 1 5 4 9-29
9 1 205 Code 128 522 5 1 5 5 9-29
9 1 206 Code 128 522 5 1 5 6 9-29
9 1 207 Code 128 522 5 16 1 1 9-29
9 1 208 Code 128 522 5 16 3 9-29
9 1 209 Code 128 522 5 16 4 9-29
9 1 2 1 0 Code 128 522 5 16 5 9-29
9 1 2 1 1 Code 128 522 5 16 6 9-29
9 1 2 12 Code 128 522 5 17 1 1 9-29
9 1 2 1 3 Code 128 522 5 17 3 9-30
9 1 2 1 4 Code 128 522 5 17 4 9-30
9 1 2 1 5 Code 128 522 5 17 5 9-30
9 1 2 16 Code 128 522 5 17 6 9-30
9 1 2 17 Code 128 522 5 18 1 1 9-30
9 1 2 18 Code 128 522 5 18 3 9-30
9 1 2 19 Code 128 522 5 18 4 9-30
9 1 220 Code 128 522 5 18 5 9-30
9 1 22 1 Code 128 522 5 18 6 9-30
9 1 222 Code 128 522 5 19 1 1 9-30
9 1 22 3 Code 128 522 5 19 3 9-3 1
9 1 22 4 Code 128 522 5 19 4 9-3 1
9 1 22 5 Code 128 522 5 19 5 9-3 1
9 1 226 Code 128 522 5 19 6 9-3 1
9 1 227 Code 128 522600 3 9-3 1
9 1 228 Code 128 522600 3 1 9-3 1
9 1 229 Code 128 522600 4 9-3 1
9 1 230 Code 128 522600 5 9-31
9 1 231 Code 128 522600 6 9-31
9 1 232 Code 128 522601 3 9-31
9 1 233 Code 128 522601 31 9-32
9 1 234 Code 128 522601 4 9-32
9 1 235 Code 128 522601 5 9-32
9 1 236 Code 128 522601 6 9-32
9 1 237 Code 128 522602 3 9-32
9 1 238 Code 128 522602 31 9-32
9 1 239 Code 128 522602 4 9-32
9 1 240 Code 128 522602 5 9-32
9 1 241 Code 128 522602 6 9-32
9 1 242 Code 128 522603 3 9-32
9 1 243 Code 128 522603 31 9-33
9 1 244 Code 128 522603 4 9-33
9 1 245 Code 128 522603 5 9-33
9 1 246 Code 128 522603 6 9-33
9 1 247 Code 128 522604 3 9-33
9 1 248 Code 128 522604 31 9-33
9 1 249 Code 128 522604 4 9-33
9 1 250 Code 128 522604 5 9-33
9 1 251 Code 128 522604 6 9-33
9 1 252 Code 128 522605 31 9-33
9 1 253 Code 128 522606 31 9-34
9 1 254 Code 128 522607 31 9-34
9 1 255 Code 128 522608 31 9-34
9 1 256 Code 128 523000 31 9-34
9 1 257 Code 128 523001 31 9-34
9 1 258 Code 128 523002 31 9-34
9 1 259 Code 128 523100 31 9-34
9 1 260 Code 128 523101 31 9-34
9 1 261 Code 128 523102 31 9-34
9 1 262 Code 128 523103 31 9-34
9 1 263 Code 128 523104 11 9-35
9 1 264 Code 128 523104 3 9-35
9 1 265 Code 128 523104 4 9-35
9 1 266 Code 128 523104 5 9-35
9 1 267 Code 128 523104 6 9-35
9 1 268 Code 128 523105 11 9-35
9 1 269 Code 128 523105 3 9-35
9 1 270 Code 128 523105 4 9-35
9 1 271 Code 128 523105 5 9-35
9 1 272 Code 128 523105 6 9-35
9 1 273 Code 128 523200 31 9-36
9 2 Liquid system schematics 9-37
9 2 1 Liquid system EXT J1 Master schematic 9-37
9 2 2 Liquid system EXT J2 Master schematic 9-38
9 2 3 Liquid system Marlin module master schematic 9-39
9 2 4 Liquid system Raven node master schematic 9-40
9 2 5 Liquid system Autoboom node master schematic 9-41
9 2 6 Liquid system Norac node master schematic 9-42
9 2 7 Liquid system RTMR fuse relay schematic 9-43
9 2 8 Liquid system power battery cable schematic 9-44
9 2 9 Liquid system power switched schematic 9-45
9 2 10 Liquid system power unswitched schematic 9-46
9 2 11 Liquid system ground battery cables schematic 9-47
9 2 12 Liquid system Ebox ground stud schematic 9-48
9 2 13 Liquid system rear ground stud schematic 9-49
Liquid system ground schematic 9-50
Liquid system 8 5v sensor schematic 9-51
Liquid system 5v sensor schematic 9-52
Liquid system ground sensor schematic 9-53
Liquid system EXT schematic 9-54
Liquid system Raven product node schematic 9-57
Liquid system radar signal schematic 9-58
Liquid system EXT Raven diagnostic schematic 9-59
Liquid system Marlin power ground schematic 9-60
Liquid system Autoboom node power ground schematic 9-61
Liquid system NORAC power ground schematic 9-62
Liquid system reload keypad power ground schematic 9-63
Liquid system relay module ground schematic 9-64
Liquid system CAN 4 number 1 schematic 9-65
Liquid system CAN injection schematic 9-68
Liquid system CAN Raven schematic 9-69
Liquid system CAN NORAC schematic 9-70
Liquid system CAN 3PI schematic 9-73
Liquid system CAN RND schematic 9-74
Liquid system foam marker schematic 9-75
Liquid system hydraulic pump schematic 9-76
Liquid system load sense coil schematic 9-77
Liquid system flowmeter schematic 9-78
Liquid system nozzle pressure schematic 9-79
Liquid system pump pressure schematic 9-80
Liquid system pump speed schematic 9-81
Liquid system tank level schematic 9-82
Liquid system front recovery valve schematic 9-83
Liquid system front reload valve schematic 9-84
Liquid system main boom valve schematic 9-85
Liquid system product recovery schematic 9-86
Liquid system regenerate valve schematic 9-89
Liquid system sump schematic 9-9 0
Liquid system sump recovery schematic 9-9 1
Liquid system sparge schematic 9-9 2
Liquid system boom cleanout schematic 9-9 3
Liquid system bypass valve schematic 9-9 4
Liquid system eductor valve schematic 9-9 5
Liquid system rinse valve schematic 9-9 6
Liquid system side reload valve schematic 9-9 7
Liquid system front hose valve schematic 9-9 8
Liquid system injection logic schematic 9-9 9
Liquid system injection pump number 1 schematic 9-100
Liquid system injection pump number 2 schematic 9-102
Liquid system boom motion valve number 1 schematic 9-104
Liquid system boom motion valve number 2 schematic 9-105
Liquid system boom motion valve number 3 schematic 9-106
Liquid system boom motion valve number 4 schematic 9-107
Liquid system boom nozzles number 1 schematic 9-108
Liquid system boom nozzles number 2 schematic 9-109
Liquid system boom nozzles number 3 schematic 9-110
Liquid system boom nozzles number 4 schematic 9-111
Liquid system boom nozzles number 5 schematic 9-112
Liquid system end row schematic 9-113
Liquid system Autoboom power ground schematic 9-114
Liquid system Autoboom righVleft sensor schematic 9-115
Liquid system Autoboom hydraulic valve schematic 9-116
Liquid system Autoboom accumulator schematic 9-117
Application System
79037250A
Table of contents
9 2 72 Liquid system Autoboom XT module schematic 9-118
9 2 73 Liquid system Norac center sensor schematic 9-119
9 2 74 Liquid system Norac boom sensors schematic 9-12 0
9 2 75 Liquid system Norac valve schematic 9-12 1
9 2 76 Liquid system boom swing sensor schematic 9-12 2
9 2 77 Liquid system boom tilt sensor schematic 9-12 3
9 2 78 Liquid system boom tip fold sensor schematic 9-12 4
9 2 79 Liquid system boom hoist sensor schematic 9-12 5
9 2 80 Liquid system auxiliary worklight schematic 9-12 6
9 2 81 Liquid system reload worklight schematic 9-12 7
9 2 82 Liquid system worklight number 3 schematic 9-12 8
9 2 83 Liquid system worklight number 4 schematic 9-12 9
9 2 84 Liquid system AWFL schematic 9-130
9 2 85 Liquid system stop/taillight schematic 9-131
9 2 86 Liquid system reverse light schematic 9-132
9 2 87 Liquid system beacon/license plate light schematic 9-133
9 2 88 Liquid system master supply spare schematic 9-134
9 3 Hydraulics 9-135
9 3 1 Hydraulic schematic 9-137
10 Index lndex-1
Application System
790372

CHALLENGER EU APPLICATORS 900 1100 1300 GALLONS ROW CROP SYSTEM WORKSHOP SERVICE MANUAL – PDF DOWNLOAD:

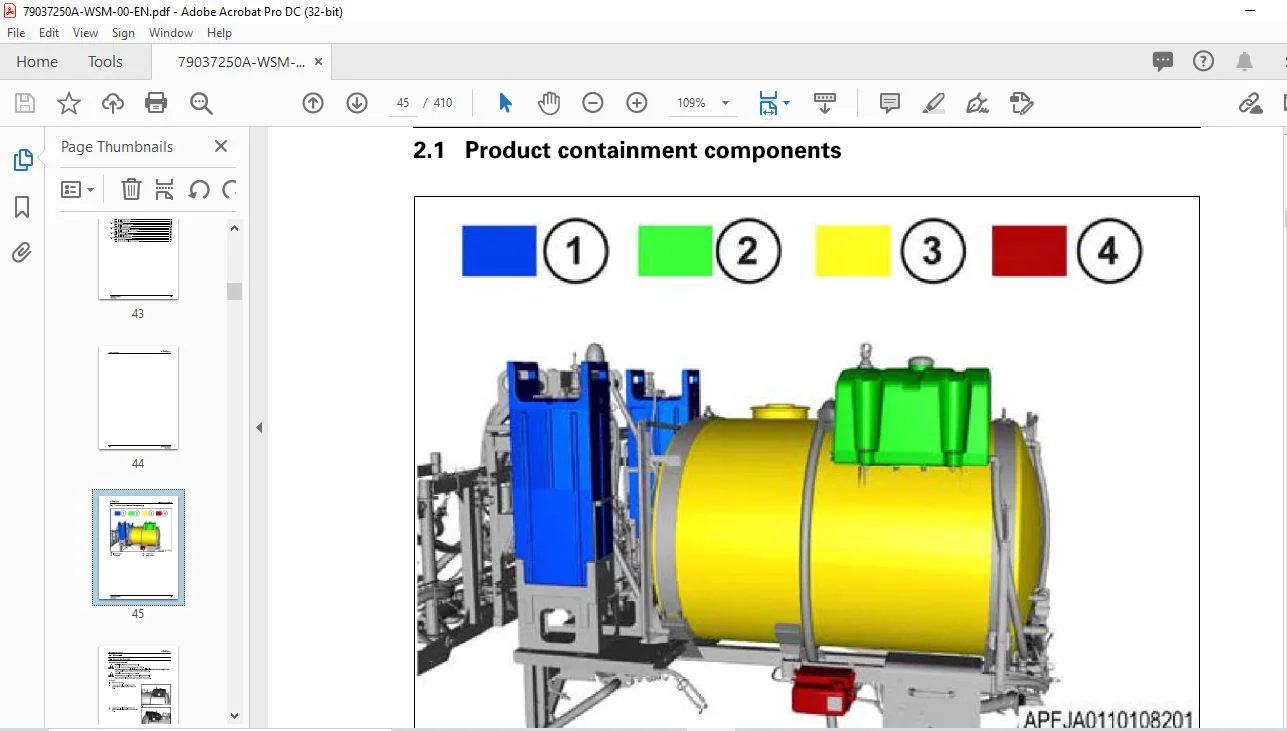

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.V
