Challenger EU Applicators L4000G4 New Leader Flotation System Repair Time Schedule 602084D1A

Description

Challenger EU Applicators L4000G4 New Leader Flotation System Repair Time Schedule 602084D1A – PDF DOWNLOAD

DESCRIPTION:

Challenger EU Applicators L4000G4 New Leader Flotation System Repair Time Schedule 602084D1A – PDF DOWNLOAD

Introduction
This Repair Time Schedule gives the average time necessary for each repair procedure.
To calculate the average time for each repair, AGCO includes these conditions:
• one approved technician does the repair
• in typical work conditions
• with the correct tools
• on a used or correctly serviced machine
AGCO also includes the time to:
• find the cause of the fault
• get the correct tools and parts
• do a test before and after the repair
AGCO does not include time necessary to:
• go to and from the machine
• clean the machine
• remove and install any attached equipment

The repair times are shown in hours and parts of hours. Parts of hours are in decimals. Use decimal times on warranty claims.

Repair times are based on the latest information available at the time of publication. AGCO reserves the right to publish revisions to these repair times as necessary. Revised repair times are the result of changes in the design, method or technique.

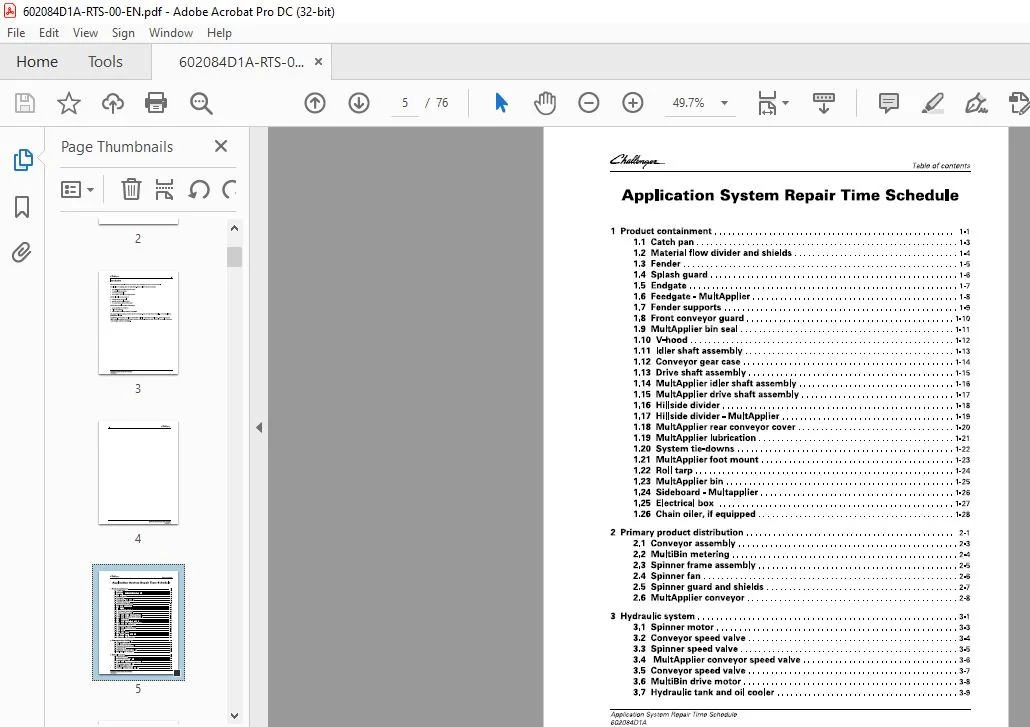

TABLE OF CONTENTS:

Challenger EU Applicators L4000G4 New Leader Flotation System Repair Time Schedule 602084D1A – PDF DOWNLOAD

1 Product containment 1-1
1 1 Catch pan 1-3
1 2 Material flow divider and shields 1-4
1 3 Fender 1-5
1 4 Splash guard 1-6
1 5 Endgate 1-7
1 6 Feedgate – MultApplier 1-8
1 7 Fender supports 1-9
1 8 Front conveyor guard 1-1 o
1 9 MultApplier bin seal 1-11
1 10 V-hood 1-12
1 11 Idler shaft assembly 1-13
1 12 Conveyor gear case 1-14
1 13 Drive shaft assembly 1-15
1 14 MultApplier idler shaft assembly 1-16
1 15 MultApplier drive shaft assembly 1-17
1 16 Hillside divider 1-18
1 17 Hillside divider – MultApplier 1-19
1 18 MultApplier rear conveyor cover 1-20
1 19 MultApplier lubrication 1-21
1 20 System tie-downs 1-22
1 21 MultApplier foot mount 1-23
1 22 Roll tarp 1-24
1 23 MultApplier bin 1-25
1 24 Sideboard – Multapplier 1-26
1 25 Electrical box 1-27
1 26 Chain oiler, if equipped 1-28
2 Primary product distribution 2-1
2 1 Conveyor assembly 2-3
2 2 MultiBin metering 2-4
2 3 Spinner frame assembly 2-5
2 4 Spinner fan 2-6
2 5 Spinner guard and shields 2-7
2 6 MultApplier conveyor 2-8
3 Hydraulic system 3-1
3 1 Spinner motor 3-3
3 2 Conveyor speed valve 3-4
3 3 Spinner speed valve 3-5
3 4 MultApplier conveyor speed valve 3-6
3 5 Conveyor speed valve 3-7
3 6 MultiBin drive motor 3-8
3 7 Hydraulic tank and oil cooler 3-9
Application System Repair Time Schedule
602084O1A
Table of contents
3 8 Hydraulic pumps 3-10
3 9 Pressure gauge 3-11
3 10 Hydraulic tank heater 3-12
3 11 Conveyor motor 3-13
3 12 MultApplier conveyor motor 3-14
3 13 Hydraulic hoses 3-15
3 14 Flow divider valve 3-16
4 Electrical system 4-1
4 1 System harnesses 4-3
4 2 Product node 4-4
4 3 Roll tarp electrical components 4-5
4 4 Application rate sensor 4-6
4 5 Tail lamp 4-7
4 6 Spinner speed sensor 4-8
5 Decals 5-1
5 1 Decals 5-3
6 Index lndex-1

FILE DETAILS:

Challenger EU Applicators L4000G4 New Leader Flotation System Repair Time Schedule 602084D1A – PDF DOWNLOAD

Size: 2.71 MB
Format: PDF
Language: English
Brand: Challenger
Type of Machine: Applicators
Type of document: Repair Time Schedule
Model: Challenger EU Application System – L4000G4 New Leader Flotation System
Number of Pages: 76 pages
Date Modified: 02/2016
Part Number: 602084D1A

CHALLENGER EU APPLICATORS L4000G4 NEW LEADER FLOTATION SYSTEM REPAIR TIME SCHEDULE 602084D1A:

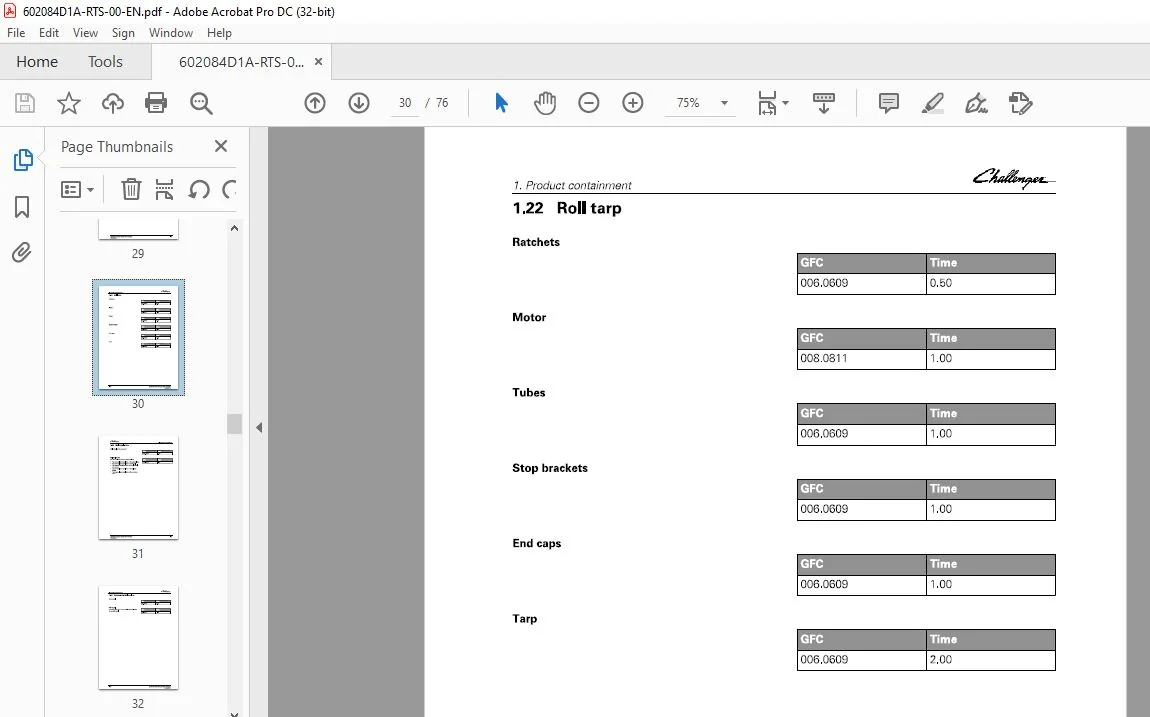

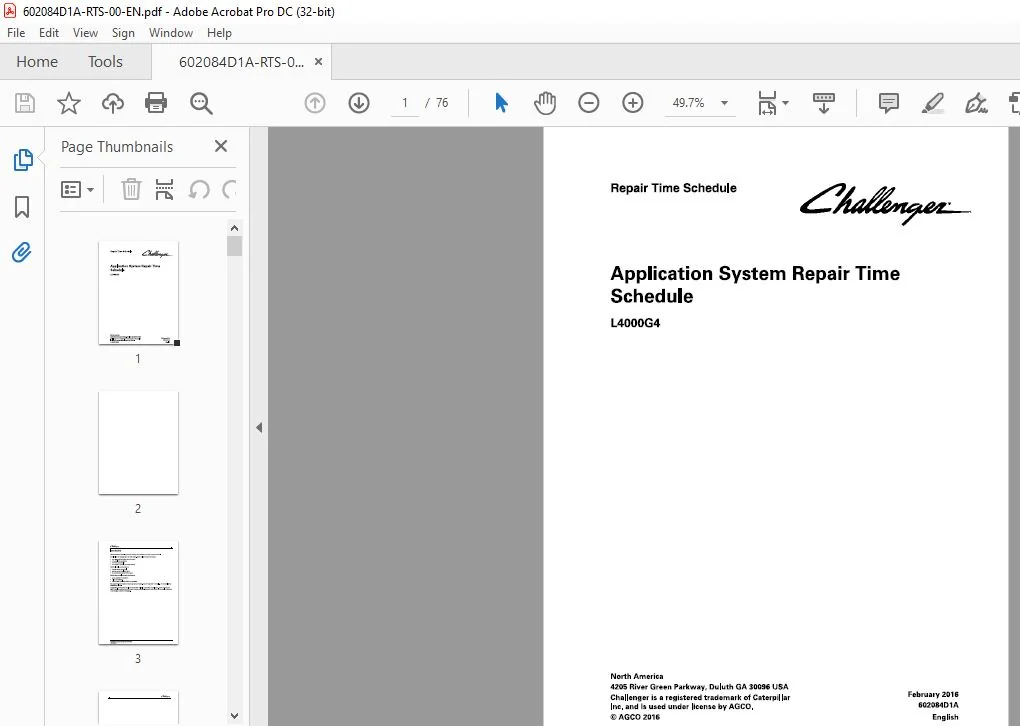

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
