Challenger MT835C MT845C MT855C MT865C MT875C Track Tractor Repair Time Schedule Manual AG333729B

Description

Challenger MT835C MT845C MT855C MT865C MT875C Track Tractor Repair Time Schedule Manual AG333729B – PDF DOWNLOAD

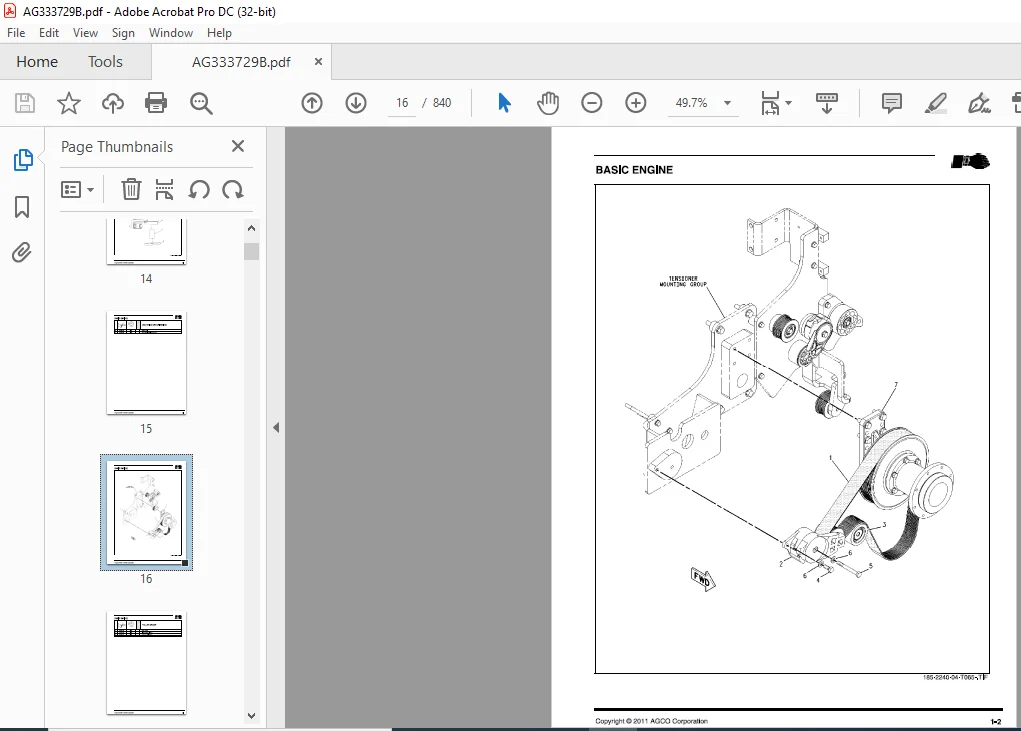

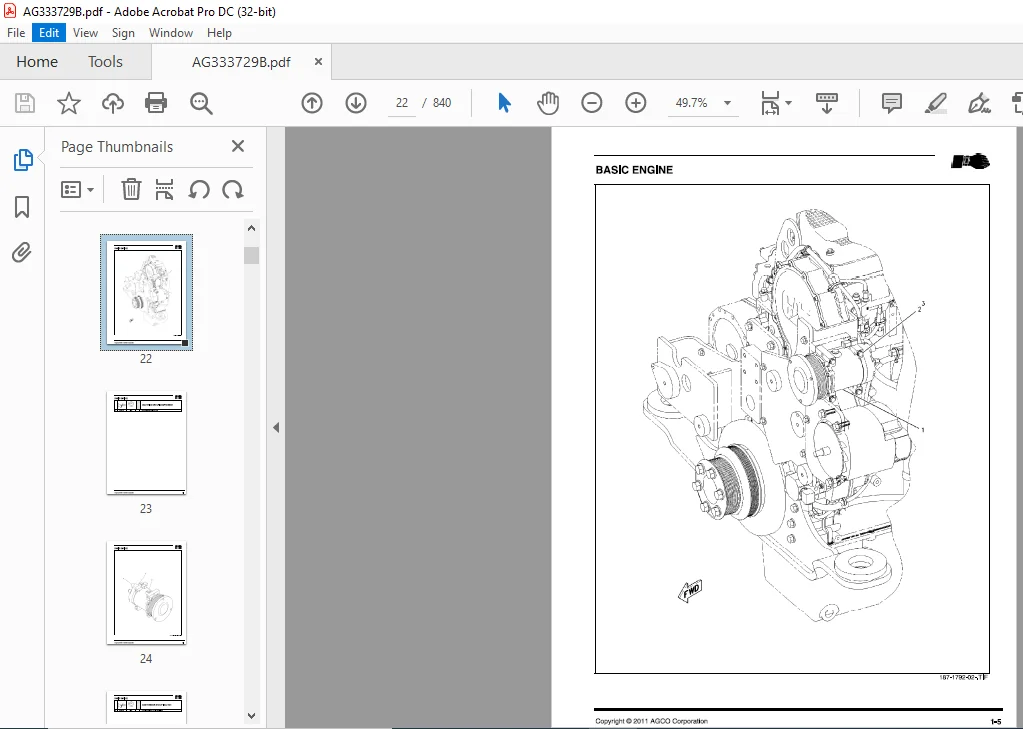

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Challenger MT835C MT845C MT855C MT865C MT875C Track Tractor Repair Time Schedule Manual AG333729B – PDF DOWNLOAD

A.TIME ALLOWANCE :

The times listed in this publication are the result of careful study of the operation concerned; they represent the average time ONE trained Dealer mechanic, of normal ability has taken to carry out the operation in a typical Dealership, using standard workshop tooling and equipment, located for reasonable access and working conditions. They DO NOT include any travelling to or from the farm or site.

• The machine is assumed to be clean and to be bare of any extra equipment or attachment of non AGCO manufacture, and delivered to an authorized and duły equipped workshop where trained personnel and spare parts required to perform the operations are immediately available.
• The times given include difficulties encountered working on used as opposed to new machines, and are based on methods and recommended Special Tools shown in the workshop manuał. The times are based on a second hand machine in reasonable condition properly maintained using approved parts.
• Extra time may be required to deal with seized, rusted or damaged parts, which must be claimed for separately when carrying out warranty work. Allowances are included in the operation times quoted for setting up the machine in the workshop, obtaining all tools and parts, cleaning and testing after repair.
• Time required to remove and install mounted implements, such as loaders, hedge cutters, etc., which interfere with performing a specific job is NOT INCLUDED in the time allowed. The times given in this Repair Time Schedule are for a complete job from start to finish, including allowances for intermediated operations.

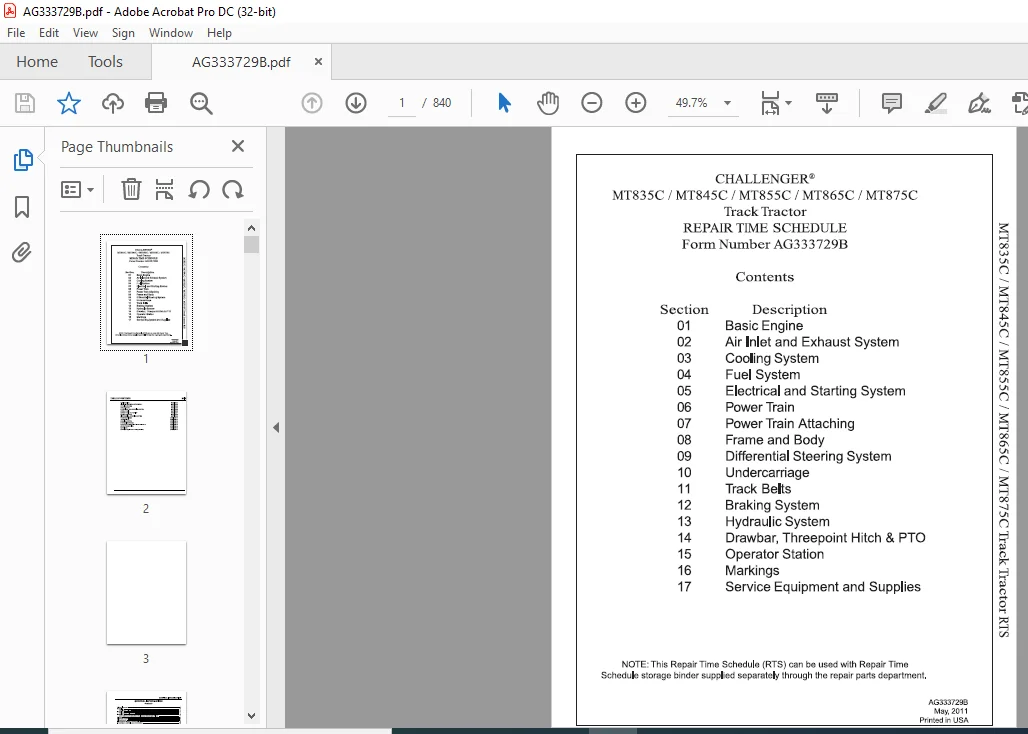

TABLE OF CONTENTS:

Challenger MT835C MT845C MT855C MT865C MT875C Track Tractor Repair Time Schedule Manual AG333729B – PDF DOWNLOAD

01 Basic Engine
02 Air Inlet and Exhaust System
03 Cooling System
04 Fuel System
05 Electrical and Starting System
06 Power Train
07 Power Train Attaching
08 Frame and Body
09 Differential Steering System
10 Undercarriage
11 Track Belts
12 Braking System
13 Hydraulic System
14 Drawbar, Threepoint Hitch & PTO
15 Operator Station
16 Markings
17 Service Equipment and Supplies

CHALLENGER MT835C MT845C MT855C MT865C MT875C TRACK TRACTOR REPAIR TIME SCHEDULE MANUAL AG333729B:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
