Challenger RG700B Applicator Chassis Workshop Service Manual – PDF DOWNLOAD

Description

Challenger RG700B Applicator Chassis Workshop Service Manual – PDF DOWNLOAD

CHALLENGER RG700B APPLICATOR CHASSIS WORKSHOP SERVICE MANUAL – PDF DOWNLOAD:

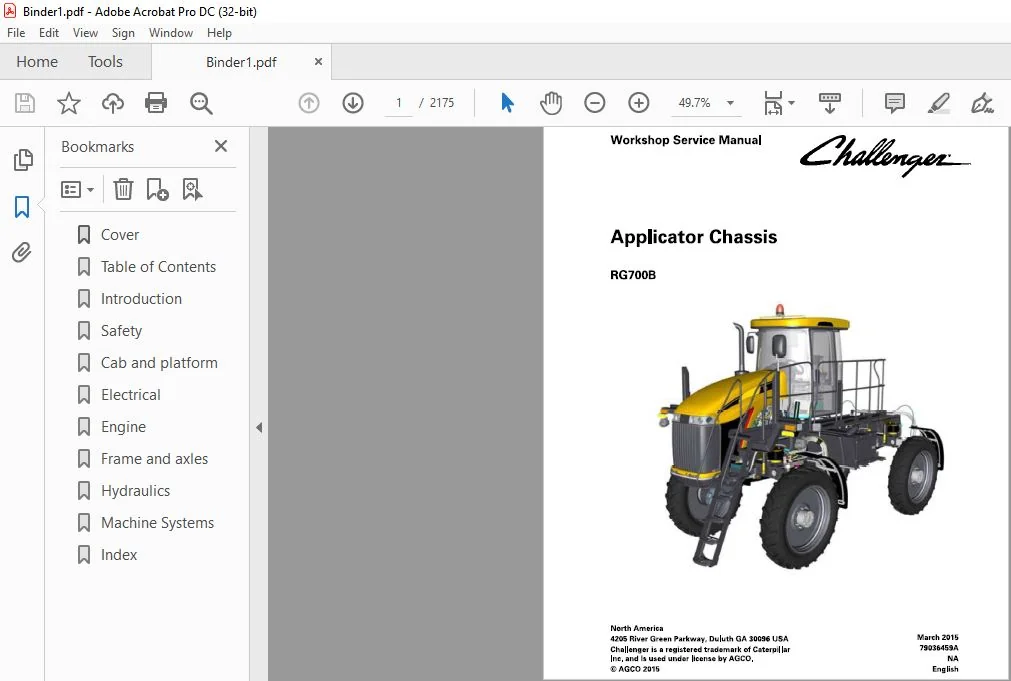

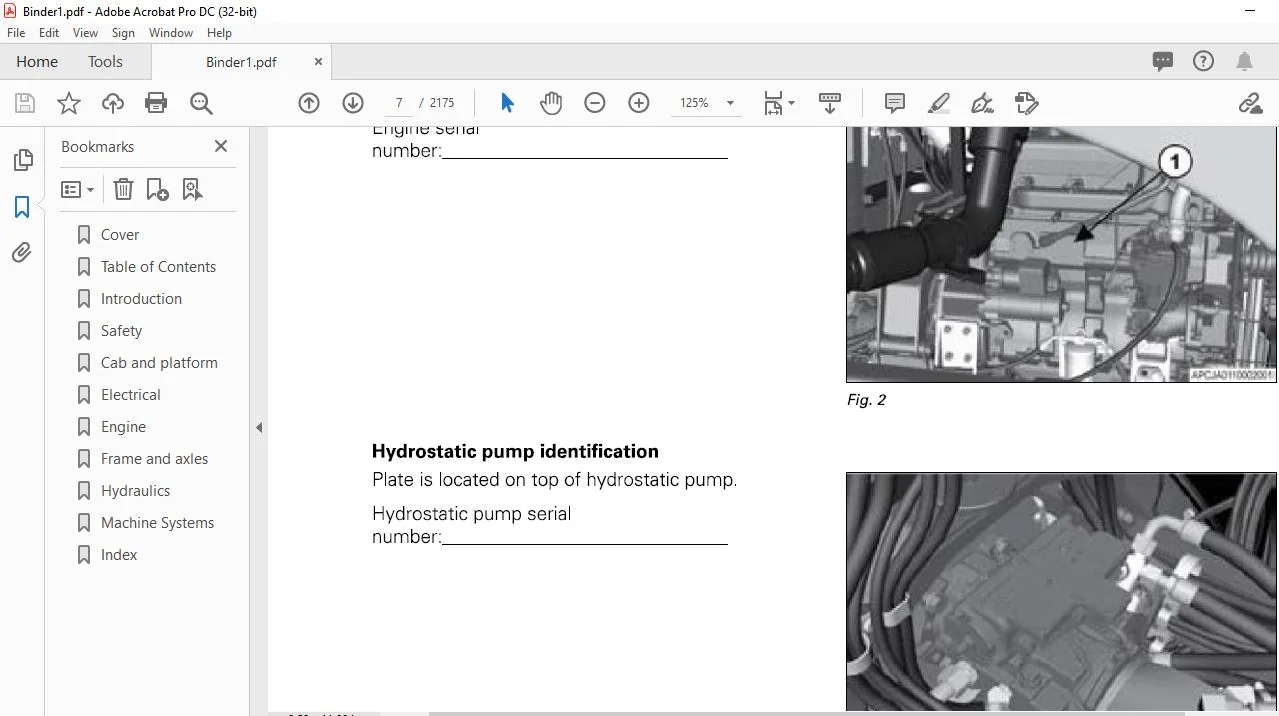

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Challenger RG700B Applicator Chassis Workshop Service Manual – PDF DOWNLOAD

Important safety information :

Most accidents that involve product operation, maintenance and repair are caused by failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an accident occurs. A person must be alert to potential hazards. This person must also have the necessary training, skills and tools to do these functions correctly.

• Incorrect operation, lubrication, maintenance, or repair of this product can be dangerous and can result in injury or death. Do not operate or do any lubrication, maintenance or repair on this product, until you read and understand the operation, lubrication, maintenance, and repair information. Safety precautions and warnings are provided in this manual and on the product. If these hazard warnings are not heeded, bodily injury or death can occur to you or other persons. AGCO cannot anticipate every possible circumstance that might involve a potential hazard.
• The warnings in this publication and on the product are, thus, not all-inclusive. If a tool, procedure, work method or operating technique that is not specifically recommended by AGCO is used, you must satisfy yourself that it is safe for you and others. You must make sure the product will not be damaged or made unsafe by the operation, lubrication, maintenance, or repair procedures that you choose.
• The information, specifications, and illustrations in this publication are based on the information that was available at the time that the publication was written. The specifications, torques, pressures, measurements, adjustments, illustrations, and other items can change at any time. These changes can affect the service that is given to the product. Obtain the complete and most current information before you start any job. AGCO dealers have the most current information available.

Prepare for operation:

Read and understand all operating instructions and precautions in this manual before operating or servicing the machine. Make sure you know and understand the positions and operations of all controls. Make certain all controls are in neutral and the park brake is applied before starting the machine. Make certain all people are well away from your area of work before starting and operating the machine.

• Check and learn all controls in an area clear of people and obstacles before starting your work. Be aware of the machine size and have enough space available to allow for operation. Never operate the machine at high speeds in crowded places.
• Emphasize the importance of using correct procedures when working around and operating the machine. Do not let children or unqualified persons operate the machine. Keep others, especially children, away from your area of work.
• Do not permit others to ride on the machine. Make sure the machine is in the proper operating condition as stated in the Operator Manual. Make sure the machine has the correct equipment required by local regulations.

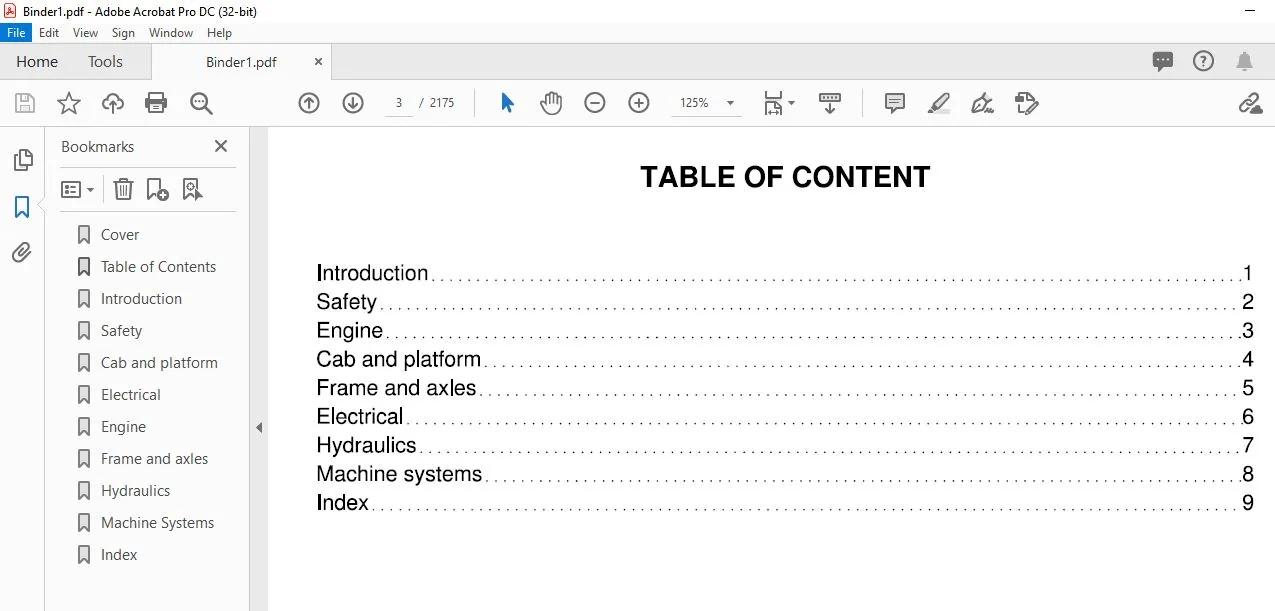

TABLE OF CONTENTS:

Challenger RG700B Applicator Chassis Workshop Service Manual – PDF DOWNLOAD

Introduction 1
Safety 2
Engine 3
Cab and platform 4
Frame and axles 5
Electrical 6
Hydraulics 7
Machine systems 8
Index 9

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
