CLAAS 212 AXLE MO212S20 Maintenance And Repair Manual – PDF DOWNLOAD

Description

CLAAS 212 AXLE MO212S20 Maintenance And Repair Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS 212 AXLE MO212S20 Maintenance And Repair Manual – PDF DOWNLOAD

INTRODUCTION –

• The efficiency and continued operation of mechan-GB ical units depend on constant, correct maintenance and also on efficient repair work, should there be a break-down or malfunction. The instructions contained in this manual have been based on a complete overhaul of the unit.
• However, it is up to the mechanic to decide whether or not it is necessary to assemble only individual components, when partial repair work is needed.
• The manual provides a quick and sure guide which, with the use of photographs and diagrams illustrating the various phases of the operations, allows accurate work to be performed. All the information needed for correct disassembly, checks and assembly of each individual component is set out below.
• In order to remove the differential unit from the vehicle, the manuals provided by the vehicle manufacturer should be consulted. In describing the following operations it is presumed that the unit has already been removed from the vehicle. IMPORTANT: In order to facilitate work and protect both working surfaces and operators, it is advisable to use proper equipment such as: trestles or supporting benches, plastic or copper hammers, appropriate levers, pullers and specific
• spanners or wrenches. Before going on to disassemble the parts and drain the oil, it is best to thoroughly clean the unit, removing any encrusted or accumulated grease. INTRODUCTORY REMARKS: All the disassembled mechan- ical units should be thoroughly cleaned with appropriate products and restored or replaced if damage, wear, cracking or seizing have occurred. In particular, thoroughly check the condition of all moving parts (bearings, gears, crown wheel and pinion, shafts)
• and sealing parts (0-rings, oil shields) which are subject to major stress and wear. In any case, it is advisable to replace the seals every time a component is overhauled or repaired. During assembly, the sealing rings must be lubricated on the
• sealing edge. In the case of the crown wheel and pinion, replacement of one component requires the replacement of the other one. During assembly, the prescribed pre-loading, backlash and torque of parts must be maintained.

TABLE OF CONTENTS:

CLAAS 212 AXLE MO212S20 Maintenance And Repair Manual – PDF DOWNLOAD

INTRODUCTION 5
GB MAINTENANCE AND LUBRICANT
• Definition of viewpoints7
• Data plate 7
• Maintenance points 7
• Maintenance intervals8
• Adjustment and checks 8
• Conversion tables9
• Tightening torques 9
• Screw-locking, sealing and lubricating materials 10
NOTES ON SAFETY PRECAUTIONS 13
CHECKING WEAR AND REPLACING THE BRAKING DISKS
• Disassembly the braking units 14
• Assembly the braking units 18
STEERING CASE
• Removal and disassembly 22
• Assembly and installation 26
U-JOINT
• Removal and disassembly 30
• Assembly and installation 36

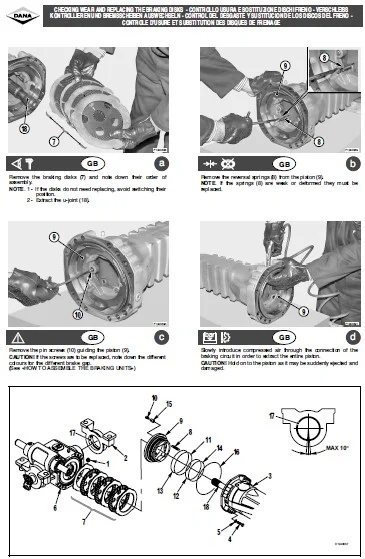

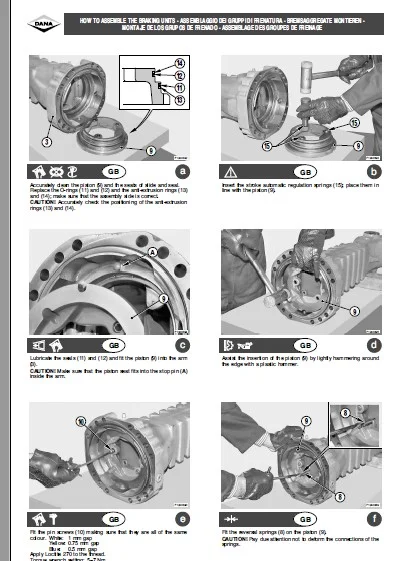

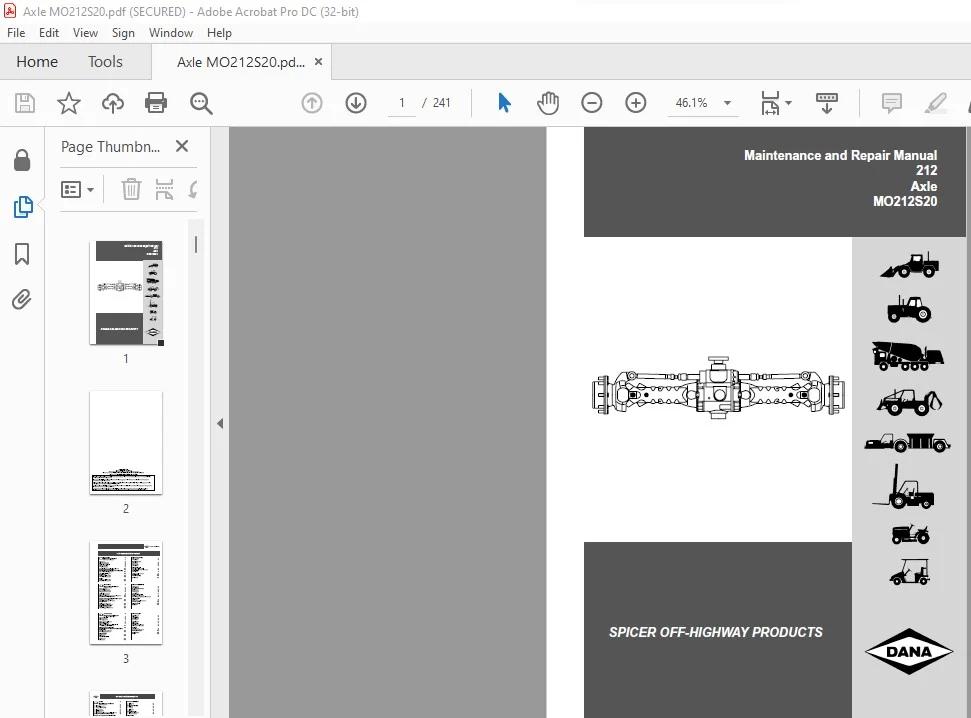

IMAGES PREVIEW OF THE MANUAL:
