CLAAS 367 Gear Box Service Manual – PDF DOWNLOAD

Description

CLAAS 367 Gear Box Service Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS 367 Gear Box Service Manual – PDF DOWNLOAD

INTRODUCTION

The efficiency and continued operation of mechanical units depend on constant, correct maintenance and also on efficient repair work, should there be a break-down or malfunction. The instructions contained in this manual have been based on a complete overhaul of the unit. However, it is up to the mechanic to decide whether or not it is necessary to assemble only individual components, when partial repair work is needed. The manual provides a quick and sure guide which, with the use of photographs and diagrams illustrating the various phases of the operations, allows accurate work to be performed.All the information needed for correct disassembly, checks and assembly of each individual component is set out below. In order to remove the differential unit from the vehicle, the manuals provided by the vehicle manufacturer should be consulted. In describing the following operations it is presumed that the unit has already been removed from the vehicle.

IMPORTANT:

In order to facilitate work and protect both working surfaces and operators, it is advisable to use proper equipment such as: trestles or supporting benches, plastic or copper hammers, appropriate levers, pullers and specific spanners or wrenches. Before going on to disassemble the parts and drain the oil, it is best to thoroughly clean the unit, removing any encrusted or accumulated grease.

INTRODUCTORY REMARKS:

All the disassembled mechanical units should be thoroughly cleaned with appropriate products and restored or replaced if damage, wear, cracking or seizing have occurred. In particular, thoroughly check the condition of all moving parts (bearings, gears, ring gear and pinion, shafts) and sealing parts (o-rings, oil shields) which are subject to major stress and wear. In any case, it is advisable to replace the seals every time a component is overhauled or repaired. During assembly, the sealing rings must be lubricated on the sealing edge. In the case of the ring gear and pinion, replacement of one component requires the replacement of the other one. During assembly, the prescribed pre-loading, backlash and torque of parts must be maintained.

SPECIFIC EQUIPMENT AND SPARE PARTS:

The drawings of all specific tools required for maintenance and repair work can be found at the end of this manual ; spare parts may be ordered either from the vehicle manufacturer or directly from the Service Centers or Authorized Distributors of Dana Incorporated

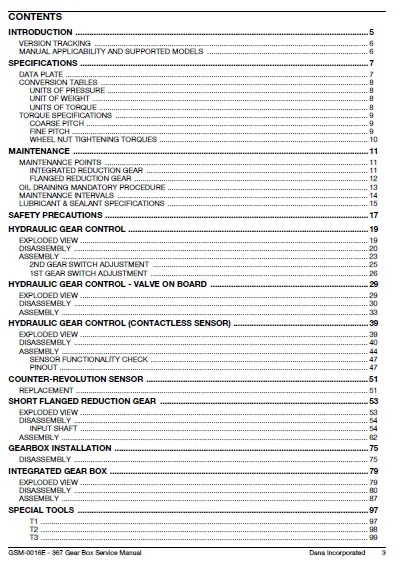

TABLE OF CONTENTS:

CLAAS 367 Gear Box Service Manual – PDF DOWNLOAD

CONTENTS
INTRODUCTION 5
VERSION TRACKING 6
MANUAL APPLICABILITY AND SUPPORTED MODELS 6
SPECIFICATIONS 7
DATA PLATE 7
CONVERSION TABLES 8
UNITS OF PRESSURE 8
UNIT OF WEIGHT 8
UNITS OF TORQUE 8
TORQUE SPECIFICATIONS 9
COARSE PITCH 9
FINE PITCH 9
WHEEL NUT TIGHTENING TORQUES 10
MAINTENANCE 11
MAINTENANCE POINTS 11
INTEGRATED REDUCTION GEAR 11
FLANGED REDUCTION GEAR 12
OIL DRAINING MANDATORY PROCEDURE 13
MAINTENANCE INTERVALS 14
LUBRICANT & SEALANT SPECIFICATIONS 15
SAFETY PRECAUTIONS 17
HYDRAULIC GEAR CONTROL 19
EXPLODED VIEW 19
DISASSEMBLY 20
ASSEMBLY 23
2ND GEAR SWITCH ADJUSTMENT 25
1ST GEAR SWITCH ADJUSTMENT 26
HYDRAULIC GEAR CONTROL – VALVE ON BOARD 29
EXPLODED VIEW 29
DISASSEMBLY 30
ASSEMBLY 33
HYDRAULIC GEAR CONTROL (CONTACTLESS SENSOR) 39
EXPLODED VIEW 39
DISASSEMBLY 40
ASSEMBLY 44
SENSOR FUNCTIONALITY CHECK 47
PINOUT 47
COUNTER-REVOLUTION SENSOR 51
REPLACEMENT 51
SHORT FLANGED REDUCTION GEAR 53
EXPLODED VIEW 53
DISASSEMBLY 54
INPUT SHAFT 54
ASSEMBLY 62
GEARBOX INSTALLATION 75
DISASSEMBLY 75
INTEGRATED GEAR BOX 79
EXPLODED VIEW 79
DISASSEMBLY 80
ASSEMBLY 87
SPECIAL TOOLS 97
T1 97
T2 98
T3 9

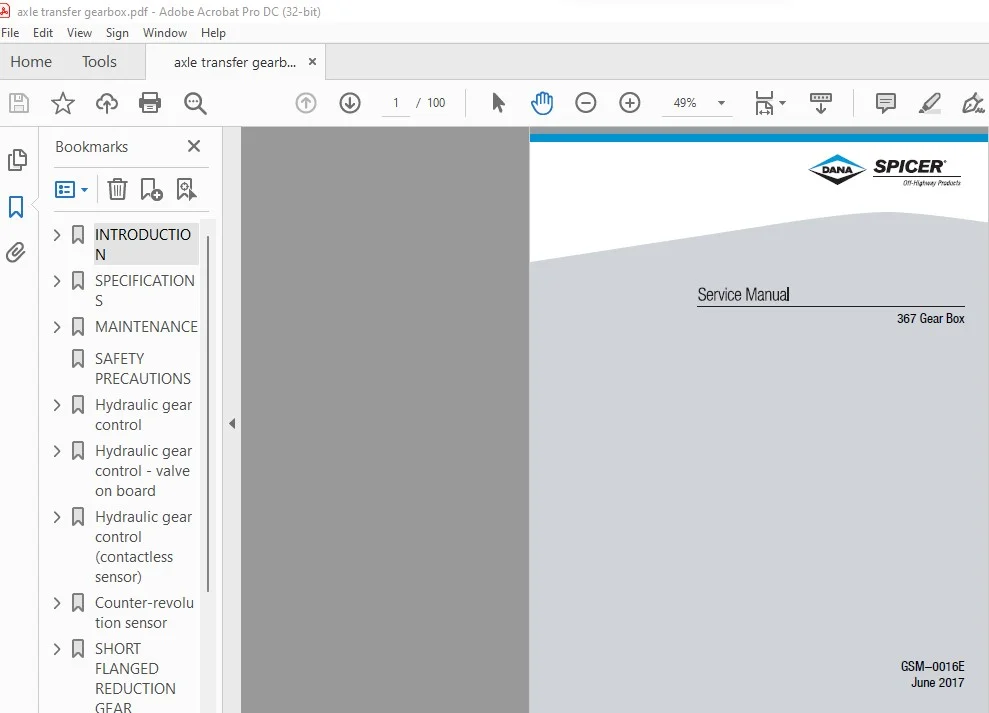

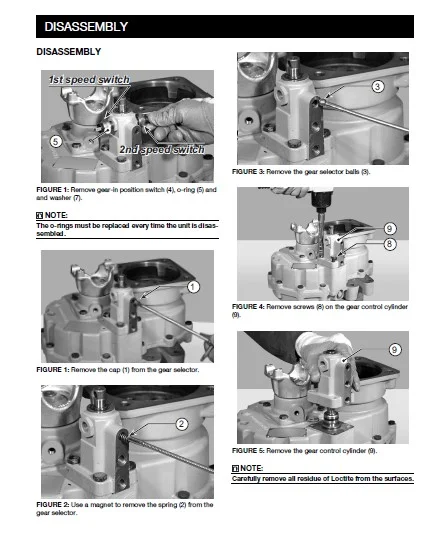

IMAGES PREVIEW OF THE MANUAL:

CLAAS 367 GEAR BOX SERVICE MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
