CLAAS Baler VARIANT 180 180 RC CLAAS Twine Wrapping System Fitting Instructions Manual_DE_EN_FR_ – PDF DOWNLOAD

Description

CLAAS Baler VARIANT 180 180 RC CLAAS Twine Wrapping System Fitting Instructions Manual_DE_EN_FR_ – PDF DOWNLOAD

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Baler VARIANT 180 180 RC CLAAS Twine Wrapping System Fitting Instructions Manual_DE_EN_FR_ – PDF DOWNLOAD

INTRODUCTION

These instructions describe the installation of the twine wrapping system on the CLAAS round balers VARIANT 180 and VARIANT 180 RC. The scope of supply is listed on page 5.

TABLE OF CONTENTS:

CLAAS Baler VARIANT 180 180 RC CLAAS Twine Wrapping System Fitting Instructions Manual_DE_EN_FR_ – PDF DOWNLOAD

Anbau-Teileumfang Anzahl
1 Gummiwalze vormontiert 1
2 Flanschkugellager 2
3 Sechskantschraube M 8 x 16 DIN 933-88 5
Sechskantmutter M 8 5
Contact-Scheibe A 8 5
4 Druckrolle 1
5 Sechskantschraube M 10 x 16 DIN 933-88 2
Contact-Scheibe A 10 2
6 Sprengring 1
7 Keilriemenscheibe 1
8 Sechskantschraube M 10 x 25 DIN 933-88 1
Contact-Scheibe B 10 1
Scheibe 10 x 21 x 2 1
9 Antriebspaket (Magnetkupplung) 1
10 Fadenbegrenzung 2
11 Sechskantschraube M 8 x 25 DIN 933-88 2
Sechskantmutter M 8 2
Contact-Scheibe A 8 2
12 Fadenfang 1
13 Sechskantschraube M 10 x 25 DIN 933-88 2
Sechskantmutter M 10 2
Contact-Scheibe A 10 2
14 Garnschlitten vormontiert 1
15 Flachrundschraube M 10 x 25 4
Sechskantmutter M 10 4
Contact-Scheibe B 10 4
16 Garnöse 3
17 Sicherungsring 3
18 Garnbremse 1
19 Sechskantschraube M 10 x 25 DIN 933-88 2
Sechskantmutter M 10 2
Contact-Scheibe A 10 2
20 Zugfeder 1
21 Kabelschellen 4
22 Gummilatz 2
23 Sechskantschraube M 8 x 16 DIN 933-88 1
Contact-Scheibe A 8 1
Scheibe 8,5 x 30 x 3 1
24 Ringschraube 2
Sechskantmutter M 8 2
Contact-Scheibe A 8 1
Scheibe 8,5 x 30 x 3 1
25 Trennblech 8
26 Sechskantschraube M 8 x 12 DIN 933-88 8
Sechskantmutter M 8 8
Contact-Scheibe A 8 8
27 Aufkleber 514 9720 1
28 Aufkleber 514 9700 1
29 Aufkleber 514 9710 1
Keilriemenbremse 1
Leitblech 1
Flachrundschraube M 10 x 20 4
Sechskantmutter M 10 4
Contact-Scheibe B 10 4
Leitblech 1
5

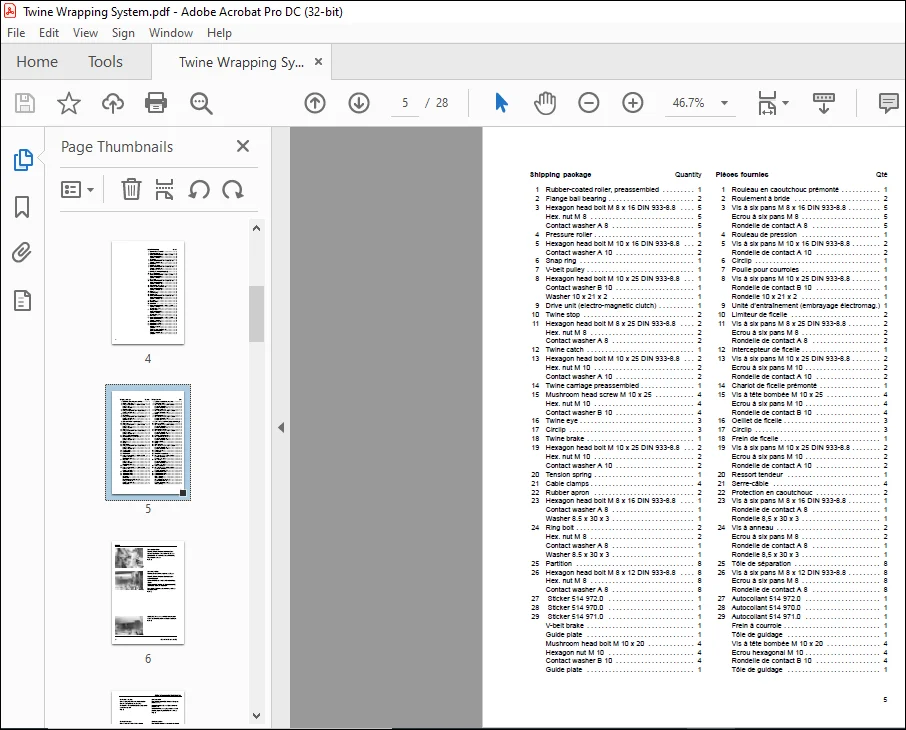

Shipping package Quantity
1 Rubber-coated roller, preassembled 1
2 Flange ball bearing 2
3 Hexagon head bolt M 8 x 16 DIN 933-88 5
Hex nut M 8 5
Contact washer A 8 5
4 Pressure roller 1
5 Hexagon head bolt M 10 x 16 DIN 933-88 2
Contact washer A 10 2
6 Snap ring 1
7 V-belt pulley 1
8 Hexagon head bolt M 10 x 25 DIN 933-88 1
Contact washer B 10 1
Washer 10 x 21 x 2 1
9 Drive unit (electro-magnetic clutch) 1
10 Twine stop 2
11 Hexagon head bolt M 8 x 25 DIN 933-88 2
Hex nut M 8 2
Contact washer A 8 2
12 Twine catch 1
13 Hexagon head bolt M 10 x 25 DIN 933-88 2
Hex nut M 10 2
Contact washer A 10 2
14 Twine carriage preassembled 1
15 Mushroom head screw M 10 x 25 4
Hex nut M 10 4
Contact washer B 10 4
16 Twine eye 3
17 Circlip 3
18 Twine brake 1
19 Hexagon head bolt M 10 x 25 DIN 933-88 2
Hex nut M 10 2
Contact washer A 10 2
20 Tension spring 1
21 Cable clamps 4
22 Rubber apron 2
23 Hexagon head bolt M 8 x 16 DIN 933-88 1
Contact washer A 8 1
Washer 85 x 30 x 3 1
24 Ring bolt 2
Hex nut M 8 2
Contact washer A 8 1
Washer 85 x 30 x 3 1
25 Partition 8
26 Hexagon head bolt M 8 x 12 DIN 933-88 8
Hex nut M 8 8
Contact washer A 8 8
27 Sticker 514 9720 1
28 Sticker 514 9700 1
29 Sticker 514 9710 1
V-belt brake 1
Guide plate 1
Mushroom head bolt M 10 x 20 4
Hexagon nut M 10 4
Contact washer B 10 4
Guide plate 1
Pièces fournies Qté
1 Rouleau en caoutchouc prémonté 1
2 Roulement à bride 2
3 Vis à six pans M 8 x 16 DIN 933-88 5
Ecrou à six pans M 8 5
Rondelle de contact A 8 5
4 Rouleau de pression 1
5 Vis à six pans M 10 x 16 DIN 933-88 2
Rondelle de contact A 10 2
6 Circlip 1
7 Poulie pour courroies 1
8 Vis à six pans M 10 x 25 DIN 933-88 1
Rondelle de contact B 10 1
Rondelle 10 x 21 x 2 1
9 Unité d’entraînement (embrayage électromag) 1
10 Limiteur de ficelle 2
11 Vis à six pans M 8 x 25 DIN 933-88 2
Ecrou à six pans M 8 2
Rondelle de contact A 8 2
12 Intercepteur de ficelle 1
13 Vis à six pans M 10 x 25 DIN 933-88 2
Ecrou à six pans M 10 2
Rondelle de contact A 10 2
14 Chariot de ficelle prémonté 1
15 Vis à tête bombée M 10 x 25 4
Ecrou à six pans M 10 4
Rondelle de contact B 10 4
16 Oeillet de ficelle 3
17 Circlip 3
18 Frein de ficelle 1
19 Vis à six pans M 10 x 25 DIN 933-88 2
Ecrou à six pans M 10 2
Rondelle de contact A 10 2
20 Ressort tendeur 1
21 Serre-câble 4
22 Protection en caoutchouc 2
23 Vis à six pans M 8 x 16 DIN 933-88 1
Rondelle de contact A 8 1
Rondelle 8,5 x 30 x 3 1
24 Vis à anneau 2
Ecrou à six pans M 8 2
Rondelle de contact A 8 1
Rondelle 8,5 x 30 x 3 1
25 Tôle de séparation 8
26 Vis à six pans M 8 x 12 DIN 933-88 8
Ecrou à six pans M 8 8
Rondelle de contact A 8 8
27 Autocollant 514 9720 1
28 Autocollant 514 9700 1
29 Autocollant 514 9710 1
Frein à courroie 1
Tôle de guidage 1
Vis à tête bombée M 10 x 20 4
Ecrou hexagonal M 10 4
Rondelle de contact B 10 4
Tôle de guidage 1
Anbau
6 GB
