INTRODUCTION
This manual describes the safe and time-saving
method for installing the conversion kit:
Clutches: MP12 138 040.0
MP8 138 041.0
MP6 138 042.0
Outside divider 138 039.0
Read this manual carefully before starting work! Pay
particular attention to the section »General instructions
The following machines can be converted:
CORN HEAD 630
CORN HEAD 830
CORN HEAD 836
CORN HEAD 838
CORN HEAD 1220
CORN HEAD 1222
CORN HEAD 1230
The Package list is listed on page 4.1. Make sure that
the conversion kit is complete before starting work.
The »Package list« is also considered a supplement to
the parts list.
Your CLAAS Service Department
TABLE OF CONTENTS:

Claas CAT ® CORN HEADS 630 830 836 838 1220 1222 1230 Conversion instructions Manual_DE_EN – PDF DOWNLOAD

1. Introduction
Introduction ……………………………………………………………………. 1.1
2. Inhalt
3. General instructions
Of special importance ……………………………………………………… 3.1
Identification of warnings and dangers ………………………………. 3.1
Designated use ………………………………………………………………. 3.2
Safety decals with warning symbols ………………………………….. 3.2
General Safety and Accident Prevention Instructions ………….. 3.2
Safety precautions …………………………………………………….. 3.2
4. Package list
Package list …………………………………………………………………… 4.1
KIT 138 040.0 Clutches – Corn Picker Head 12-rows …….. 4.1
KIT 138 041.0 Clutches – Corn Picker Head 8-rows ………. 4.1
KIT 138 042.0 Clutches – Corn Picker Head 6-rows ………. 4.1
KIT 138 039.0 Outside divider …………………………………….. 4.1
5. Installation
Replacing friction clutches ……………………………………………….. 5.1
Removing friction clutches …………………………………………. 5.1
Installing friction clutches …………………………………………… 5.3
Installing reinforcements ………………………………………………….. 5.6
Installing outside divider …………………………………………….. 5.7
Welding new hinge (2) ……………………………………………….. 5.8
Welding reinforcement (4) ………………………………………….. 5.8
Welding reinforcement (5, 6) ………………………………………. 5.9
Welding reinforcement (3) ………………………………………… 5.10
Check and observe the following
before putting into operation …………………………………………… 5.10

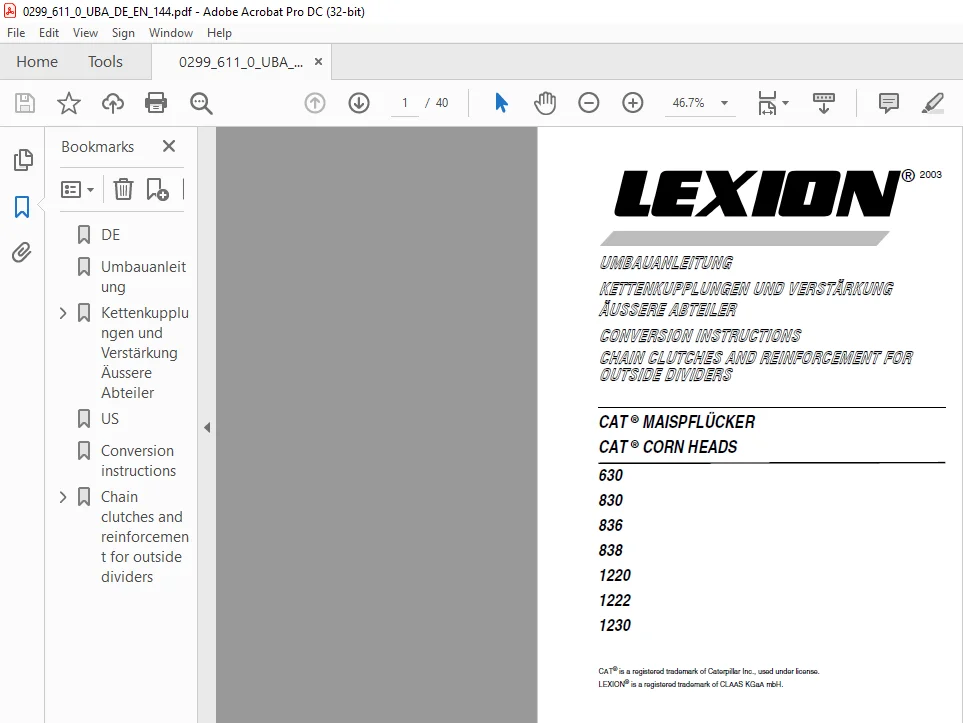

IMAGES PREVIEW OF THE MANUAL:
