CLAAS CATERPILLAR LEXION 460/465 LEXION 450/455 Cat Straw Walker Risers Fitting Instructions Manual – PDF DOWNLOAD

Description

CLAAS CATERPILLAR LEXION 460/465 LEXION 450/455 Cat Straw Walker Risers Fitting Instructions Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS CATERPILLAR LEXION 460/465 LEXION 450/455 Cat Straw Walker Risers Fitting Instructions Manual – PDF DOWNLOAD

INTRODUCTION

This manual shows the installation of the straw walker risers to the CAT range of LEXION 460 / 465 and LEXION 450 / 455 combine harvesters. The shipping package can be found on page 3. The items are numbered in the order of installation.
TABLE OF CONTENTS:

CLAAS CATERPILLAR LEXION 460/465 LEXION 450/455 Cat Straw Walker Risers Fitting Instructions Manual – PDF DOWNLOAD

1 Rice risers 12 10
2 Clamping plate 48 40
Self-locking nut VM 6 48 40
Contact washer B 6 48 40
3 Center risers 6 5
4 Clamping plate 24 20
Self-locking nut VM 6 24 20
Contact washer B 6 24 20
5 Lateral risers 6 5
6 Mushroom head screw M 6 x 12 30 25
Hexagon nut M 6 30 25
Contact washer B 6 30 25
7 Parallel risers 36 30
8 Clamping plate 144 120
Self-locking nut VM 6 144 120
Contact washer B 6 144 120
Corn Cob Mix (CCM) risers 12 10
Slotted mushroom head screw M 6 x 12 30 25
Hexagon nut M 6 30 25
Contact washer B 6 30 25
Cover plate 12 10
Clamping angle 24 20
Hexagon nut M 6 24 20
Contact washer B 6 24 20
Clamp 24 20

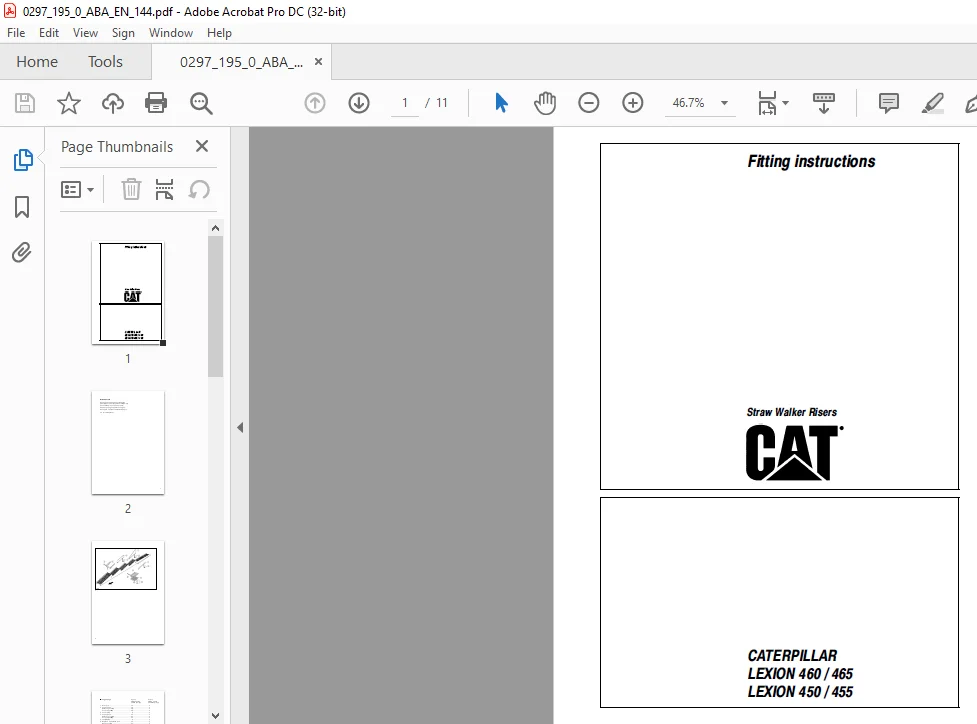

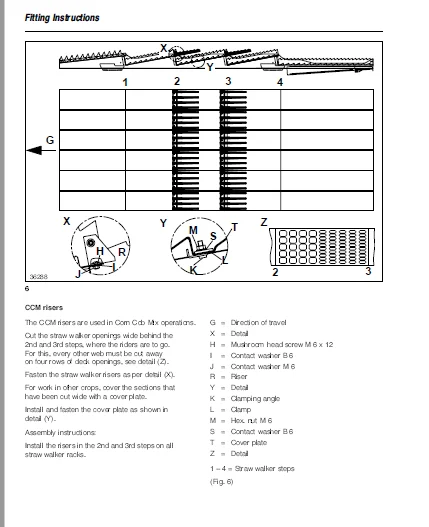

IMAGES PREVIEW OF THE MANUAL:
