CLaas Combine LEXION 570 – 520 MONTANA Electric Technical Systems Manual – PDF DOWNLOAD

Description

CLaas Combine LEXION 570 – 520 MONTANA Electric Technical Systems Manual – PDF DOWNLOAD

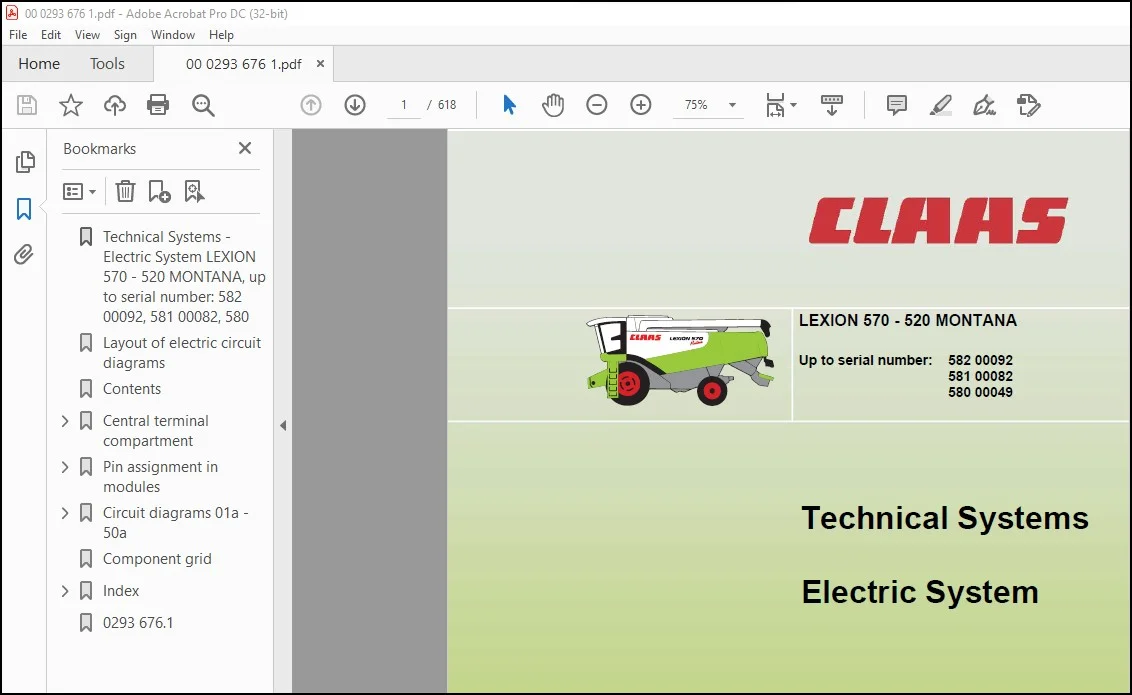

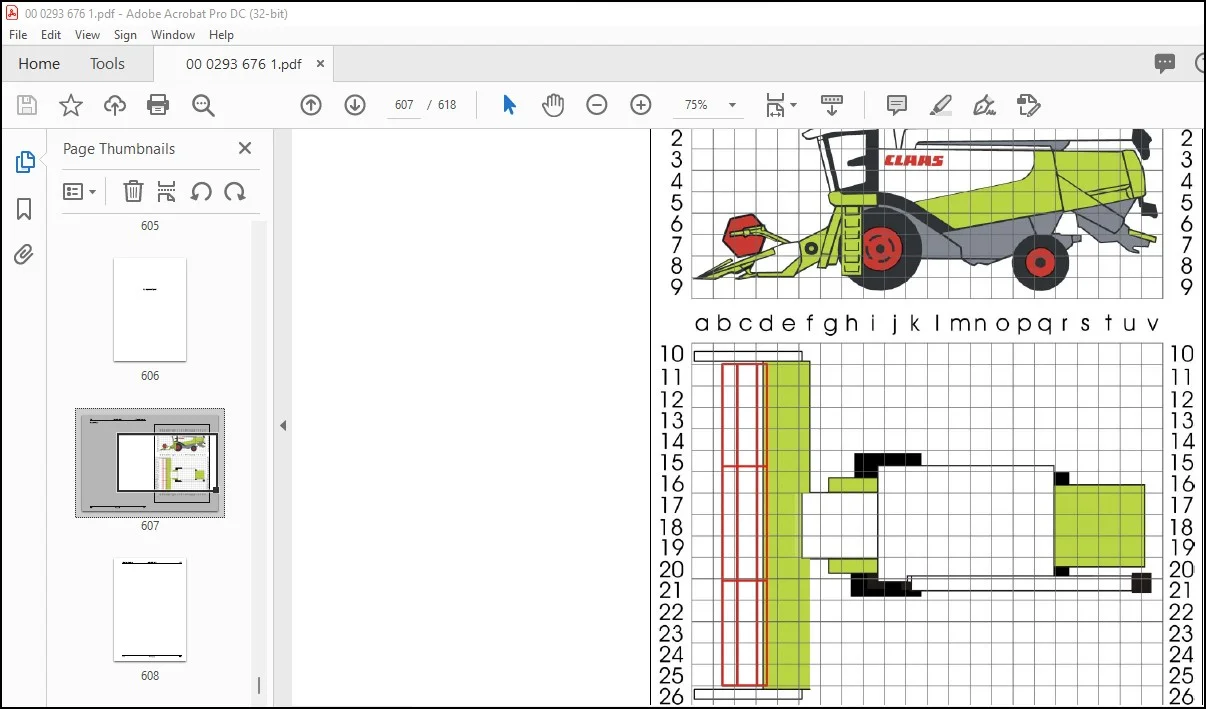

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENT:

CLaas Combine LEXION 570 – 520 MONTANA Electric Technical Systems Manual – PDF DOWNLOAD

Technical Systems – Electric System LEXION 570 – 520 MONTANA, up to serial number: 582 00092, 581 00082, 580 00049 1
Layout of electric circuit diagrams 3
Contents 5
Central terminal compartment 9
Central terminal compartment (LEXION 600-510) 9
Central terminal compartment Montana 570-520 – with external MONTANA control unit 19
Central terminal compartment Montana 570-520 – with integrated MONTANA control unit 25
Pin assignment in modules 31
Module A6 – Automatic air conditioner 33
Module A7 – Cab fan speed controller 33
Module A8 – AUTOCONTOUR (CAC) 34
Module A9 – AUTOPILOT (ATP) 35
Module A10 – Fieldwork computer (BIF/CAB) 36
Module A12 – Speed monitor (DZW) 37
Module A13 – Performance monitor (DKG) 38
Module A15 – Electronic engine control module CATERPILLAR (CAT C13, C12, C10, C9, 3126B) 39
Module A15 – Electronic engine control module CATERPILLAR (CAT C 66) 39
Module A15 – Electronic engine control module DAIMLER-CHRYSLER (DC) 40
Module A17 – Engine adaptation module ADM DAIMLER-CHRYSLER (DC) 40
Module A16 – Reel controller 41
Module A21 – Yield meter 42
Module A25 – Sieve adjustment 43
Module A27 – VARIO 44
Module A28 – Uni-spreader (VGS) 45
Module A30 – Terminal 46
Module A33 – Sidefinder 47
Module A34 – Grain tank 48
Module A35 – Montana 570-520 control unit – with external MONTANA control unit 49
Module A36 – Montana 570-520 gearshift module – with external MONTANA control unit 50
Module A37 – Electro-hydraulic gearshift (EHS) – 3-speed manual gearbox 51
Module A37 – Electro-hydraulic gearshift (EHS) – 2-speed manual gearbox 51
Module A38 – Rotor (RIO) 52
Module A42 – MONTANA GEN II module – with integrated MONTANA control unit 53
Module A45 – Ground drive hydraulic motor brake restrictor (HBM) 54
Module A46 – Deflector adjustment (RIO) 55
Module A49 – Ground drive (EFA) 56
Module A51 – Radial spreader 57
Module A65 – GPS pilot terminal 58
Module A66 – GPS pilot module (GPB) 59
Circuit diagrams 01a – 50a 61
01a Main power supply, diesel engine electric starting motor 61
01s Main power supply, diesel engine electric starting motor – Montana 570-520 65
02a Starting the diesel engine, diesel engine electric starting motor – CAT C12, C10, C9, 3126B 69
02b Starting the diesel engine, diesel engine electric starting motor – DC 502 LA 73
02c Starting the diesel engine, diesel engine electric starting motor – DC 502 LA, with electro-hydraulic ground drive (EFA) 77
02d Starting the diesel engine, diesel engine electric starting motor – CAT C66 81
02e Starting the diesel engine, diesel engine electric starting motor – C13 ACERT, C9 ACERT (TIER III) 85
02s Starting the diesel engine, diesel engine speed adjustment – CAT C12, C10, C9, 3126B, Montana 570-520 – with external MONTANA control unit 89
02t Starting the diesel engine, diesel engine speed adjustment – CAT C12, C10, C9, 3126B, Montana 570-520 – with integrated MONTANA control unit 93
03a Diesel engine cut-off system 97
04a Road travel activation, master valve 109
04b Road travel activation, master valve – with electro-hydraulic ground drive (EFA) 113
04s Road travel activation, working hydraulics master valve, Montana 570-520 – with external MONTANA control unit 117
04t Road travel activation, working hydraulics master valve, Montana 570-520 – with integrated MONTANA control unit 121
05a Terminal, keyboard, rotary switch, printer 125
05b Terminal, keyboard, rotary switch, printer – with electro-hydraulic ground drive (EFA) 129
06a CAN bus, module power supply, for diesel engine CATERPILLAR – C12, C10, C9, 3126B 133
06b CAN bus, module power supply, for diesel engine Daimler – Chrysler DC 502 LA – without electro-hydraulic ground drive (EFA) 141
06c CAN bus, module power supply, for diesel engine CATERPILLAR – C13 ACERT (TIER III) – with electro-hydraulic ground drive (EFA) 149
06d CAN bus, module power supply, for diesel engine Daimler – Chrysler DC 502 LA, – with electro-hydraulic ground drive (EFA) 159
06e CAN bus, module power supply, for diesel engine CATERPILLAR – C66 169
06f CAN bus, module power supply, for diesel engine CATERPILLAR – C9 ACERT (TIER III) 177
06s CAN bus, module power supply, Montana 570-520 – with external MONTANA control unit 185
06t CAN bus, module power supply, Montana 570-520 – with integrated MONTANA control unit 195
07a Threshing mechanism circuit 207
08a Concave adjustment / Threshing drum variable-speed drive 211
09a Rotor flap adjustment / Rotor variable-speed drive 217
10a Fan variable-speed drive 223
11a Sieve adjustment 227
12a Deflector adjustment 231
13a Straw and chaff spreader, uni-spreader – LEXION 580 235
13b Straw and chaff spreader, radial spreader 241
14a Swinging the grain tank unloading tube 247
15a Grain tank unloading / Grain tank unloading aid 251
16a Rape cutting knife circuit 257
17a Front attachment drive, reverser drive, front attachment quick stop 263
17b Front attachment drive, reverser drive, front attachment quick stop – with electro-hydraulic ground drive (EFA) 269
17s Front attachment drive, reverser drive, front attachment quick stop, Montana 570-520 – with external MONTANA control unit 275
18a Front attachment variable-speed drive 281
19a Straw chopper 285
19b Straw chopper, radial spreader without chaff spreader 289
19c Straw chopper, radial spreader with chaff spreader 295
20a Front attachment raise/lower, cross levelling 301
20b Front attachment raise/lower, cross levelling – with electro-hydraulic ground drive (EFA) 307
20s Raise/lower front attachment, cross levelling – Montana 570-520 313
21a Reel adjustment – Standard cutterbar, MaxFlex soybean header 319
21b Reel adjustment – VARIO cutterbar 325
21c Reel adjustment – Folding cutterbar 331
21d Folding the maize picker, snapping plate adjustment, down maize augers 337
21e Rake-up – Drive, rake-up crop guard adjustment 343
22a Reel variable-speed drive 349
23a Cutting table adjustment (Vario), folding the cutterbar 355
23b MaxFlex cutting table adjustment 361
24a AUTOCONTOUR (CAC) 367
25a Speed monitor 373
26a Machine monitor 377
26b Machine monitor – with electro-hydraulic ground drive (EFA) 383
26s Machine monitor, Montana 570-520 – with external MONTANA control unit 389
26t Machine monitor, Montana 570-520 – with integrated MONTANA control unit 395
27a Yield meter / Grainmeter 401
28a AUTOPILOT – Laser system 407
28b AUTOPILOT – Feeler system 415
28c AUTOPILOT – GPS-controlled steering 423
29a Performance monitor 431
30a Open / close grain tank (electric), grain tank full signal, warning beacon 435
30b Open / close grain tank (hydraulic), grain tank full signal, warning beacon 439
31a Front attachment dampening 443
32a All-wheel drive, fuel tank 447
32b All-wheel drive – overdrive, fuel tank 451
32c All-wheel drive, fuel tank – with electro-hydraulic ground drive (EFA) 457
32d All-wheel drive – overdrive, fuel tank – with electro-hydraulic ground drive (EFA) 461
33a Cutterbar spring lock 467
36a Indicator system (Europe) 471
36b Indicator system (USA) 477
37a Windscreen wiper, windscreen washer 483
38a Compressor-type air conditioner 487
38b Automatic air conditioner 491
39a Cab comfort equipment – operator’s seat 501
40a Additional sockets, fuse tester 505
41s Axle control system, front attachment control system, Montana 570-520 – with integrated MONTANA control unit 509
41t Axle control system and front attachment control system, Montana 570-520 – with integrated Montana control unit 519
42a Ground drive and brake control 525
42b Ground drive and brake control – with electro-hydraulic ground drive (EFA) LEXION 600 TerraTrac 529
42s Ground drive and brake control, Montana 570-520 – with external MONTANA control unit 533
42t Ground drive and brake control, Montana 570-520 – with integrated MONTANA control unit 539
43a Electro-hydraulic ground drive (EFA) 545
44a Electro-hydraulic gearshift – 3-speed manual gearbox 559
44b Electro-hydraulic gearshift – 2-speed manual gearbox 565
45a Main lighting circuit, taillight, position light 571
46a Dipped headlights, full beam, dipped headlights changeover switch 577
47a Work lights I 581
48a Work lights II 585
49a Sieve, grain tank and returns lighting, reversing horn, brake light 589
49b Sieve, grain tank and returns lighting, reversing horn, brake light – with electro-hydraulic ground drive (EFA) 595
50a Instrument lighting, broadcast receiver, mirror adjustment 601
Component grid 606
Index609
A – C610
D – F611
G – L612
M – R613
S – V614
W – Y615
0293 6761618
