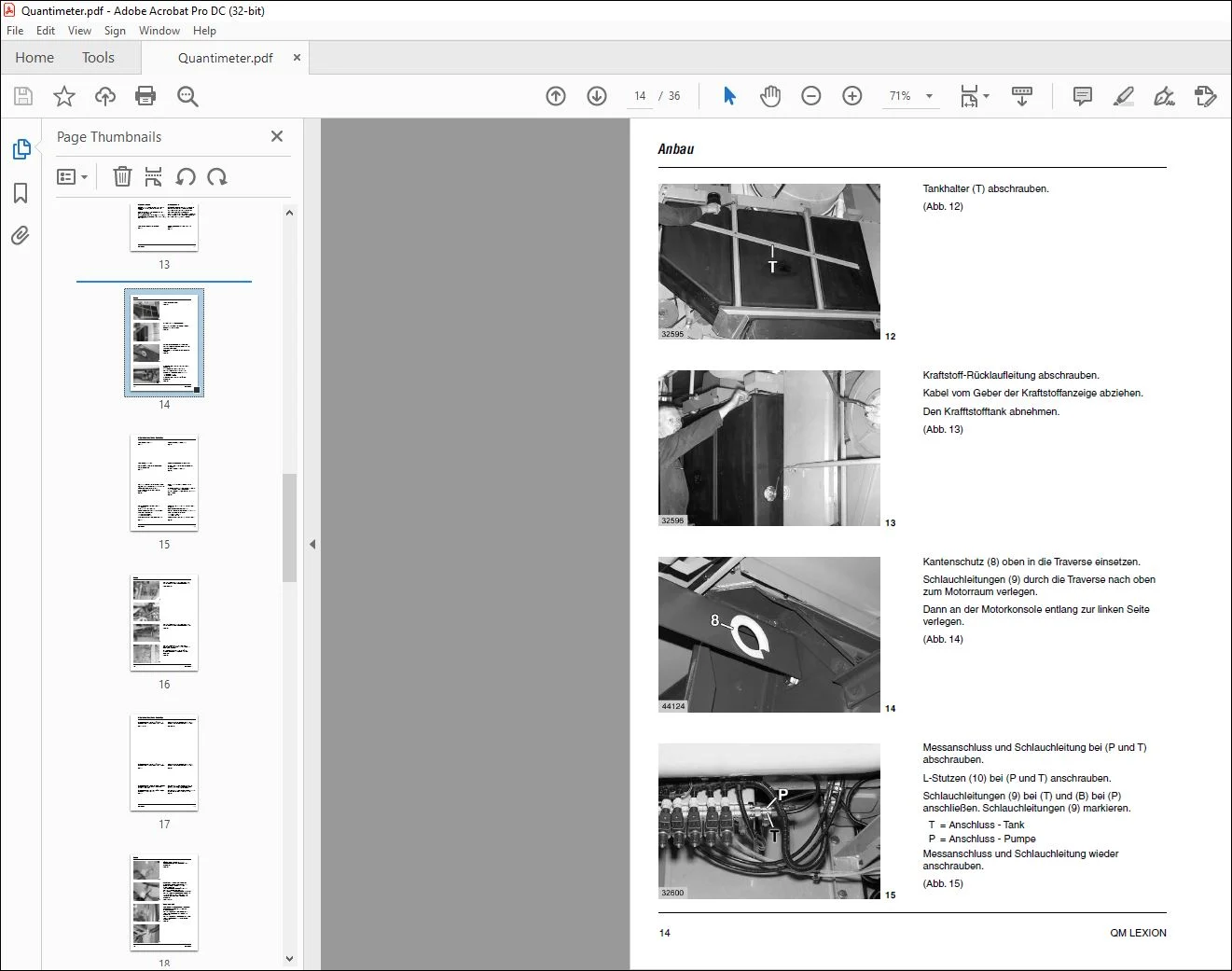

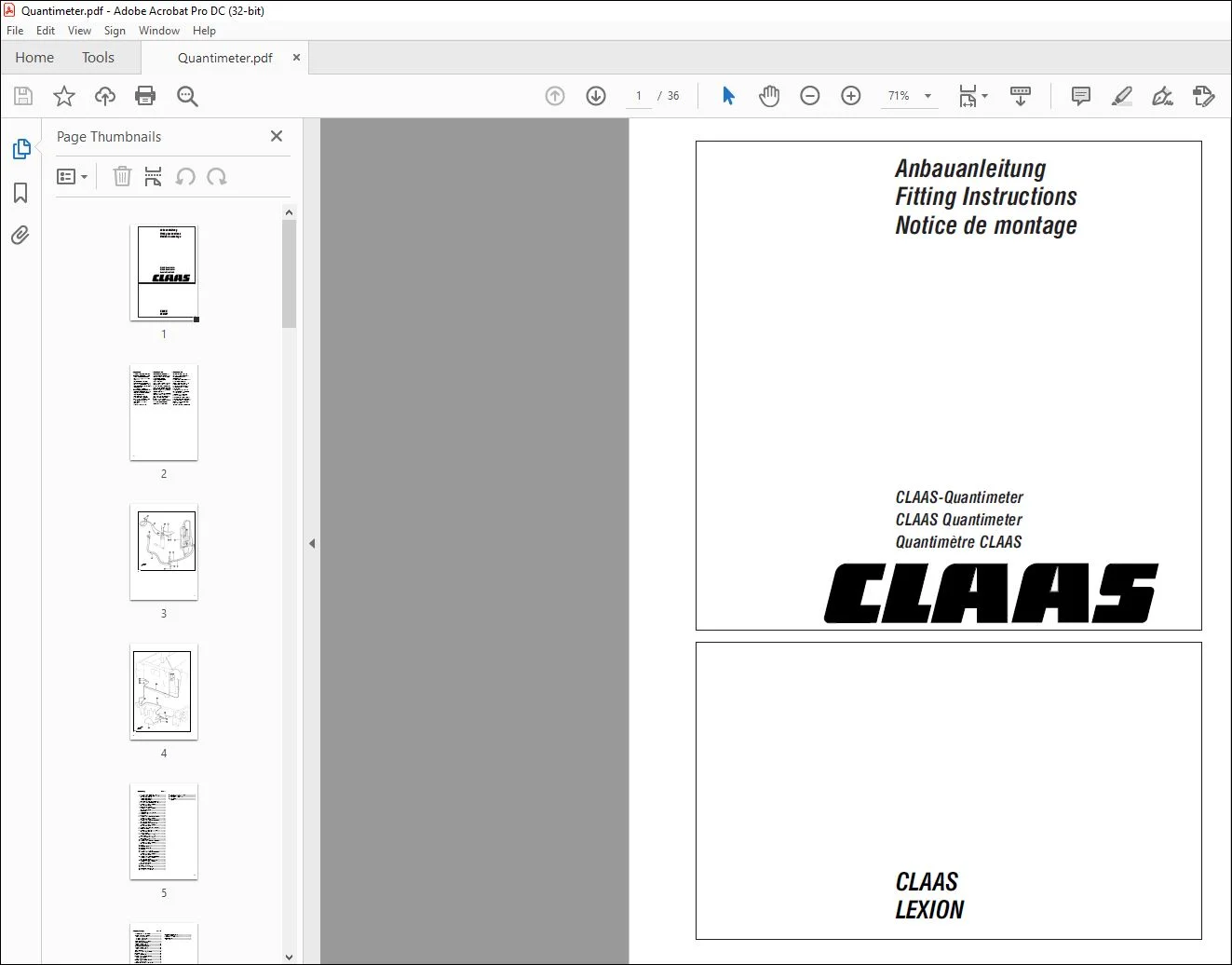

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLaas Combine LEXION CLAAS Quantimeter Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

This supplement describes the fitting of the Quantimeter system onto the CLAAS LEXION range of combine harvesters. The shipping package is shown on page 6. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package». The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers. Text and pictures apply, in general, to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text

TABLE OF CONTENTS:

CLaas Combine LEXION CLAAS Quantimeter Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

1 Transmitter – pre-assembled 1
2 Hex bolt M 10 x 16 DIN 933-88 1
Contact washer B 10 1
Washer 18,5 x 28 x 3 1
Washer 18,5 x 28 x 1 1
3 Spring 2 x 25 x 58 DIN 2098 1
4 Receiver – pre-assembled 1
5 Hex nut M 6 DIN 934-8 2
Contact washer A 6 2
6 Moisture sensor assembled 1
7 Hex nut M 6 DIN 934-8 2
Contact washer A 6 2
8 Protective strip 1
9 Hydraulic pipe 11 x 1,5 x 5340 2
10 L union L10 2
11 Double clamp B 10 12
12 Hex bolt M 6 x 25 DIN 933-88 2
Hex nut M6 DIN 934-8 2
Contact washer A6 2
13 Hex bolt M 6 x 20 DIN 933-88 5
Contact washer A6 5
14 Mushroom headed bolt M 6 x 25 -88 4
Hex nut M6 DIN 934-8 4
Contact washer A6 4
15 Hex screw Taptite M6 x 20 1
16 Connection supports 2
17 Hex nut M 10 DIN 934-8 2
Contact washer A 10 2
18 Two ear clamp 2
19 Hollow screw D 8 / M14 x 1,5 2
Seal D 14 x 20 DIN 7603 6
20 Union section D 14 x 20 DIN 7603 1
Seal D 14 x 20 DIN 7603 2
21 Inclinometer 1
22 Hex bolt M 6 x 16 DIN 933-88 3
Hex nut M 6 DIN 934-8 3
Contact washer A6 3
23 Console 1
24 Cable clamp NW 8,5 7
25 Cable clamp NW 10 3
26 Wiring loom 1
27 Pipe clamp RS 112 / 20 16
28 Hex bolt M 6 x 20 DIN 933-88 6
Hex nut M 6 DIN 934-8 6
Contact washer A6 12
29 Hex bolt M 8 x 20 DIN 933-88 10
Hex nut M 8 DIN 934-8 10
Contact washer A8 10
30 Mushroom headed bolt M 8 x 20 DIN 933-88 4
Hex nut M 8 DIN 934-8 4
Contact washer A8 4
31 Flange 30 x 5 x 100 3
32 Angle 20 x 3 x 79 2
33 Pipe clamp RS 125 / 20 2
34 Cable tie min 4,7 x 188 4
35 Pipe clamp RS 116 / 20 1
Lieferumfang Anzahl
36 Hex nut M 8 DIN 934-8 1
Contact washer A8 1
37 Pipe clamp RSGU 115 / 20 1
38 LEM module 1
Strap D3
1 Transmitter – pre-assembled 1
2 Hex bolt M 10 x 16 DIN 933-88 1
Contact washer B 10 1
Washer 18,5 x 28 x 3 1
Washer 18,5 x 28 x 1 1
3 Spring 2 x 25 x 58 DIN 2098 1
4 Receiver – pre-assembled 1
5 Hex nut M 6 DIN 934-8 2
Contact washer A 6 2
6 Moisture sensor assembled 1
7 Hex nut M 6 DIN 934-8 2
Contact washer A 6 2
8 Protective strip 1
9 Hydraulic pipe 11 x 1,5 x 5340 2
10 L union L10 2
11 Double clamp B 10 12
12 Hex bolt M 6 x 25 DIN 933-88 2
Hex nut M6 DIN 934-8 2
Contact washer A6 2
13 Hex bolt M 6 x 20 DIN 933-88 5
Contact washer A6 5
14 Mushroom headed bolt M 6 x 25 -88 4
Hex nut M6 DIN 934-8 4
Contact washer A6 4
15 Hex screw Taptite M6 x 20 1
16 Connection supports 2
17 Hex nut M 10 DIN 934-8 2
Contact washer A 10 2
18 Two ear clamp 2
19 Hollow screw D 8 / M14 x 1,5 2
Seal D 14 x 20 DIN 7603 6
20 Union section D 14 x 20 DIN 7603 1
Seal D 14 x 20 DIN 7603 2
21 Inclinometer 1
22 Hex bolt M 6 x 16 DIN 933-88 3
Hex nut M 6 DIN 934-8 3
Contact washer A6 3
23 Console 1
24 Cable clamp NW 8,5 7
25 Cable clamp NW 10 3
26 Wiring loom 1
27 Pipe clamp RS 112 / 20 16
28 Hex bolt M 6 x 20 DIN 933-88 6
Hex nut M 6 DIN 934-8 6
Contact washer A6 12
29 Hex bolt M 8 x 20 DIN 933-88 10
Hex nut M 8 DIN 934-8 10
Contact washer A8 10
30 Mushroom headed bolt M 8 x 20 DIN 933-88 4
Hex nut M 8 DIN 934-8 4
Contact washer A8 4
31 Flange 30 x 5 x 100 3
32 Angle 20 x 3 x 79 2
33 Pipe clamp RS 125 / 20 2
34 Cable tie min 4,7 x 188 4
35 Pipe clamp RS 116 / 20 1
Lieferumfang Anzahl
36 Hex nut M 8 DIN 934-8 1
Contact washer A8 1
37 Pipe clamp RSGU 115 / 20 1
38 LEM module 1
Strap D3 1
Pièces Fournies Quantité
1 Emetteur du barrage photoélectrique assemblé 1
2 Vis six pans M 10 x 16 DIN 933-88 1
Rondelle contact B 10 1
Rondelle 18,5 x 28 x 3 1
Rondelle 18,5 x 28 x 1 1
3 Ressort de pression Ø 2 x Ø 25 x 58 DIN 2098 1
4 Récepteur du barrage photoélectrique assemblé 1
5 Ecrou six pans M 6 DIN 934-8 2
Rondelle contact A 6 2
6 Capteur d’humidité assemblé 1
7 Ecrou six pans M 6 DIN 934-8 2
Rondelle contact A 6 2
8 Protection de bord 1
9 Conduite flexible 11 x 1,5 x 5340 2
10 Manchon en L L 10 2
11 Collier double B 10 12
12 Vis six pans M 6 x 25 DIN 933-88 2
Ecrou six pans M 6 DIN 934-8 2
Rondelle contact A 6 2
13 Vis six pans M 6 x 20 DIN 933-88 5
Rondelle contact A 6 5
14 Boulon à tête bombée M 6 x 25 -88 4
Ecrou six pans M 6 DIN 934-8 4
Rondelle contact A 6 4
15 Vis six pans Taptite M 6 x 20 1
16 Manchon raccord 2
17 Ecrou six pans M 10 DIN 934-8 2
Rondelle contact A 10 2
18 Borne à deux oreilles 2
19 Vis creuse D 8 / M 14 x 1,5 2
Bague d’étanchéité D 14 x 20 DIN 7603 6
20 Tube D 14 / M 14 x 1,5 1
Bague d’étanchéité D 14 x 20 DIN 7603 2
21 Capteur d’inclinaison 1
22 Vis six pans M 6 x 16 DIN 933-88 3
Ecrou six pans M 6 DIN 934-8 3
Rondelle contact A 6 3
23 Console 1
24 Collier de câble NW 8,5 7
25 Collier de câble NW 10 3
26 Faisceau de câbles 1
27 Collier de câble RS 112 / 20 16
28 Vis six pans M 6 x 20 DIN 933-88 6
Ecrou six pans M 6 DIN 934-8 6
Rondelle contact A 6 12
29 Vis six pans M 8 x 20 DIN 933-88 10
Ecrou six pans M 8 DIN 934-8 10
Rondelle contact A 8 10
30 Boulon à tête bombée M 8 x 20 -88 4
Ecrou six pans M 8 DIN 934-8 4
Rondelle contact A 8 4
31 Bride 30 x 5 x 100 3
32 Equerre 20 x 3 x 79 2
33 Collier de tube RS 125 / 20 2
34 Attache-câble min 4,7 x 188 4
35 Collier de tube RS 116 /20 1
Lieferumfang Anzahl
36 Ecrou six pans M 8 DIN 934-8 1
Rondelle contact A 8 1
37 Collier de tube RSGU 115 /20 1
38 Module LEM 1
Etrier D 3
