CLaas Combine LEXION Electric Sieve Adjustment System Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

Description

CLaas Combine LEXION Electric Sieve Adjustment System Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

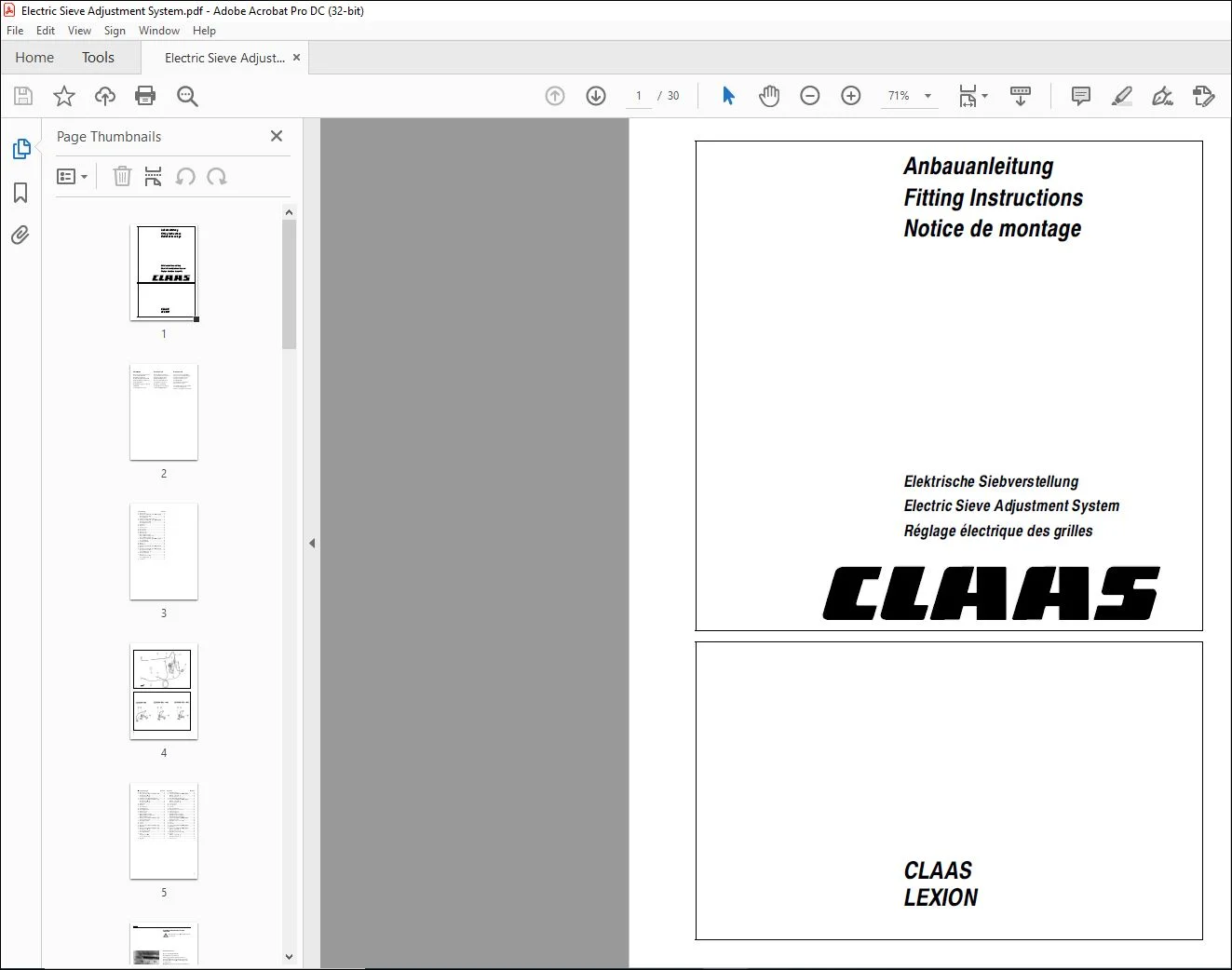

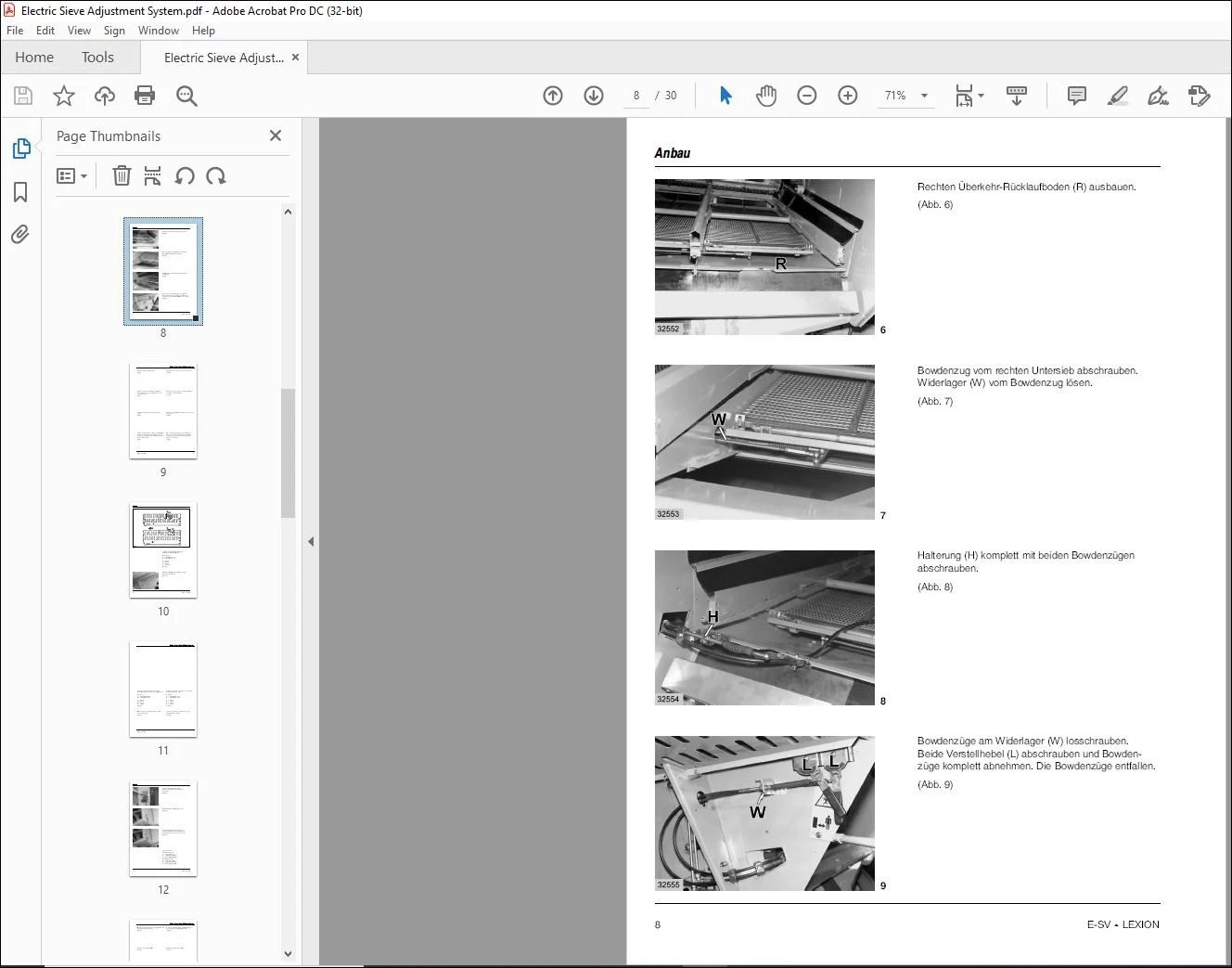

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLaas Combine LEXION Electric Sieve Adjustment System Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

These instructions show the installation of the electric sieve adjustment system for the CLAAS LEXIONco mbines. The numbering corresponds to the order of installation. The parts of the shipping package are listed on page 5.

TABLE OF CONTENTS:

CLaas Combine LEXION Electric Sieve Adjustment System Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

Lieferumfang Anzahl
1 Haltewinkel 1
2 Sechskantschraube M 8 x 20 DIN 933-88 2
Sechskantmutter M 8 2
Contact-Scheibe 2
3 Verstellmotoren vormontiert 1
4 Sechskantschraube M 8 x 20 DIN-93388 4
Sechskantmutter M 8 4
Contact-Scheibe A 8 4
5 Kabelsatz 1
6 Schalter 2
7 Kabelschellen 6
8 Steckmodul 1
9 Gummitülle 2
10 Bowdebzug 1
11 Bowdenzug 1
12 Halter für Lexion 480 1
Halter für Lexion 460 — 440 1
Halter für Lexion 430 — 405 1
13 Sechskantschraube M 8 x 16 DIN 933-88 3
Contact-Scheibe 3
14 Gummilager 15/10 3
15 Schelle 4
16 Röhrchen 3
17 Sechskantschraube M 8 x 45 DIN 933-88 4
18 Halter 1
19 Sechskantschraube M 6 x 20 DIN 933-88 2
Sechskantmutter M 6 2
Contact-Scheibe A 6 2
20 Gummilager 15/15 1
21 Platte 1
Sechskantmutter M 6 2
Contact-Scheibe A 6 2
22 Aufkleber 1
Shipping package Quantity
1 Mounting bracket 1
2 Hexagonal bolt M 8 x 20 DIN 933-88 2
Hexagonal nut M 8 2
Contact washer A 8 2
3 Adjustment motors, preassembled 1
4 Hexagonal bolt M 8 x 20 DIN 933-88 4
Hexagonal nut M 8 4
Contact washer A 8 4
5 Wiring loom 1
6 Switch 2
7 Cable clamps6
8 Plug-in module 1
9 Rubber grommet 2
10 Bowden cable 1
11 Bowden cable 1
12 Bracket for Lexion 480 1
Bracket for Lexion 460 — 440 1
Bracket for 430 — 405 1
13 Hexagonal bolt M 8 x 16 DIN 933-88 3
Contact washer A 8 3
14 Rubber pad 15/10 3
15 Clamp 4
16 Tube 3
17 Hexagonal bolt M 8 x 45 DIN 933-88 4
18 Bracket 1
19 Hexagonal bolt M 6 x 20 DIN 933-88 2
Hexagonal nut M 6 2
Contact washer A 6 2
20 Rubber pad 15/15 1
21 Plate 1
Hexagonal nut M6 2
Contact washer A 6 2
22 Sticker 1
Contenu Nombre
1 Support à angle 1
2 Visà six pansM 8 x 20 DIN 933-88 2
Ecrou à six pans M 8 2
Rondelle contact 2
3 Moteur de réglage prémonté 1
4 Visà six pansM 8 x 20 DIN 933-88 4
Ecrou à six pans M 8 4
Rondelle contact A 8 4
5 Jeu de câbles1
6 Interrupteur 2
7 Colliers6
8 Module enfichable 1
9 Passe-câble en caoutchouc 2
10 Câble sous gaine 1
11 Câble sous gaine 1
12 Support pour Lexion 480 1
Support pour Lexion 460-405 1
Support pour Lexion 430-405 1
13 Visà six pansM 8 x 16 DIN 933-88 3
Rondelle contact 3
14 Support en caoutchouc 15/10 3
15 Collier 4
16 Petit tube 3
17 Visà six pansM 8 x 45 DIN 933-88 4
18 Support 1
19 Visà six pansM 6 x 20 DIN 933-88 2
Ecrou à six pans M 6 2
Rondelle contact A 6 2
20 Support en caoutchouc 15/15 1
21 Plaque 1
Ecrou à six pans M 6 2
Rondelle contact A 6 2
22 Autocollant 1

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
