CLaas Combine LEXION Hydraulic-operated cutterbar spring lockouts Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

Description

CLaas Combine LEXION Hydraulic-operated cutterbar spring lockouts Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

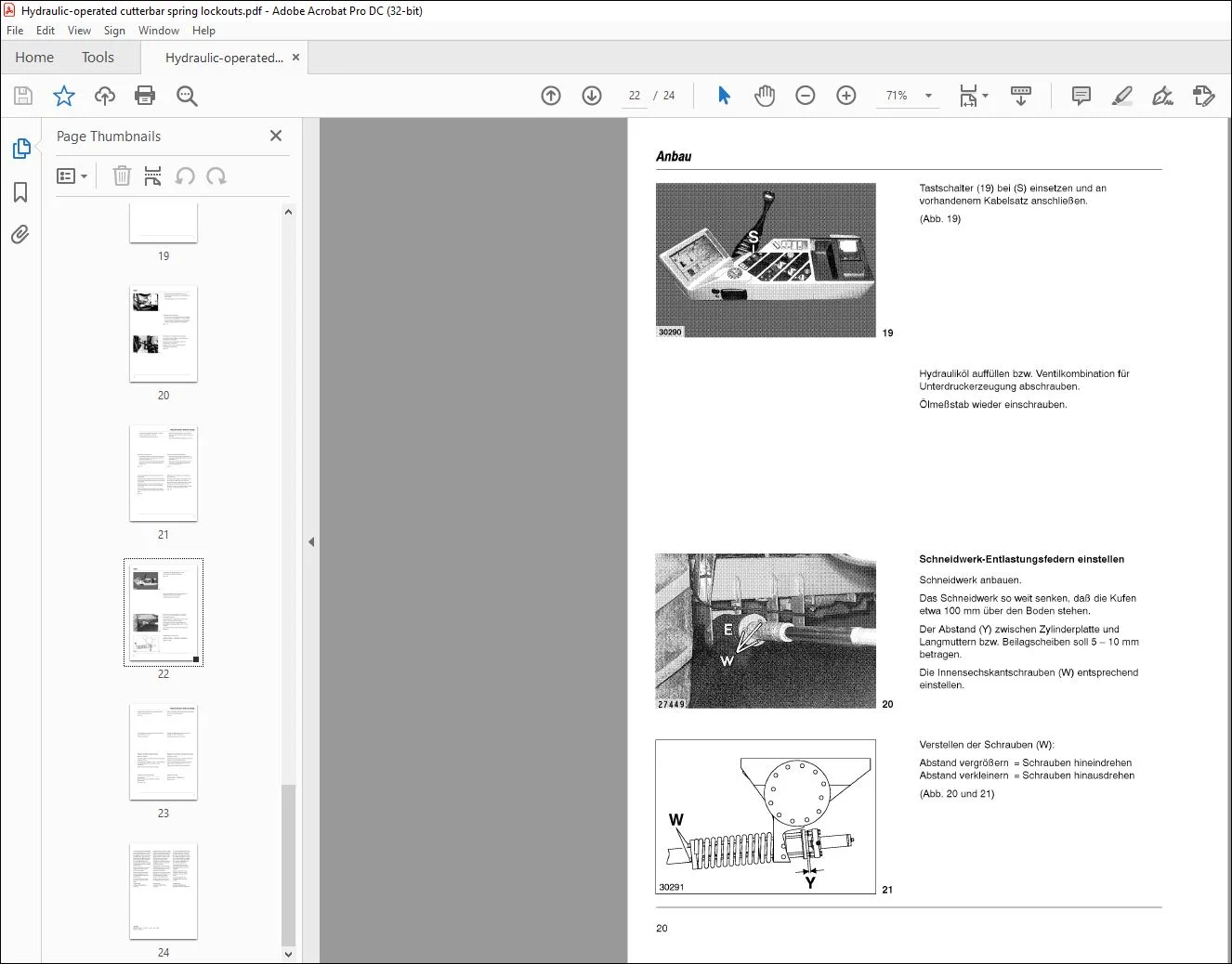

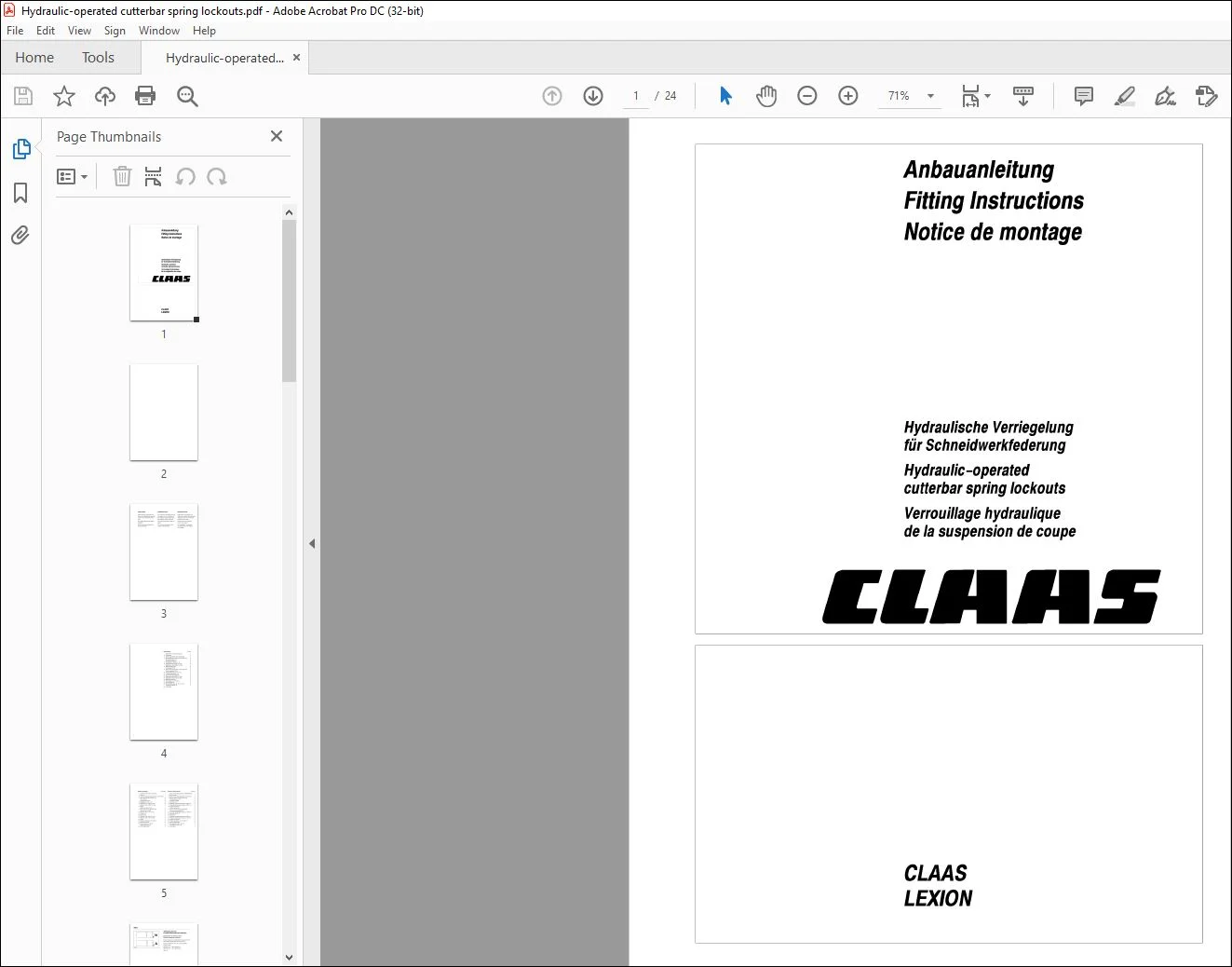

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLaas Combine LEXION Hydraulic-operated cutterbar spring lockouts Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

This manual is intended to provide information оп the installation of the hydraulic spring lockout kit for the cutterbar cylinder cylinders. The shipping package is listed оп page 3.

TABLE OF CONTENTS:

CLaas Combine LEXION Hydraulic-operated cutterbar spring lockouts Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

Lieferumfang Anzahl
1 Zylinderrohr (Zusatzausrustung)
2 Langmutter 4
3 Elektromagnetventil (4/3-Wegeventil) 1
4 Sechskantschraube М 8 х 60 DIN 931-8.8 2
Sechskantmutter М 8 2
Contact-Scheibe А 8 2
5 Einstellbarer L-Stutzen L 1 О 2
6 Hydraulikschlauch 400 mm lang 2
7 Hydraulikschlauch 2600 mm lang 2
8 Befestigungsschelle 3
Gummilager 15/15 3
9 Sechskantschraube М 6 х 40 DIN 931-8.8 3
Sicherungsmutter VM 6 3
10 Hydraulikleitung 1100 mm lang 2
11 T-Verbindungsstutzen L 8 2
12 Winkel-Verbindungsstutzen 2
13 Hydraulikschlauch 950 mm lang 2
14 Hydraulikschlauch 700 mm lang 2
15 Befestigungsschelle 3
16 Gummilager 2 х 18 х 25 х 3 3
17 Hydraulikzylinder 2
18 Sechskantschraube М 16 х 1,5 х 25 4
Contact-Scheibe А 16 4
19 Tastschalter 1
Shipping package Quantity Contenu et fournitures Nombre
1 Cylinder barrel (extra equipment) 1 Tube de verin (equipement complementaire)
2 Long nut 4 2 Ecrous longs 4
3 Solenoid-operated 4/3 directional control valve 1 3 Electrovanne (4/3-Distributeur multi-voies) 1
4 Нех. bolt М 8 х 60 DIN 931-8.8 2 4 Vis six pans М 8 х 60 DIN 931-8.8 2
Нех. nut М 8 2 Ecrous six pans М 8 2
Contact washer А 8 2 Rondelles contact 2
5 AdjustaЫe L-union L 1 О 2 5 Raccords L 1 О 2
6 Hydraulic hose, 400 mm long 2 6 FlexiЫes hydrauliques longueur: 400 mm 2
7 Hydraulic hose, 2600 mm long 2 7 FlexiЫes hydrauliques longueur: 2600 mm 2
8 Clamp 8 Colliers de serrage 3
Rubber moulding 15/15 3 Paliers caoutchouc 3
9 Нех. bolt М 6 х 40 DIN 931-8.8 3 9 Vis six pans М 6 х 40 DIN 931-8.8 3
Self-locking nut VM 6 3 Ecrous indesseraЫes VM 6 3
10 Hydraulic line, 11 О mm long 2 10 Conduits hydrauliques longueur: 1100 mm 2
11 T-union L 8 2 11 Raccords en Т L 8 2
12 Elbow union 2 12 Raccords 2
13 Hydraulic hose, 950 mm long 2 13 FlexiЫes hydrauliques longueur: 950 mm 2
14 Hydraulic hose, 700 mm long 2 14 FlexiЫes hydrauliques longueur: 700 mm 2
15 Clamp 3 15 Colliers de serrage 3
16 Rubber moulding 2 х 18 х 25 х 3 3 16 Paliers caoutchouc 2 х 18 х 25 х 3 3
17 Hydraulic cylinder 2 17 Verins hydrauliques 2
18 Нех. bolt М 16 х 1,5 х 25 4 18 Vis six pans М 16 х 1,5 х 25 4
Contact washer А 16 4 Rondelles contact А 16 4
19 Push button switch 1 19 1 nterrupteur 1
