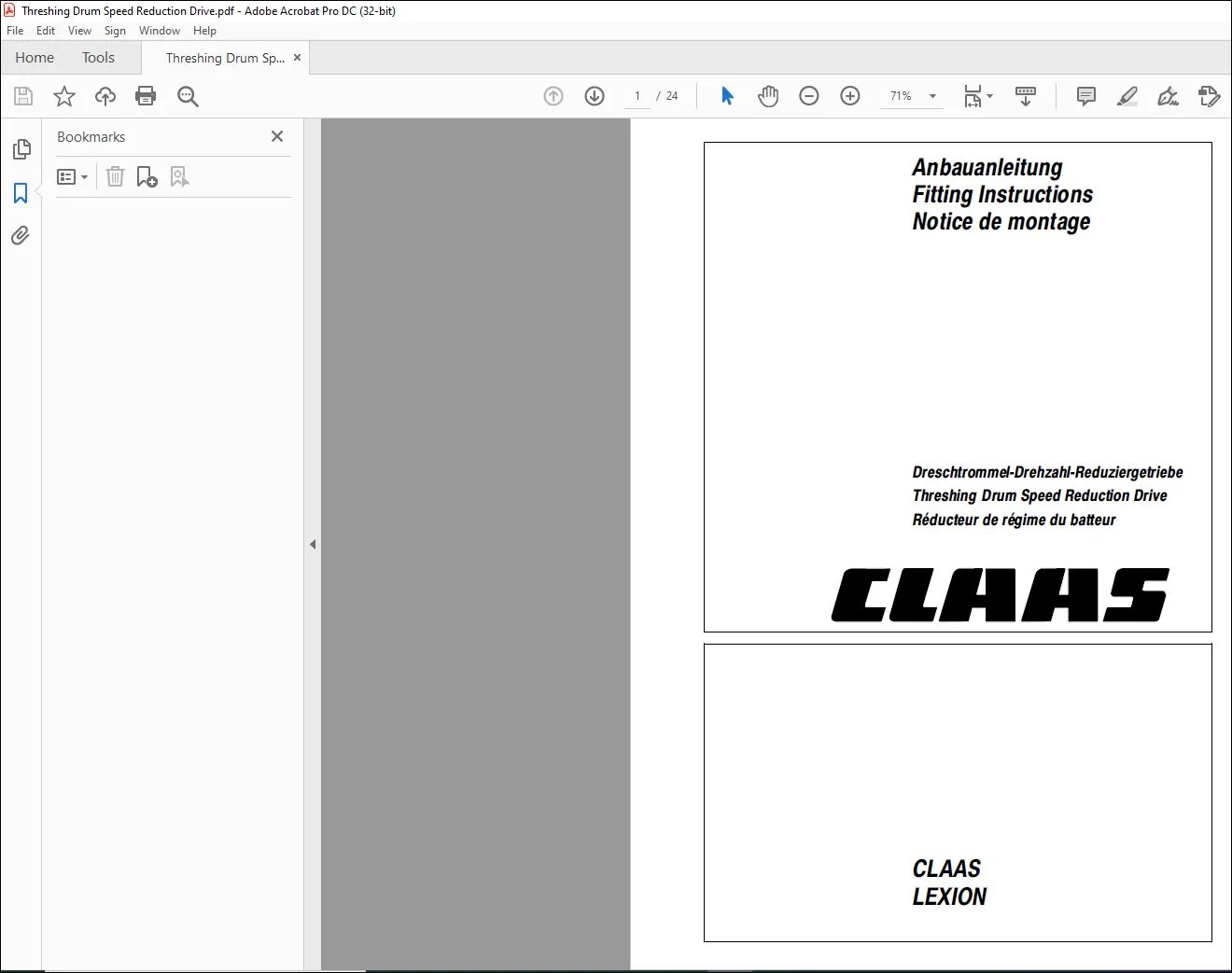

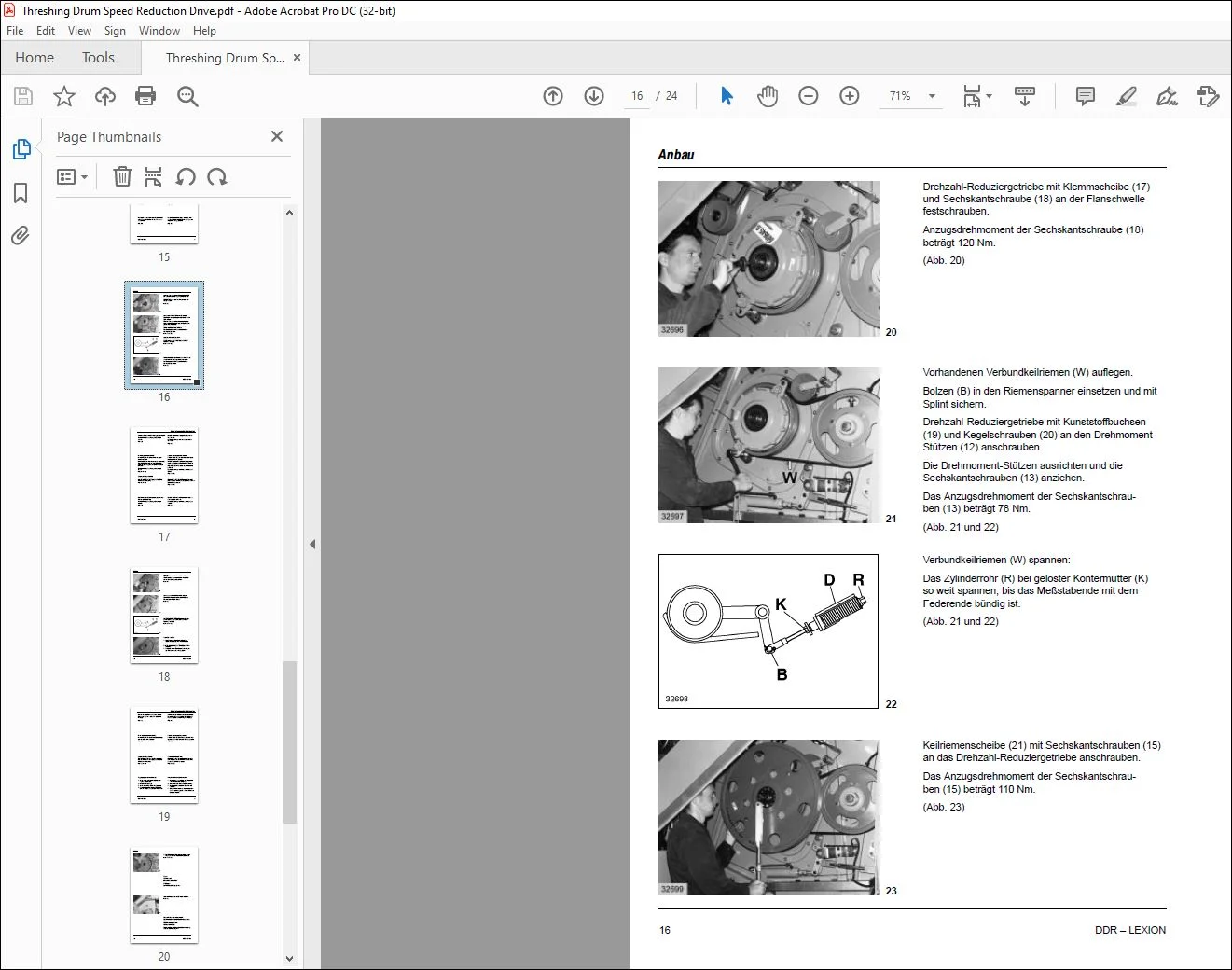

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLaas Combine LEXION Threshing Drum Speed Reduction Drive Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

These instructions show the installation of the threshing drum speed reduction drive for the CLAAS LEXION combines. The parts of the shipping package are listed on page 4. The numbering corresponds to the order of installation

TABLE OF CONTENTS:

CLaas Combine LEXION Threshing Drum Speed Reduction Drive Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

Shipping package Quantity
1 Flanged shaft 1
2 Hex socket head cap screw M 8 x 25 1
Detent edged ring VSKZ 8 1
3 Felt ring 1
4 Bearing housing 1
5 Taper sleeve 1
6 Spherical roller bearing 1
7 Bearing housing 1
8 Felt ring 1
9 Hexagonal bolt M 12 x 45 DIN 931-88 1
Contact washer A 12 1
10 Tab washer 1
11 Castellated nut 1
12 Torque support 2
13 Hexagonal bolt M 12 x 20 DIN 933-88 4
14 V-belt pulley 1
15 Hexagonal bolt
M 12 x 35 DIN 933-109 VP 18
16 Speed reduction drive 1
17 Clamping washer 1
18 Hexagonal bolt M 16 x 50 DIN 933-88 1
19 Plastic bushing 2
20 Conical bolt 2
21 V-belt pulley 1
22 Cap 1
Pièces fournies Quantité
1 Faux arbre 1
2 Vis à tête cylindrique M 8 x 25 1
Anneau à bord d’arrêt VSKZ 8 1
3 Bague en feutre 1
4 Coquille de coussinet 1
5 Douille de serrage 1
6 Roulement à rotule 1
7 Coquille de coussinet 1
8 Bague en feutre 1
9 Vis six pans M 12 x 45 DIN 931-88 1
Rondelle contact A 12 1
10 Anneau de blocage 1
11 Ecrou rainuré 1
12 Support de couple 2
13 Vis six pans M 12 x 20 DIN 933-88 4
14 Poulie 1
15 Vis six pans
M 12 x 35 DIN 933-109 VP 18
16 Réducteur du régime 1
17 Rondelle de blocage 1
18 Vis six pans M 16 x 50 DIN 933-88 1
19 Douille en plastique 2
20 Vis conique 2
21 Poulie 1
22 Capuchon 1
Lieferumfang Anzahl
1 Flanschwelle 1
2 Zylinderschraube M 8 x 25 1
Sperrkantring VSKZ 8 1
3 Filzring 1
4 Lagerschale 1
5 Spannhülse 1
6 Tonnenlager 1
7 Lagerschale 1
8 Filzring 1
9 Sechskantschraube
M 12 x 45 DIN 931-88 1
Contact-Scheibe A 12 1
10 Sicherungsblech 1
11 Stirnnutmutter 1
12 Drehmoment-Stütze 2
13 Sechskantschraube
M 12 x 20 DIN 933-88 4
14 Keilriemenscheibe 1
15 Sechskantschraube
M 12 x 35 DIN 933-109 VP 18
16 Drehzahl-Reduziergetriebe 1
17 Klemmscheibe 1
18 Sechskantschraube
M 16 x 50 DIN 933-88 1
19 Kunststoffbuchse 2
20 Kegelschraube 2
21 Keilriemenscheibe 1
22 Verschlußdeckel 1
