Claas Combine MEDION 330/310 DOMINATOR 204/203 MEGA DOMINATOR VX 3rd cutterbar cylinder Fitting and Operating Instructions Manual_DE_EN_FR

Description

Claas Combine MEDION 330/310 DOMINATOR 204/203 MEGA DOMINATOR VX 3rd cutterbar cylinder Fitting and Operating Instructions Manual_DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

Claas Combine MEDION 330/310 DOMINATOR 204/203 MEGA DOMINATOR VX 3rd cutterbar cylinder Fitting and Operating Instructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION
These instructions describe the safe and timesaving
work sequence for retrofitting the third cutterbar
cylinder.
Retrofitting of the MEDION 330/310,
DOMINATOR VX, and DOMINATOR 204/203
combine harvesters, with the supplementary kit part
no. 633 836.0, is possible from the following machine
number ranges:
93200011, 92000011 and 93000011.
The standard mounting time is approx. 1 man hour.
See page 4.1 for the shipping package.
Observe the »Safety Rules« in the applicable
operator’s manual.
Your CLAAS Service Department

General
information
IMPORTANT
The instructions contained in this manual
should be carefully read and observed by all
persons who are concerned with the operation,
maintenance and inspection of this machine/
front attachment in order to prevent accidents.
Especially the »Safety Rules« in the operator’s
manual should be read with the utmost care and
adhered to. In addition, please also observe the
accident prevention regulations that apply for
your own country.
Before commencing with the job, ensure that all
the tools and service aids are available.
Compare existing machine type/front
attachment type with the list in the chapter
»Shipping Package« and the parts kit supplied.
The specification of the components, e.g. bolts,
is shown on the shipping package. The shipping
package shows the position number (pos. no.)
of the components. Parts such as nuts and
contact washers do not have a position number
but belong to the bolt listed above which does
have a position number. Additional part
specifications are the parts no., description,
measurements, DIN and the quantity.
In order to help with the assembly, existing
components in the instructions are identified
with letters, whereas new parts have been
identified with a number (position number).
The text and pictures were kept neutral as far as
possible. Differences between the individual
types are mentioned in the text.
Technical data, dimensions and weights are
given as an indication only. CLAAS reserve the
right to make changes subsequently as
technical developments continue.
Responsibility for errors or omissions not
accepted.
Front, rear, right and left refer to the direction of
forward travel.

TABLE OF CONTENTS:

Claas Combine MEDION 330/310 DOMINATOR 204/203 MEGA DOMINATOR VX 3rd cutterbar cylinder Fitting and Operating Instructions Manual_DE_EN_FR – PDF DOWNLOAD

CONTENTS
1. Introduction
Introduction ……………………………………………………………………. 1.1
2. Contents
Contents ……………………………………………………………………….. 2.1
3. General information
Important ………………………………………………………………………. 3.1
Identification of warnings and danger signs ………………….. 3.2
Correct use ………………………………………………………………. 3.2
4. Shipping Package
Shipping Package ………………………………………………………….. 4.1
Supplementary kit 633 836.0 ……………………………………… 4.1
5. Installation
Installing the third cutterbar cylinder ………………………………….. 5.1
Preparing the installation ……………………………………………. 5.1
Installing the cutterbar cylinder …………………………………… 5.1
Preparing and performing the test run …………………………. 5.3

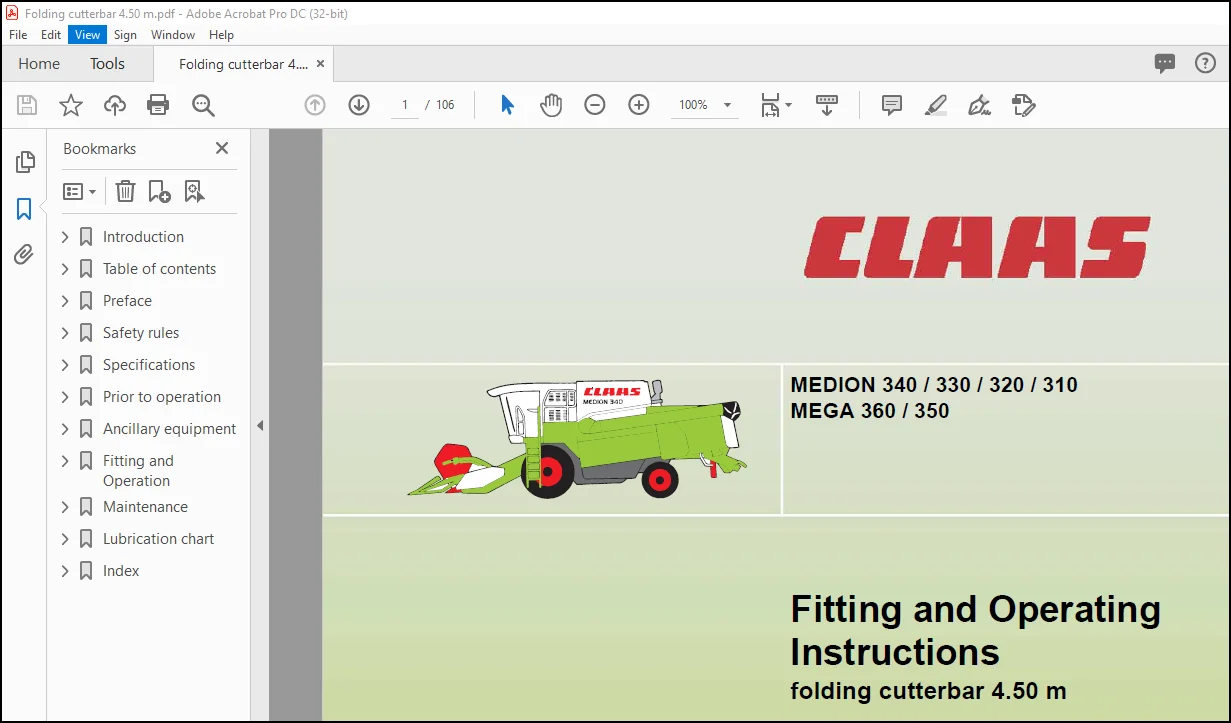

IMAGES PREVIEW OF THE MANUAL:
