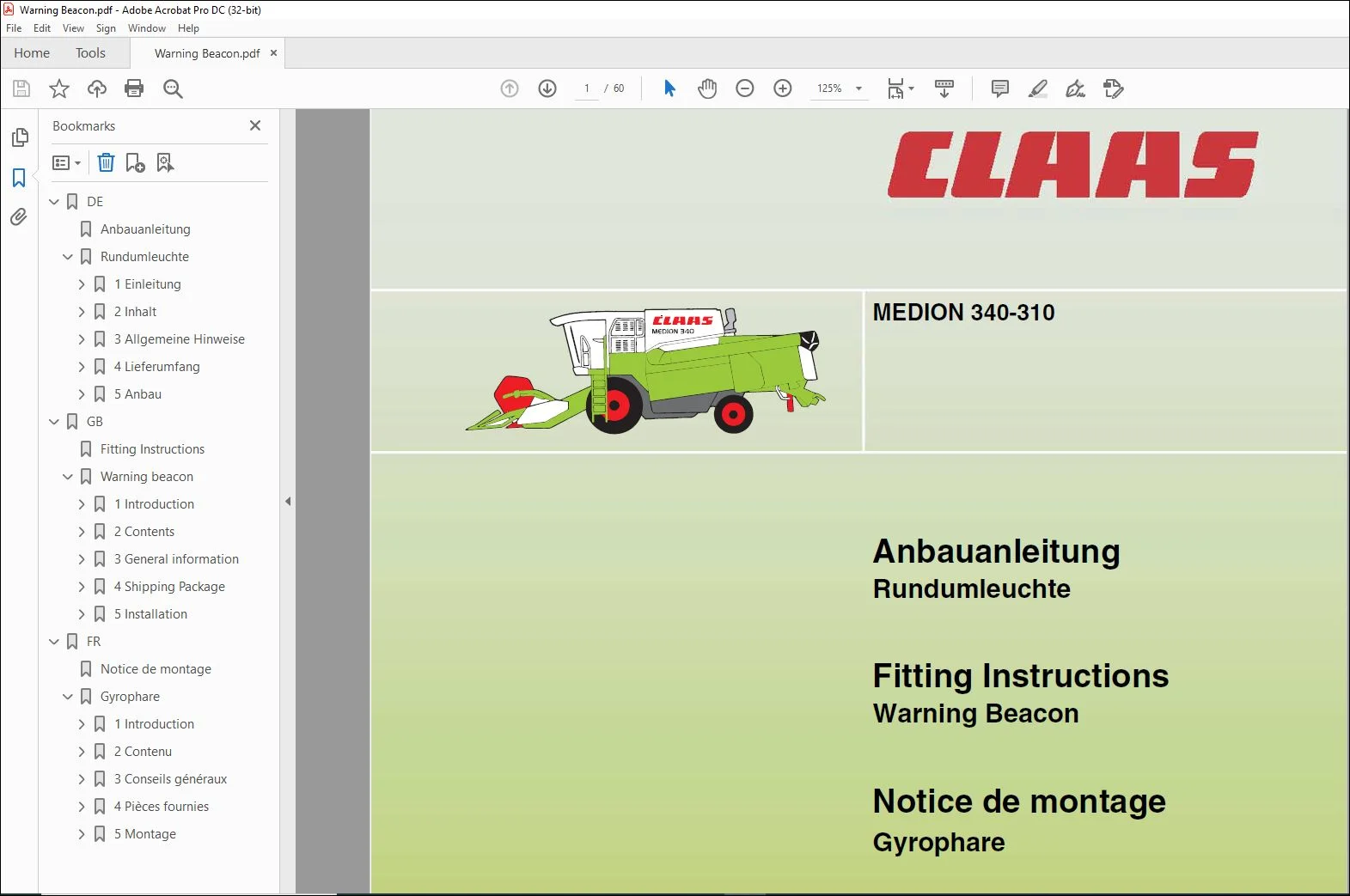

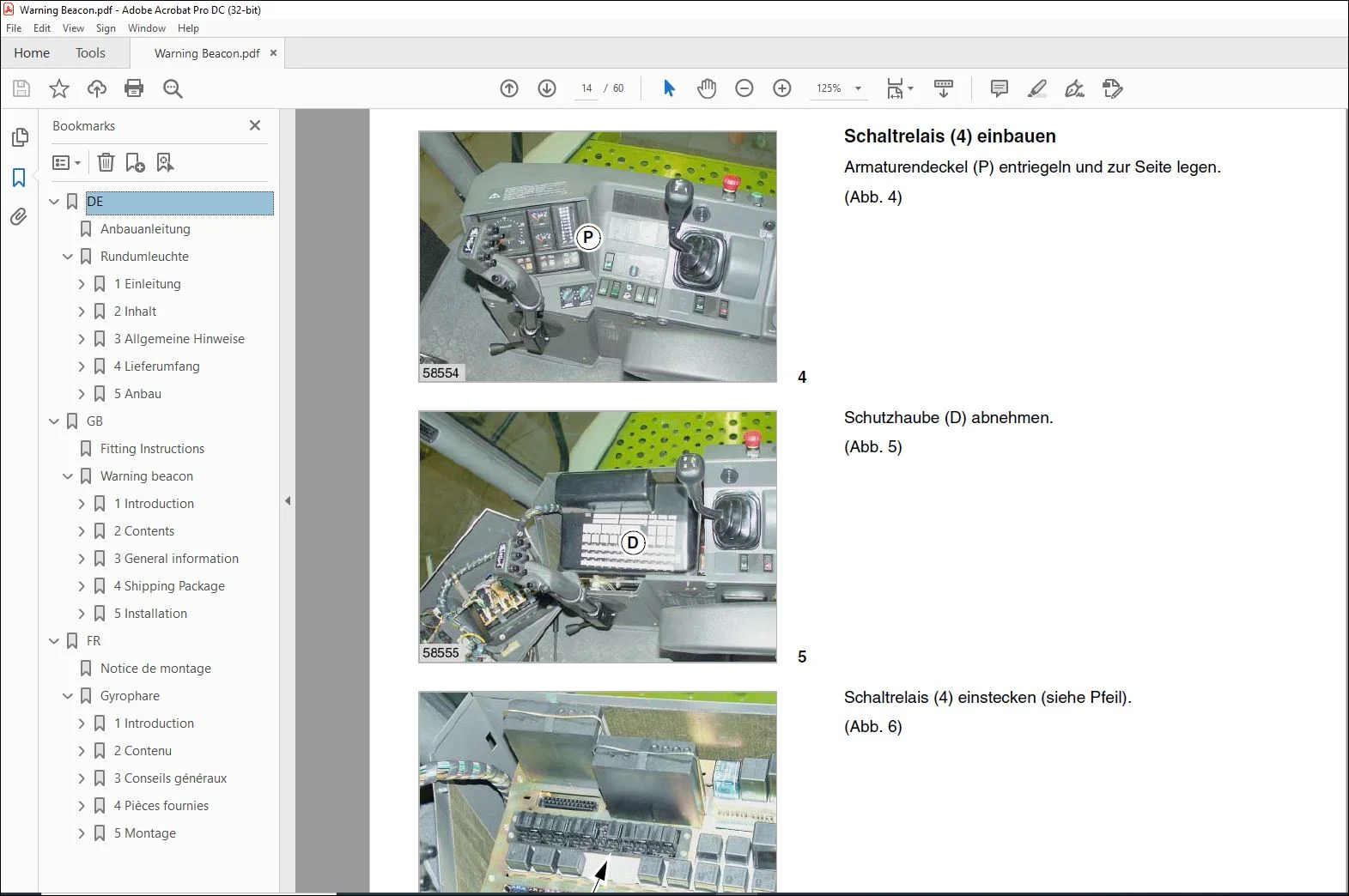

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS COMBINES MEDION 340-310 Warning Beacon Fitting instructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

These instructions describe the safe and timesaving work sequence for retrofitting the warning beacons. Retrofitting of the MEDION 340-310 combine harvesters, with the supplementary kit part no. 012 962.1, is possible from the following machine number ranges: 93100011, 93200011 and 93400011. The standard mounting time is approx. 2 man hours. See page 4.1 for the shipping package. Observe the »Safety Rules« in the applicable operator’s manual

TABLE OF CONTENTS:

CLAAS COMBINES MEDION 340-310 Warning Beacon Fitting instructions Manual_DE_EN_FR – PDF DOWNLOAD

INHALT
1 Einleitung
Einleitung 11
2 Inhalt
Inhalt 21
3 Allgemeine
Hinweise
Besonders zu beachten 31
Kennzeichnung von Warn- und Gefahrenhinweisen 32
Bestimmungsgemäße Verwendung 32
4 Lieferumfang
Lieferumfang 41
Nachrüstsatz 012 9621 41
5 Anbau
Rundumleuchte anbauen 51
Anbau vorbereiten 51
Drehschalter (1) einbauen 51
Schaltrelais (4) einbauen 52
Rundumleuchte (8) vorne anbauen 53
Rundumleuchte (10) hinten anbauen 56
Probelauf vorbereiten und durchführen 58
CONTENTS
1 Introduction
Introduction 11
2 Contents
Contents 21
3 General
information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit 012 9621 41
5 Installation
Installing the warning beacon 51
Preparing the installation 51
Installing the rotary switch (1) 51
Installing the control relay (4) 52
Installing the warning beacon (8) on the front 53
Installing the warning beacon (10) on the rear 56
Preparing and performing the test run 58
CONTENU
1 Introduction
Introduction 11
2 Contenu
Contenu 21
3 Conseils
généraux
Important 31
Identification des prescriptions concernant
les avertissements et les dangers 32
Utilisation conforme à l’emploi prévu 32
4 Pièces fournies
Pièces fournies 41
Jeu d’équipement supplémentaire 012 9621 41
5 Montage
Montage des gyrophares 51
Préparation du montage 51
Montage du commutateur rotatif (1) 51
Montage du relais (4) 52
Montage du gyrophare (8) à l’avant 53
Montage du gyrophare (10) à l’arrière 56
Préparation et exécution d’une marche d’essai 58
