CLAAS CONSPEED 6-75 C CONSPEED 6-70 C CLAAS MEDION Conversion Instructions Manual
Original price was: $89.00.$26.95Current price is: $26.95.
CLAAS CONSPEED 6-75 C CONSPEED 6-70 C CLAAS MEDION Conversion Instructions Manual
Description
CLAAS CONSPEED 6-75 C CONSPEED 6-70 C CLAAS MEDION Conversion Instructions Manual – PDF DOWNLOAD
DESCRIPTION:
CLAAS CONSPEED 6-75 C CONSPEED 6-70 C CLAAS MEDION Conversion Instructions Manual – PDF DOWNLOAD
INTRODUCTION
These instructions describe a safe and timesaving procedure for the retrofitting kit ET-No. 496 166.0
(Lock-up valve unit).
Please read this manual thoroughly before starting work! Pay particular attention to the section »General
instructions«.
The following machines can be converted:
CLAAS maize picker:
on MEDION
CONSPEED 6-75 C
CONSPEED 6-70 C
The shipping package is listed on page 4.2. Before
starting with the work, ensure that all parts of the retrofitting
kit have been supplied.
The “Shipping package” list is also considered a supplement
to the spare parts list.
Components, which are not needed for the retrofit,
must be disposed of in an environmentally compatible
manner.
TABLE OF CONTENTS:
CLAAS CONSPEED 6-75 C CONSPEED 6-70 C CLAAS MEDION Conversion Instructions Manual – PDF DOWNLOAD
1 Introduction
Introduction 1 1
2 Table of contents
3 General instructions
Of special importance 3 1
Identification of warnings and dangers 3 1
Designated use 3 2
Safety decals with warning symbols 3 2
General safety instructions 3 2
4 Shipping package
Shipping package for retrofitting kit Lock-up valve unit 4 2
Retrofitting kit: 496 166 0 4 2
5 Assembly of the lock-up valve unit retrofitting
kit
Disconnecting the hydraulic lines 5 1
Installing the new hydraulic lines 5 2

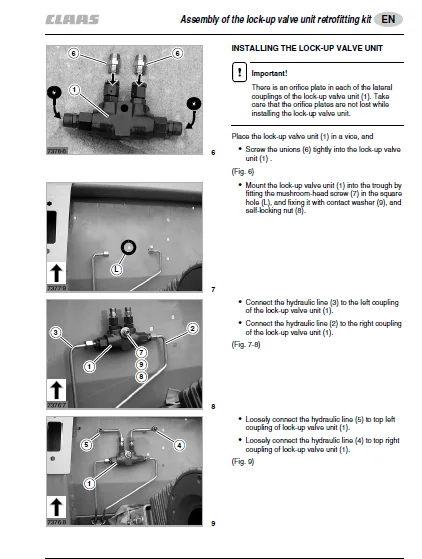

Installing the lock-up valve unit 5 3
Check and observe the following points before putting
into operation 5 5
CLAAS CONSPEED 6-75 C CONSPEED 6-70 C CLAAS MEDION CONVERSION INSTRUCTIONS MANUAL:

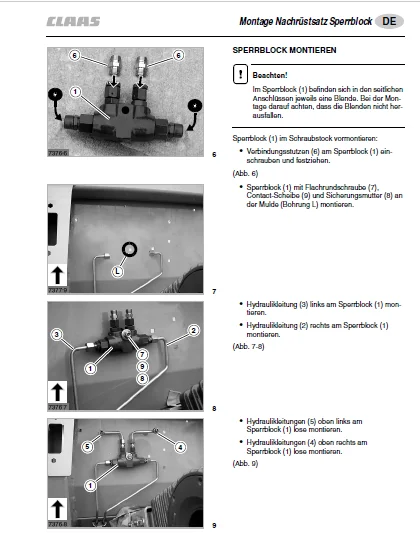

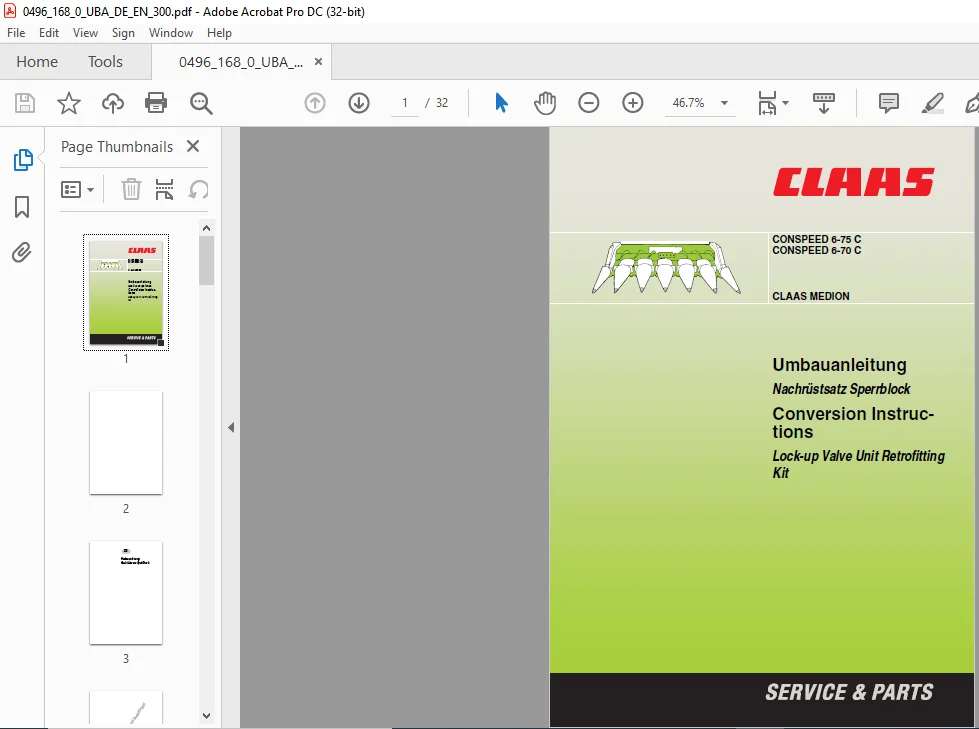

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
